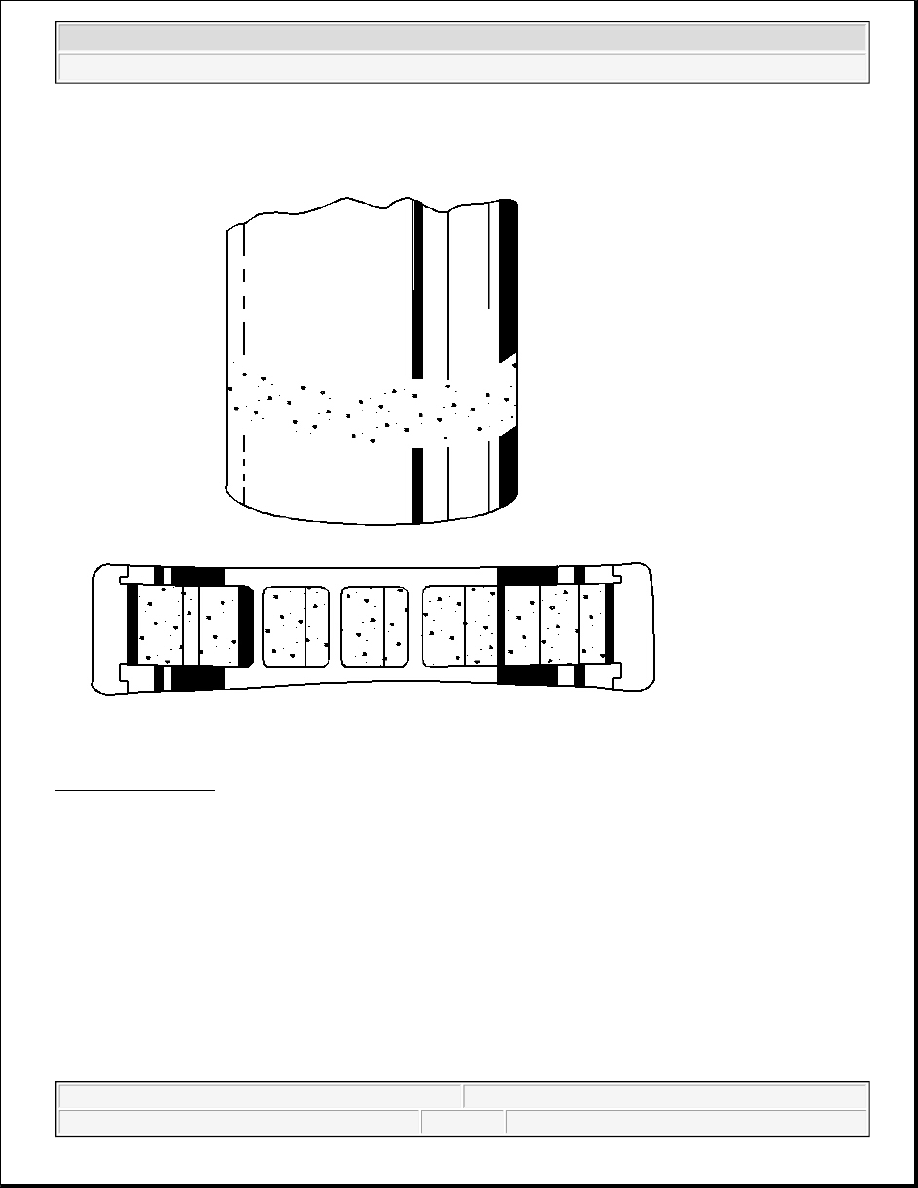

Fig. 20: Indentations
Courtesy of GENERAL MOTORS CORP.

Surface depressions on race and rollers can be caused by hard particles of foreign material. Clean all of the
parts, including the housing. Check the seals. Replace the bearings if rough or noisy. Replace the shaft if
damaged.

Single Edge Pitting



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



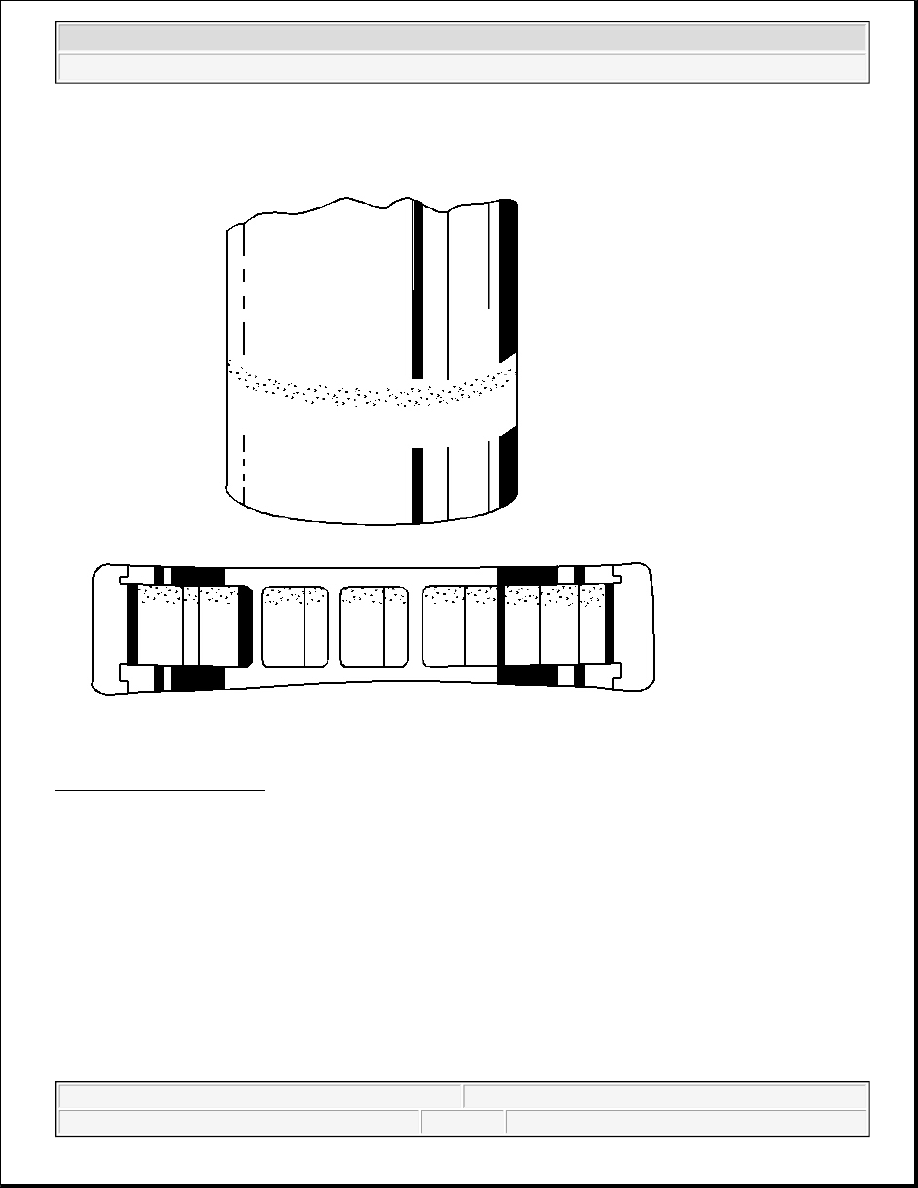

Fig. 21: Single Edge Pitting
Courtesy of GENERAL MOTORS CORP.

Flaking of surface metal results from fatigue, usually at one edge of race and rollers. Replace the bearing. Clean
all related parts. Replace the shaft if damaged.

Double Edge Pitting



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



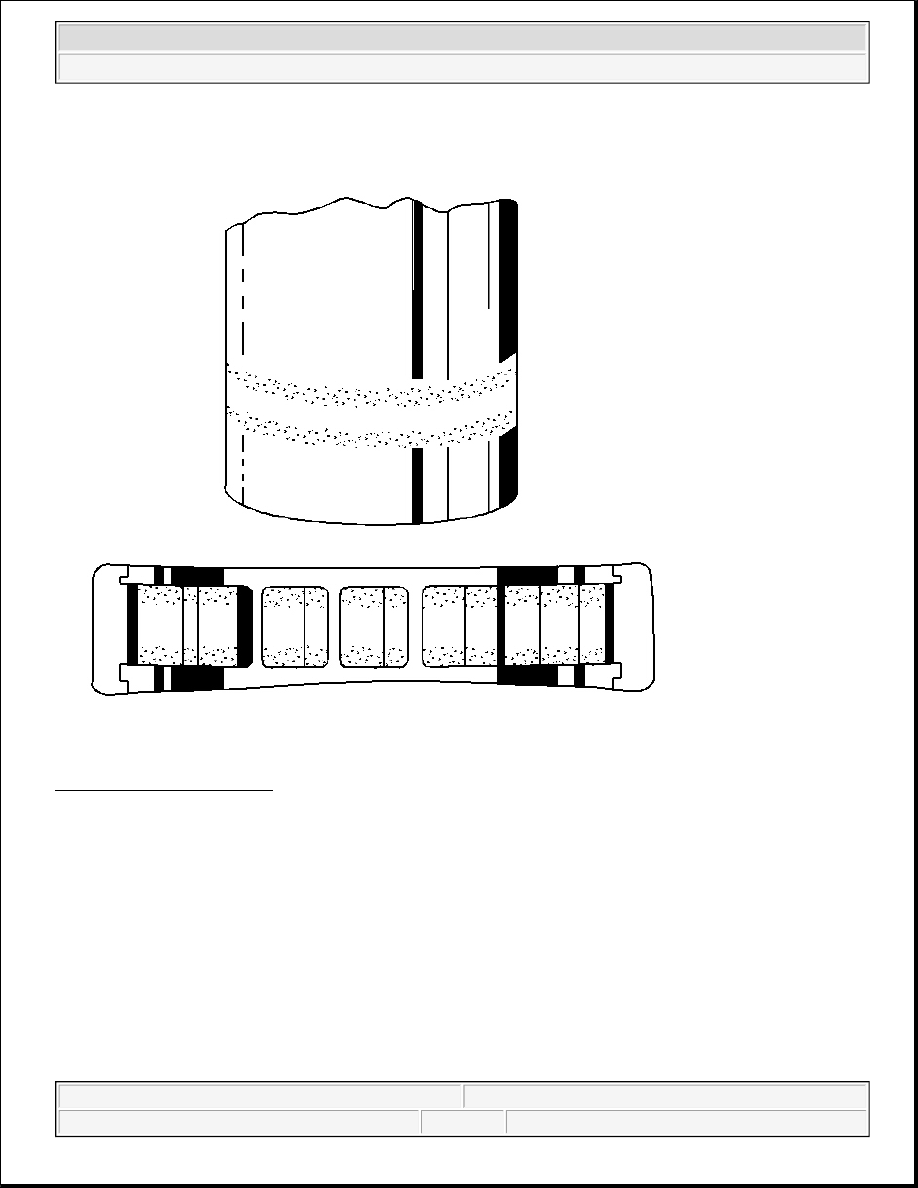

Fig. 22: Double Edge Pitting
Courtesy of GENERAL MOTORS CORP.

Flaking of surface metal results from fatigue, usually at both edges of the race and rollers. Replace the bearing.
Clean all related parts. Replace the shaft if damaged.

Misalignment



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



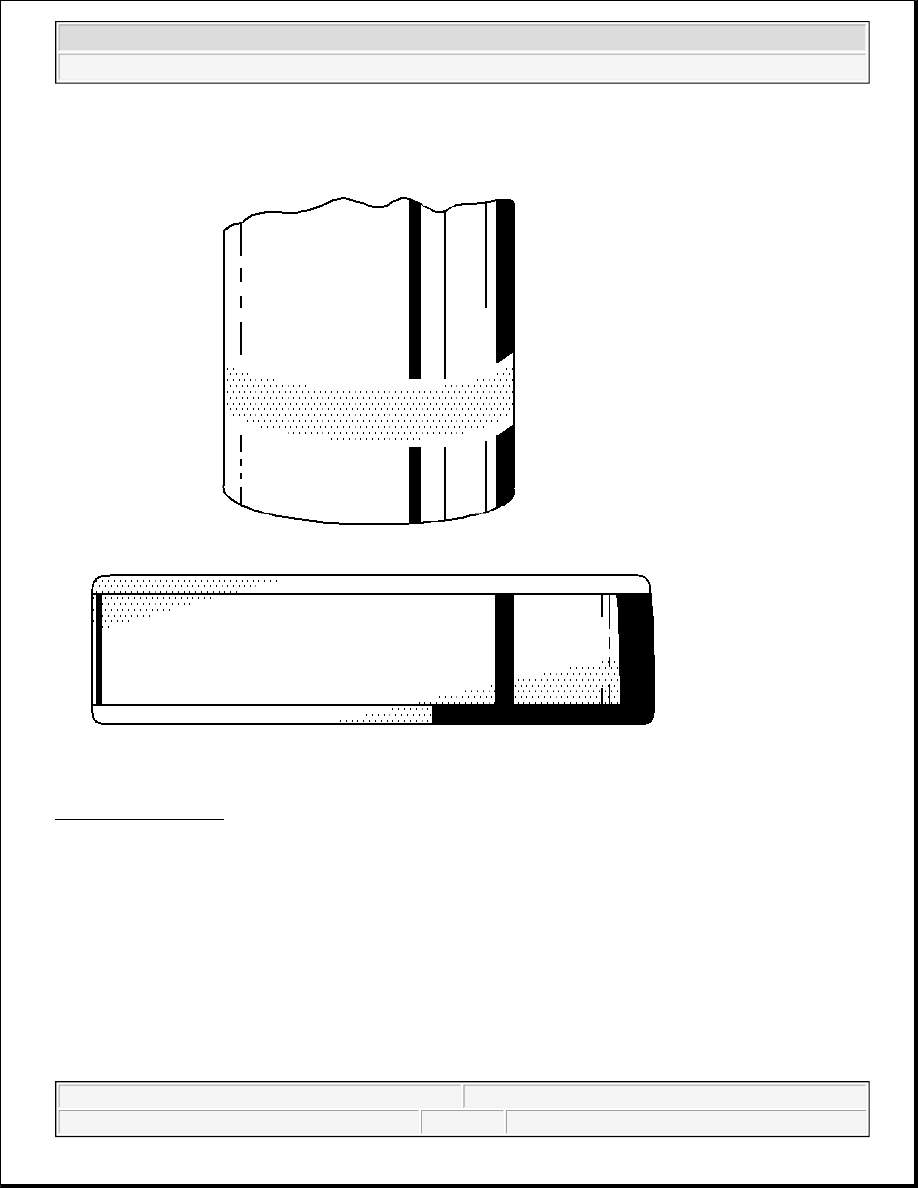

Fig. 23: Misalignment
Courtesy of GENERAL MOTORS CORP.

Outer misalignment due to a foreign object. Replace the bearing. Ensure races are properly seated. Replace the
shaft if the bearing operating surface is damaged.

Frettage



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2
