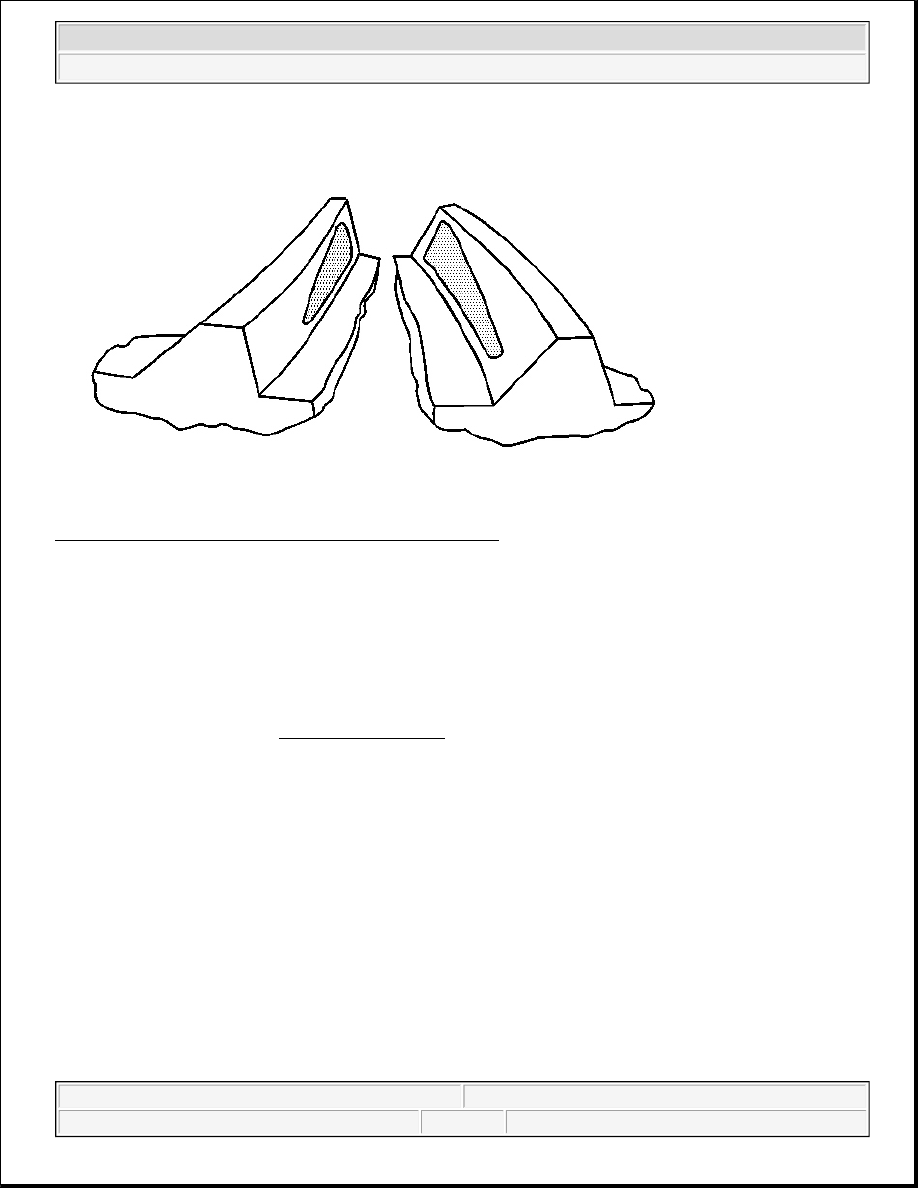

Fig. 123: Drive Side Heel - Coast Side Heel Contact Pattern
Courtesy of GENERAL MOTORS CORP.

Condition

The backlash is incorrect. The ring gear is too far away from the pinion.

Correction

Decrease the backlash. Move the ring gear closer to the pinion by adjusting the side bearing shim thickness or
the adjuster sleeve(s). Refer to Backlash Adjustment .

Drive Side Toe - Coast Side Toe Contact Pattern



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



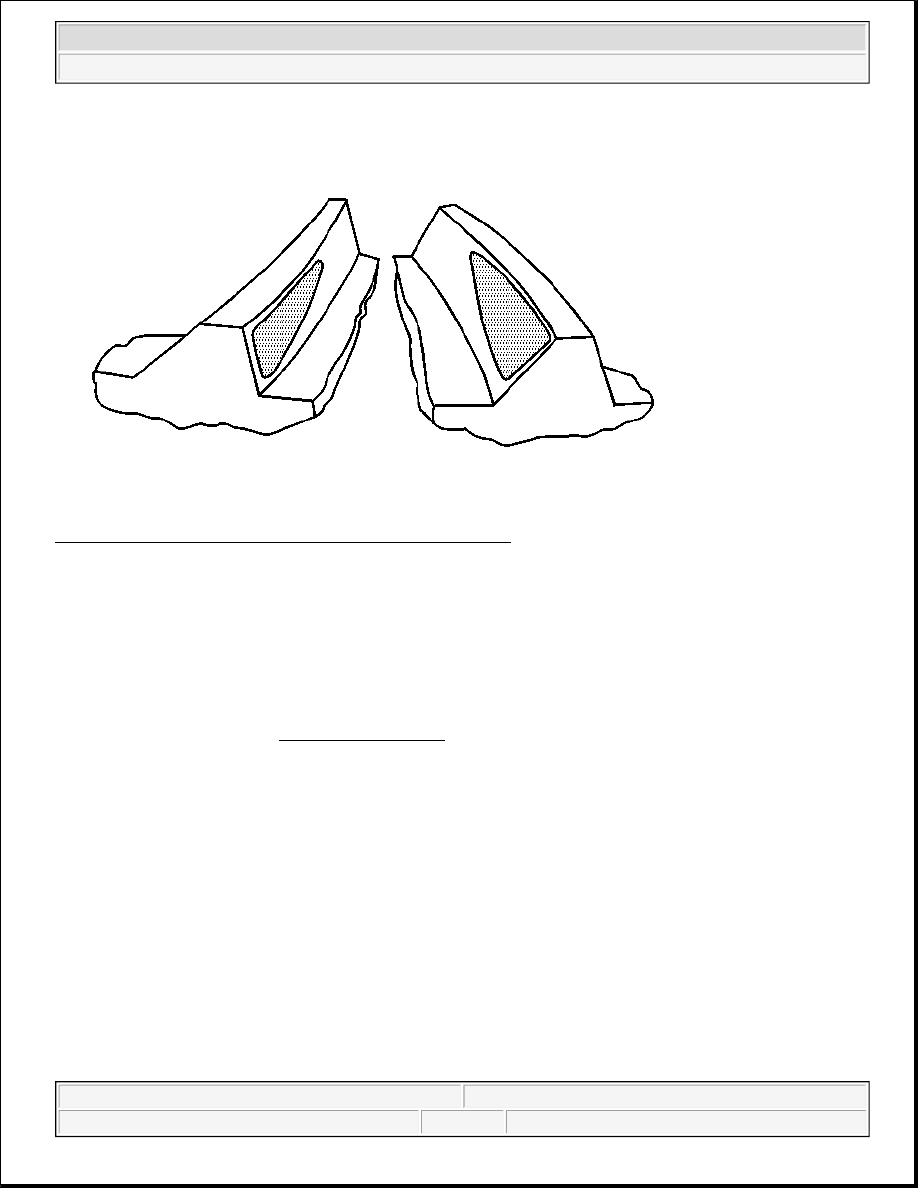

Fig. 124: Drive Side Toe - Coast Side Toe Contact Pattern
Courtesy of GENERAL MOTORS CORP.

Condition

The backlash is incorrect. The ring gear is too close to the drive pinion.

Correction

Increase the backlash. Move the ring gear away from the pinion by adjusting the side bearing shim thickness or
the adjuster sleeve(s). Refer to Backlash Adjustment .

High Flank Contact Pattern



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



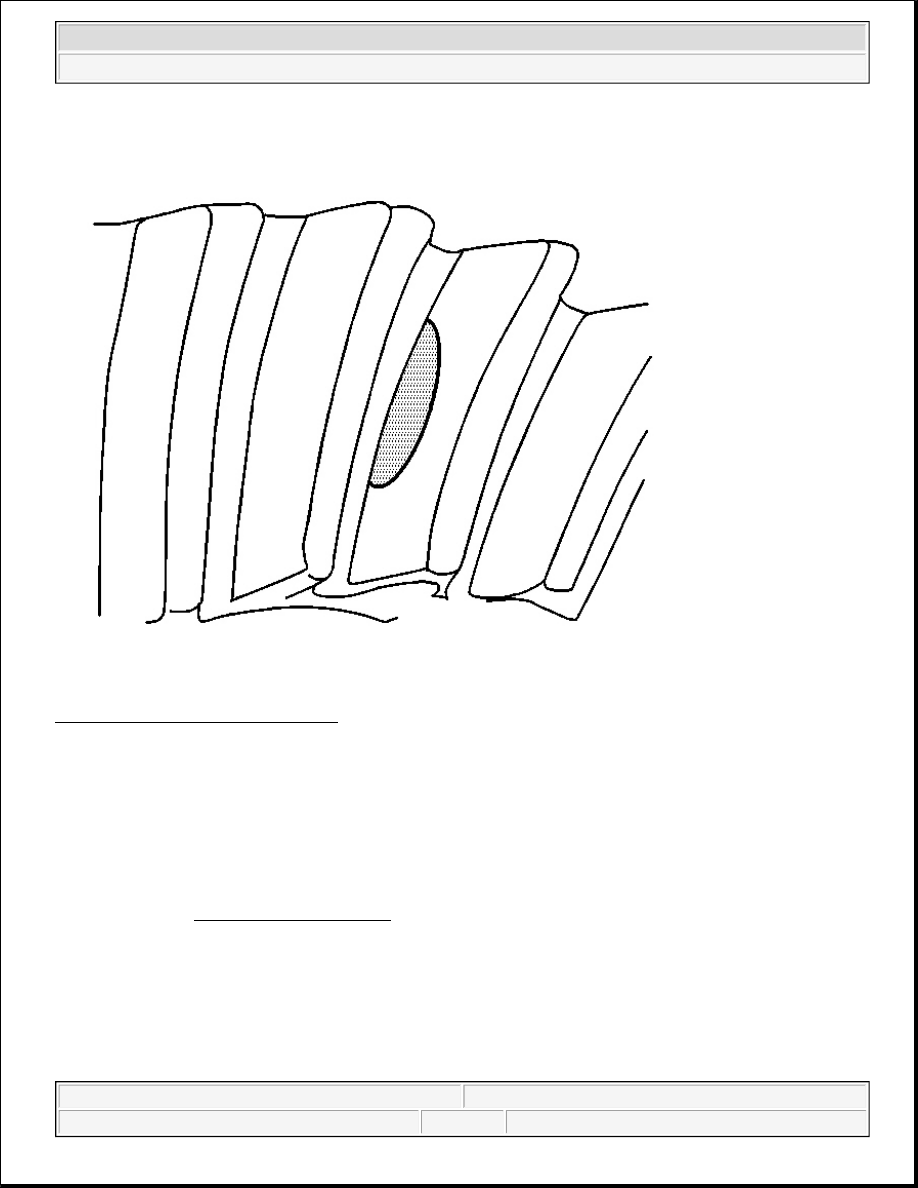

Fig. 125: High Flank Contact Pattern
Courtesy of GENERAL MOTORS CORP.

Condition

The pinion depth is incorrect. The pinion gear is too far away from the ring gear.

Correction

Increase the pinion depth. Move the pinion gear closer to the ring gear by increasing the pinion shim thickness.
Refer to Pinion Depth Adjustment .

Low Flank Contact Pattern



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



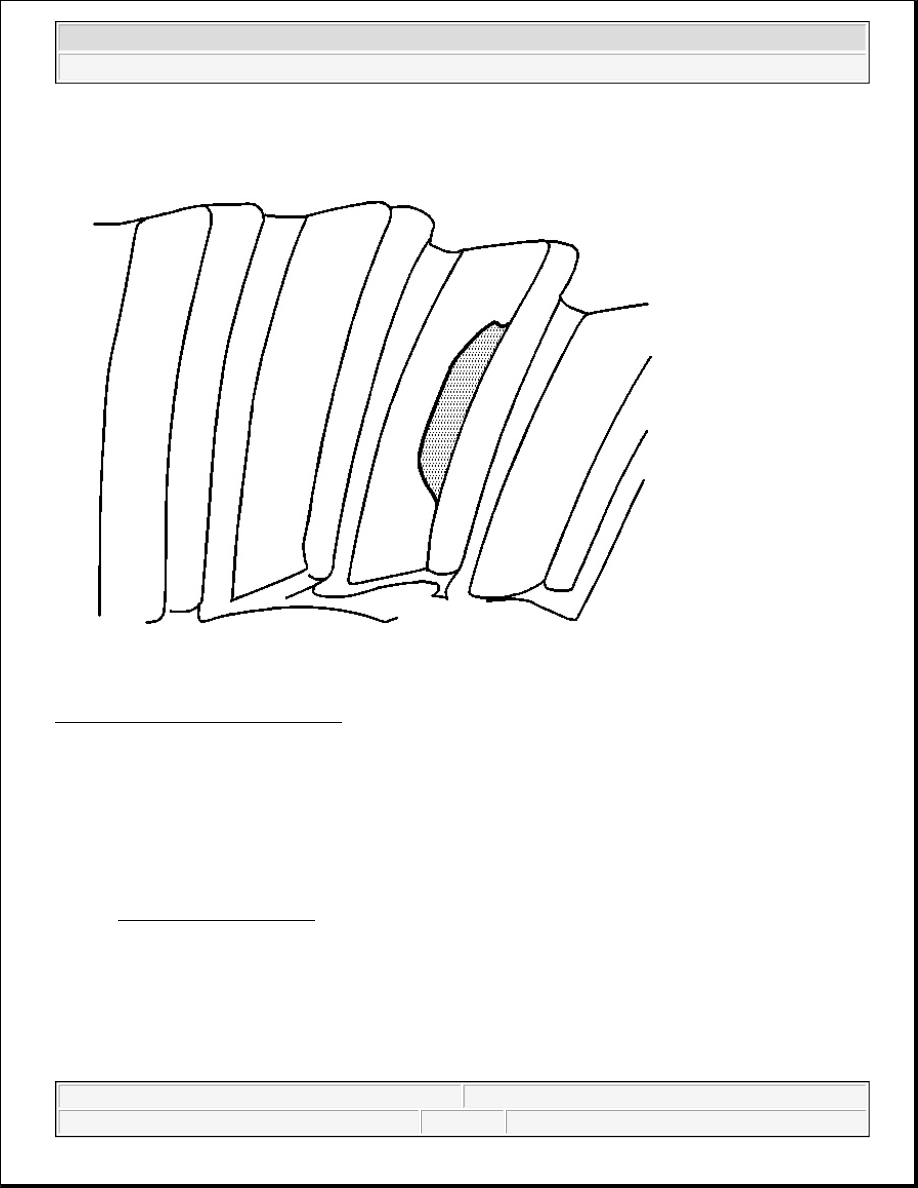

Fig. 126: Low Flank Contact Pattern
Courtesy of GENERAL MOTORS CORP.

Condition

The pinion depth is incorrect. The pinion gear is too close to the ring gear.

Correction

Decrease the pinion depth. Move the pinion gear away from the ring gear by decreasing the pinion shim
thickness. Refer to Pinion Depth Adjustment .

DESCRIPTION AND OPERATION

REAR DRIVE AXLE DESCRIPTION AND OPERATION

Rear Axles for this vehicle consist of the following components:
