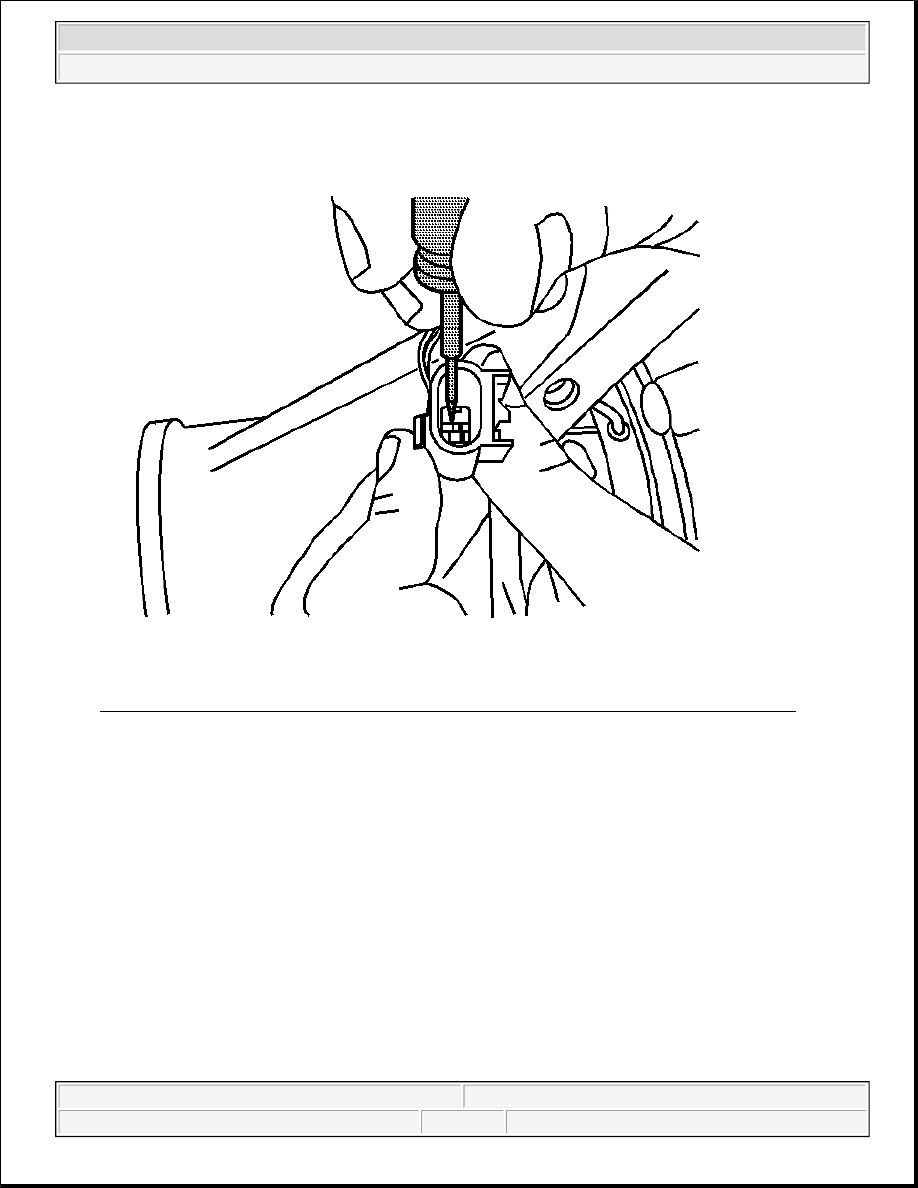

Fig. 76: Pushing On Terminal Release Tabs Within Connector Housing Using J 38125-12A
Courtesy of GENERAL MOTORS CORP.

8. Disconnect the terminals from the electronic locking differential coil connector by pushing on the

terminal release tabs within the connector housing using the J 38125-12A.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



Fig. 77: Electronic Locking Differential Coil Connector Housing
Courtesy of GENERAL MOTORS CORP.

9. Remove the electronic locking differential coil connector housing.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



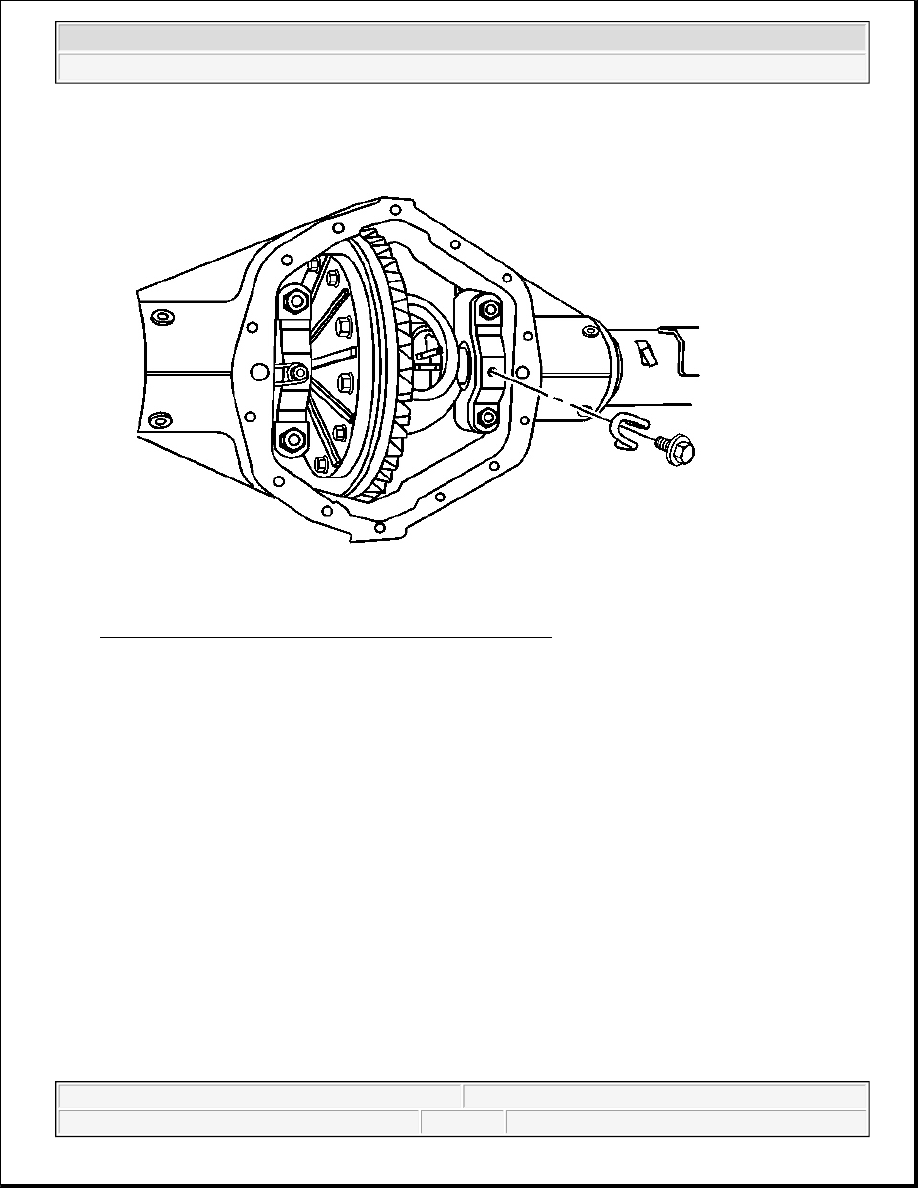

Fig. 78: Right Side Differential Bearing Adjuster Nut Lock
Courtesy of GENERAL MOTORS CORP.

10. Remove the right side differential bearing adjuster nut lock.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



Fig. 79: Locking Differential Coil Assembly Lock Bolt
Courtesy of GENERAL MOTORS CORP.

11. Remove the locking differential coil assembly lock bolt.

Do nut reuse the bolt.

12. Remove the locking differential coil assembly lock.
