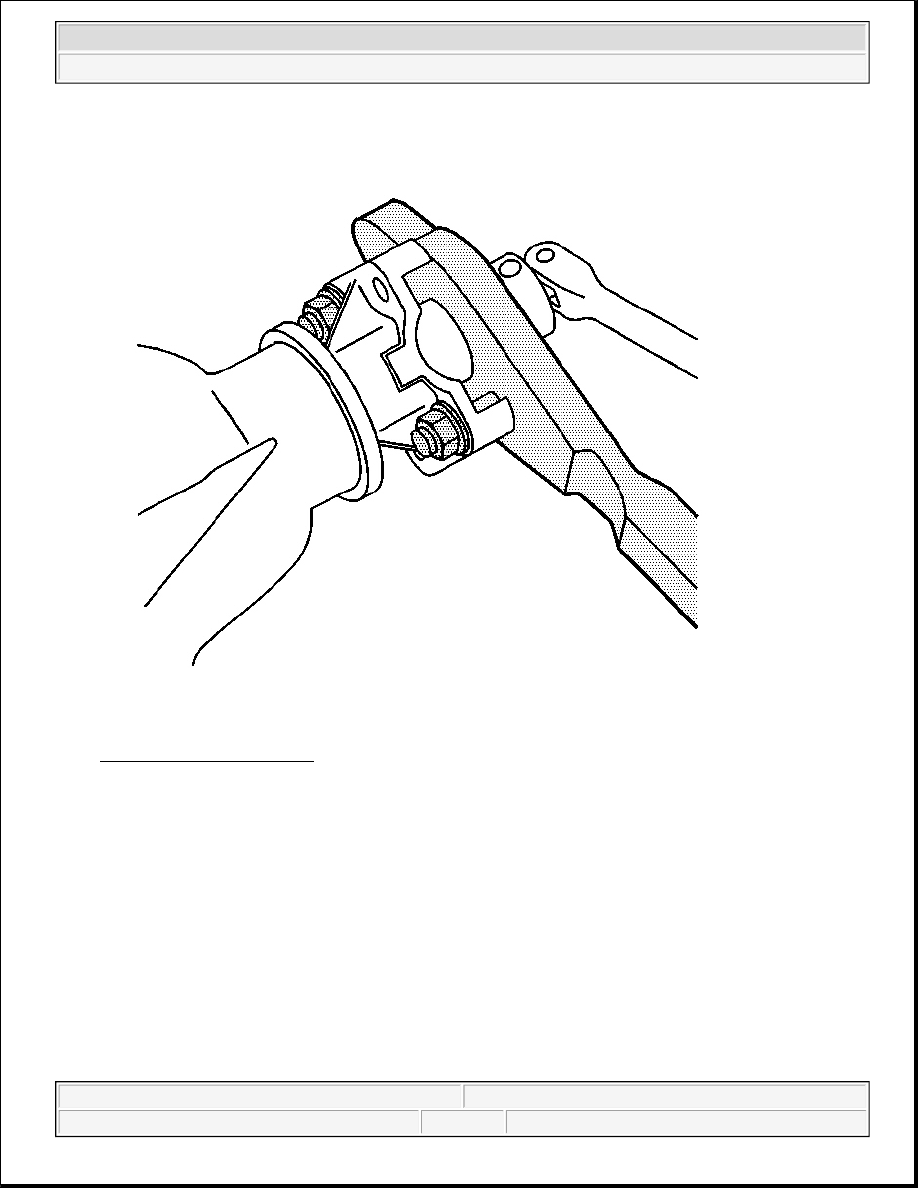

Fig. 54: Installing J 8614-01
Courtesy of GENERAL MOTORS CORP.

8. Install the J 8614-01 as shown.

9. Remove the pinion nut while holding the J 8614-01 .

10. Remove the washer.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



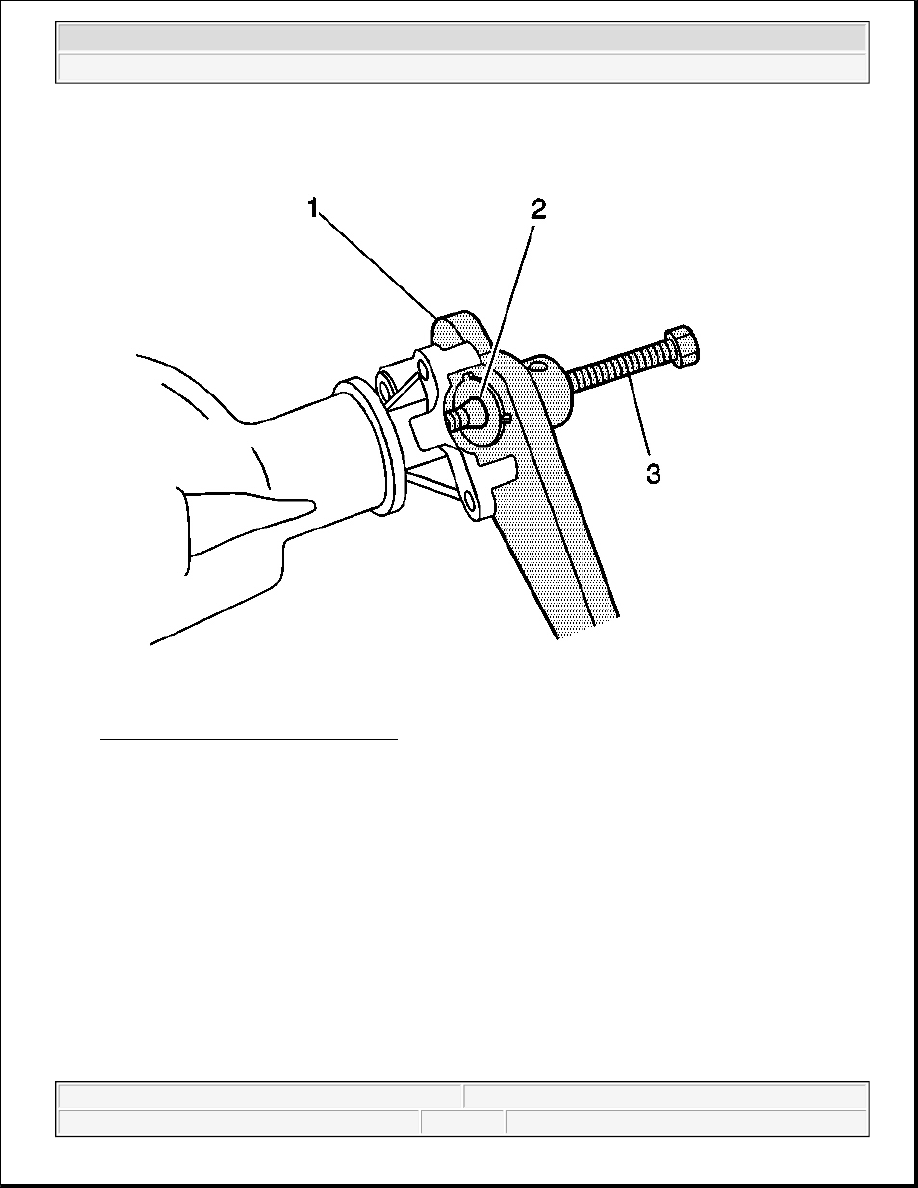

Fig. 55: J 8614-01, J 8614-2 & J 8614-3
Courtesy of GENERAL MOTORS CORP.

11. Install the J 8614-2 (2) and the J 8614-3 (3) into the J 8614-01 (1) as shown.

12. Remove the pinion yoke by turning the J 8614-3 (3) clockwise while holding the J 8614-01 (1).

Use a container in order to retrieve the lubricant.

13. Remove the pinion oil seal. Use a suitable seal removal tool. Do not damage the housing.

Installation Procedure



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



Fig. 56: Installing New Pinion Oil Seal Using J 22388
Courtesy of GENERAL MOTORS CORP.

1. Install a new pinion oil seal using the J 22388 or the J 44414 . See Special Tools and Equipment

2. Apply sealant, GM P/N 12346004 (Canadian P/N 10953480) or equivalent, to the splines of the pinion

yoke.

3. Install the pinion yoke.

Align the marks made during removal.

4. Seat the pinion yoke onto the pinion shaft by tapping it with a soft-faced hammer until a few pinion shaft

threads show through the yoke.

5. Install the washer and a new pinion nut.

NOTE:

Do not hammer the pinion flange/yoke onto the pinion shaft. Pinion
components may be damaged if the pinion flange/yoke is hammered onto
the pinion shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



Fig. 57: Installing J 8614-01
Courtesy of GENERAL MOTORS CORP.

6. Install the J 8614-01 onto the pinion yoke as shown.

7. Tighten the pinion nut while holding the J 8614-01 .

Tighten: Tighten the nut until the pinion end play is just taken up. Rotate the pinion while tightening the
nut to seat the bearings.

NOTE:

Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: If the rotating torque is exceeded, the pinion will have to be removed and

a new collapsible spacer installed.
