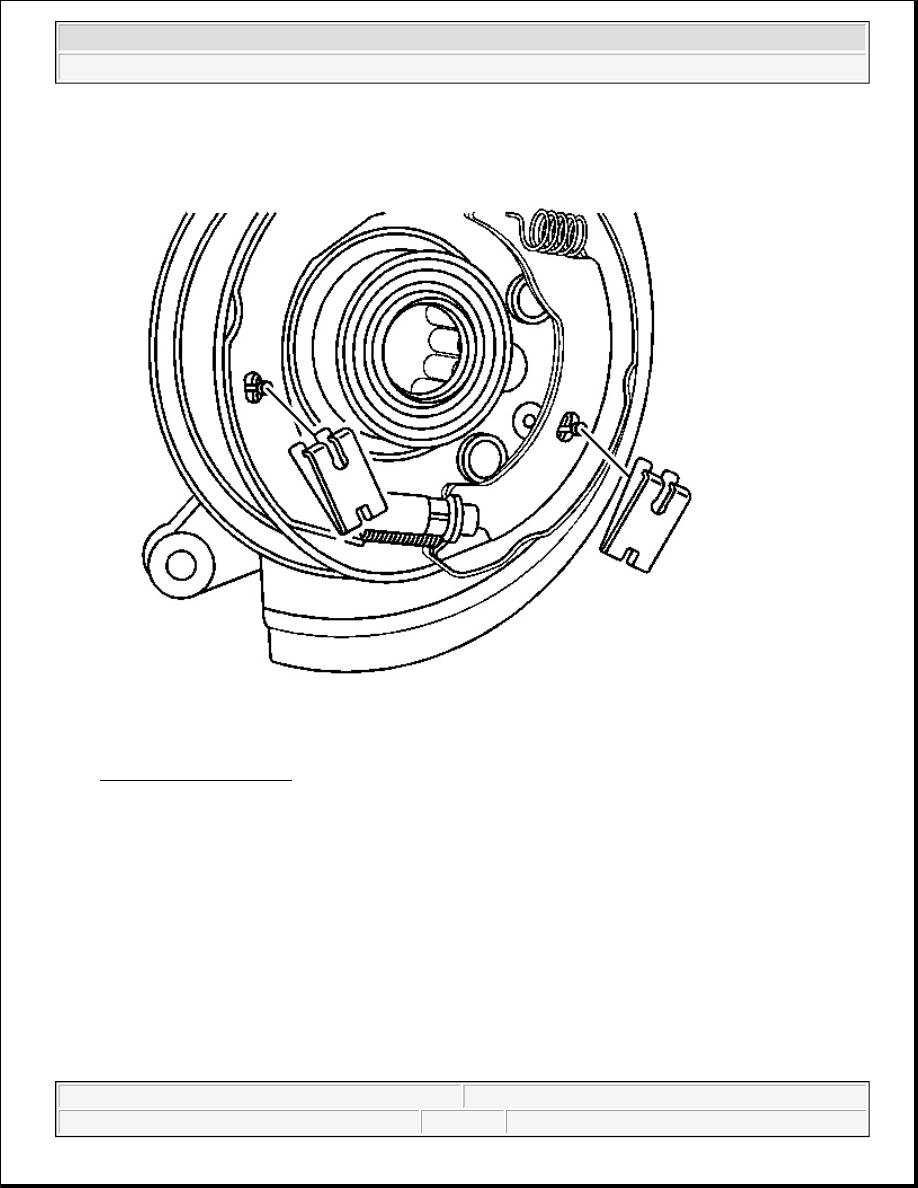

Fig. 4: Park Brake Shoes
Courtesy of GENERAL MOTORS CORP.

1. Clean the debris and the dust from the park brake components using a clean towel.

2. Install the park brake shoes.

3. Install the park brake shoe anchor springs and pins.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



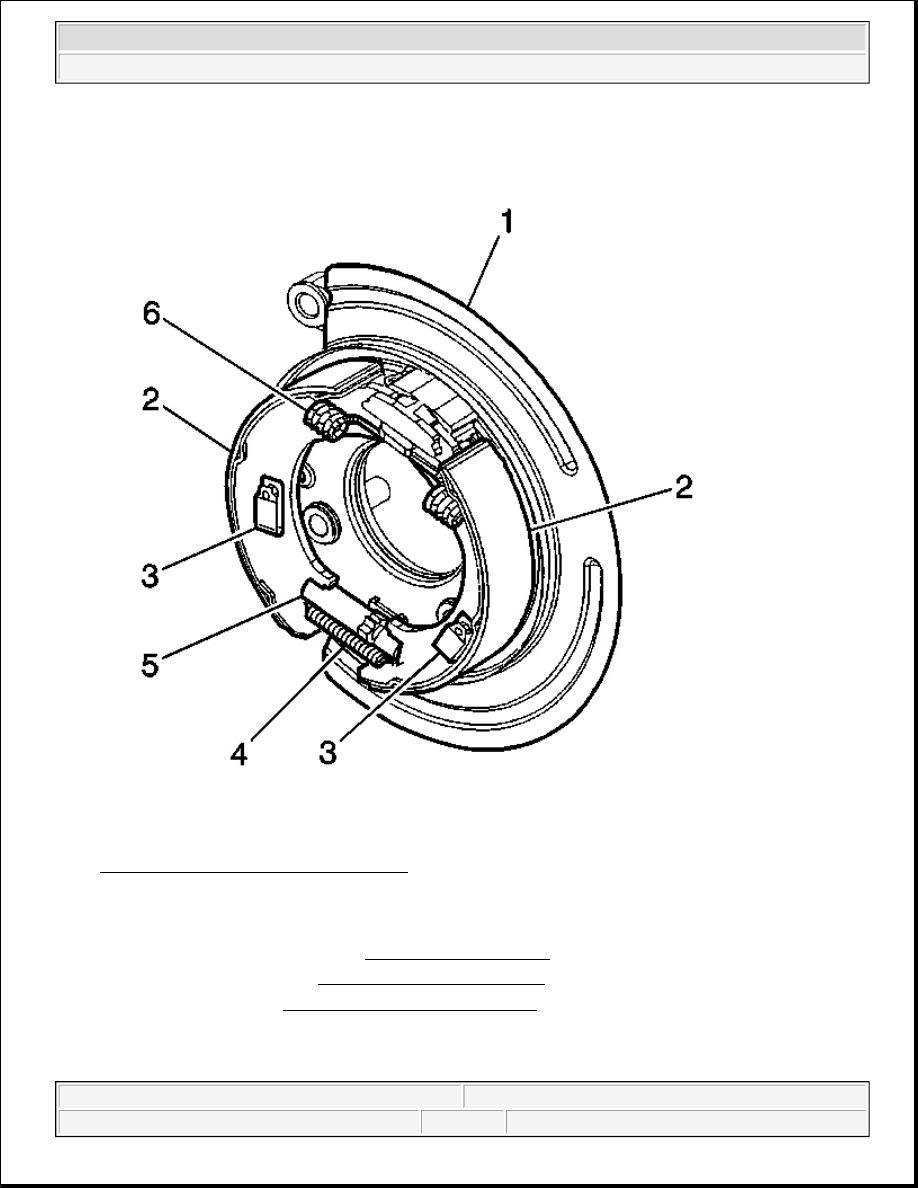

Fig. 5: Park Brake Shoe Return Springs
Courtesy of GENERAL MOTORS CORP.

4. Install the park brake shoe return springs (4, 6).

5. Adjust the park brake shoe. Refer to Park Brake Adjustment .

6. Install the axle shaft. Refer to Rear Axle Shaft Replacement in Rear Drive Axle.

7. Install the rotor. Refer to Brake Rotor Replacement - Rear in Disc Brakes.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

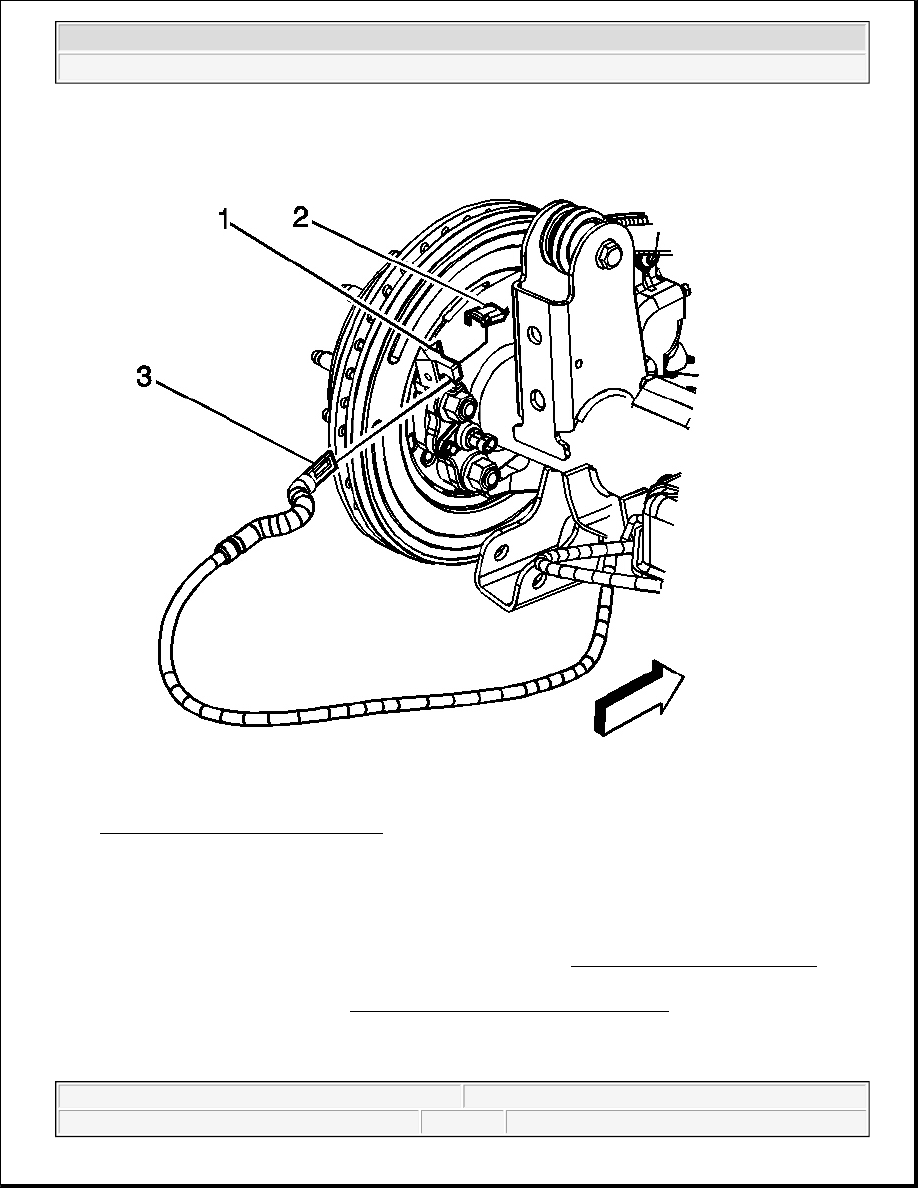

Fig. 6: Cable, Lever & Backing Plate
Courtesy of GENERAL MOTORS CORP.

8. Install the cable (3) to the lever (2).

9. install the cable (3) to the backing plate (1) by compressing the spring, routing the cable through the slot

in the backing plate and pressing the cable into the backing plate until the locking tabs snap into place.

10. Install the caliper and mounting bracket as an assembly. Refer to Brake Pads Replacement - Rear in

Disc Brakes.

11. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

12. Remove the safety stands.

13. Lower the vehicle.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



14. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster .

PARK BRAKE RELEASE HANDLE ASSEMBLY REPLACEMENT

Removal Procedure

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
