Hummer H2. Manual - part 731

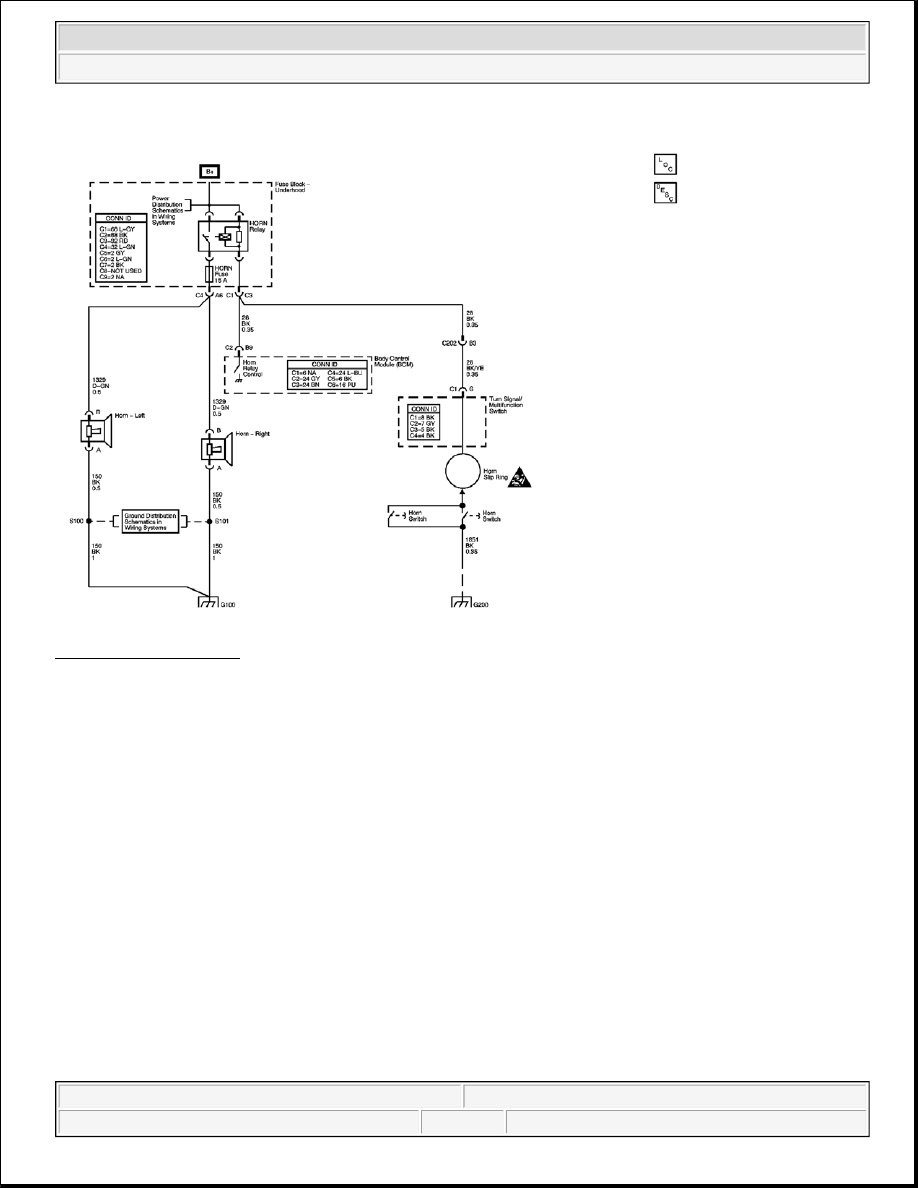

Fig. 1: Horns Schematic
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

HORNS COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Horns - Hummer H2



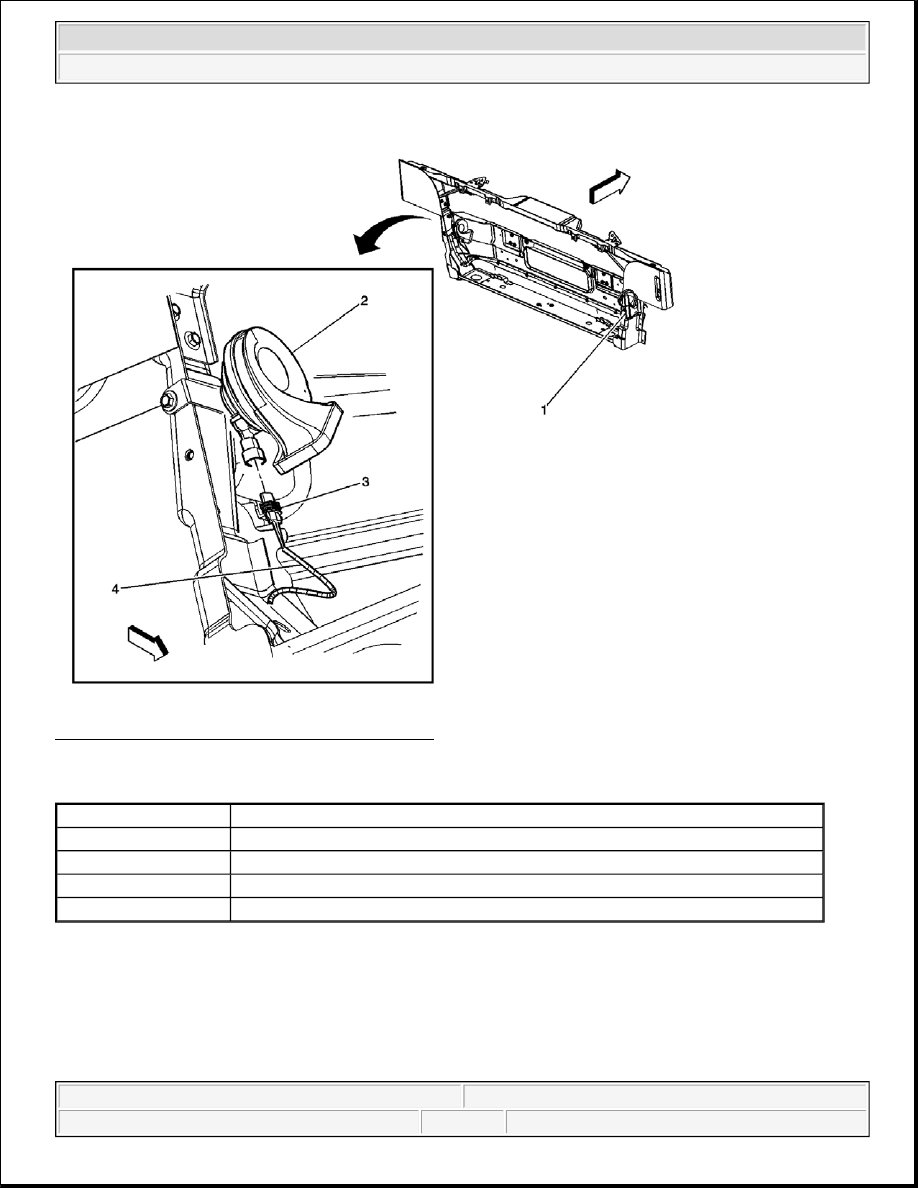

Fig. 2: Horns - Low/High Note Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

Callout

Component Name

1

Horn - Low Note

2

Horn - High Note

3

Horn Connector - High Note

4

Forward Lamp Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Horns - Hummer H2



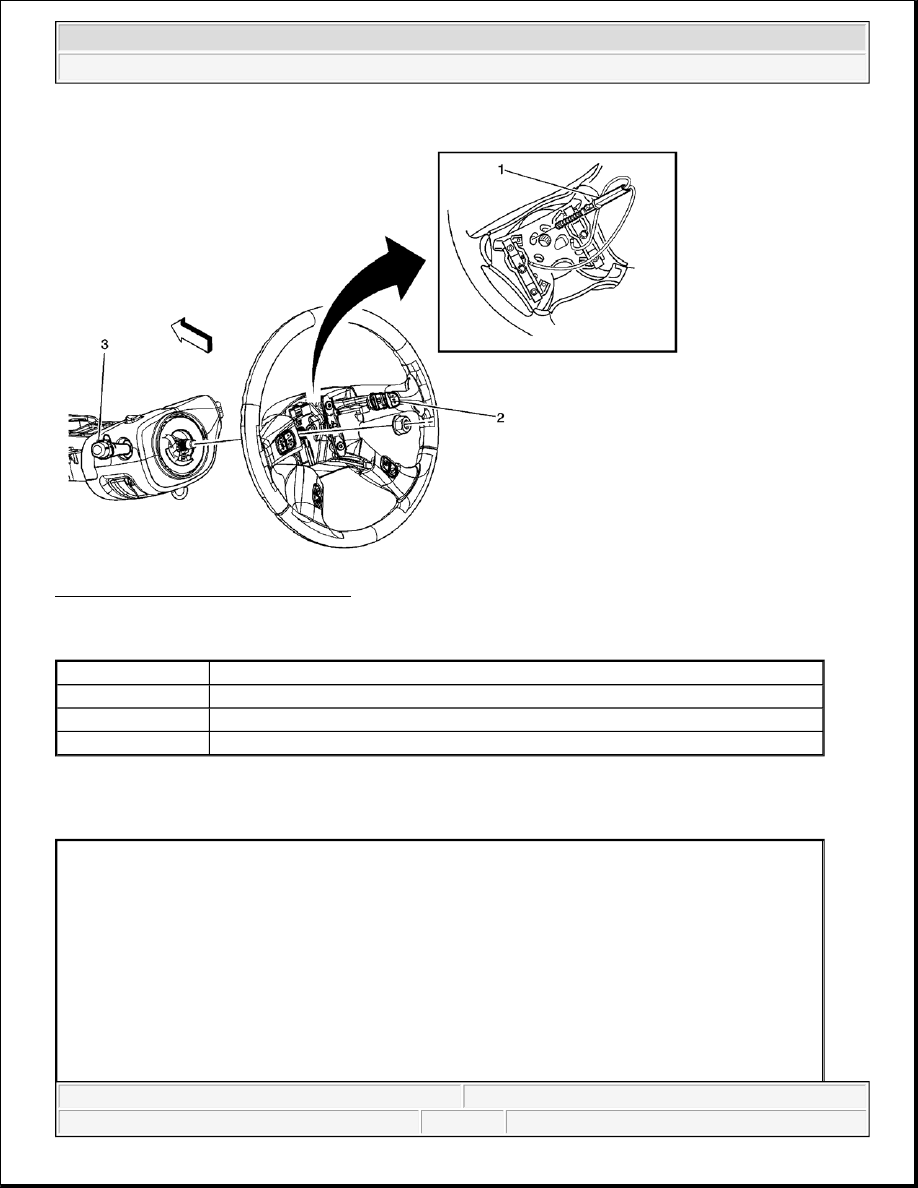

Fig. 3: Horn Switch Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

HORNS CONNECTOR END VIEWS

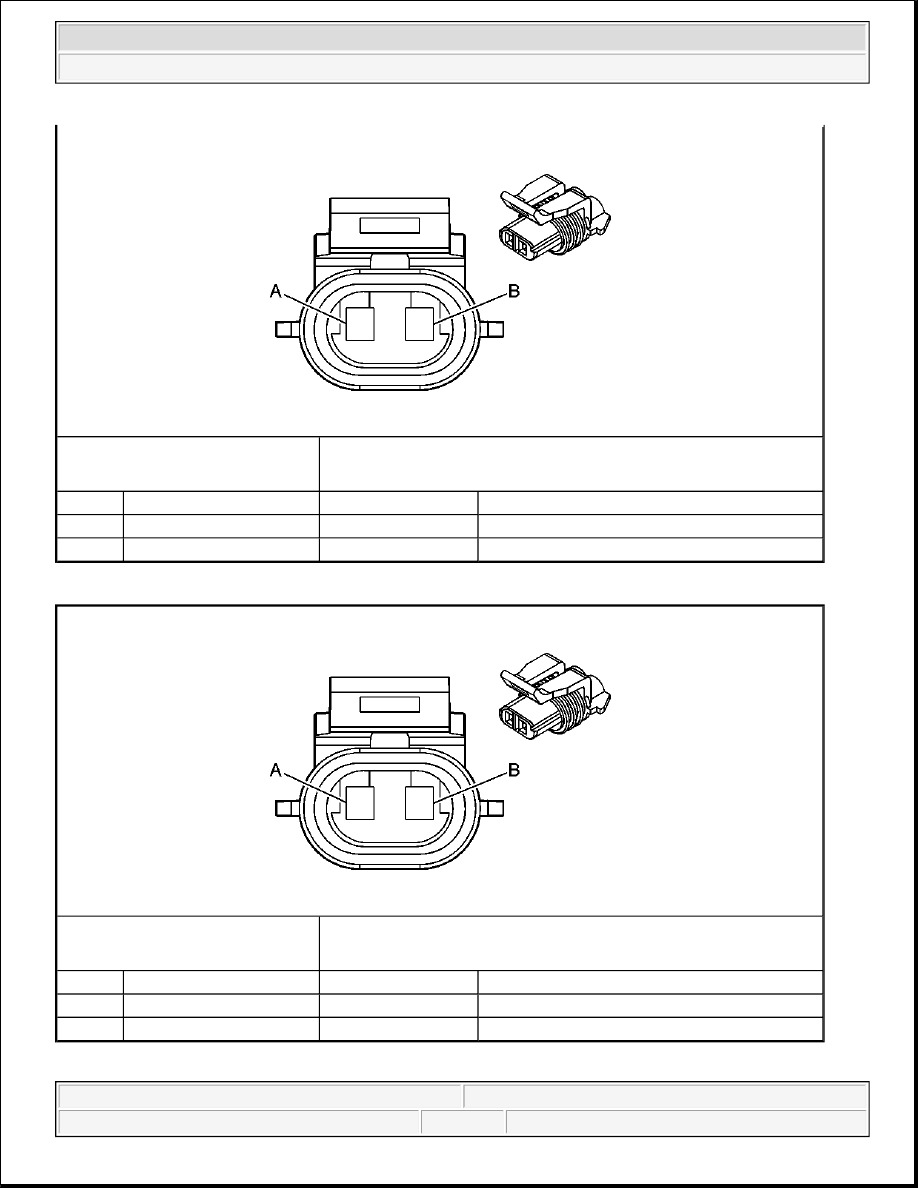

Horn Terminal Identification - Left

Callout

Component Name

1

Horn Switch

2

Steering Wheel Controls

3

Turn Signal/Multifunction Switch



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Horns - Hummer H2



Horn Terminal Identification - Right

Connector Part Information

z

12052644

z

2-Way F Metri-Pack 150 Series Sealed (GY)

Pin

Wire Color

Circuit No.

Function

A

BK

150

Ground

B

D- GN

1329

Horn Fuse Supply Voltage

Connector Part Information

z

12052644

z

2-Way F Metri-Pack 150 Series Sealed (GY)

Pin

Wire Color

Circuit No.

Function

A

BK

150

Ground

B

D- GN

1329

Horn Fuse Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Horns - Hummer H2
