Hummer H2. Manual - part 682

Fig. 117: Rear Door Window Sealing Strip
Courtesy of GENERAL MOTORS CORP.

2. Starting at one side, carefully remove the sealing strip by lifting the strip off of the pinch-weld flange (2).

Installation Procedure

1. Lower the window to the full down position.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

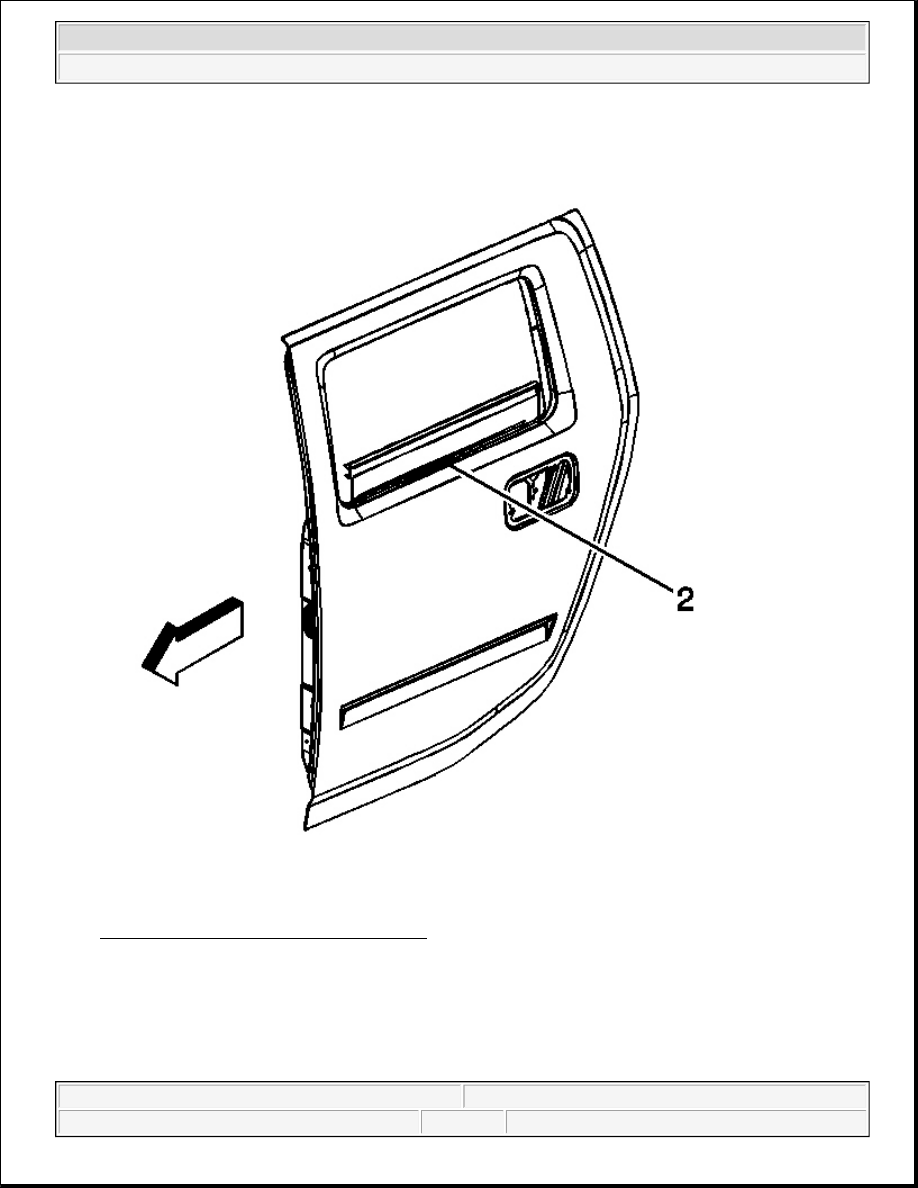

Fig. 118: Rear Door Window Sealing Strip
Courtesy of GENERAL MOTORS CORP.

2. Starting at one side, carefully press the sealing strip down on the pinch-weld flange (2) ensuring that the

strip is fully seated.

3. Raise the window and inspect for proper fit.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



SEALING STRIP REPLACEMENT - REAR DOOR FRONT AUXILIARY

Removal Procedure

1. Open the door.

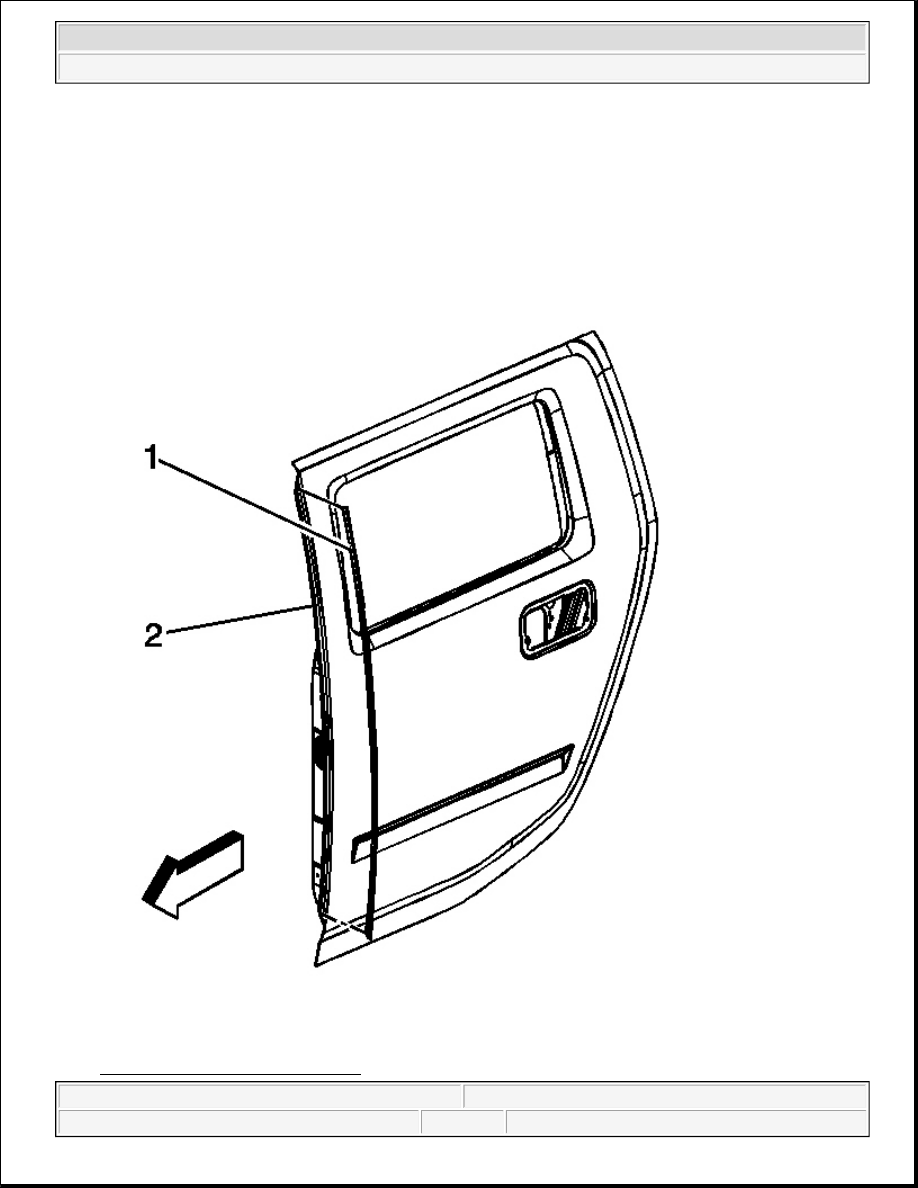

Fig. 119: Rear Door Weatherstrip



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Courtesy of GENERAL MOTORS CORP.

2. Remove the weatherstrip (2) by pulling the weatherstrip off of the pinch-weld flange (1).

Installation Procedure

Fig. 120: Rear Door Weatherstrip



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
