Fig. 54: Rear Door Hinge Fasteners
Courtesy of GENERAL MOTORS CORP.

3. Install the fasteners (1) retaining the hinge to the door.

Tighten: Tighten the fasteners to 25 N.m (18 lb ft).

4. Adjust the door if necessary. Refer to Door Adjustment - Rear .

DOOR CHECK LINK REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Open the door.

2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door orTrim Panel

Replacement - Side Rear Door .

3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door orWater Deflector

Replacement - Rear Door .

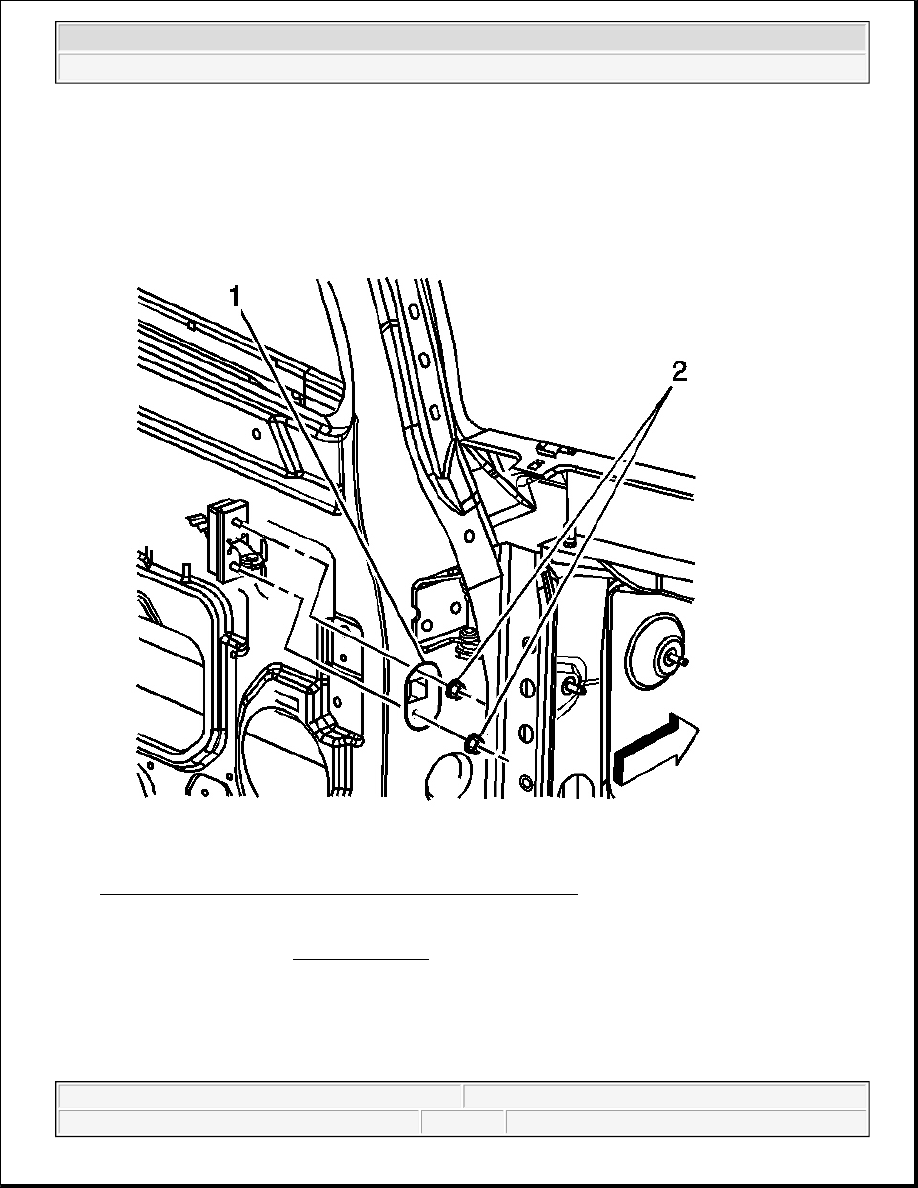

Fig. 55: Rubber Grommet & Front Door Check Link Opening
Courtesy of GENERAL MOTORS CORP.

4. Remove the rubber grommet in the door check link opening (1).

5. Remove the 2 nuts (2) retaining the check link to the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



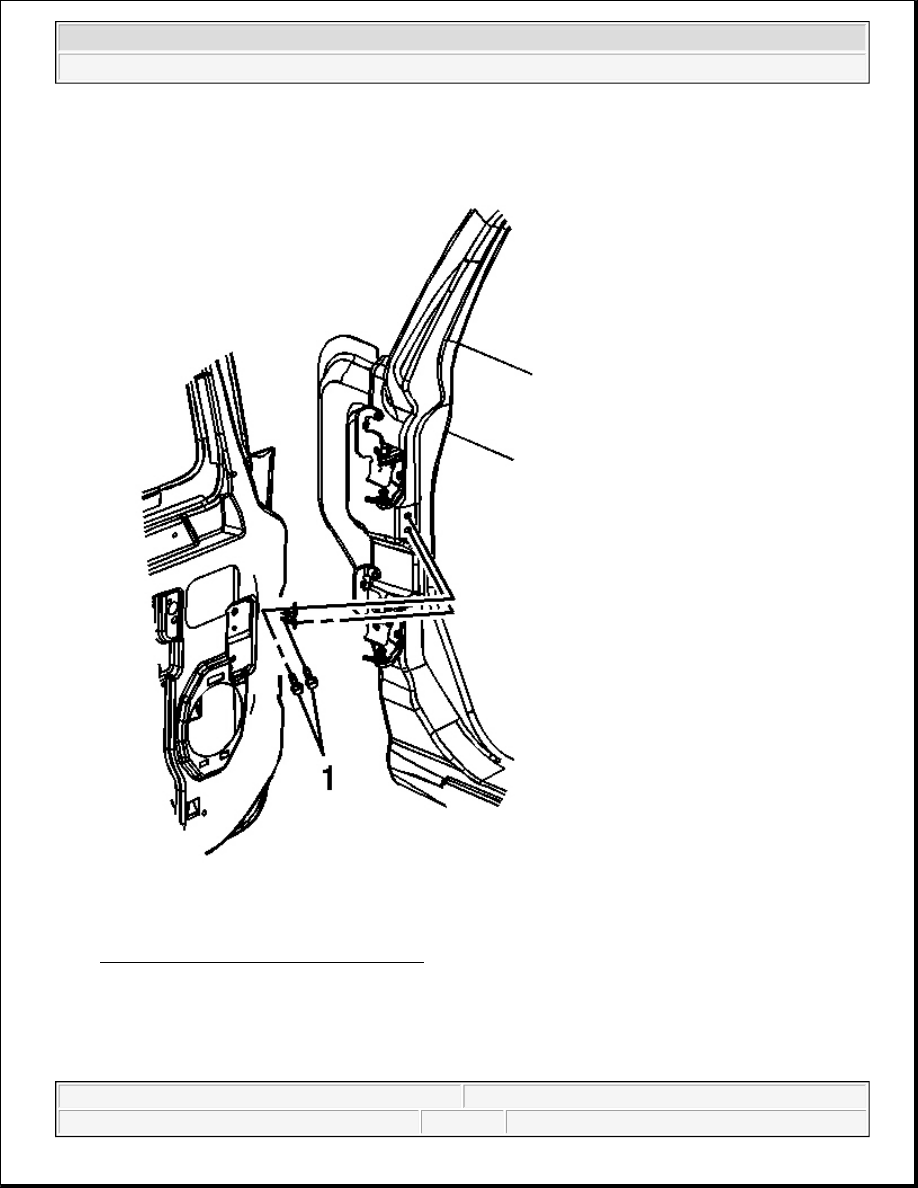

Fig. 56: Front Door Check Link Fasteners
Courtesy of GENERAL MOTORS CORP.

6. Remove the 2 fasteners (1) retaining the check link to the vehicle.

7. Remove the check link.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Installation Procedure

1. Place the check link in position in the door.

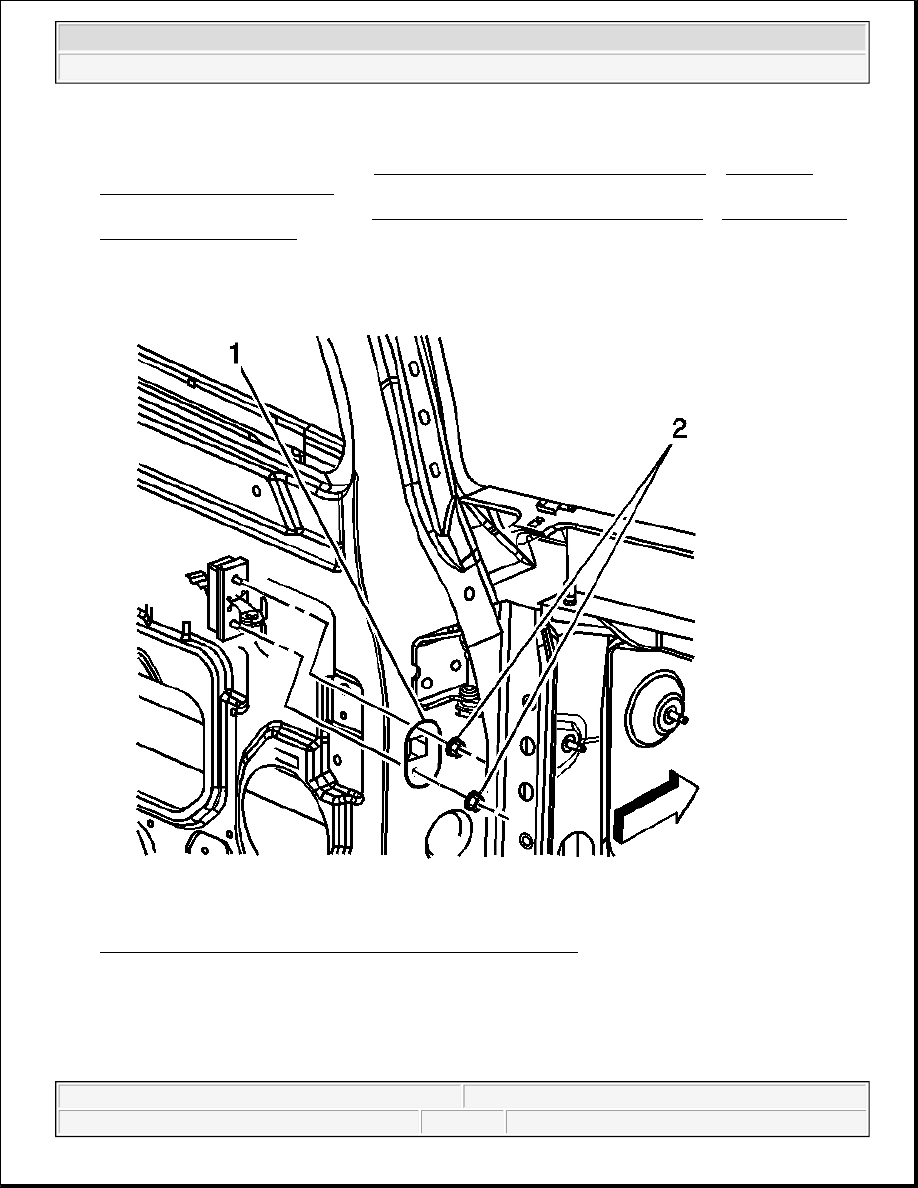

Fig. 57: Rubber Grommet & Front Door Check Link Opening
Courtesy of GENERAL MOTORS CORP.

2. Install the nuts (2) that retain the check link to the door.

Tighten: Tighten the nuts to 9 N.m (7 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
