Removal Procedure

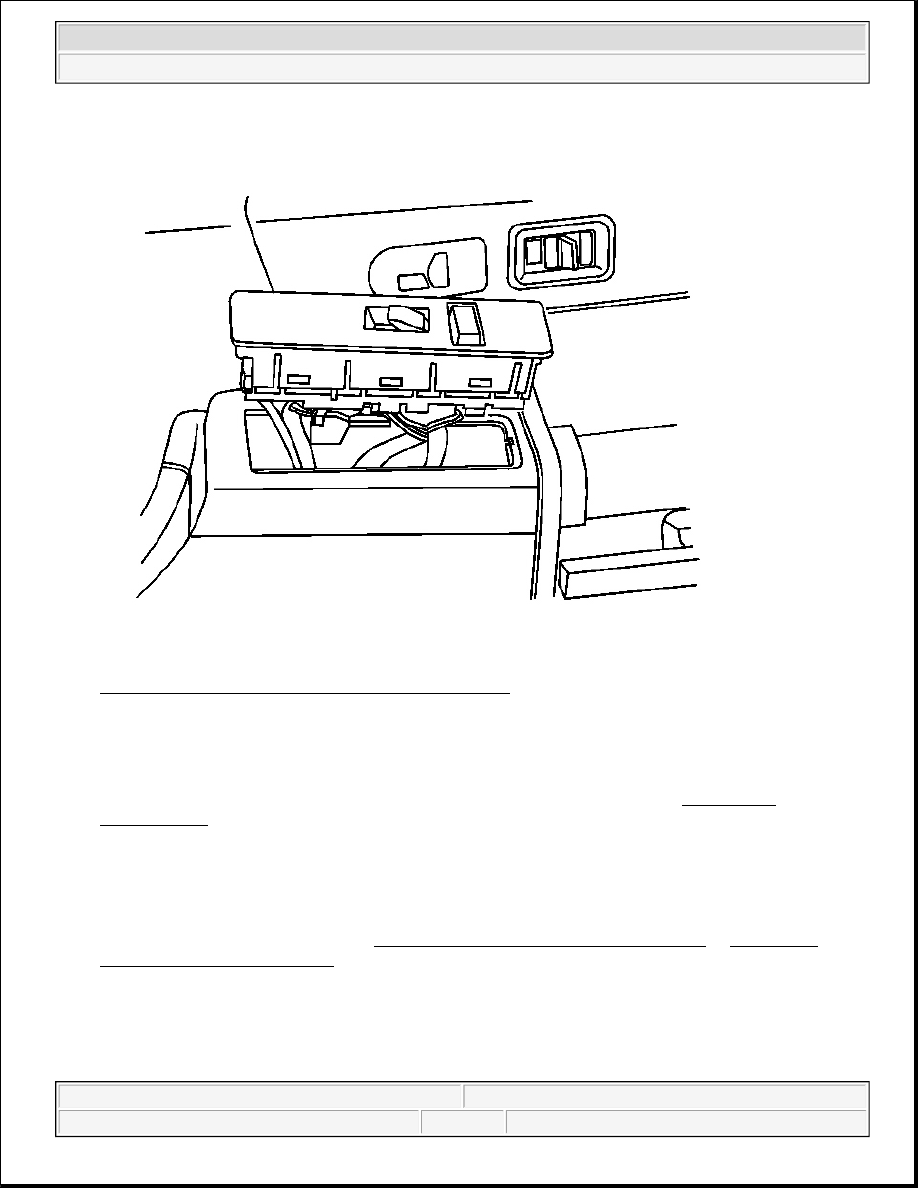

Fig. 16: Driver Door Lock & Side Window Switch
Courtesy of GENERAL MOTORS CORP.

1. Use a suitable flat bladed tool to remove the driver door lock and side window switch from the door trim

panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Remove the driver door lock and side window switch from the connector.

Installation Procedure

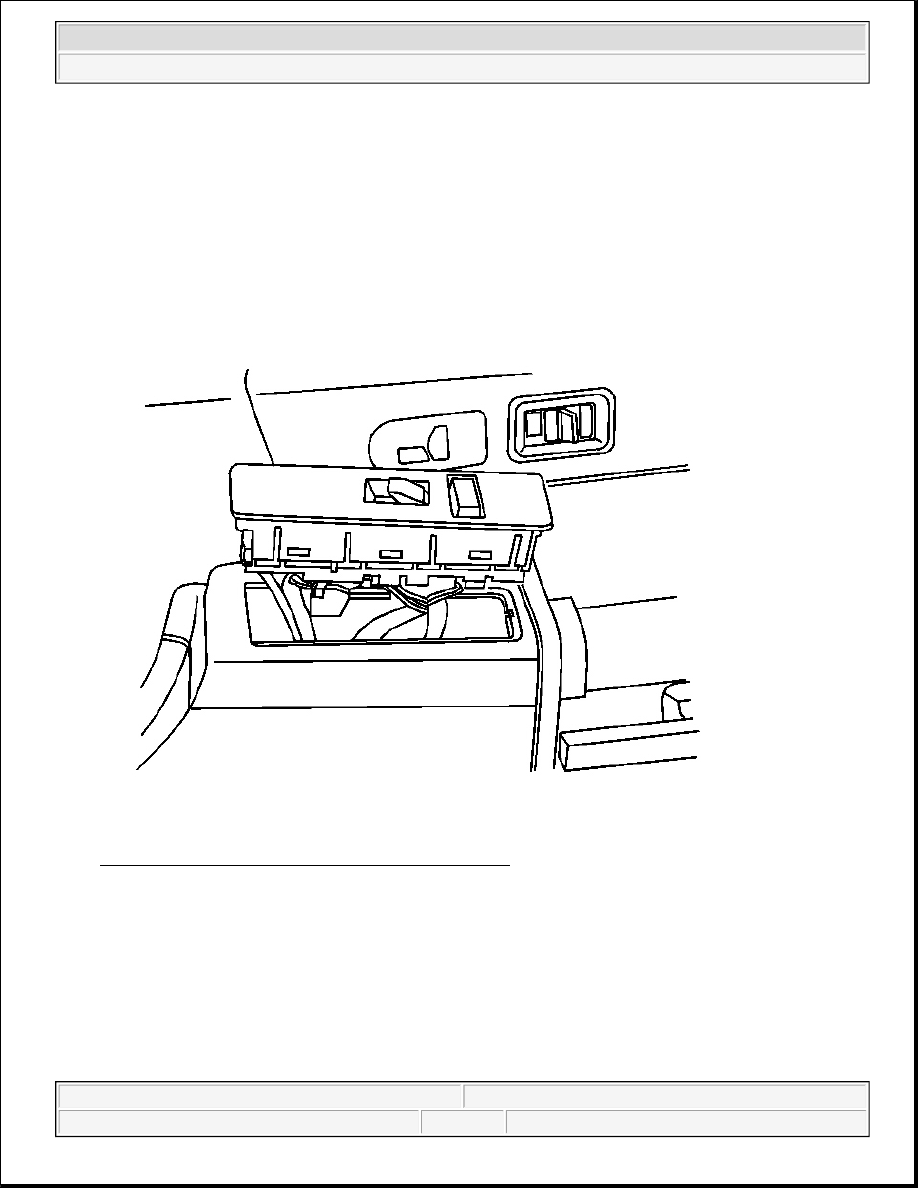

Fig. 17: Driver Door Lock & Side Window Switch
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Install the driver door lock and side window switch to the connector.

2. Align the driver door lock and side window switch with the opening in the door panel and press to seat

the switch.

SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - PASSENGER

Removal Procedure

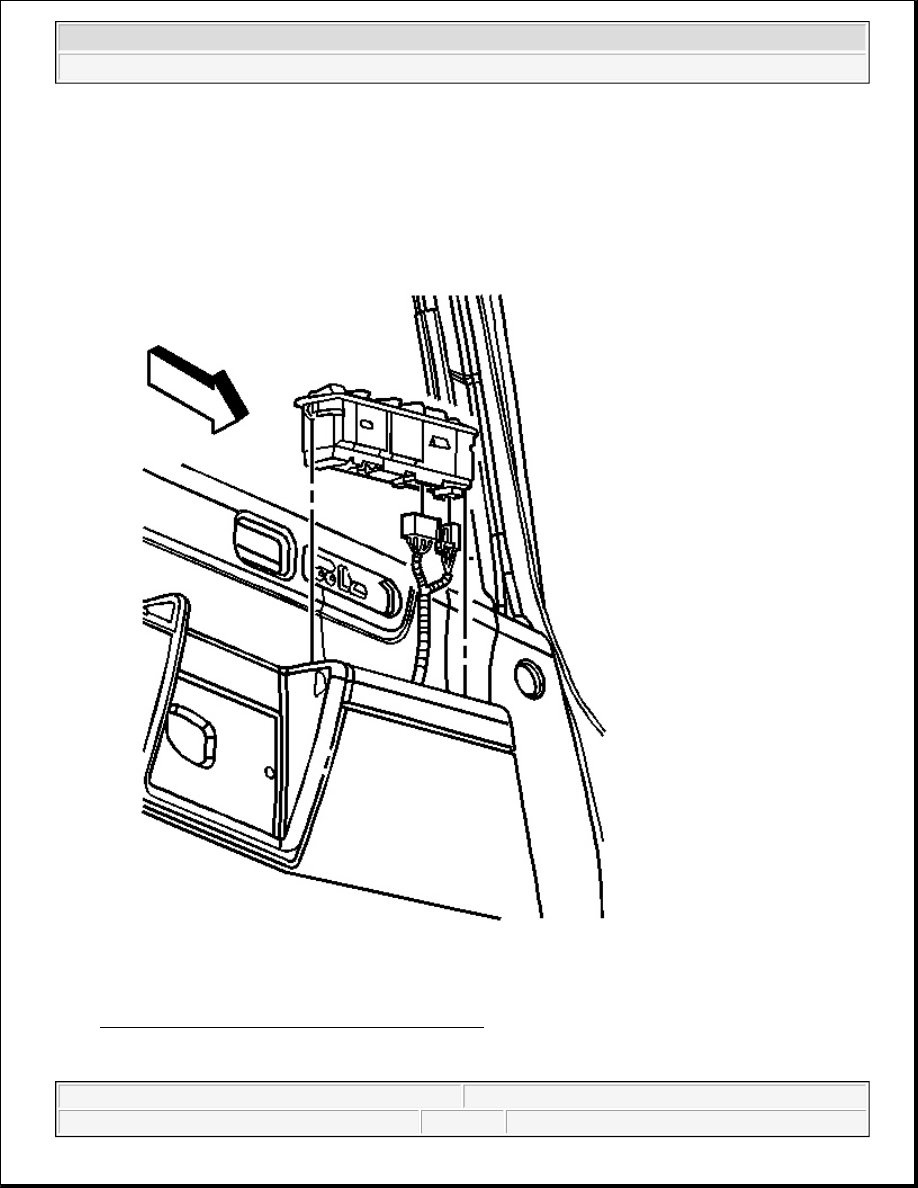

Fig. 18: Passenger Door Lock & Side Window Switch
Courtesy of GENERAL MOTORS CORP.

1. Use a suitable flat-bladed tool to remove the door lock and side window switch from the door panel.

2. Disconnect the electrical connector from the switch.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



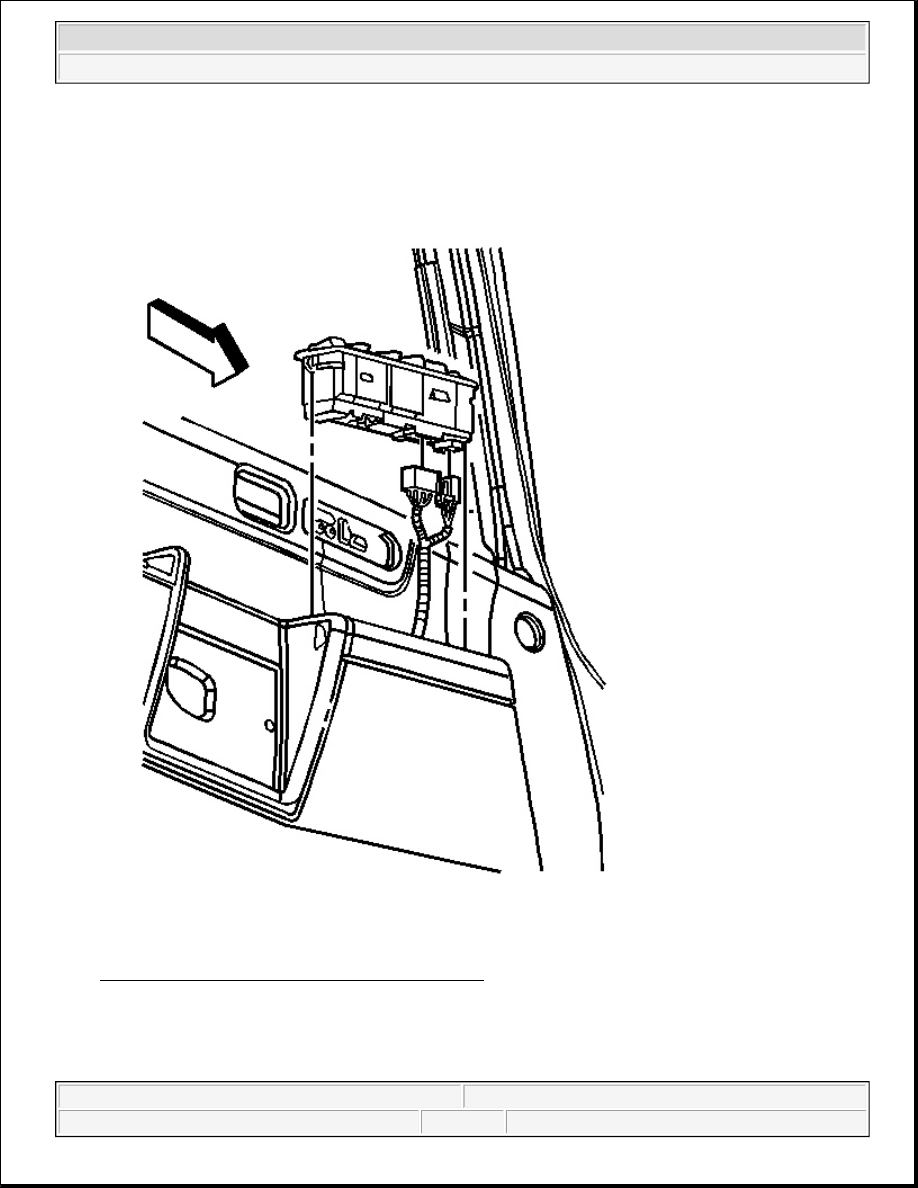

Fig. 19: Passenger Door Lock & Side Window Switch
Courtesy of GENERAL MOTORS CORP.

1. Connect the electrical connector to the door lock and side window switch.

2. Align the switch with the opening in the door panel. Press to seat the switch.

3. Program the keyless entry transmitters if the module has been replaced. Refer to Transmitter

Programming in Keyless Entry.

HANDLE BEZEL REPLACEMENT - INSIDE

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door or Trim Panel

Replacement - Side Rear Door .

2. Place the door trim panel, back-side up, on a clean prepared non-abrasive surface.
