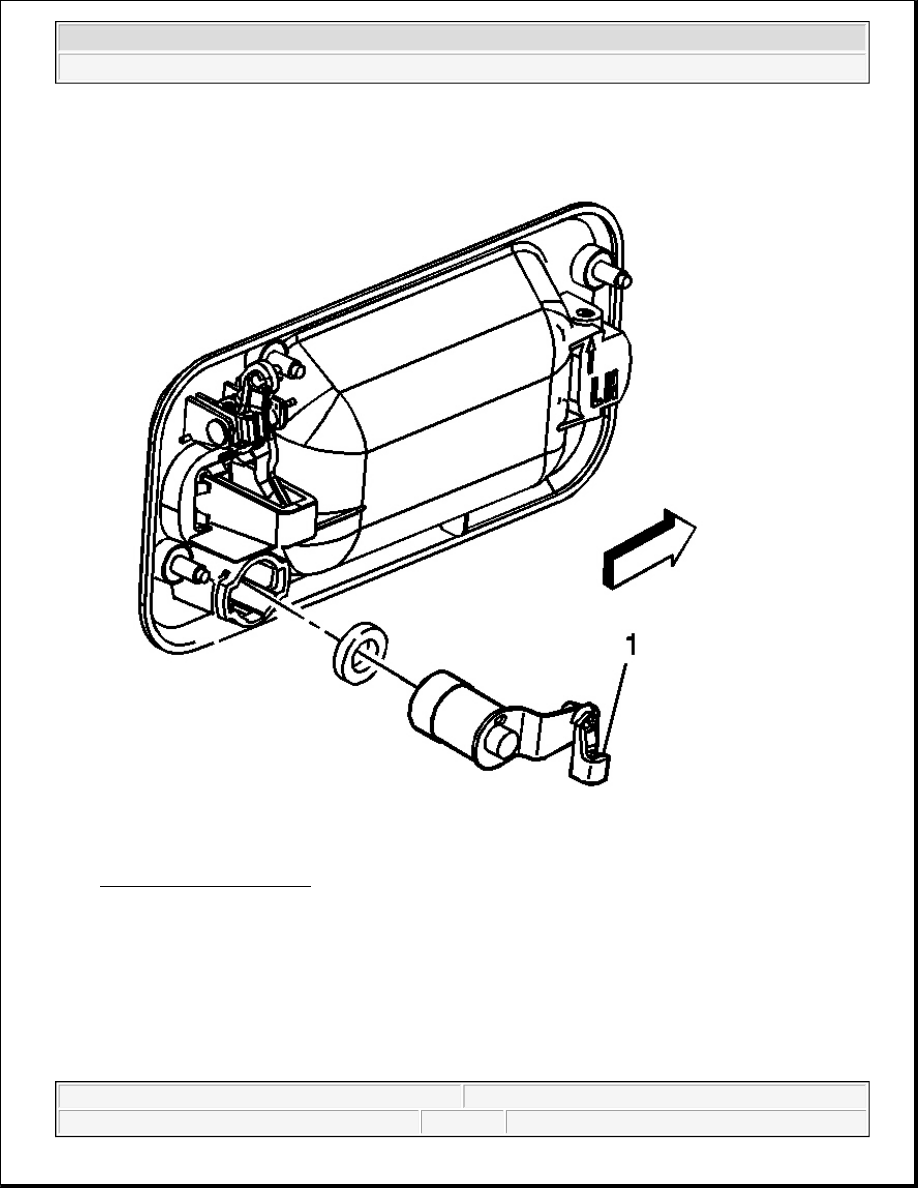

Fig. 60: Lock Cylinder Rod
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the lock cylinder rod (1) by releasing the retainer clip.

6. Apply a piece of masking tape across the door handle, on the outside of the door, to secure the handle

while removing the fasteners.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



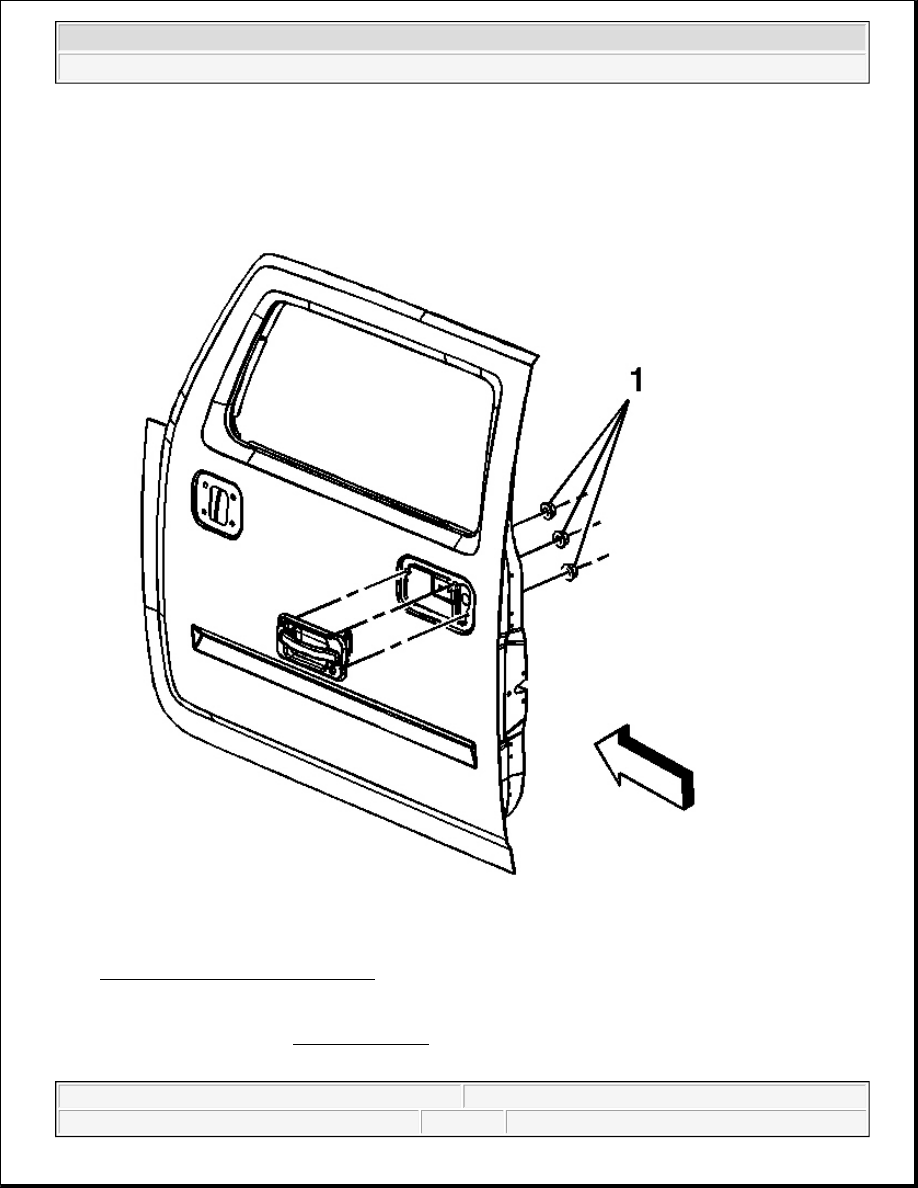

Fig. 61: Front Outside Door Handle
Courtesy of GENERAL MOTORS CORP.

7. Remove the 3 nuts (1) retaining the door handle.

8. Remove the door handle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Position the door handle in place on the door.

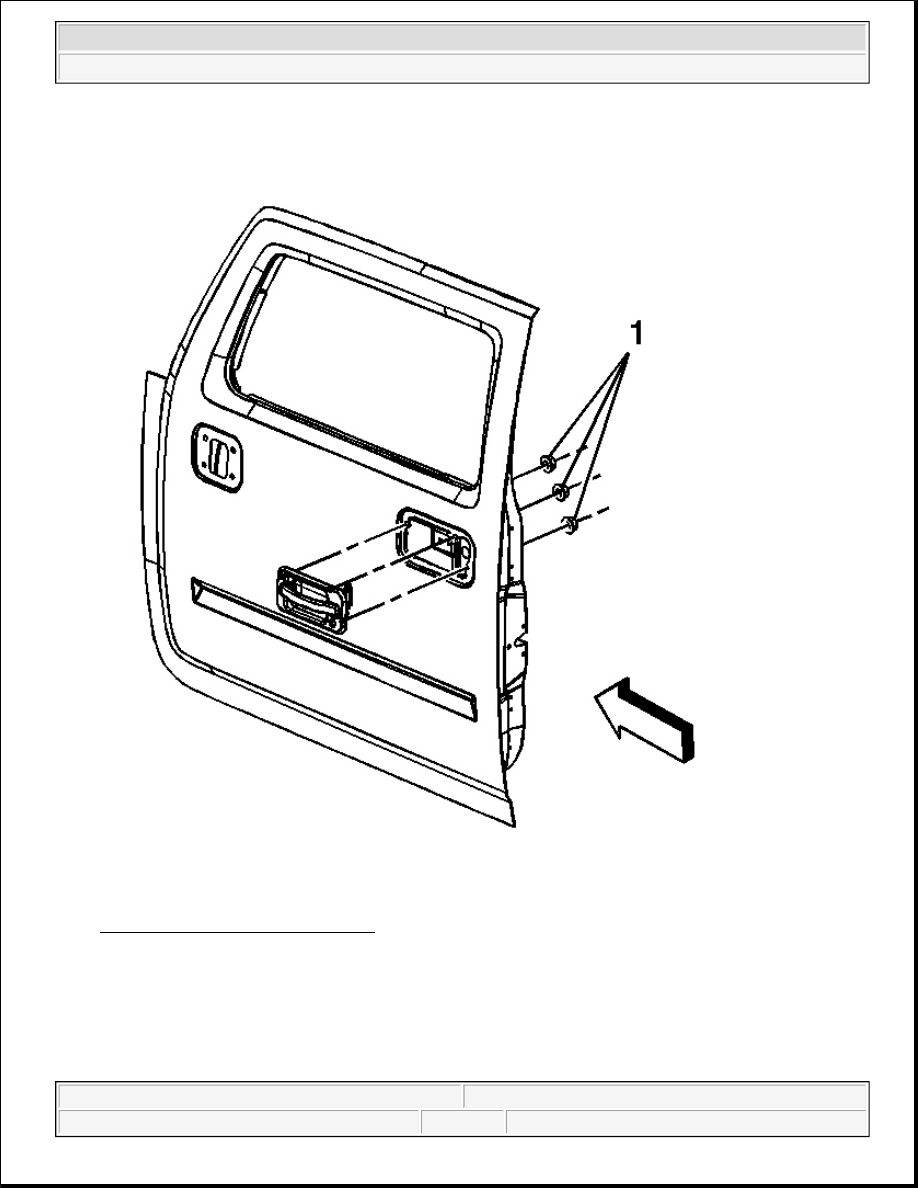

Fig. 62: Front Outside Door Handle
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Install the 3 nuts (1) that retain the door handle to the door.

Tighten: Tighten the nuts to 9 N.m (7 lb ft).

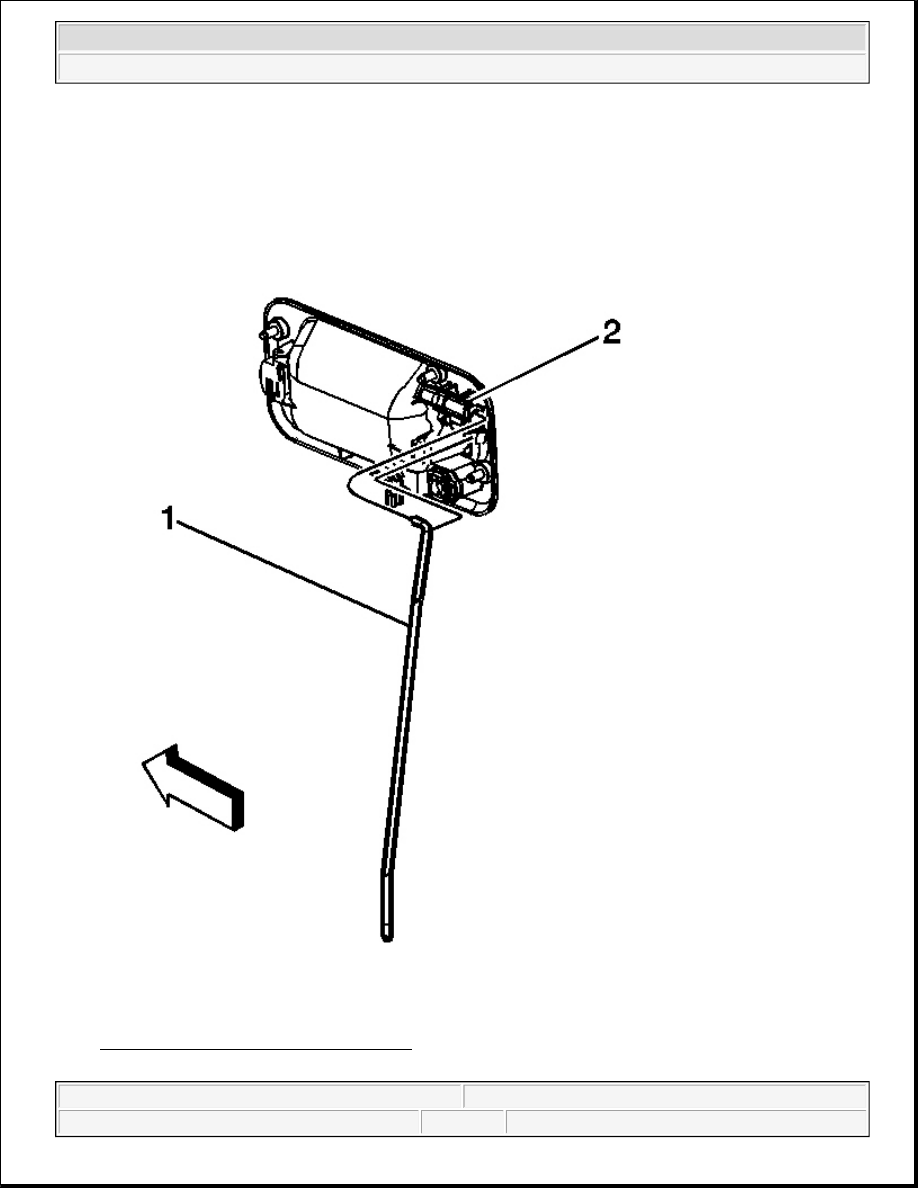

Fig. 63: Front Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.
