3. Install the trim panel. Refer to Trim Panel Replacement - Side Front Door .

WATER DEFLECTOR REPLACEMENT - REAR DOOR

Removal Procedure

1. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .

2. Remove the inside door handle. Refer to Door Handle Replacement - Rear Inside .

IMPORTANT: Water deflectors seal the inner panel, preventing water from entering the door.

A piece of adhesive between the deflector and the door secures the deflector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

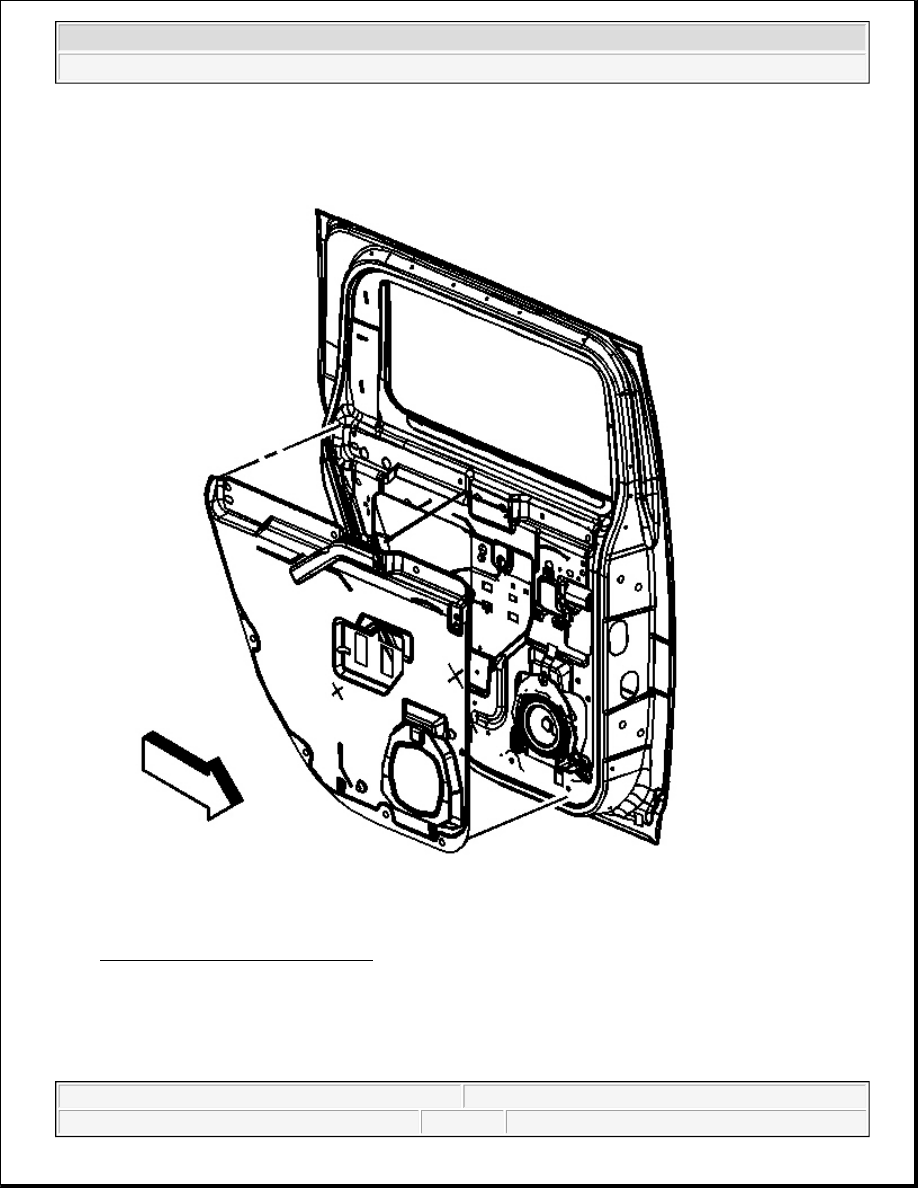

Fig. 34: Rear Door Water Deflector
Courtesy of GENERAL MOTORS CORP.

3. Using a flat-bladed tool, break the bond between the sealer and the door.

4. Remove the water deflector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Installation Procedure

1. Install the inside door handle. Refer to Door Handle Replacement - Rear Inside .

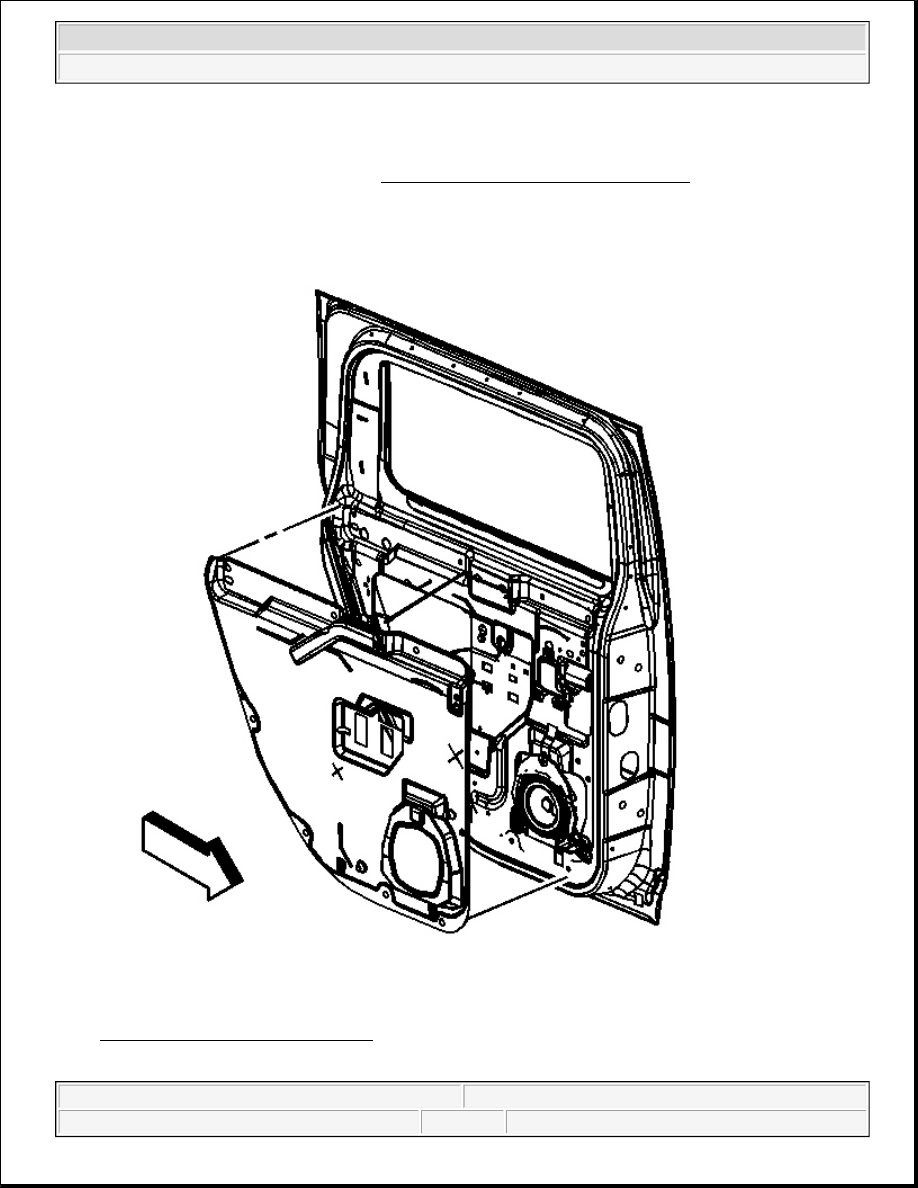

Fig. 35: Rear Door Water Deflector
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Using a butyl style strip caulk sealer (3M P/N 051135-08578) or equivalent, install the water deflector to

the door.

3. Install the trim panel. Refer to Trim Panel Replacement - Side Rear Door .

DOOR ADJUSTMENT - FRONT

1. Loosen the door hinge bolts and adjust by moving the door:

z

Upward and downward

z

Forward and rearward

z

Inward or outward

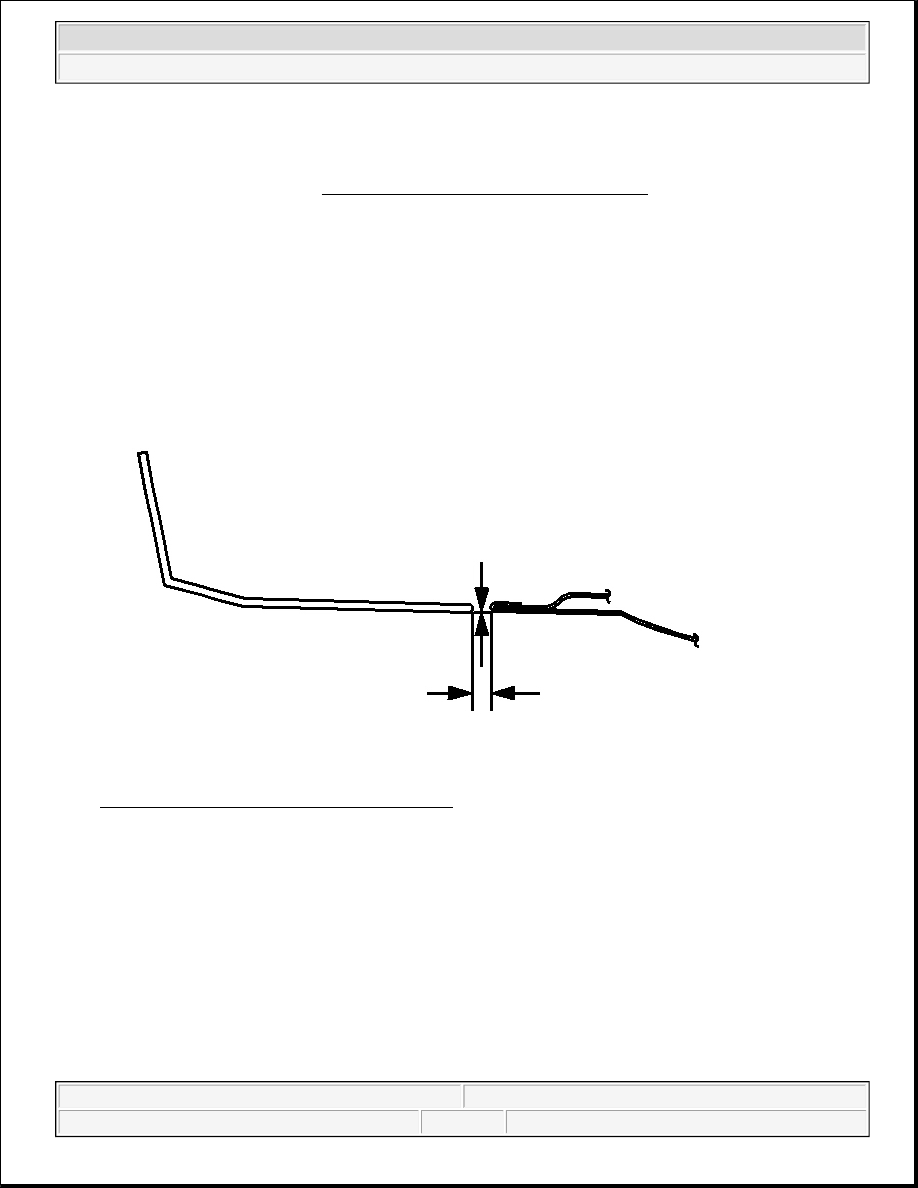

Fig. 36: Adjusting Front Door To Fender Gap
Courtesy of GENERAL MOTORS CORP.

2. Adjust the front door to fender gap to 5 mm (0.2 in).
