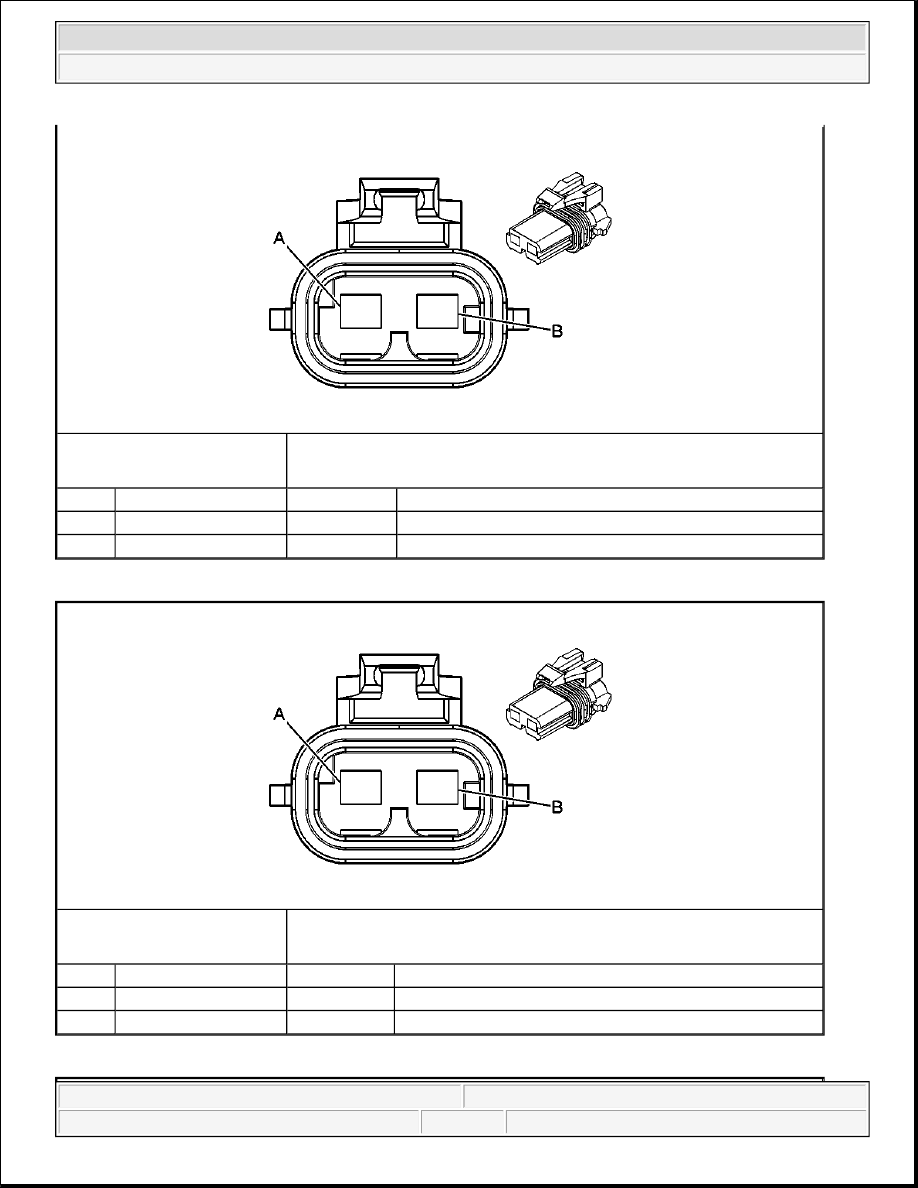

Window Terminal Identification Motor - Front Passenger

Window Terminal Identification Motor - LR

Connector Part Information

z

12129487

z

2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)

Pin

Wire Color

Circuit No.

Function

A

D-BU

164

Power Window Motor Left Front Up Control

B

BN

165

Power Window Motor Left Front Down Control

Connector Part Information

z

12129487

z

2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)

Pin

Wire Color

Circuit No.

Function

A

D-BU

666

Power Window Motor Right Front Up Control

B

BN

667

Power Window Motor Right Front Down Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Window Terminal Identification Motor - RR

Window Terminal Identification Switch - LR

Connector Part Information

z

12129487

z

2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)

Pin

Wire Color

Circuit No.

Function

A

BN

669

Power Window Motor Left Rear Down Control

B

D-BU

668

Power Window Motor Left Rear Up Control

Connector Part Information

z

12129487

z

2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)

Pin

Wire Color

Circuit No.

Function

A

BN

671

Power Window Motor Right Rear Down Control

B

D-BU

670

Power Window Motor Right Rear Up Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



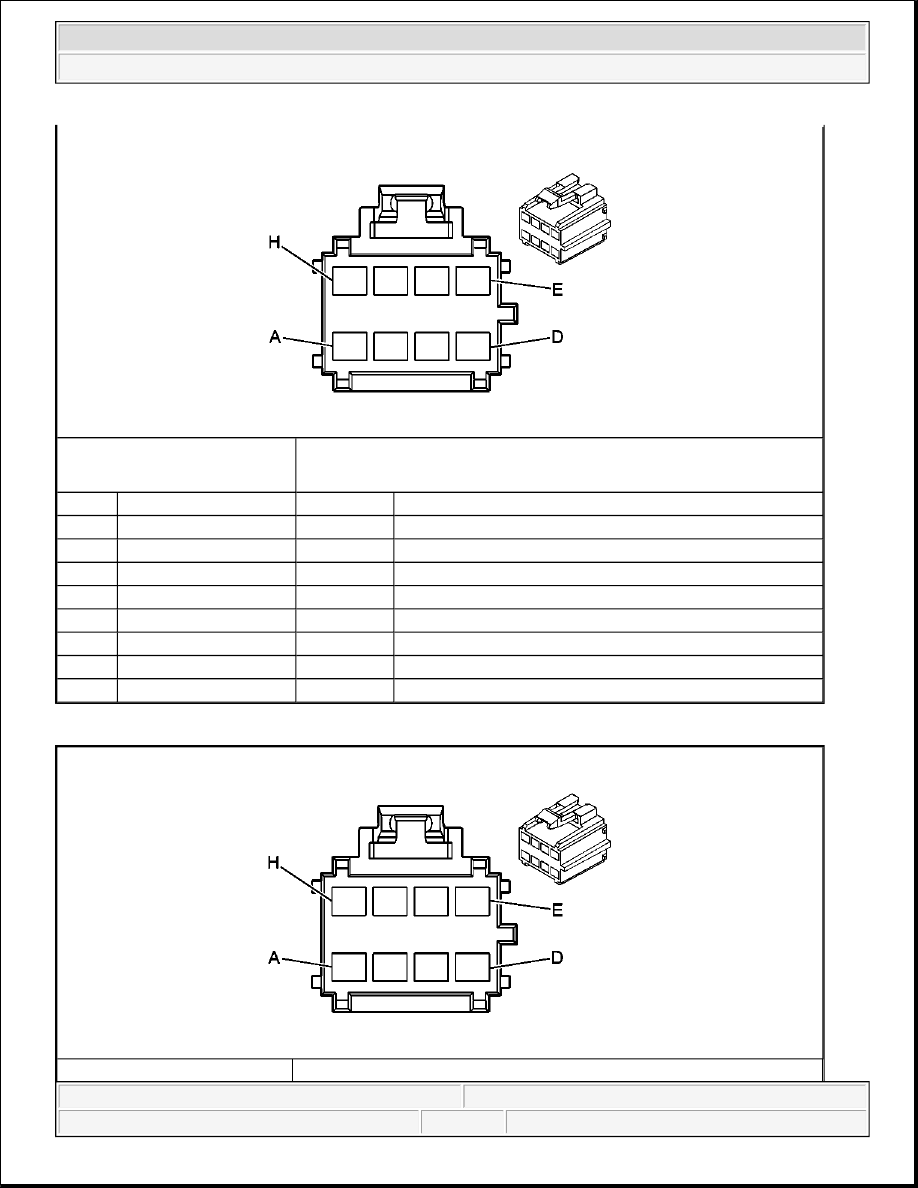

Window Terminal Identification Switch - RR

Connector Part Information

z

12191825

z

8-Way F Metri-Pack 280 Series (BN)

Pin

Wire Color

Circuit No.

Function

A

OG

1240

Battery Positive Voltage

B

YE

1187

Power Window Switch Relay Left Rear Down Control

C

WH

1185

Power Window Switch Relay Left Rear Up Control

D

L-BU

2265

Power Window Lockout Left Rear Signal

E

BK

1150

Ground

F

D-BU

668

Power Window Motor Left Rear Up Control

G

BN

669

Power Window Motor Left Rear Down Control

H

BN/WH

230

Instrument Panel Lamps Dimming Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - DOORS

Begin the system diagnosis with the Diagnostic System Check - Door Systems . The Diagnostic System
Check will provide the following information:

z

The identification of the control module(s) which command the system.

z

The ability of the control module(s) to communicate through the serial data circuit.

z

The identification of any stored diagnostic trouble codes (DTCs) and their status.

The use of the Diagnostic System Check will identify the correct procedure for diagnosing the system and
where the procedure is located.

DIAGNOSTIC SYSTEM CHECK - DOOR SYSTEMS

Test Description

The numbers below refer to the step numbers on the diagnostic table.

2: Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a
total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular
condition.

5: The presence of DTCs which begin with "U" indicate some other module is not communicating. The
specified procedure will compile all the available information before tests are performed.

Diagnostic System Check - Door Systems

Connector Part Information

z

12191825

z

8-Way F Metri-Pack 280 Series (BN)

Pin

Wire Color

Circuit No.

Function

A

OG

1340

Battery Positive Voltage

B

D-GN

1188

Power Window Switch Relay Right Rear Down Control

C

GY/BK

1186

Power Window Switch Relay Right Rear Up Control

D

L-GN

2266

Power Window Lockout Right Rear Signal

E

BK

1250

Ground

F

D-BU

670

Power Window Motor Right Rear Up Control

G

BN

671

Power Window Motor Right Rear Down Control

H

BN/WH

230

Instrument Panel Lamps Dimming Control

Step

Action

Yes

No

1

Install a scan tool.
Does the scan tool power up?

Go to Step 2

Go to Scan Tool Does Not

Power Up in Data Link

Communications



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
