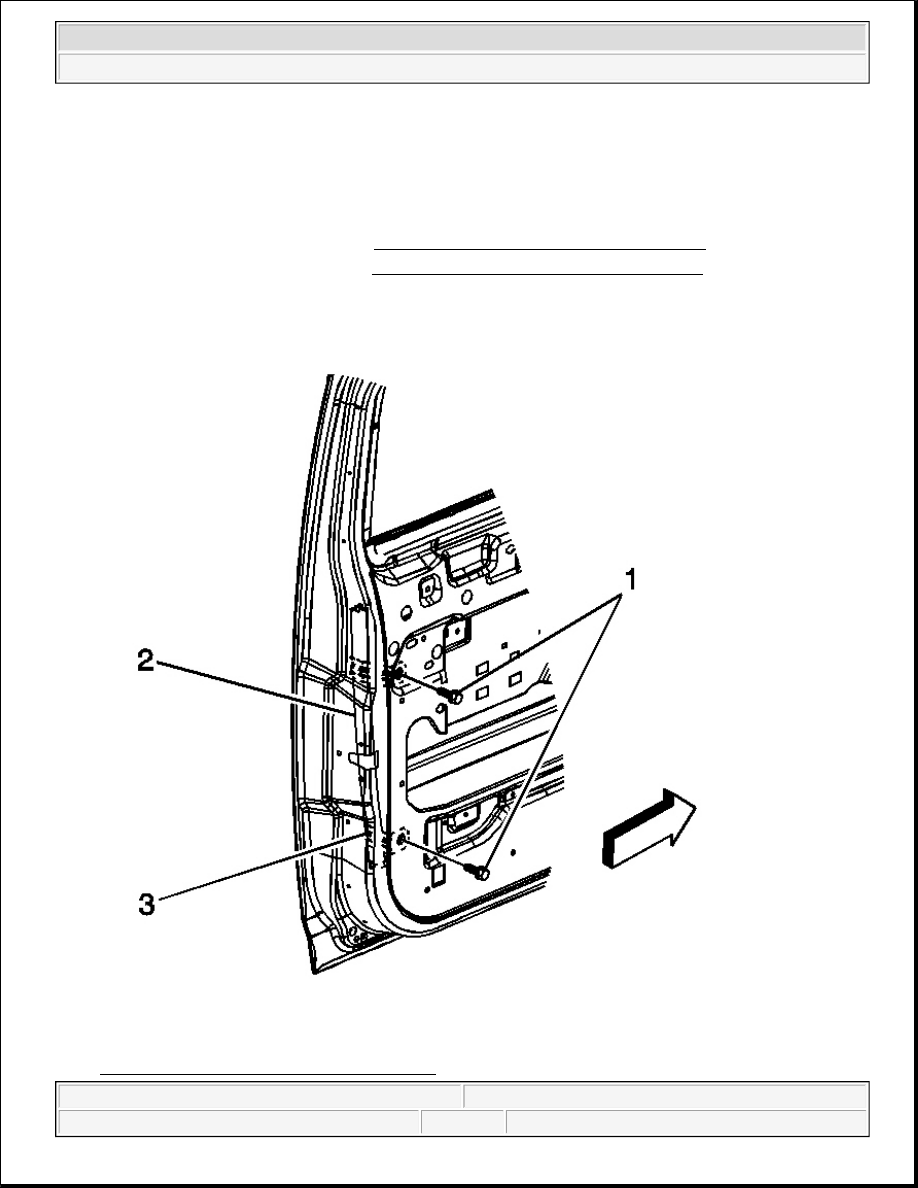

Fig. 108: Rear Door Window Run Channel
Courtesy of GENERAL MOTORS CORP.

3. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



WINDOW RUN CHANNEL REPLACEMENT - FRONT DOOR

Removal Procedure

1. Raise the window to the full up position.

2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

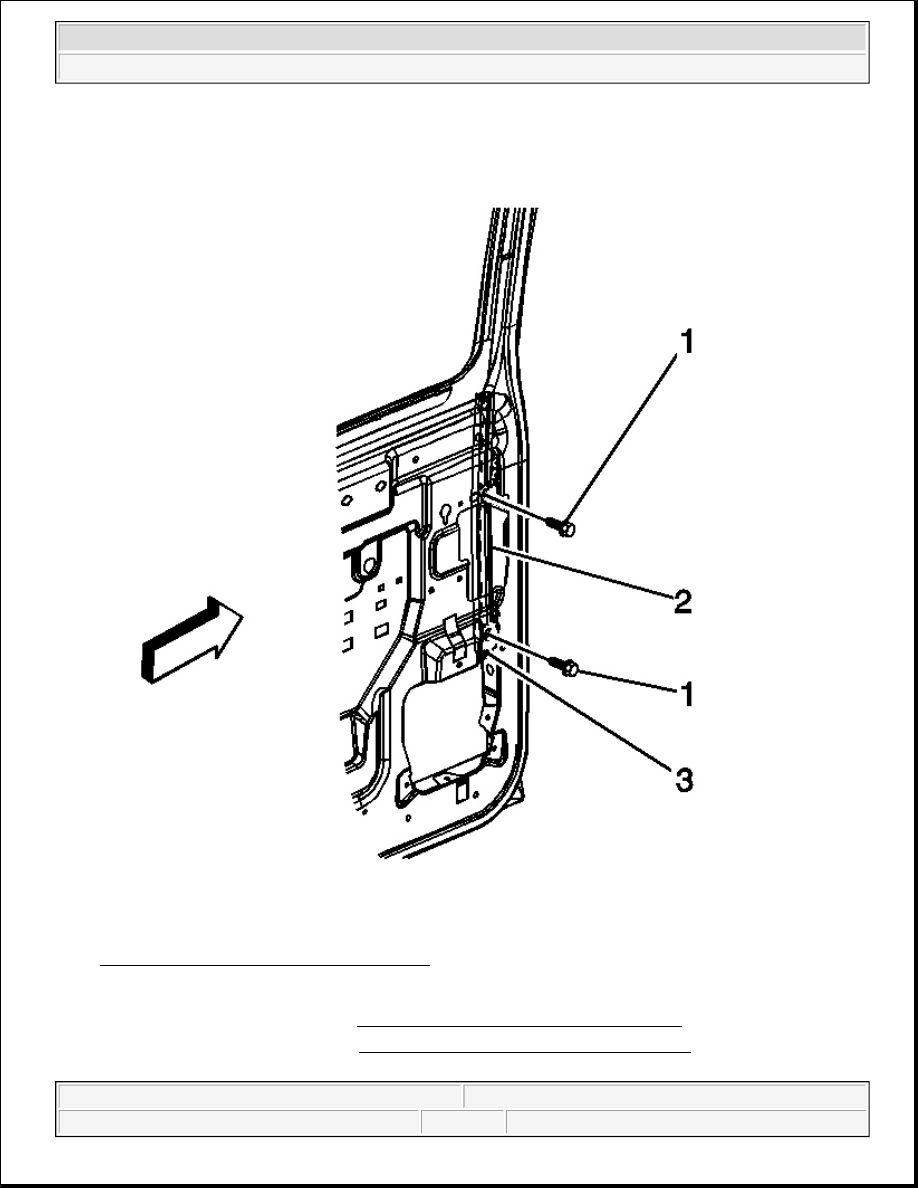

Fig. 109: Front Door Window Run Channel



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Courtesy of GENERAL MOTORS CORP.

4. Remove the 2 fasteners (1) retaining the run channel to the door.

5. Remove the run channel (2).

Installation Procedure

1. Position the run channel (2) in place inside the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



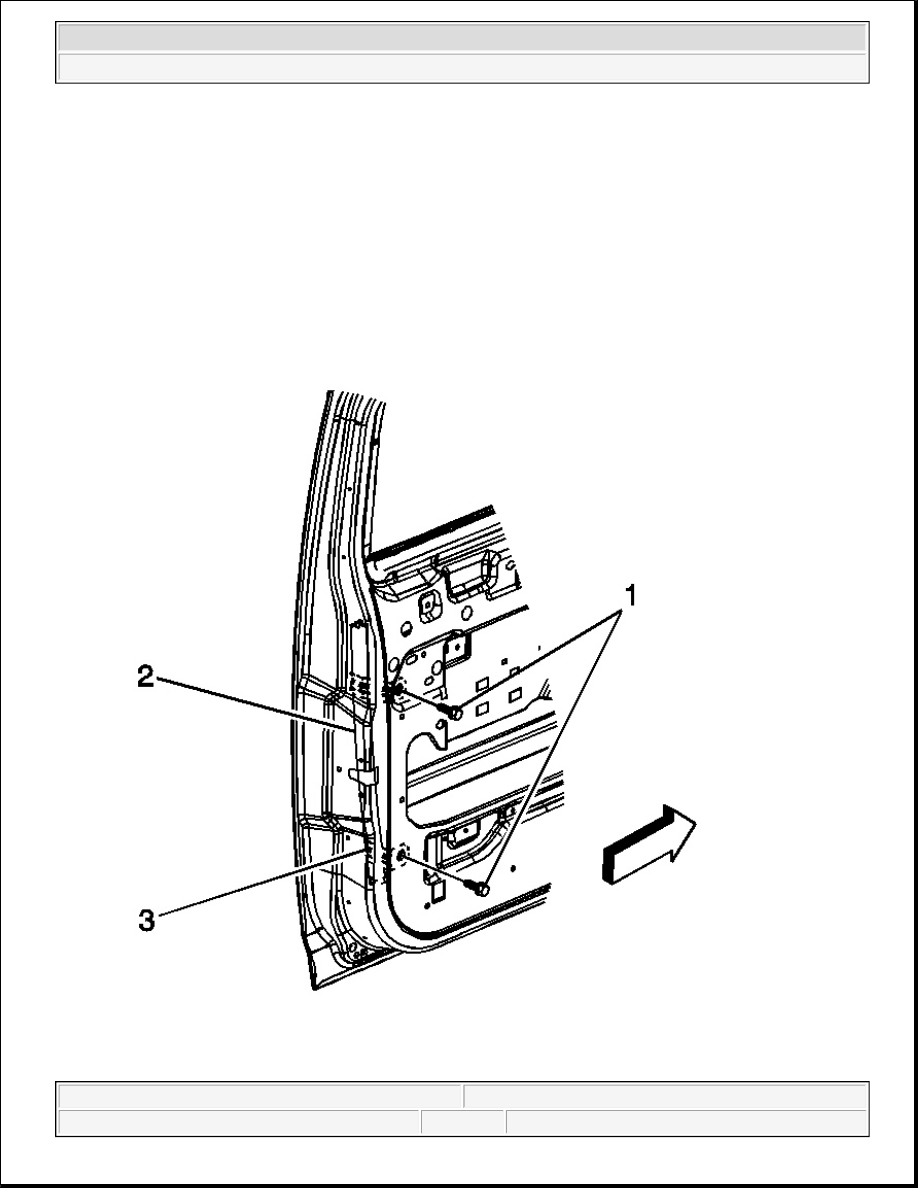

Fig. 110: Front Door Window Run Channel
Courtesy of GENERAL MOTORS CORP.

2. Install the fasteners (1) retaining the run channel to the door.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

3. Install water deflector. Refer to Water Deflector Replacement - Front Door .

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

WINDOW STABILIZER REPLACEMENT - FRONT DOOR

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

NOTE:

Refer to Fastener Notice in Cautions and Notices.
