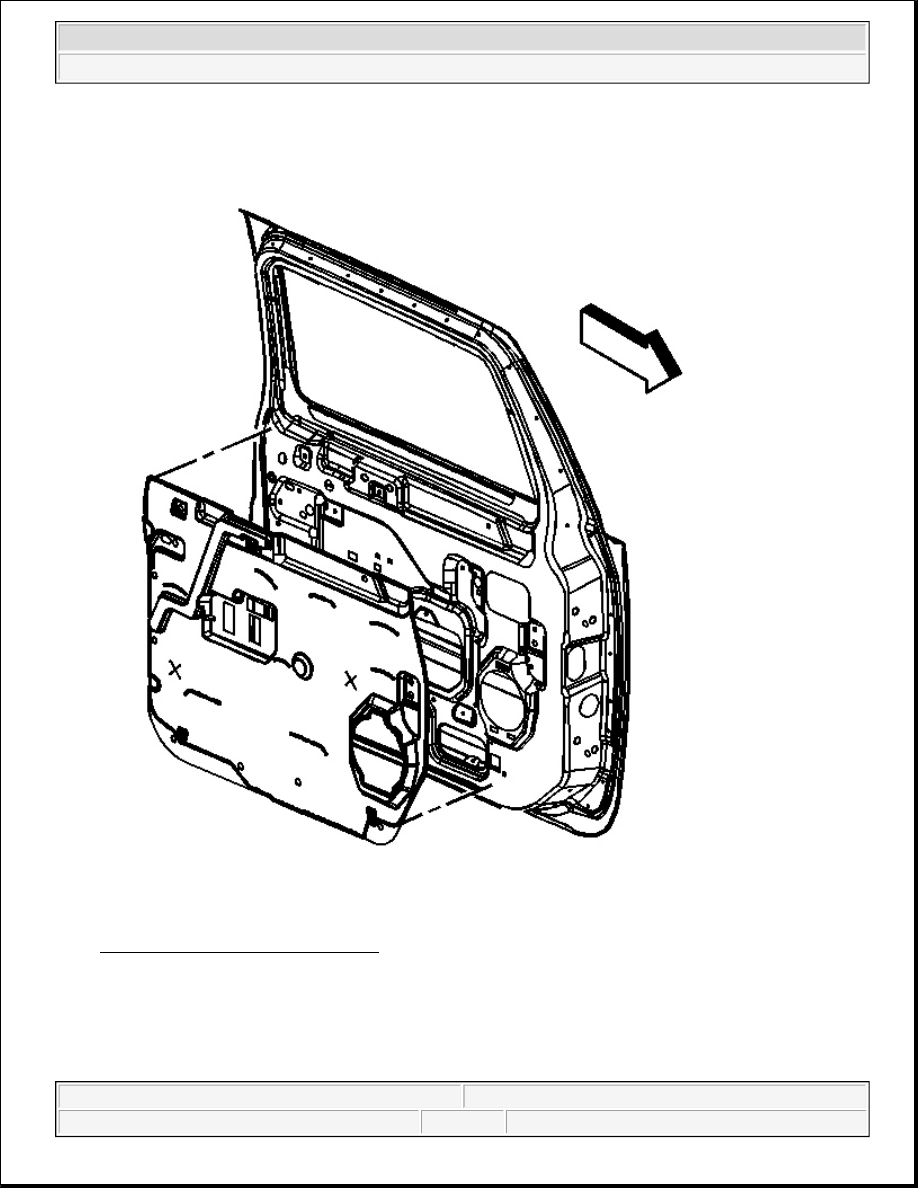

Fig. 32: Front Door Water Deflector
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Water deflectors seal the inner panel, preventing water from entering the

door. A piece of adhesive between the deflector and the door secures the
deflector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .

2. Remove the inside door handle. Refer to Door Handle Replacement - Front Inside .

3. Using a flat-bladed tool, break the bond between the sealer and the door.

4. Remove the water deflector.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 33: Front Door Water Deflector
Courtesy of GENERAL MOTORS CORP.

1. Using a butyl style strip caulk sealer (3M P/N 051135-08578) or equivalent to seal the water deflector to

the door, install the water deflector to the door.

2. Install the inside door handle. Refer to Door Handle Replacement - Front Inside .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



3. Install the trim panel. Refer to Trim Panel Replacement - Side Front Door .

WATER DEFLECTOR REPLACEMENT - REAR DOOR

Removal Procedure

1. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .

2. Remove the inside door handle. Refer to Door Handle Replacement - Rear Inside .

IMPORTANT: Water deflectors seal the inner panel, preventing water from entering the door.

A piece of adhesive between the deflector and the door secures the deflector.
