Schematic Reference: Outside Mirror Schematics

1

Did you perform the Door Systems Diagnostic
System Check?

Go to Step 2

Go to Diagnostic

System Check -

Door Systems

2

Verify the heated mirrors inoperative fault is
present.
Do the heated mirrors operate normally?

Go to Testing for

Intermittent Conditions

and Poor Connections

in Wiring Systems

Go to Step 3

3

Does the rear window defogger operate properly?

Go to Step 4

Go to Defogger

Inoperative - Rear

Window in

Stationary Windows

4

1. Disconnect the appropriate mirror.

2. Start the engine.

3. Connect a test lamp between the mirror

heater control and the mirror heater ground
circuit pins of the appropriate door module.

4. Activate the rear window defogger switch.

Does the test lamp illuminate?

Go to Step 5

Go to Step 6

5

Inspect for poor connections at the harness
connector of the outside rearview mirror. Refer to
Testing for Intermittent Conditions and Poor
Connections and Connector Repairs in Wiring
Systems.
Did you find and correct the condition?

Go to Step 9

Go to Step 7

6

Inspect for poor connections at the harness
connector of the appropriate door module. Refer to
Testing for Intermittent Conditions and Poor
Connections and Connector Repairs in Wiring
Systems.
Did you find and correct the condition?

Go to Step 9

Go to Step 8

7

Replace the appropriate outside rearview mirror
face.
Did you complete the replacement?

Go to Step 9

-

8

Replace the appropriate door module. Refer to
Switch Replacement - Door Lock and Side
Window - Driver or Switch Replacement - Door
Lock and Side Window - Passenger .Did you
complete the replacement?

IMPORTANT:

Perform the set up procedure for the
appropriate door module. Refer to Service
Programming System (SPS) in Programming.

Go to Step 9

-



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



REPAIR INSTRUCTIONS

POWER WINDOW SWITCH REPLACEMENT - REAR DOOR

Removal Procedure

9

Operate the system in order to verify the repair.
Did you correct the condition?

System OK

Go to Step 2



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



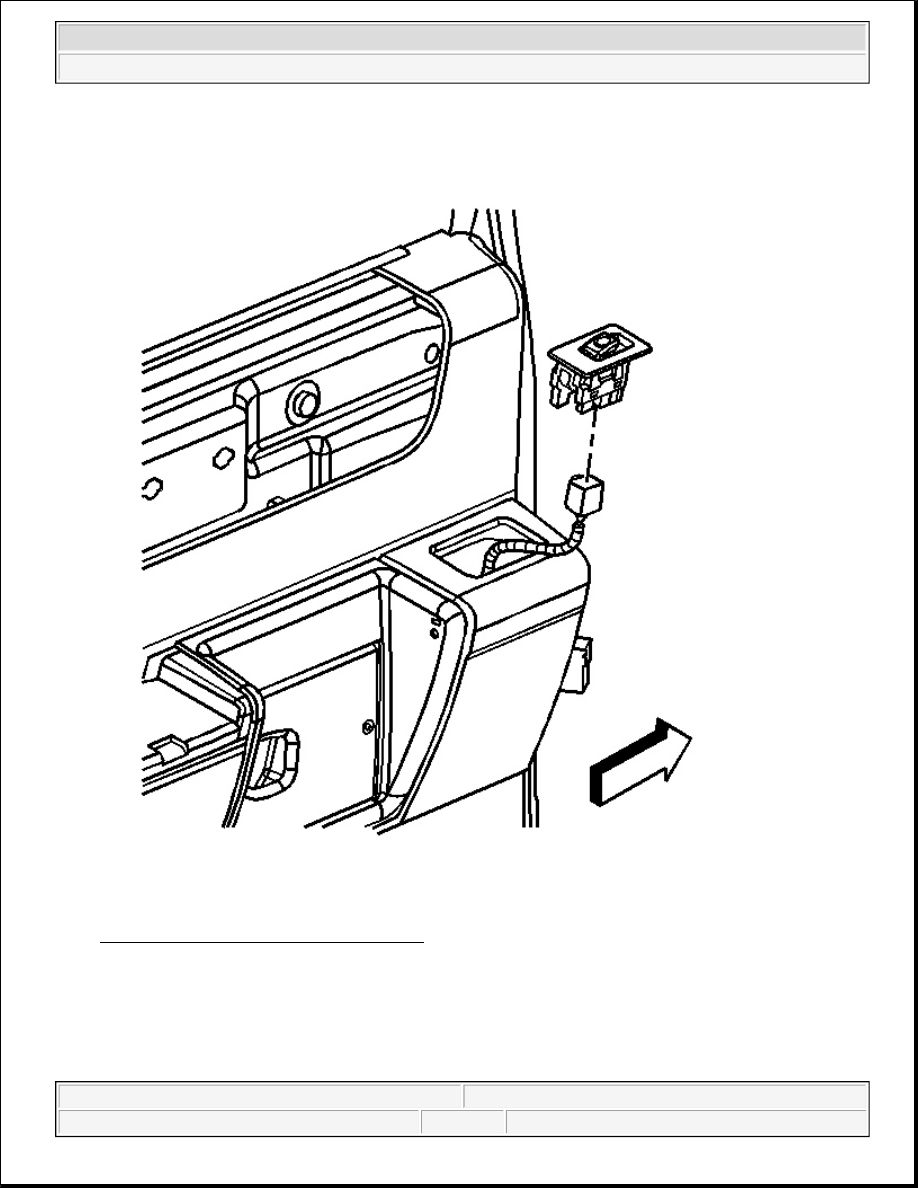

Fig. 14: Rear Door Power Window Switch
Courtesy of GENERAL MOTORS CORP.

1. Use a suitable flat bladed tool to remove the power window switch from the door panel.

2. Remove the power window switch from the connector.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 15: Rear Door Power Window Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the power window switch to the connector.

2. Align the power window switch with the opening in the door panel and press to seat the switch.
