Hummer H2. Manual - part 290

HEADLIGHTS SCHEMATICS

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

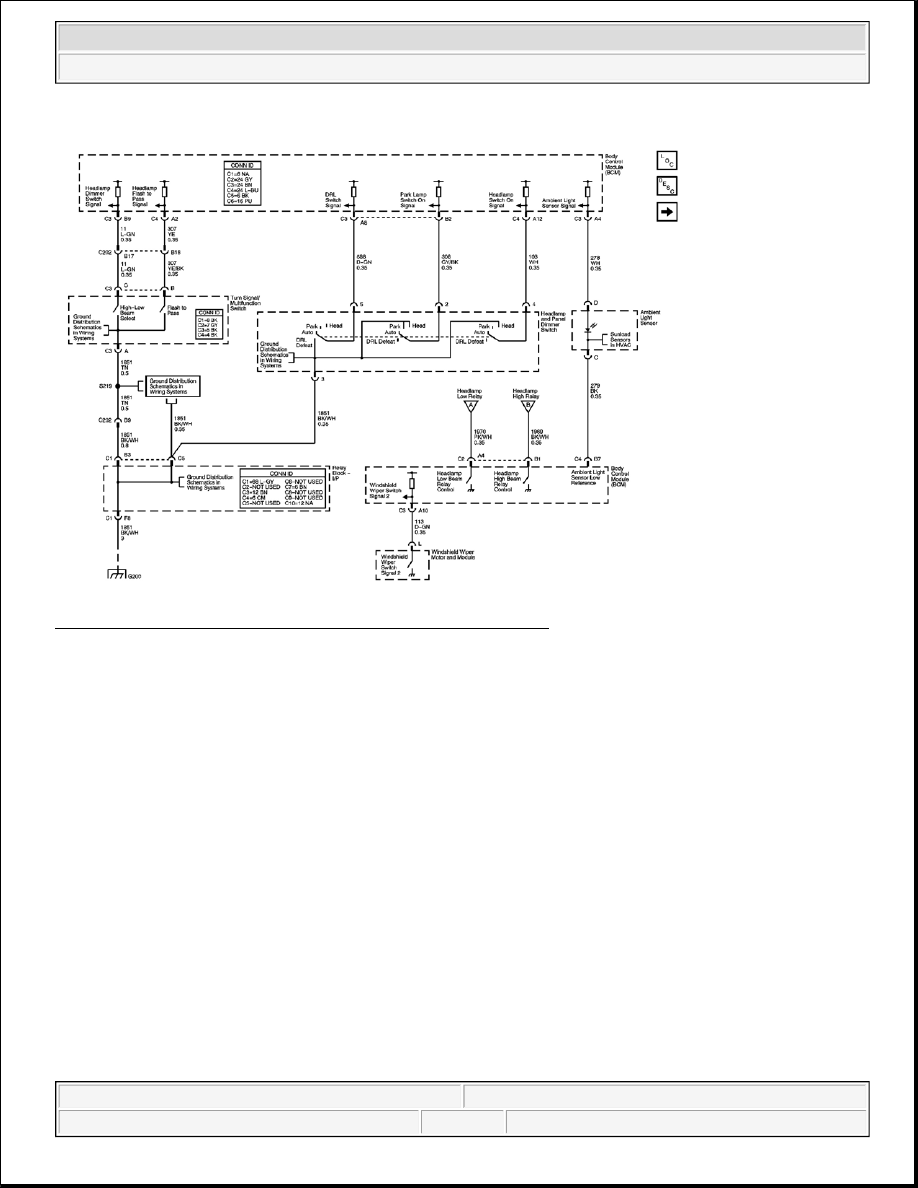

Fig. 1: Headlamp Controls, Switches, and Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

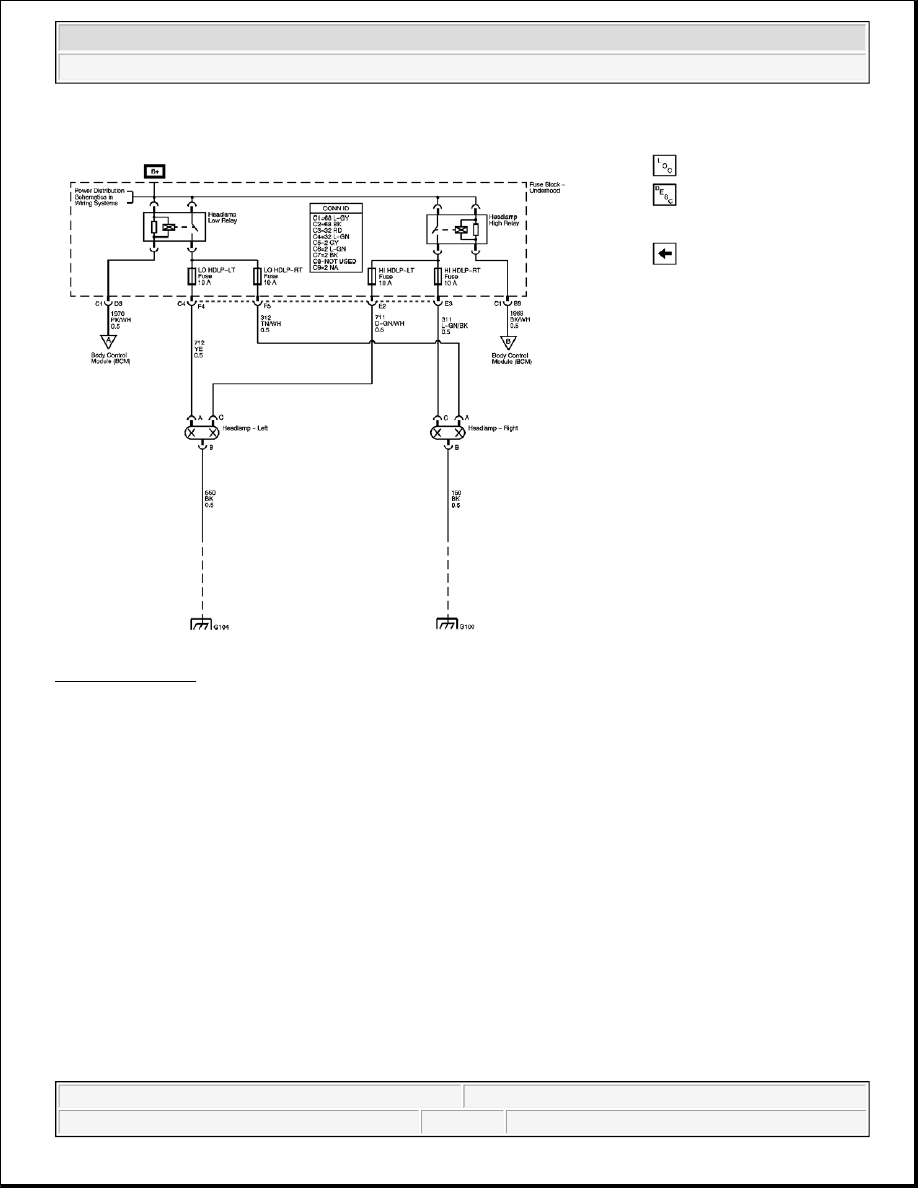

Fig. 2: Headlamps
Courtesy of GENERAL MOTORS CORP.

HEADLIGHTS/DAYTIME RUNNING LIGHTS (DRL) SCHEMATICS

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

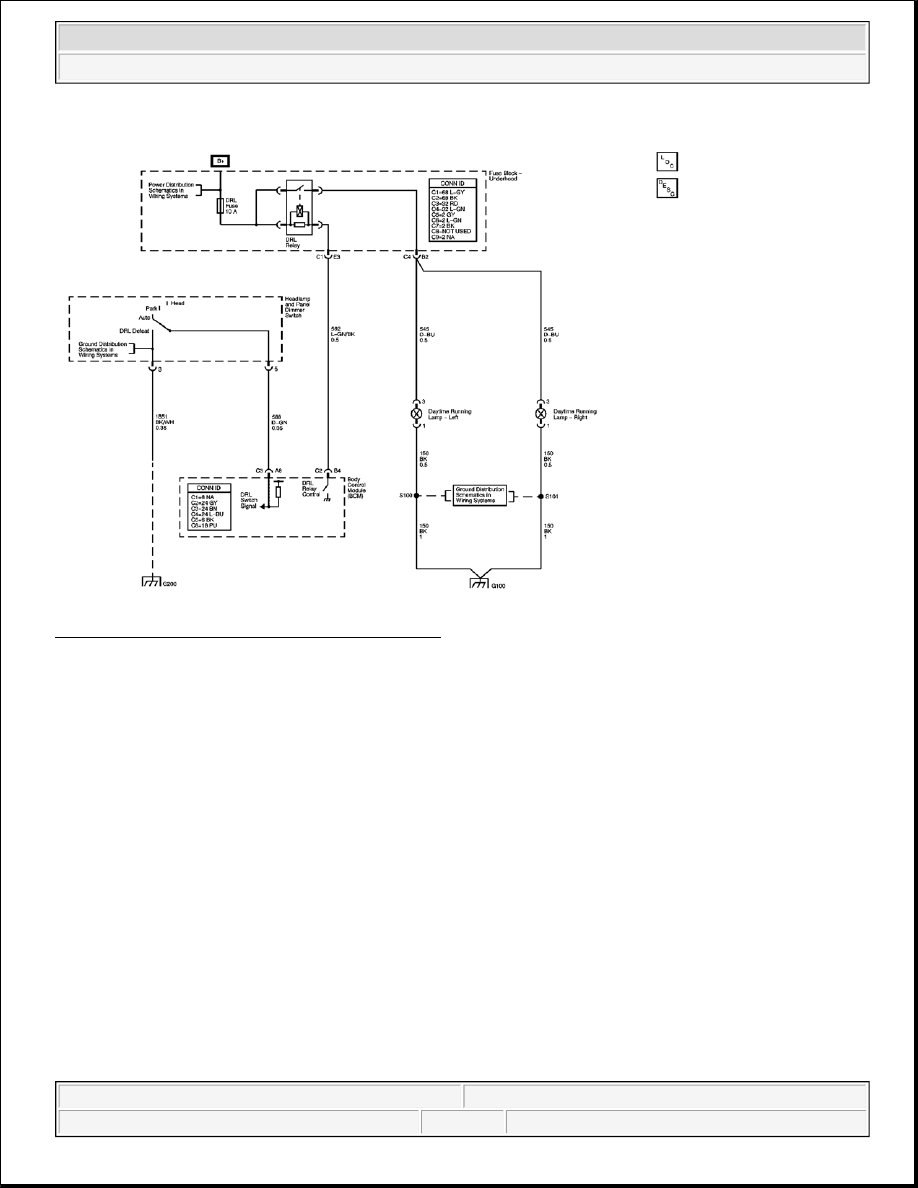

Fig. 3: Headlights/Daytime Running Lights (DRL)
Courtesy of GENERAL MOTORS CORP.

EXTERIOR LIGHTS SCHEMATICS

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2
