Tighten:

z

Tighten the encoder motor mounting bolts to 10 N.m (89 lb in).

z

Tighten the encoder motor bracket bolt to 10 N.m (89 lb in).

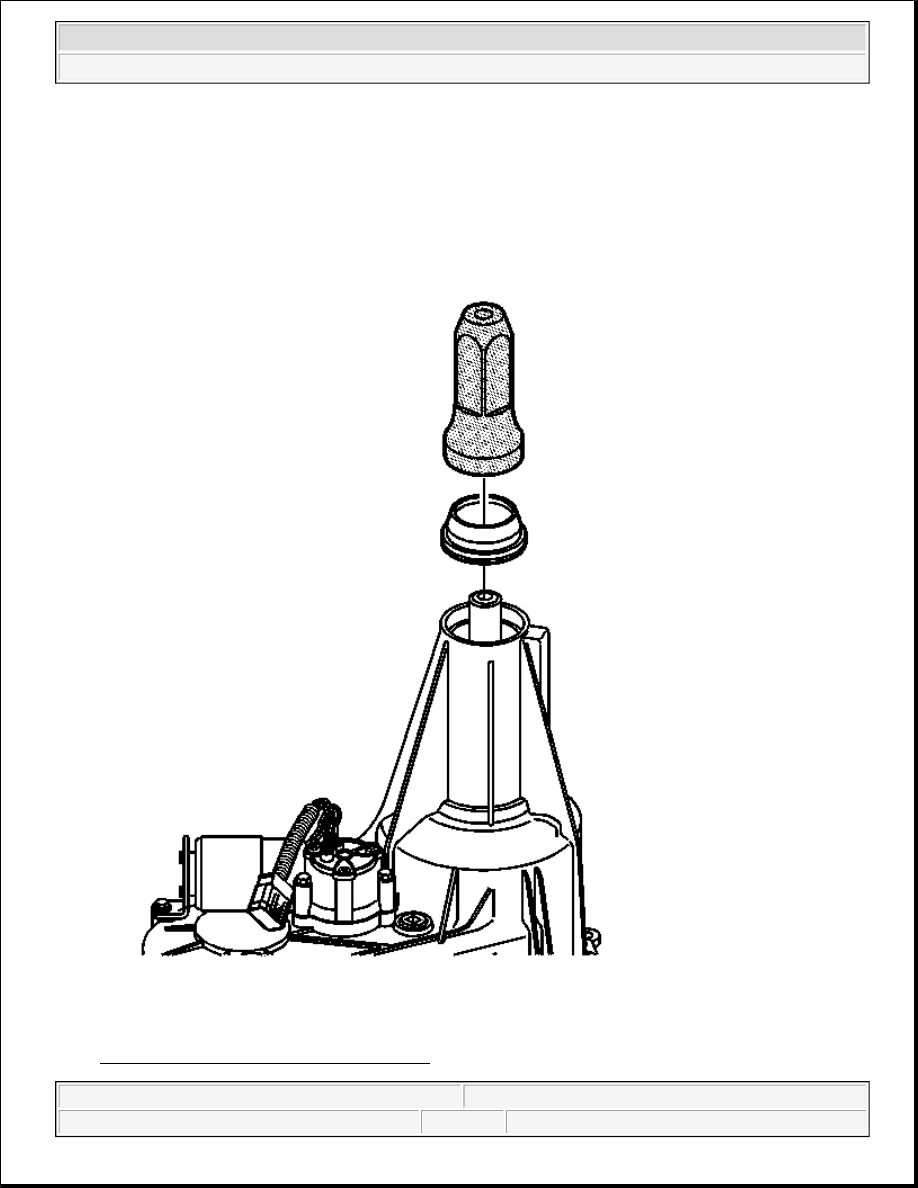

Fig. 116: Installing Rear Output Shaft Seal
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



64. Using J 45756 , install the rear output shaft seal.

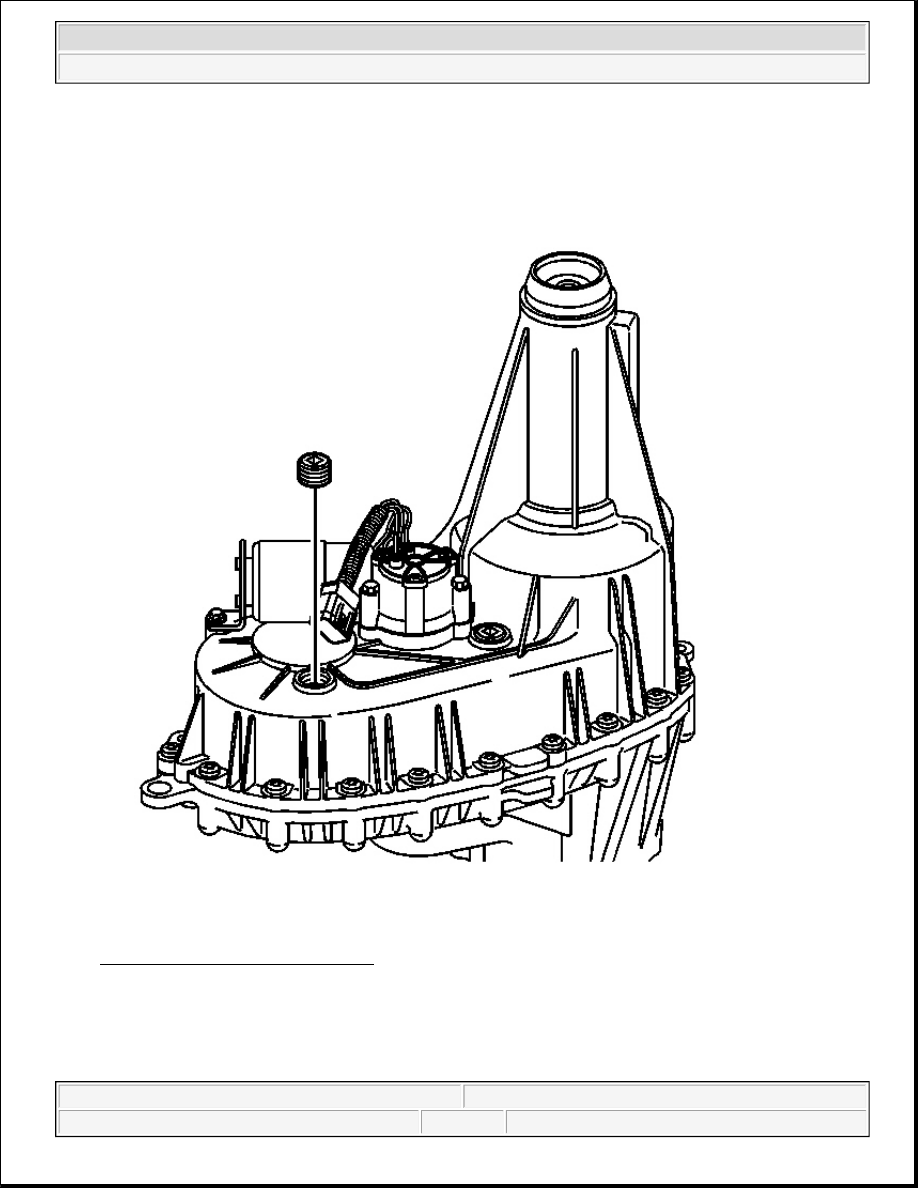

Fig. 117: View Of Drain & Fill Plug
Courtesy of GENERAL MOTORS CORP.

65. Apply pipe sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads on the drain plug and fill

plug.

66. Install the drain plug and the fill plug.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



Tighten: Tighten the drain plug and fill plug to 25 N.m (18 lb ft).

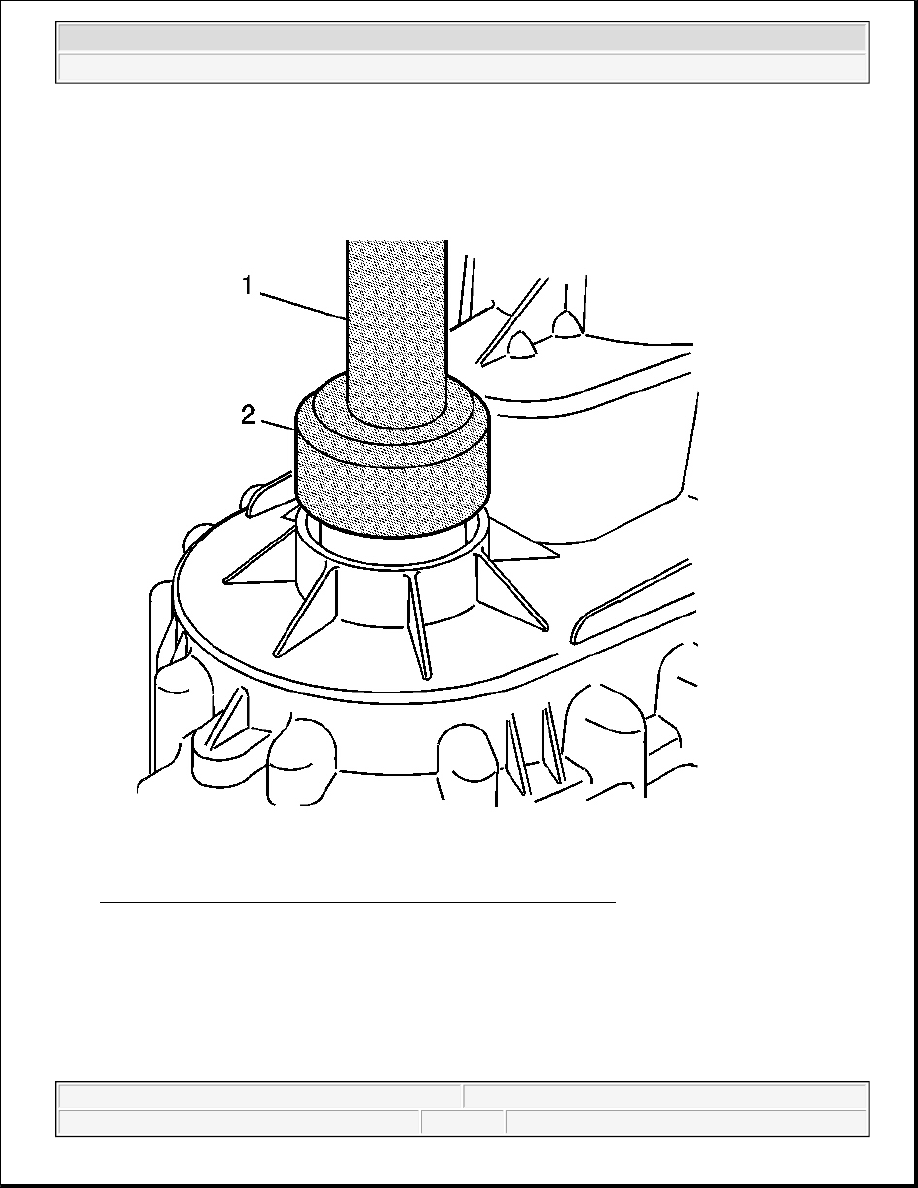

Fig. 118: Installing Front Output Shaft Seal With J 43484 & J 8092
Courtesy of GENERAL MOTORS CORP.

67. Using the J 43484 (2) and the J 8092 (1), install the front output shaft seal.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4

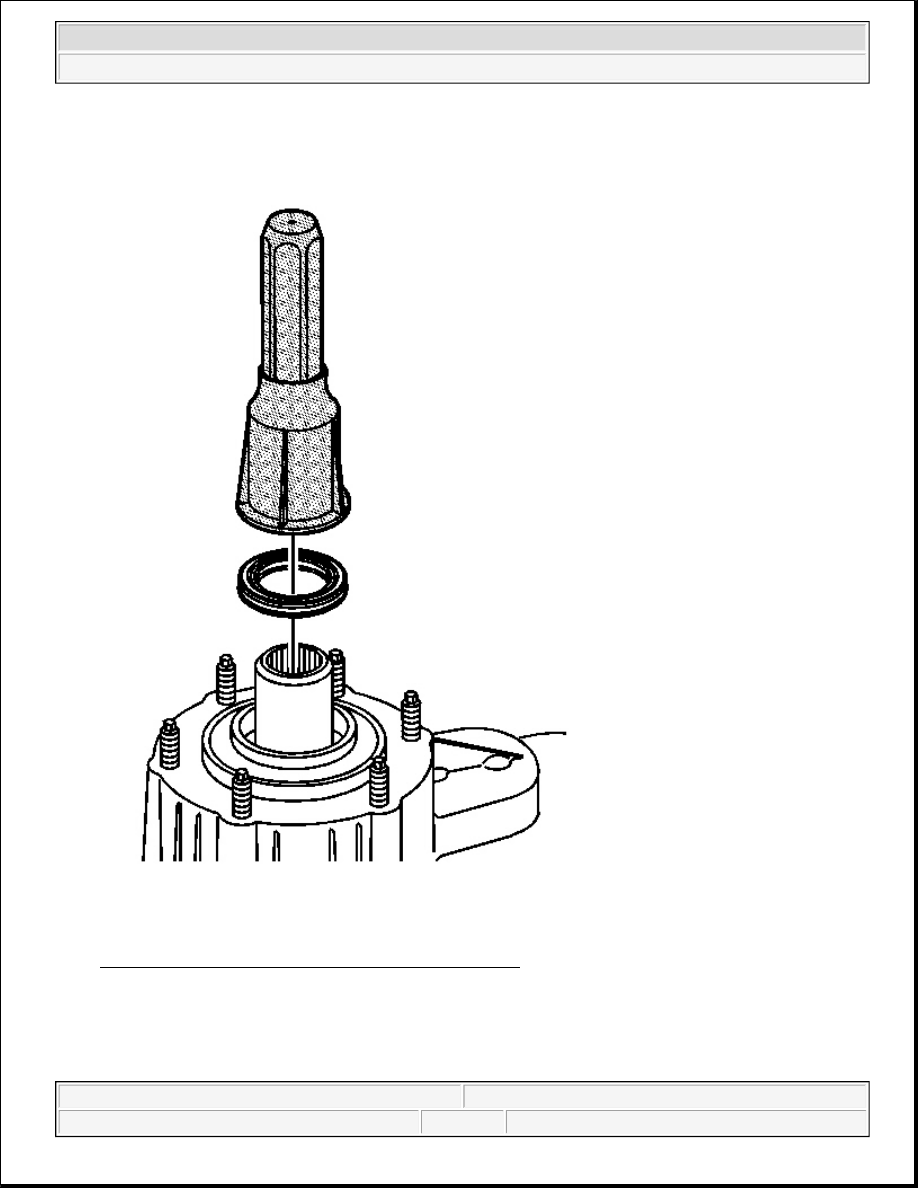

Fig. 119: Installing The Front Input Shaft Seal J 42738
Courtesy of GENERAL MOTORS CORP.

68. Using the J 42738 , install the front input shaft seal.

69. Remove the transfer case from the J 45759 .
