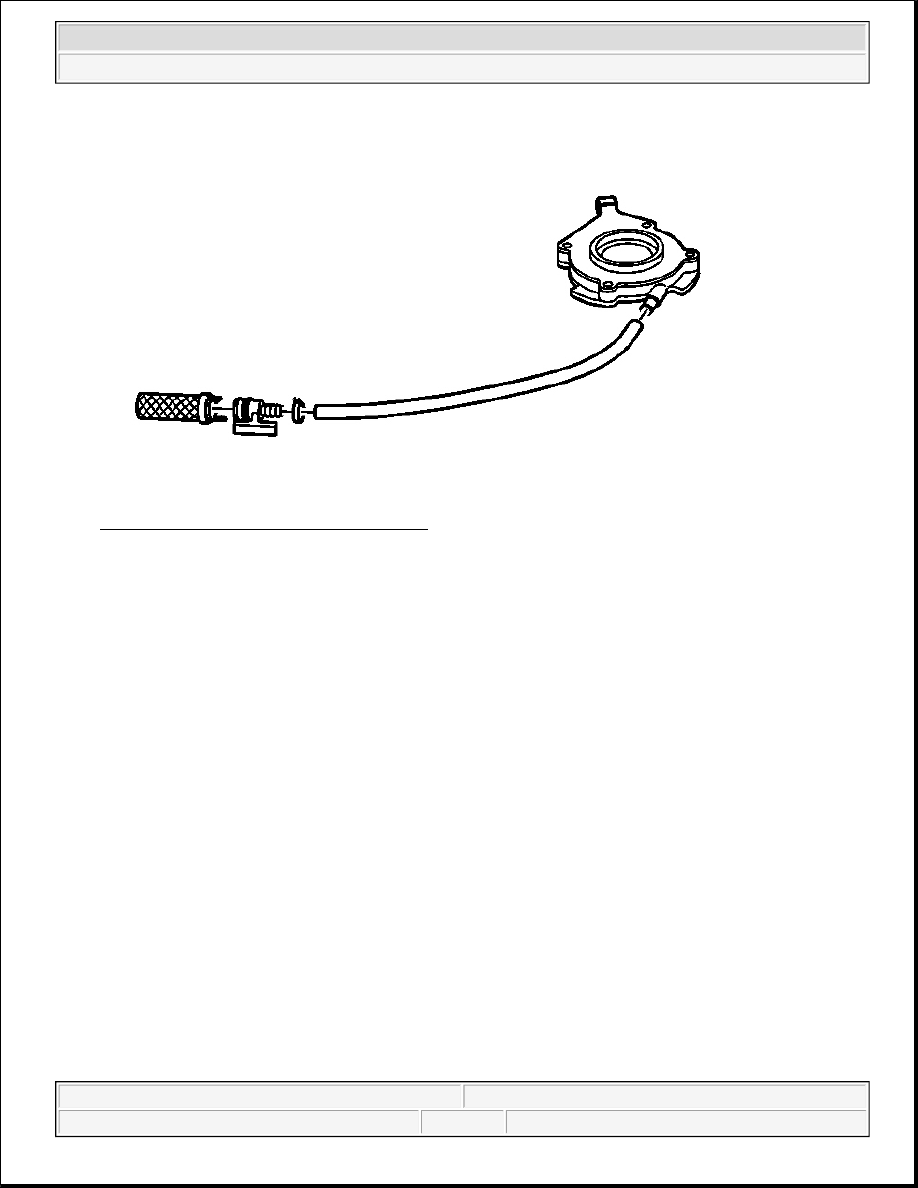

Fig. 89: Locating Oil Pump Hose & Screen
Courtesy of GENERAL MOTORS CORP.

26. Connect the oil pump hose to the oil pump screen.

27. Connect the oil pump hose to the oil pump.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



Fig. 90: Expanded View Of Oil Pump Assembly
Courtesy of GENERAL MOTORS CORP.

28. Install the oil pump assembly with the hose and screen.

1. Align the square boss of the oil pump gear with the flat area on the mainshaft.

2. Install the oil pump in the slot of the front case half. Ensure the wear clip is on the oil pump.

3. Install the oil pump screen in the front case half.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



Fig. 91: Identifying Magnet
Courtesy of GENERAL MOTORS CORP.

29. Install the magnet.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



Fig. 92: View Of Inner Lockup Hub
Courtesy of GENERAL MOTORS CORP.

30. Install the inner lockup hub.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4
