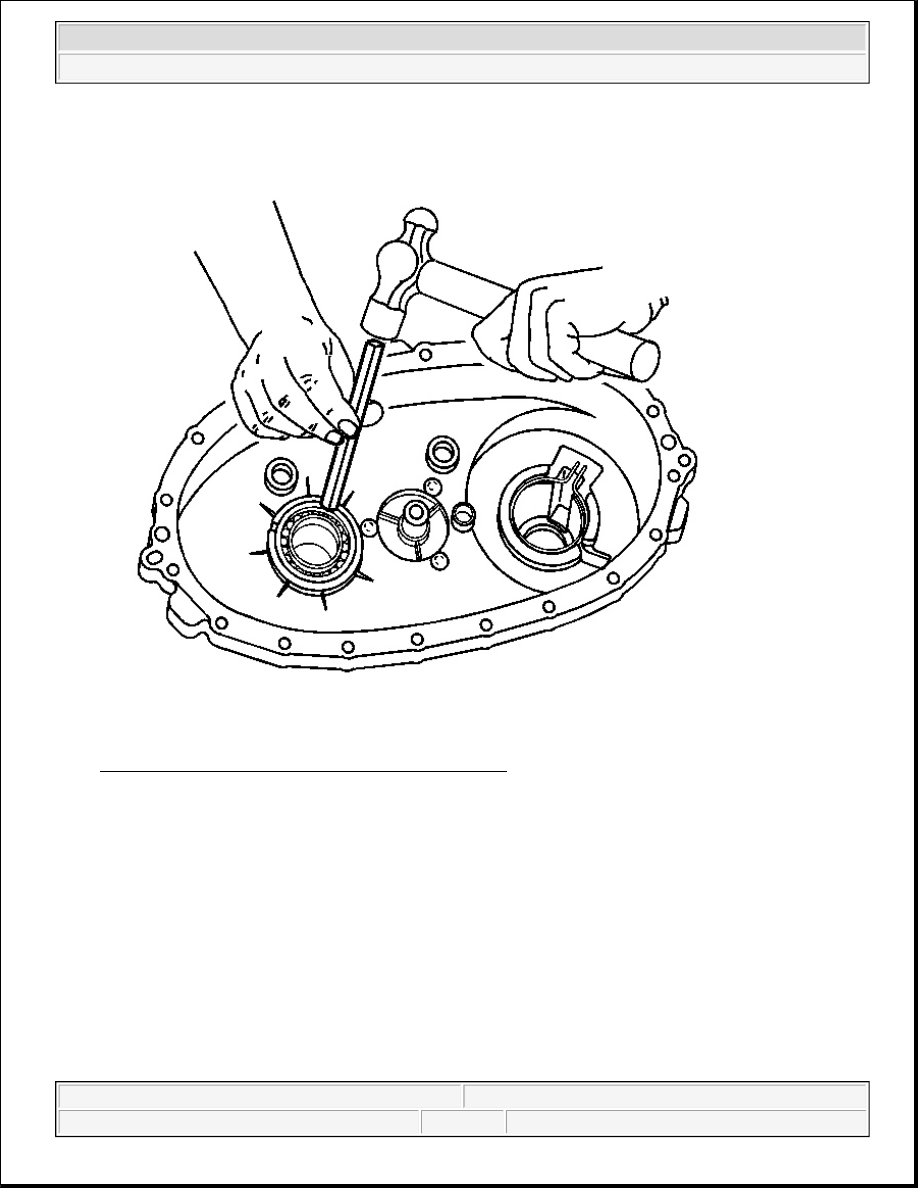

Fig. 105: Installing Front Output Shaft Rear Bearing
Courtesy of GENERAL MOTORS CORP.

47. Install the front output shaft rear bearing in the rear case half.

z

Use a hammer and a brass drift only on the outer bearing race.

z

Ensure the bearing is kept square to the bore while installing.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



Fig. 106: View Of J 22912-01
Courtesy of GENERAL MOTORS CORP.

48. Using a hydraulic press and the J 22912-01 , install the rear output shaft bearing.

z

The retaining ring groove on the bearing goes toward the input end or forward.

z

Use a suitable press plate on the end of the rear output shaft.

z

Ensure the bearing is supported on the inner race.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



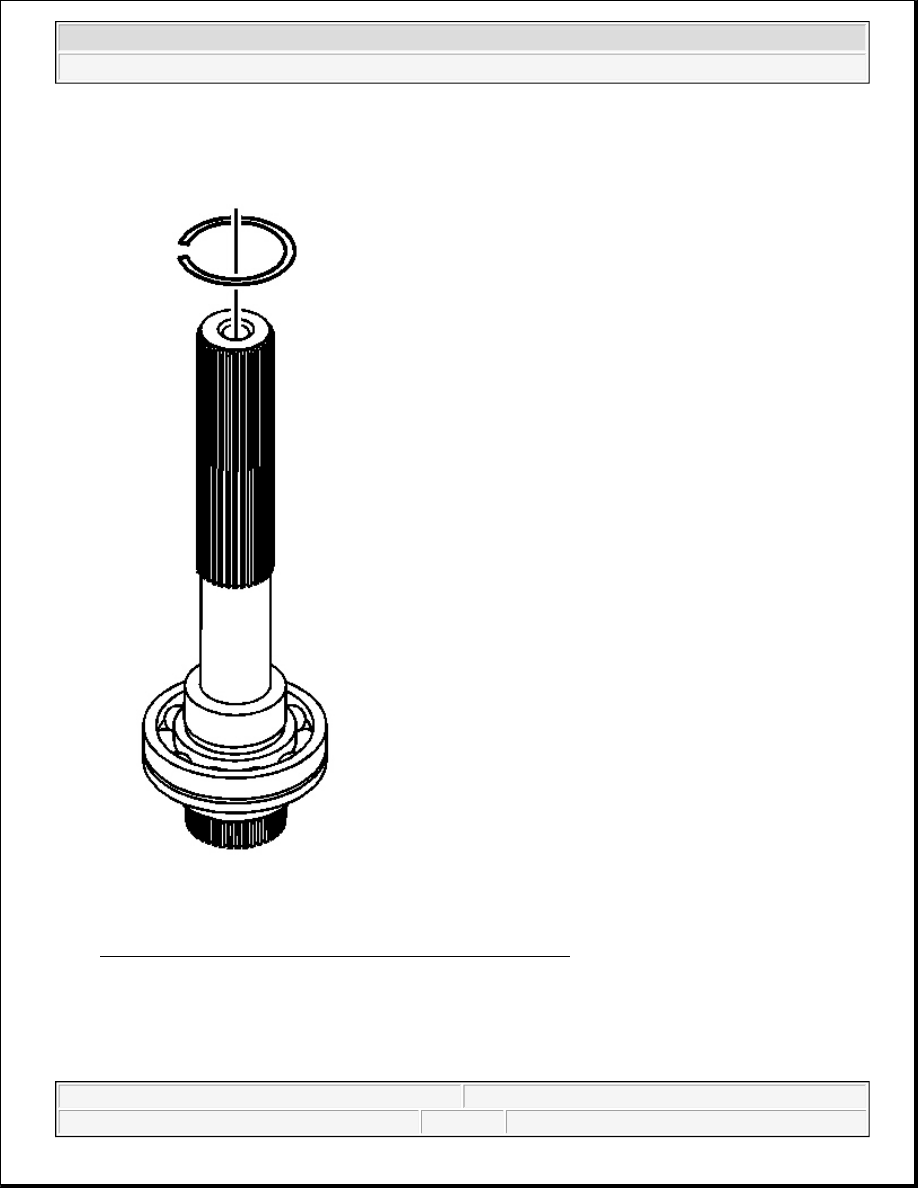

Fig. 107: View Of Rear Output Shaft Bearing Retaining Ring
Courtesy of GENERAL MOTORS CORP.

49. Install a NEW retaining ring for the rear output shaft bearing.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



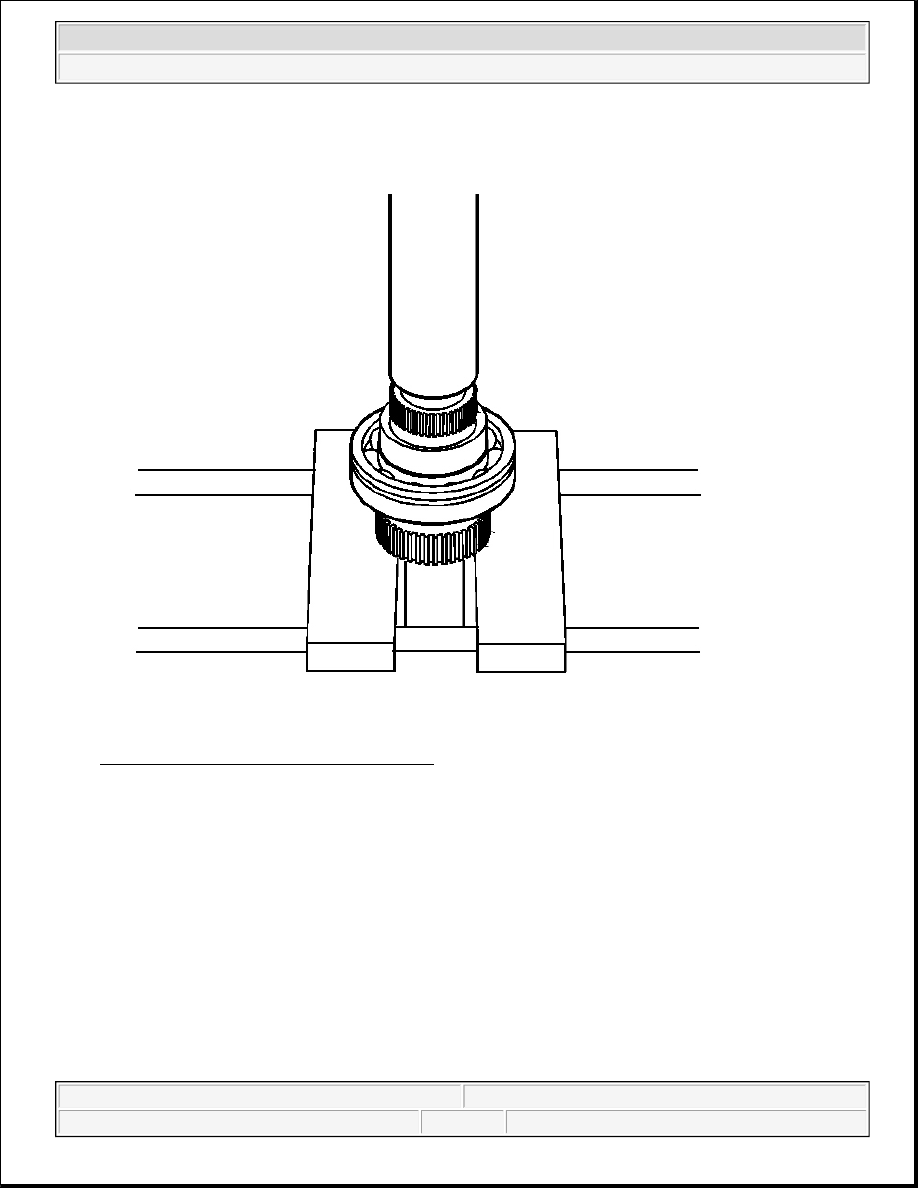

Fig. 108: Pressing In Speed Reluctor Wheel
Courtesy of GENERAL MOTORS CORP.

50. Using a hydraulic press, install a NEW speed reluctor wheel.
