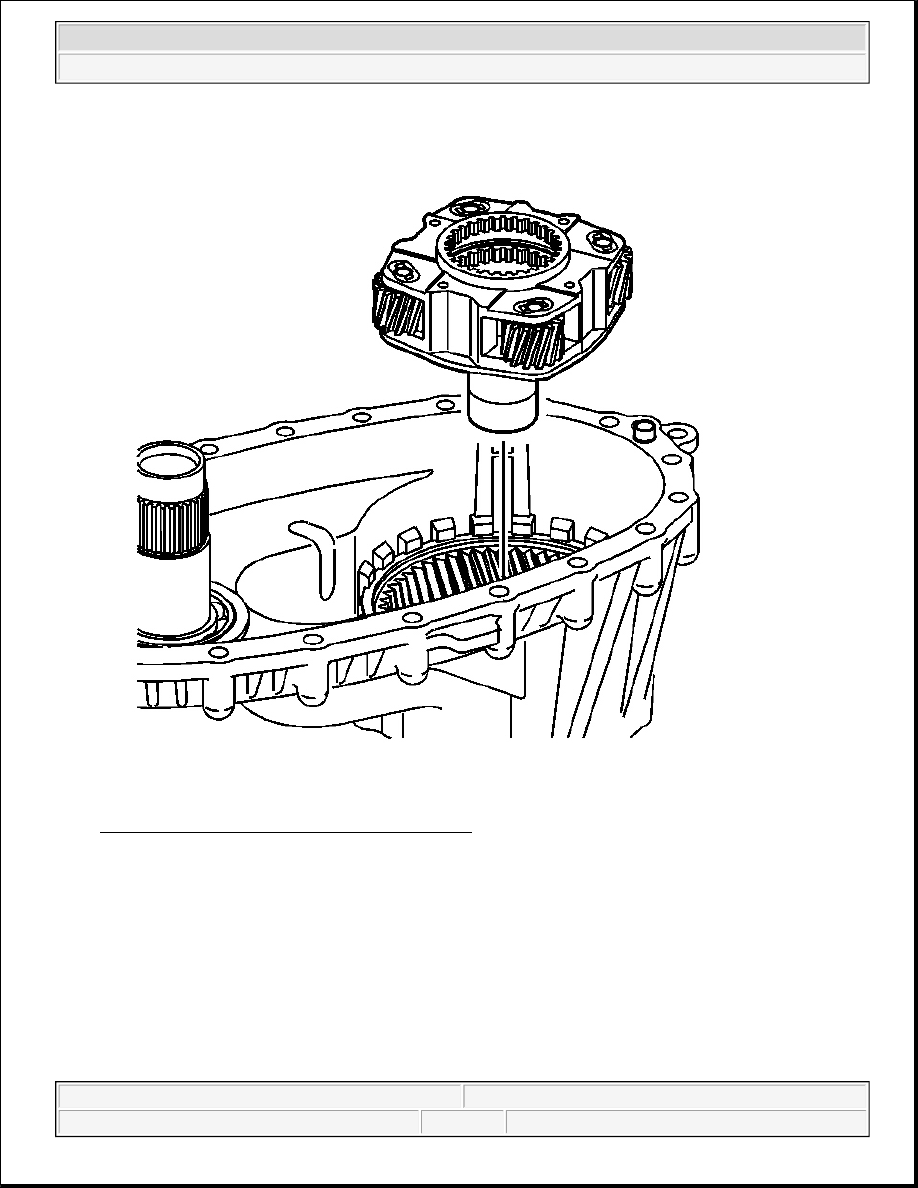

Fig. 81: Identifying High/Low Planetary Carrier
Courtesy of GENERAL MOTORS CORP.

15. Install the high/low planetary carrier.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



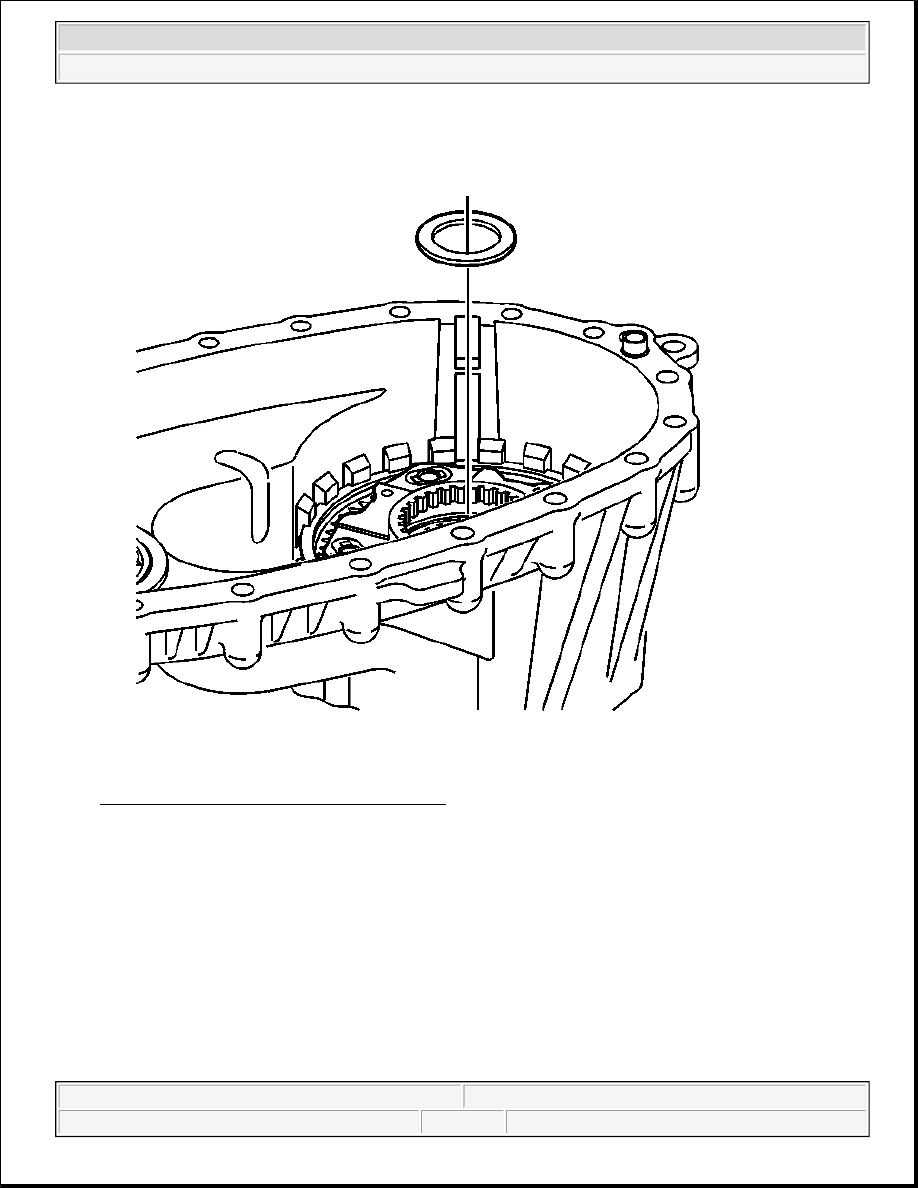

Fig. 82: Locating Input Shaft Thrust Washer
Courtesy of GENERAL MOTORS CORP.

16. Lubricate the input shaft thrust washer with J 36850 or equivalent.

17. Install the input shaft thrust washer.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



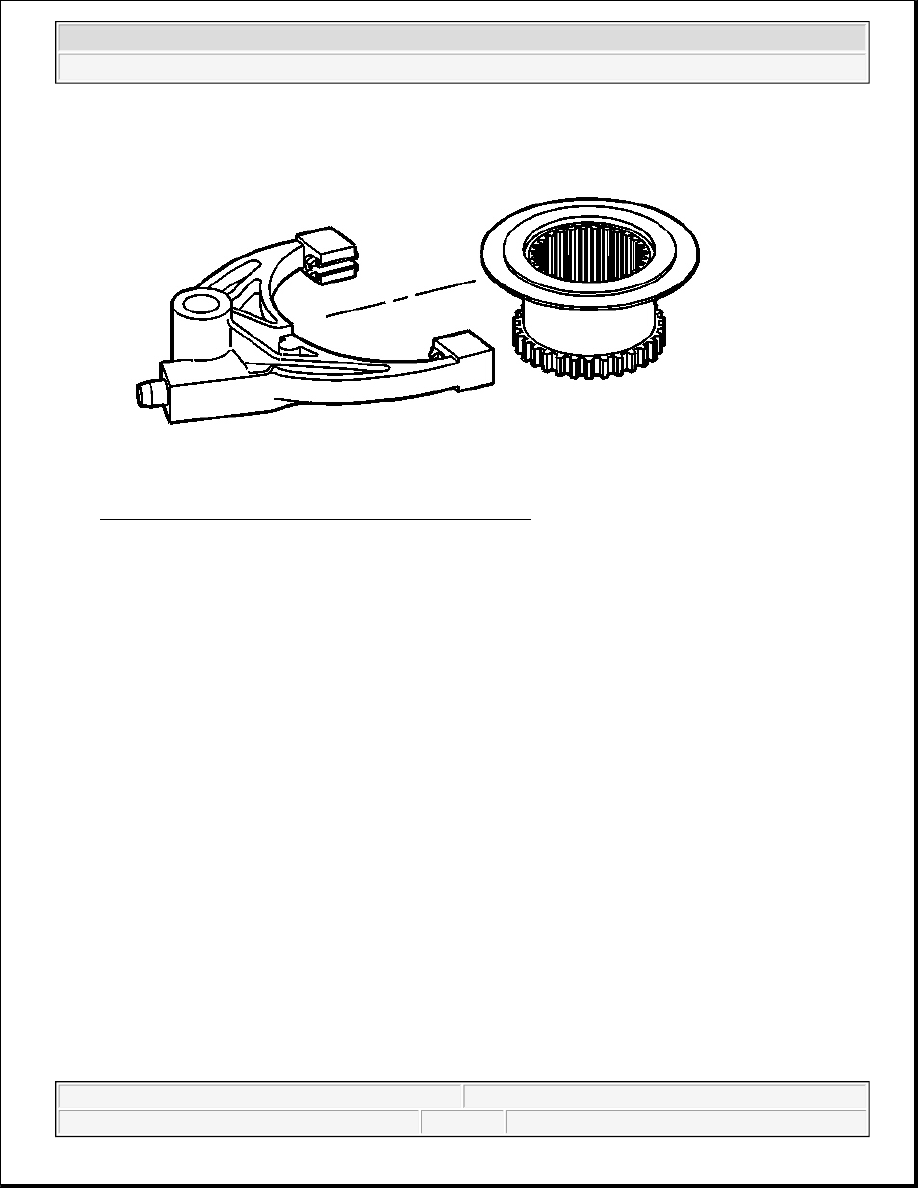

Fig. 83: View Of Range Shift Fork & Range Shift Sleeve
Courtesy of GENERAL MOTORS CORP.

18. Install new shift fork pads, if removed.

19. Install the range shift sleeve in the range fork.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4



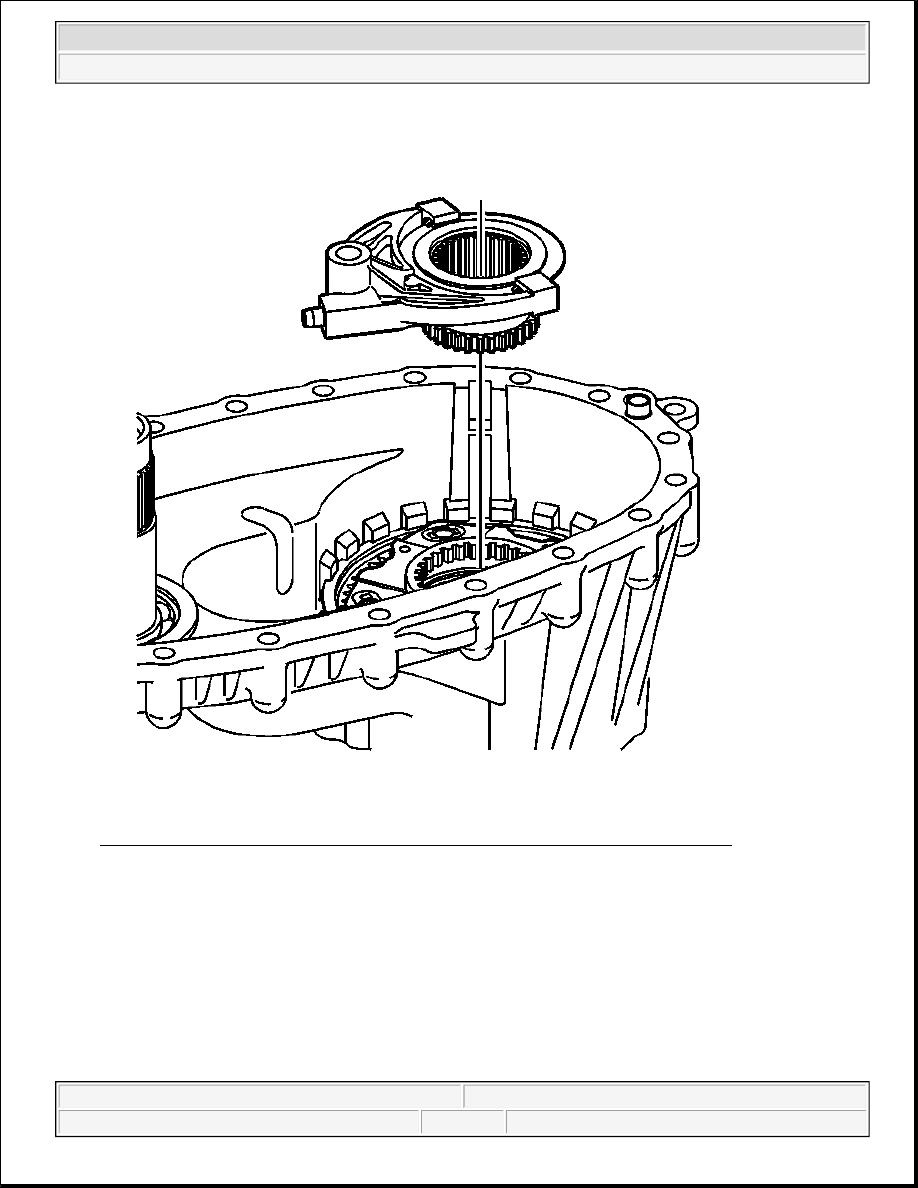

Fig. 84: Identifying High/Low Range Sleeve With The High/Low Range Shift Fork
Courtesy of GENERAL MOTORS CORP.

20. Align the gear teeth on the range shift sleeve to the planetary carrier.

21. Install the range shift fork and the range shift sleeve.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - Overhaul - BW 4482-NR4
