64. Using J 45756 , install the rear output shaft seal. See Special Tools and Equipment .

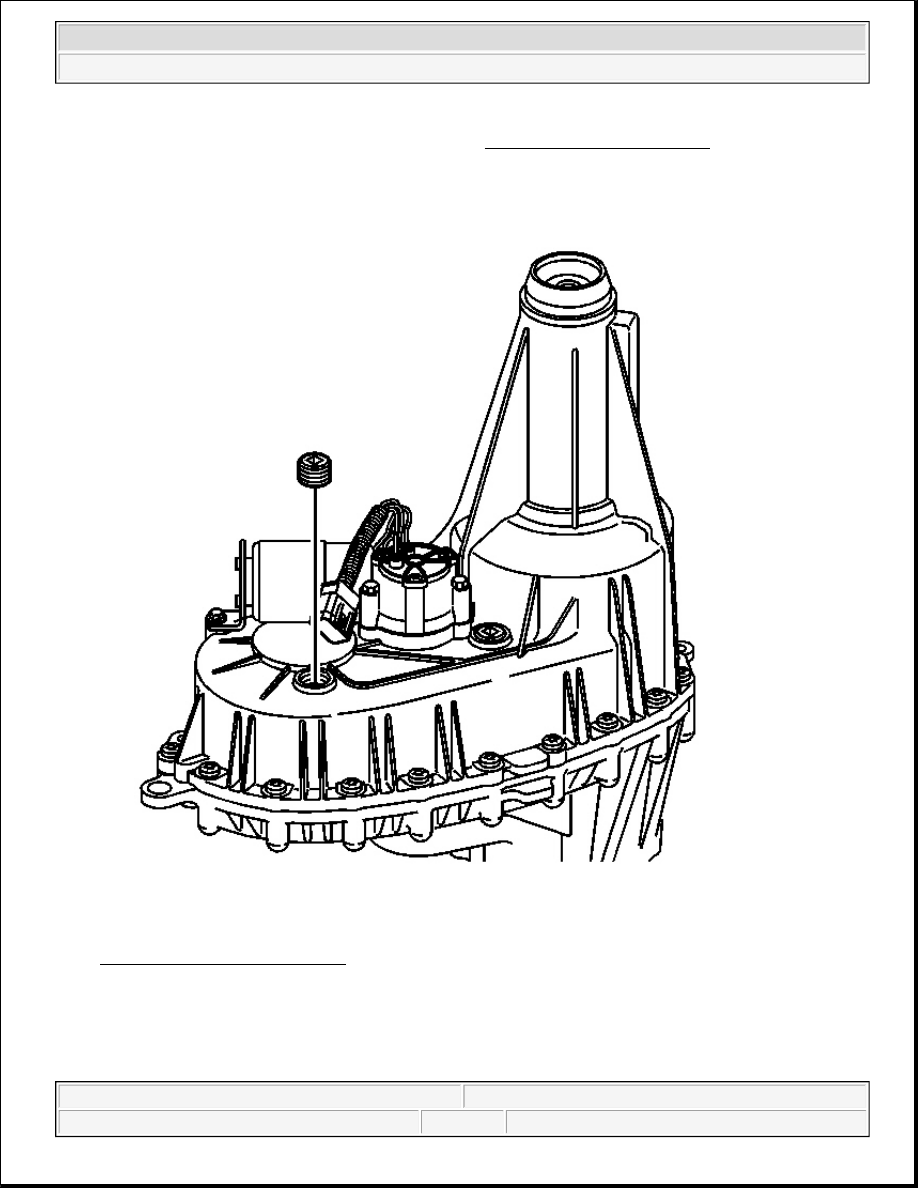

Fig. 152: Drain Plug & Fill Plug
Courtesy of GENERAL MOTORS CORP.

65. Apply pipe sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads on the drain plug and fill

plug.

66. Install the drain plug and the fill plug.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



Tighten: Tighten the drain plug and fill plug to 25 N.m (18 lb ft).

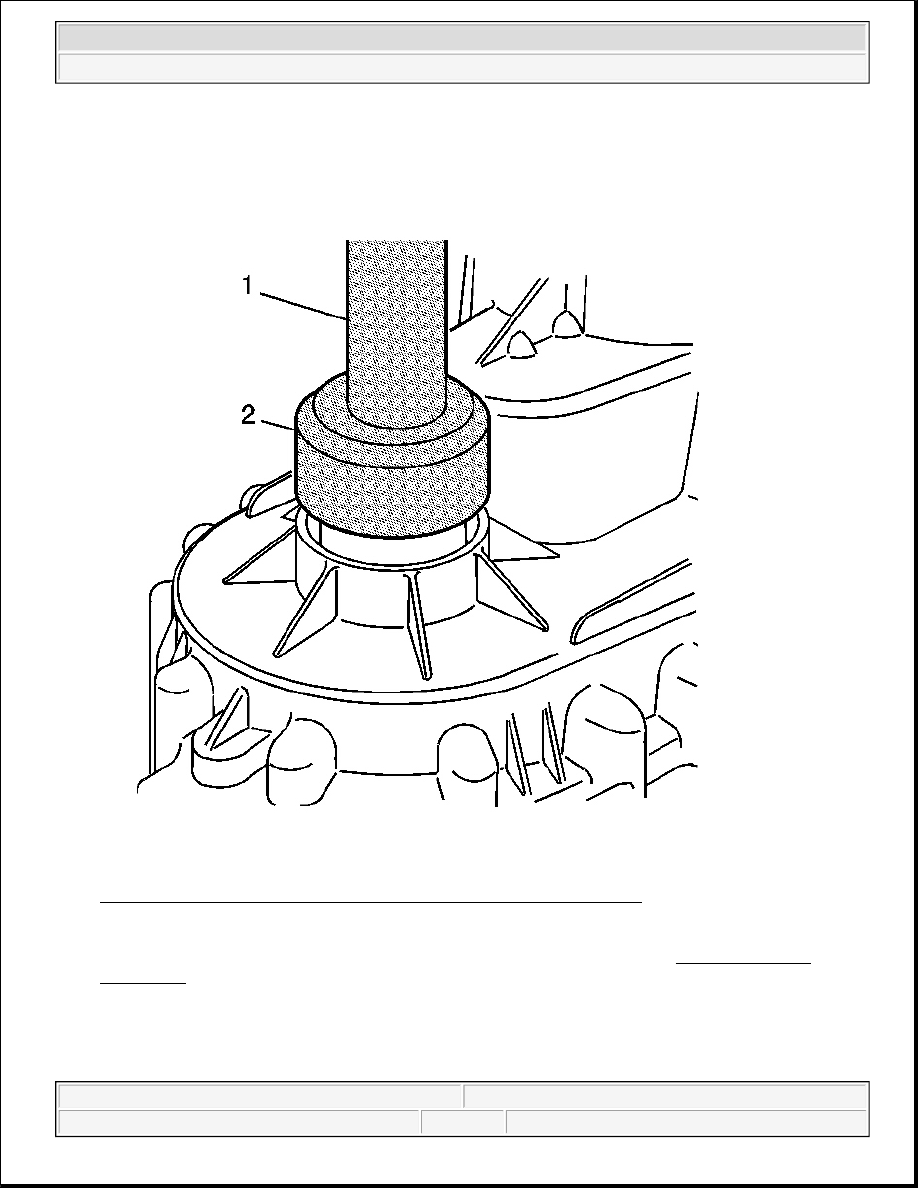

Fig. 153: Using J 43484 & J 8092 To Install Transfer Case Output Seal
Courtesy of GENERAL MOTORS CORP.

67. Using the J 43484 (2) and the J 8092 (1), install the front output shaft seal. See Special Tools and

Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

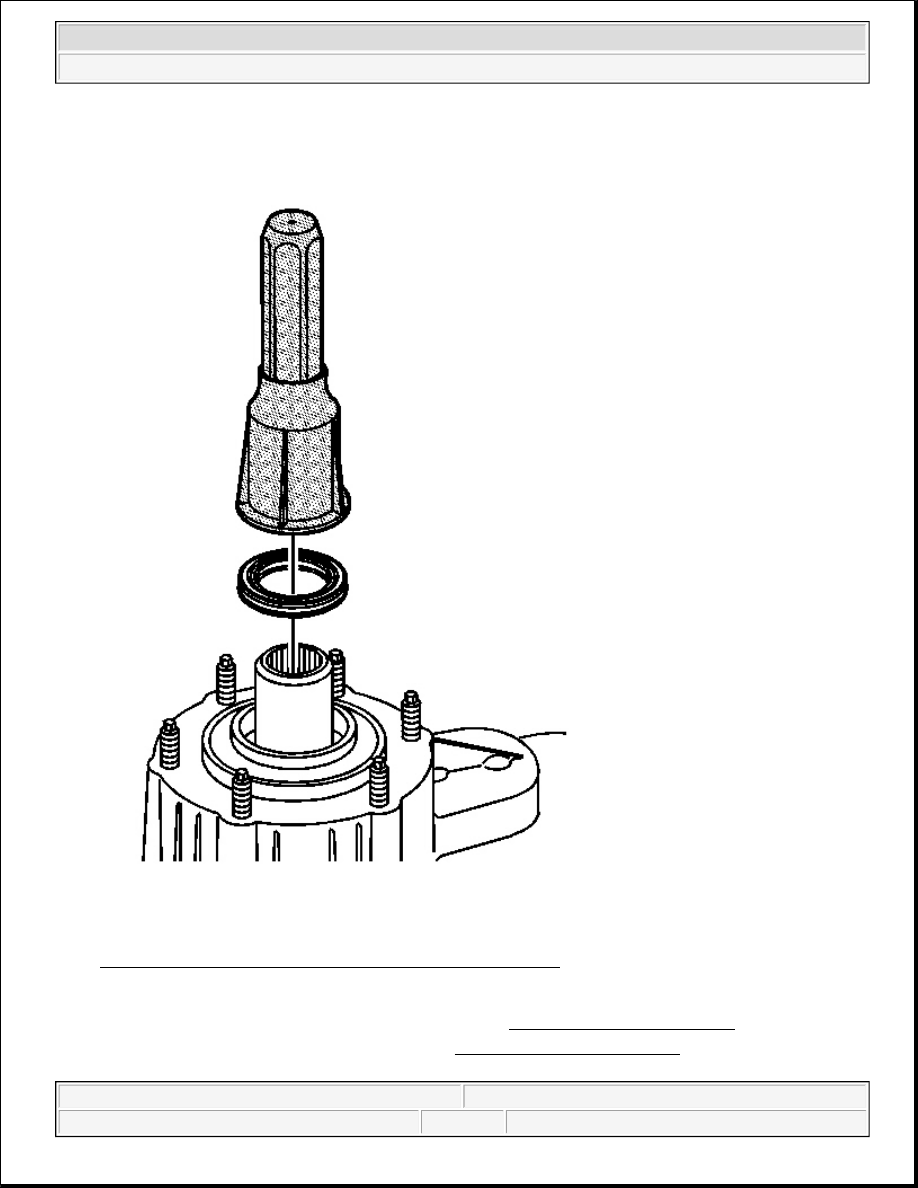

Fig. 154: Installing Front Input Shaft Seal By Using J 42738
Courtesy of GENERAL MOTORS CORP.

68. Using the J 42738 , install the front input shaft seal. See Special Tools and Equipment .

69. Remove the transfer case from the J 45759 . See Special Tools and Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



DESCRIPTION AND OPERATION

TRANSFER CASE DESCRIPTION AND OPERATION

The Borg Warner (BW) model 4484 NR4 transfer case is a two-speed, full time 4WD, transfer case. The
transfer case has an external planetary type differential, which has two different sets of pinion gears. The
planetary differential provides a 40/60 torque split front/rear full time. This means the front and rear propeller
shafts are constantly being driven for maximum traction in all conditions. A high/low planetary carrier assembly
provides the high and low ranges, which is a 6-pinion gear, sun gear, and annulus gear arrangement giving a
2.64 low range reduction ratio.

The BW 4484 case halves are high-pressure die-cast magnesium. Ball bearings support the input shaft, the front
output shaft, and the rear output shaft. A needle roller bearing is located inside of the input shaft gear to support
the front of the mainshaft. The rear of the mainshaft is supported by a bronze bearing inside the rear output
shaft. The transfer case requires DEXRON III ATF Fluid GM P/N 12346143 (Canadian P/N 10952622), which
is red in color. An oil pump pumps the fluid through the mainshaft oil gallery to the gears and bearings.

Transfer Case Shift Control Switch
