Hummer H2. Manual - part 2629

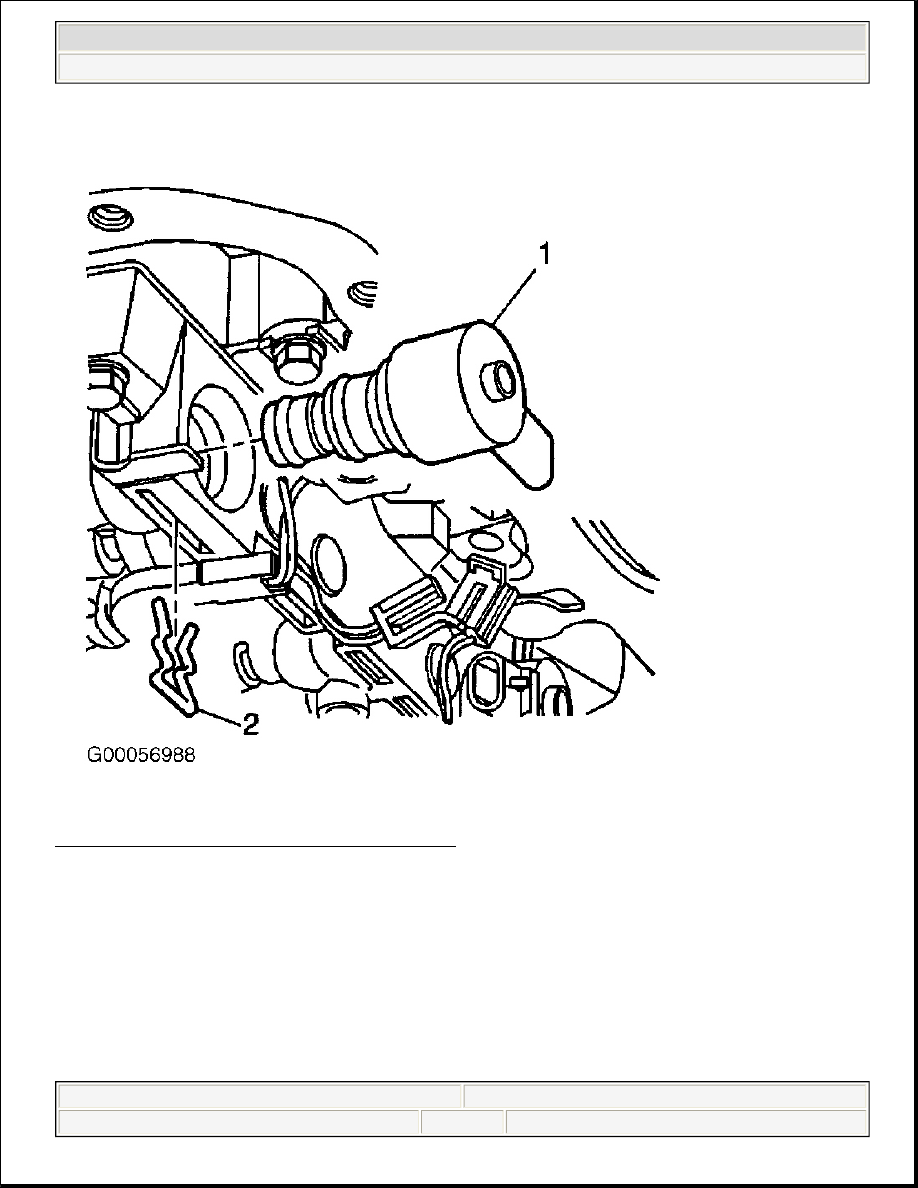

Fig. 48: Removing & Installing TCC PWM Solenoid
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

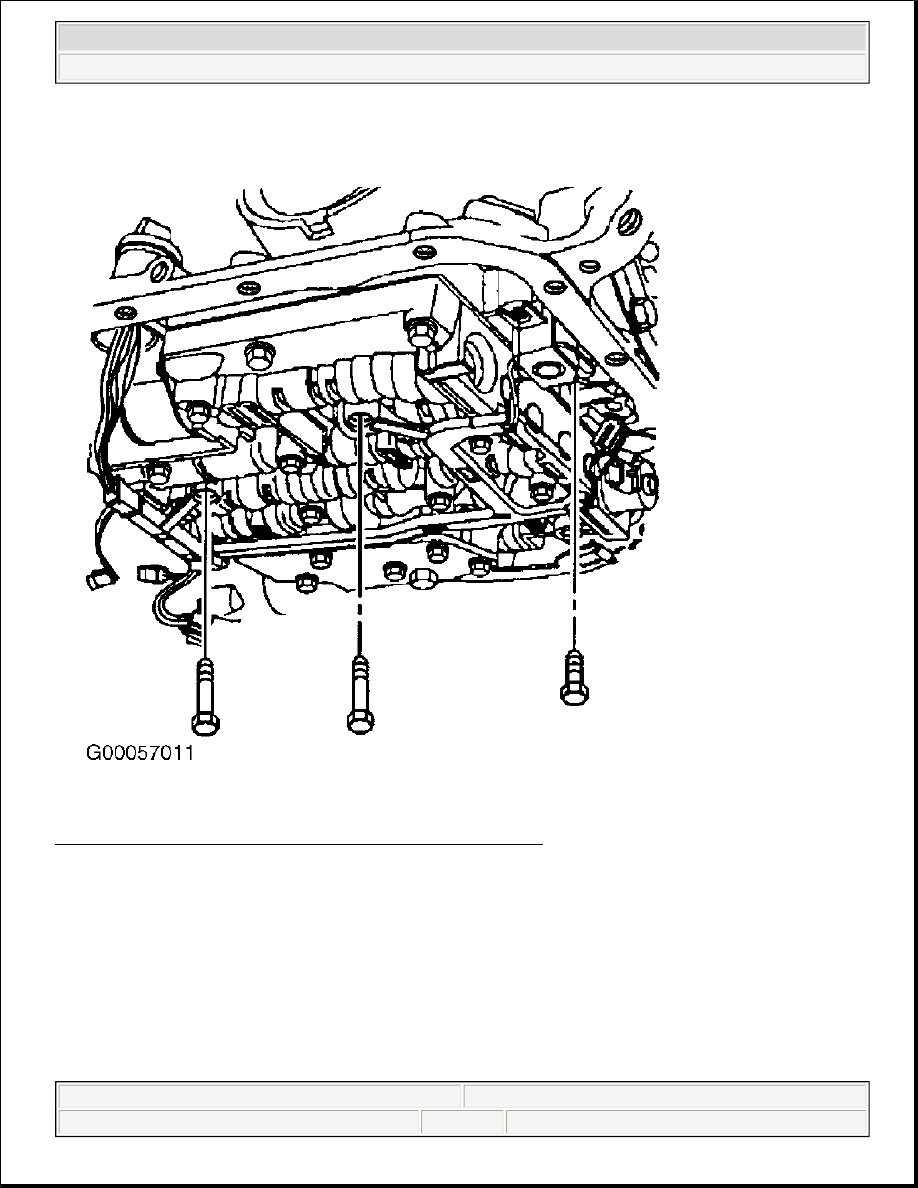

Fig. 49: Removing & Installing Valve Body/TCC Solenoid Bolts
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

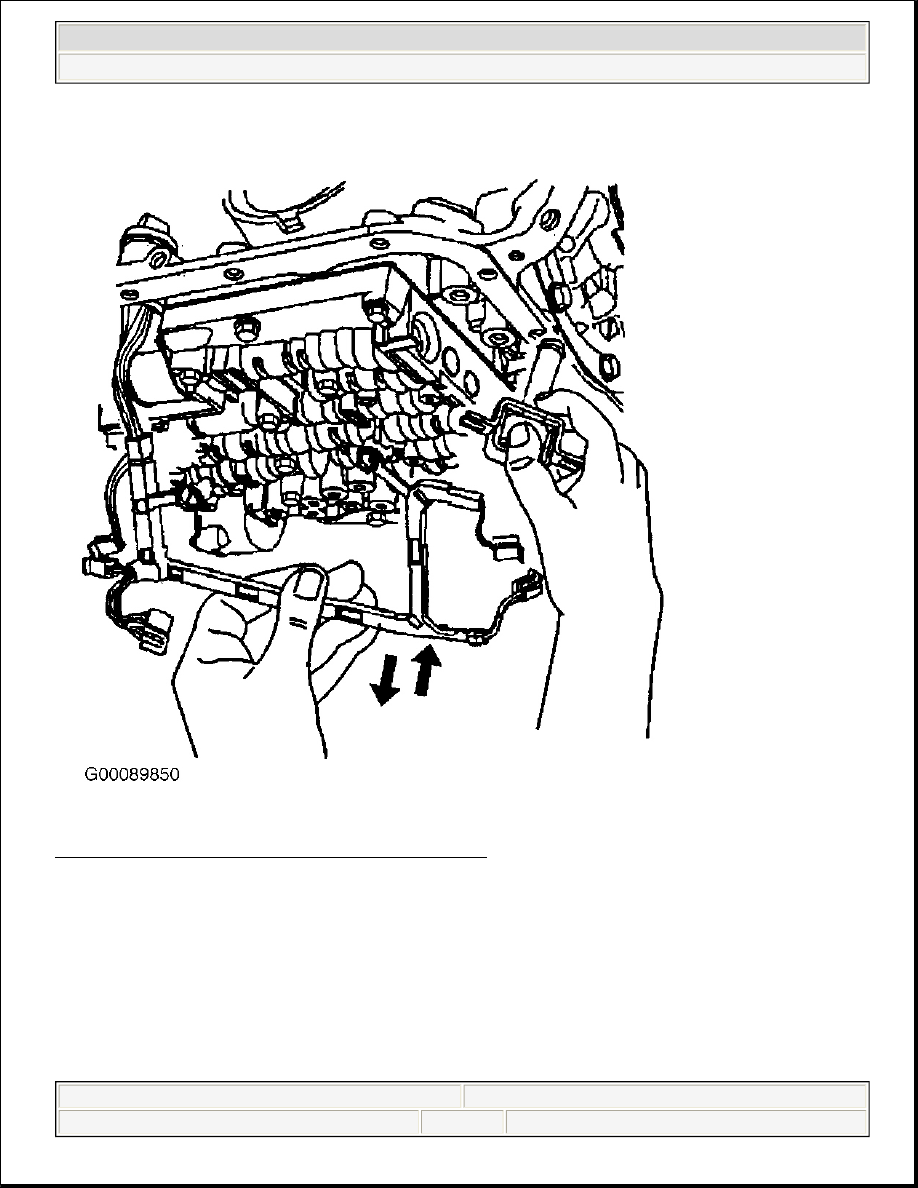

Fig. 50: Removing & Installing Internal Wiring Harness
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

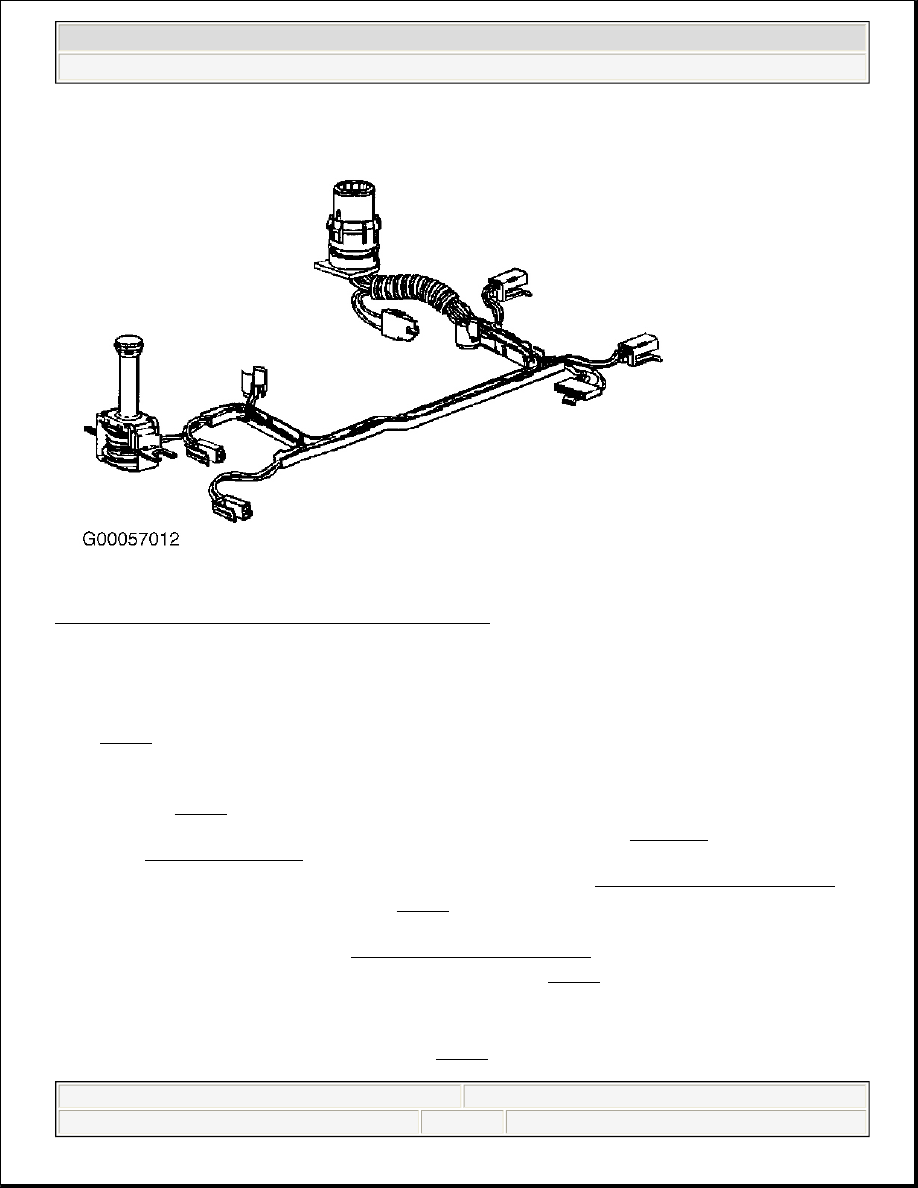

Fig. 51: Identifying Internal Transmission Wire Harness
Courtesy of GENERAL MOTORS CORP.

Installation

1. Install the wiring harness and TCC solenoid assembly with a new "O" ring seal to the transmission. See

Fig. 50 .

2. Install the pass-through electrical connector to the transmission case.

3. Install the valve body bolts which retain the internal wiring harness and install the TCC solenoid retaining

bolts. See Fig. 49 .

z

Tighten the control valve body retaining bolts to specification. See TORQUE
SPECIFICATIONS .

z

Tighten the TCC solenoid retaining bolts to specification. See TORQUE SPECIFICATIONS .

4. Install the pressure control solenoid. See Fig. 29 . Ensure the electrical tabs are facing outboard.

5. Install the pressure control solenoid retainer and retaining bolt. Tighten the pressure control solenoid

retaining bolt to specification. See TORQUE SPECIFICATIONS .

6. Install the TCC PWM solenoid to the control valve body. See Fig. 48 .

7. Install the TCC PWM solenoid retainer.

8. Connect the internal wiring harness electrical connectors to the following components:

z

Transmission fluid pressure switch. See Fig. 28 .
