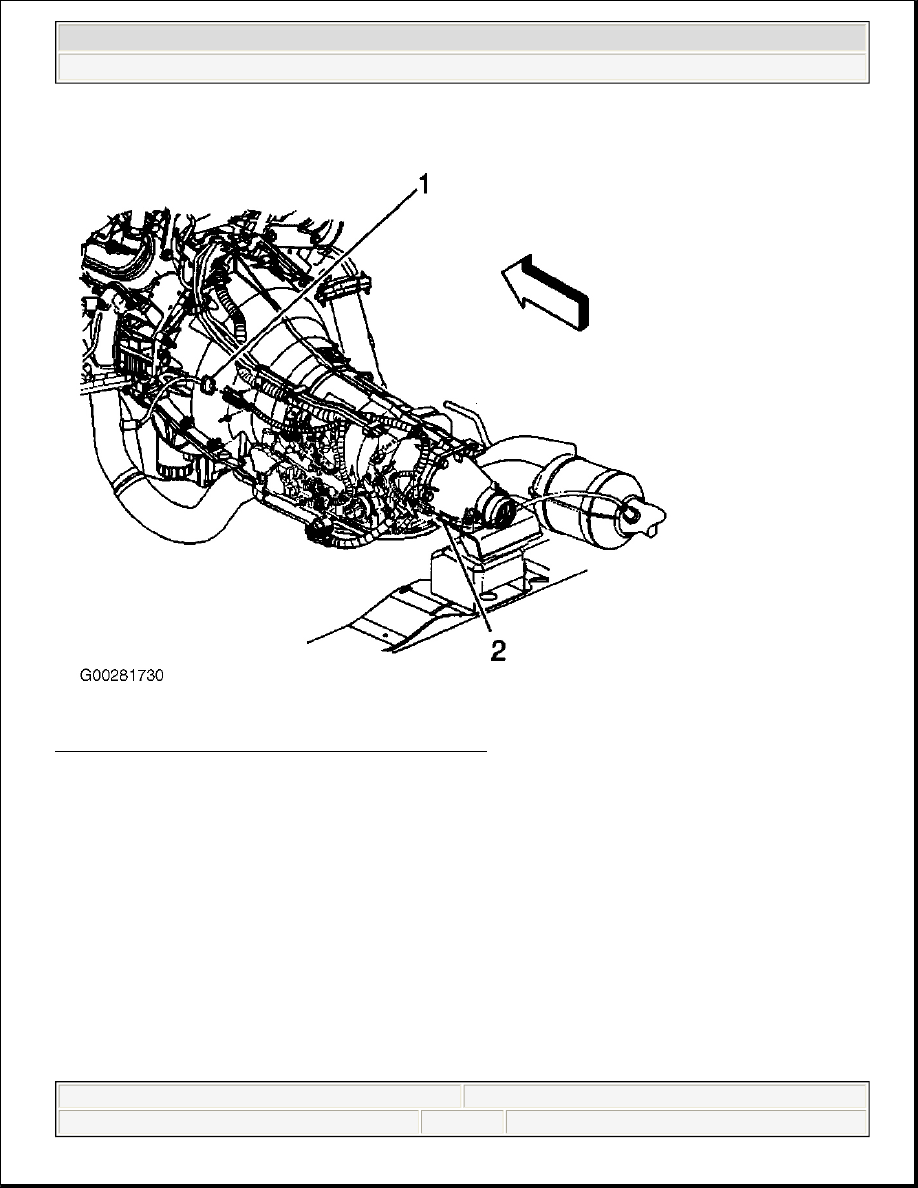

Fig. 37: Identifying Oxygen Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

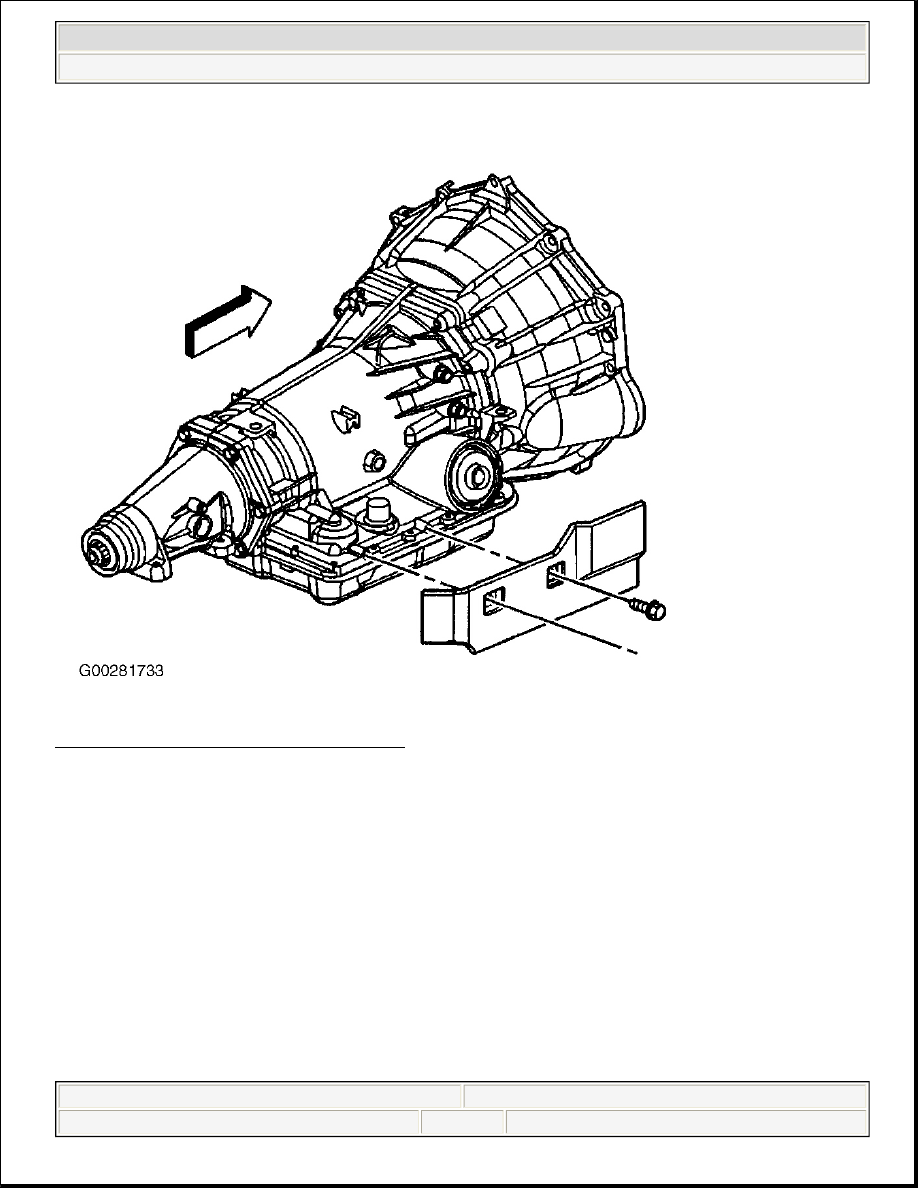

Fig. 38: Identifying Transmission Heat Shield
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2

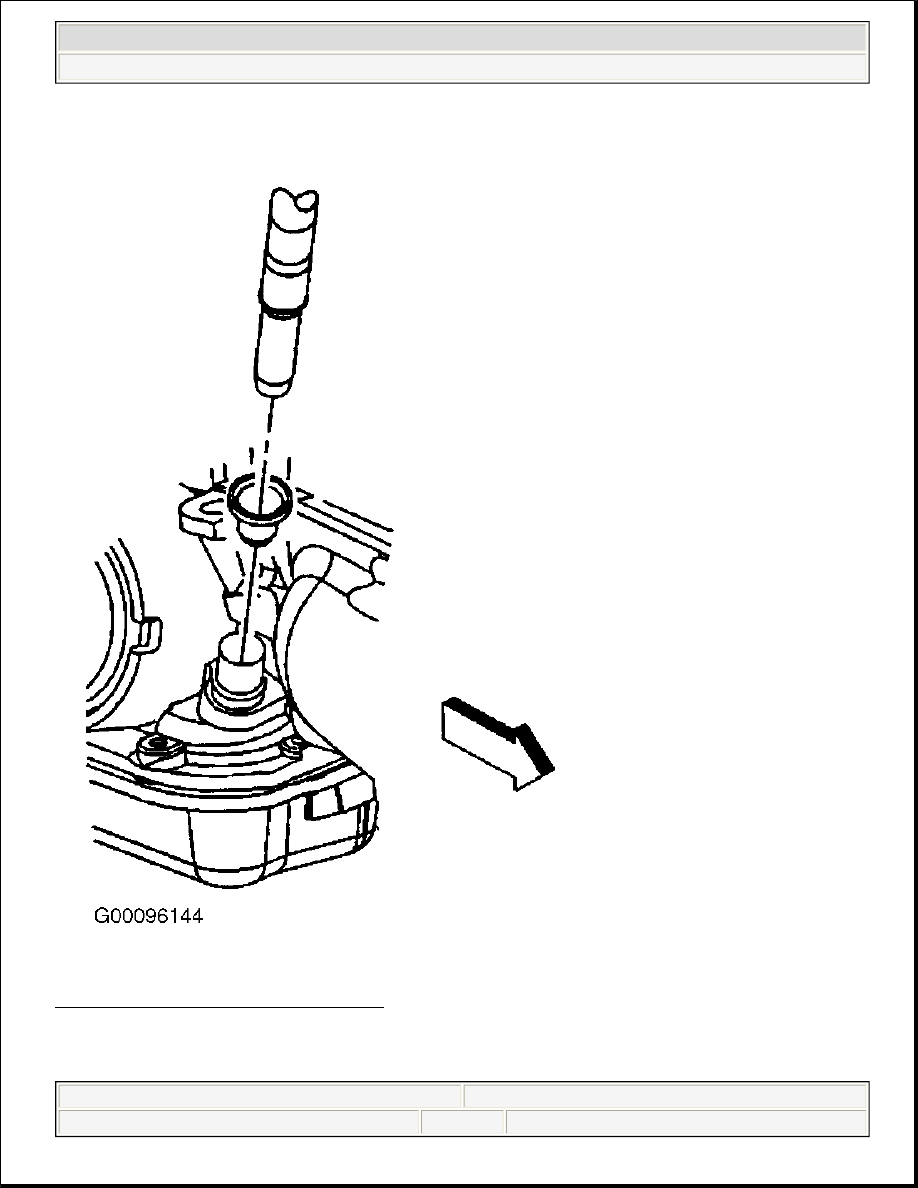

Fig. 39: Removing & Installing Filler Tube
Courtesy of GENERAL MOTORS CORP.

Installation



2004 Hummer H2

2003-04 AUTOMATIC TRANSMISSIONS Servicing - H2



1. Install a NEW seal into transmission case. See Fig. 39 . Install the transmission oil level indicator tube

into seal.

2. Install the transmission level indicator tube nut. Tighten nut to specification. See TORQUE

SPECIFICATIONS .

3. Install transmission heat shield. Install the 2 bolts retaining the heat shield. Tighten the bolts to

specification. See TORQUE SPECIFICATIONS .

4. Install right catalytic converter and nuts. Tighten nuts to specification. See TORQUE

SPECIFICATIONS .

5. Install exhaust manifold pipe-to-catalytic converter nuts. Tighten nuts to specification. See TORQUE

SPECIFICATIONS .

6. Connect oxygen sensor electrical connectors (1, 2). See Fig. 37 . Connect the CPA retainers.

7. Install the catalytic converter guard. Tighten bolts to specification. See TORQUE SPECIFICATIONS .

Install frame-to-engine protection shield. Tighten bolts to specification. See TORQUE
SPECIFICATIONS .

8. Lower the vehicle. Install the transmission oil level indicator.

9. Fill transmission to proper level with appropriate fluid. See LUBRICATION .

MANUAL SHIFT SHAFT SEAL

Removal

1. Raise the vehicle. Remove the Park/Neutral Position (PNP) Switch. See PARK/NEUTRAL POSITION

SWITCH .

2. Be sure that the jackscrew for Selector Shaft Seal Remover is backed off and will not interfere with

installation of the removal tool. Slide the seal remover tool over the selector shaft (2) with the threaded
end of the tool towards the seal. See Fig. 40 .

3. Rotate the removal tool so that the threads on the end of the tool engage the steel shell (1) of the seal. Use

a wrench to be sure that the removal tool is firmly attached to the seal shell.

4. Rotate the jackscrew in the clockwise direction to remove the seal from the bore. Discard the seal that

was removed.

NOTE:

Tools required: Selector Shaft Seal Remover (J-43911) and Selector Shaft Seal
Installer (J-43909).
