Hummer H2. Manual - part 2607

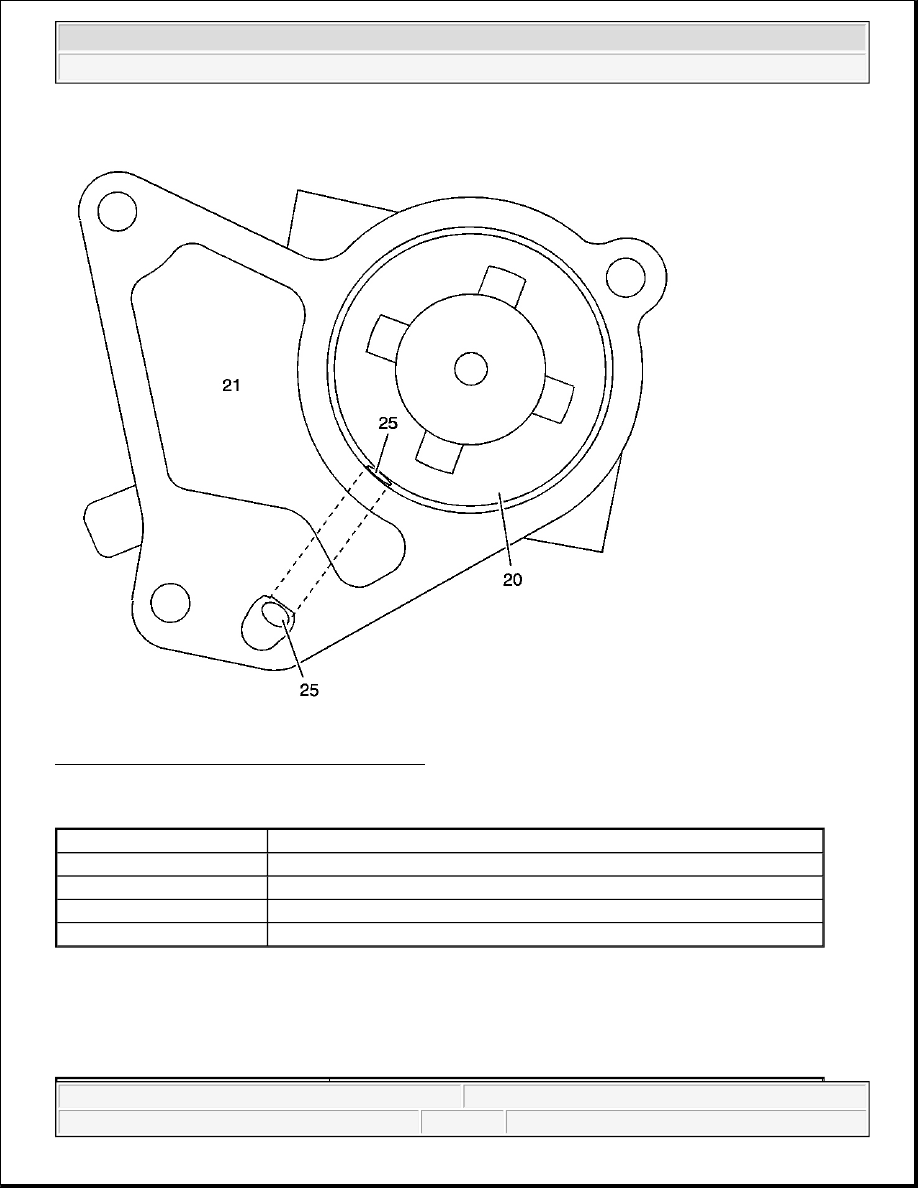

Fig. 346: 1-2 Accumulator Cover Fluid Passages
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 346

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS (UNIT REPAIR)

Special Tools (Unit Repair)

Callout

Component Name

20

Accumulator

21

Orificed Accumulator

25

2nd Clutch

25

2nd Clutch



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



Illustration

Tool Number/Description

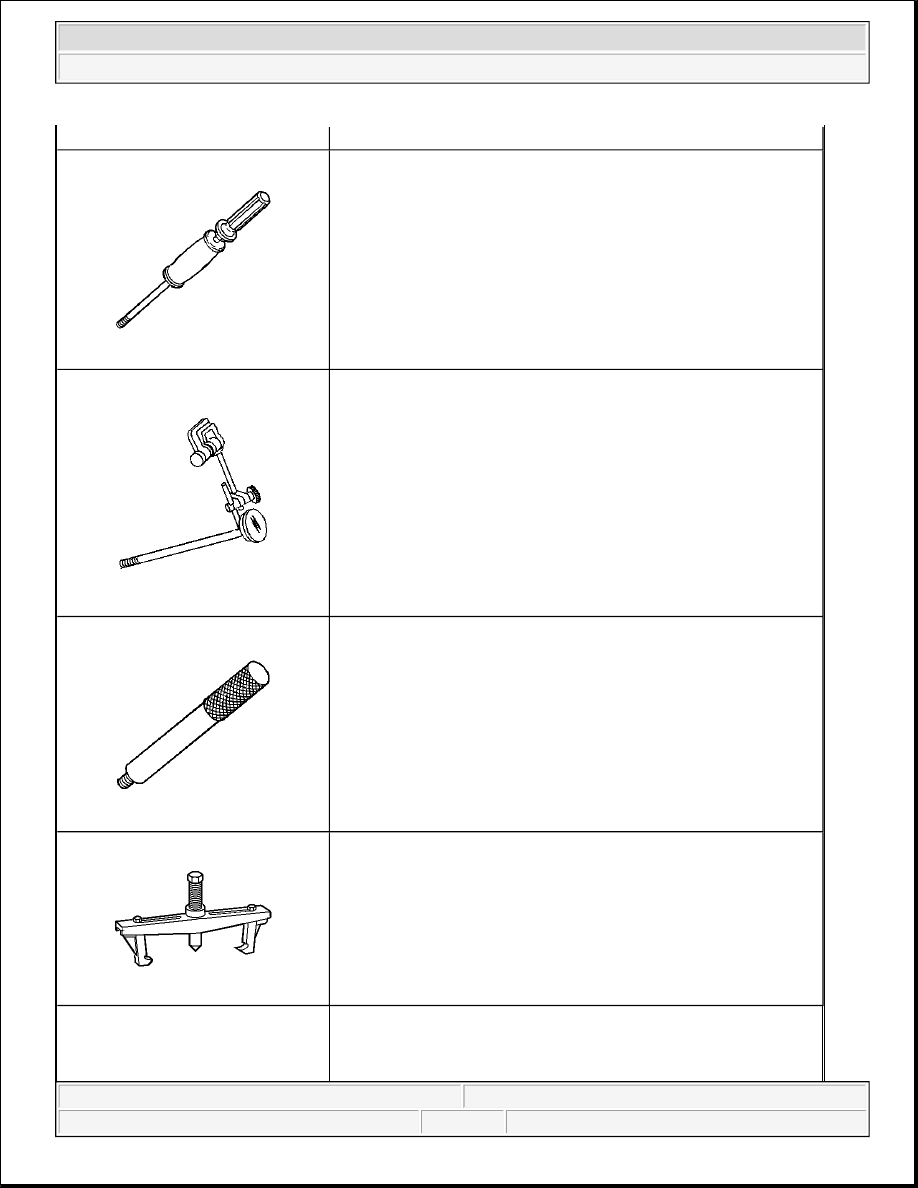

J 7004-1

Universal Remover

J 8001

Dial Indicator Set

J 8092

Driver Handle

J 8433

Two Jaw Puller



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



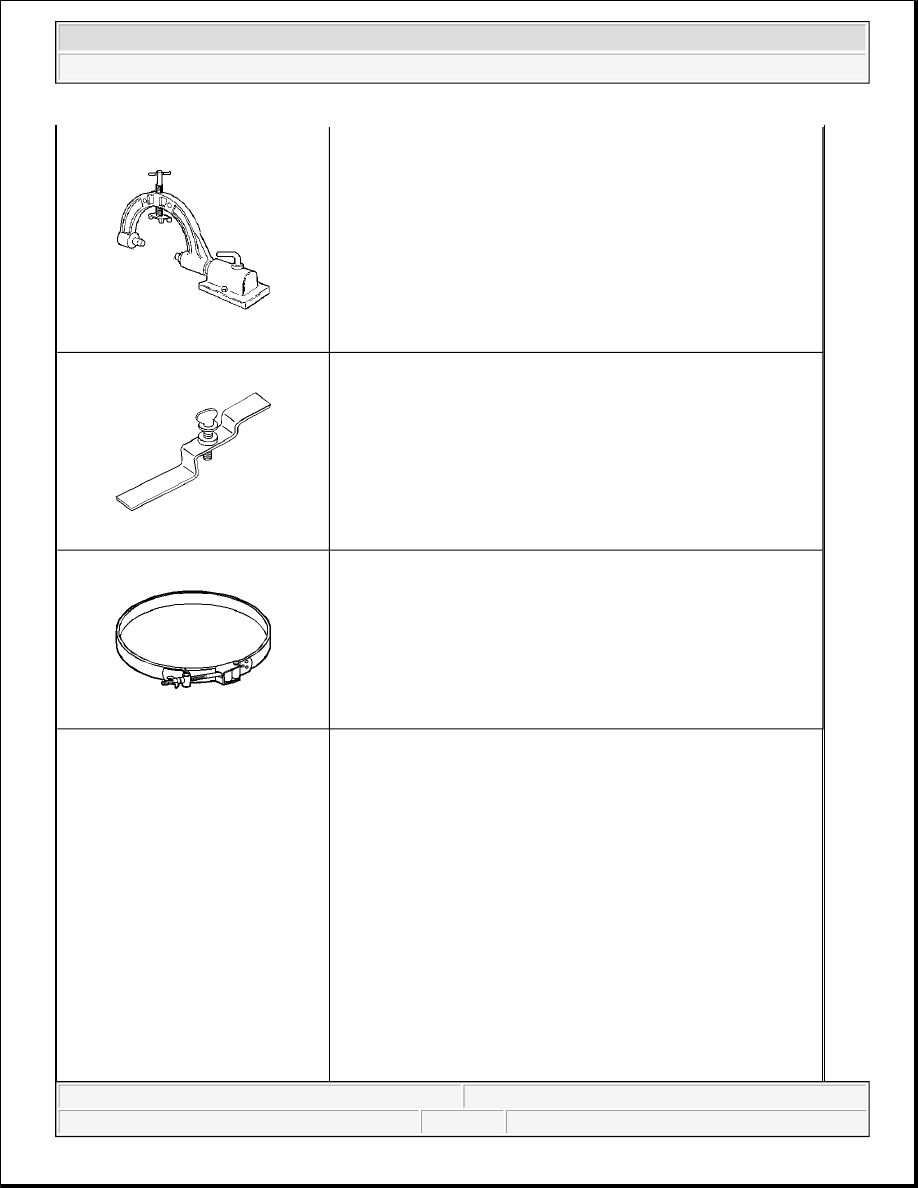

J 8763-02

Holding Fixture and Base

J 21366

Converter Holding Strap

J 21368

Pump Body and Cover Alignment Band

J 21426

Rear Seal Installer



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



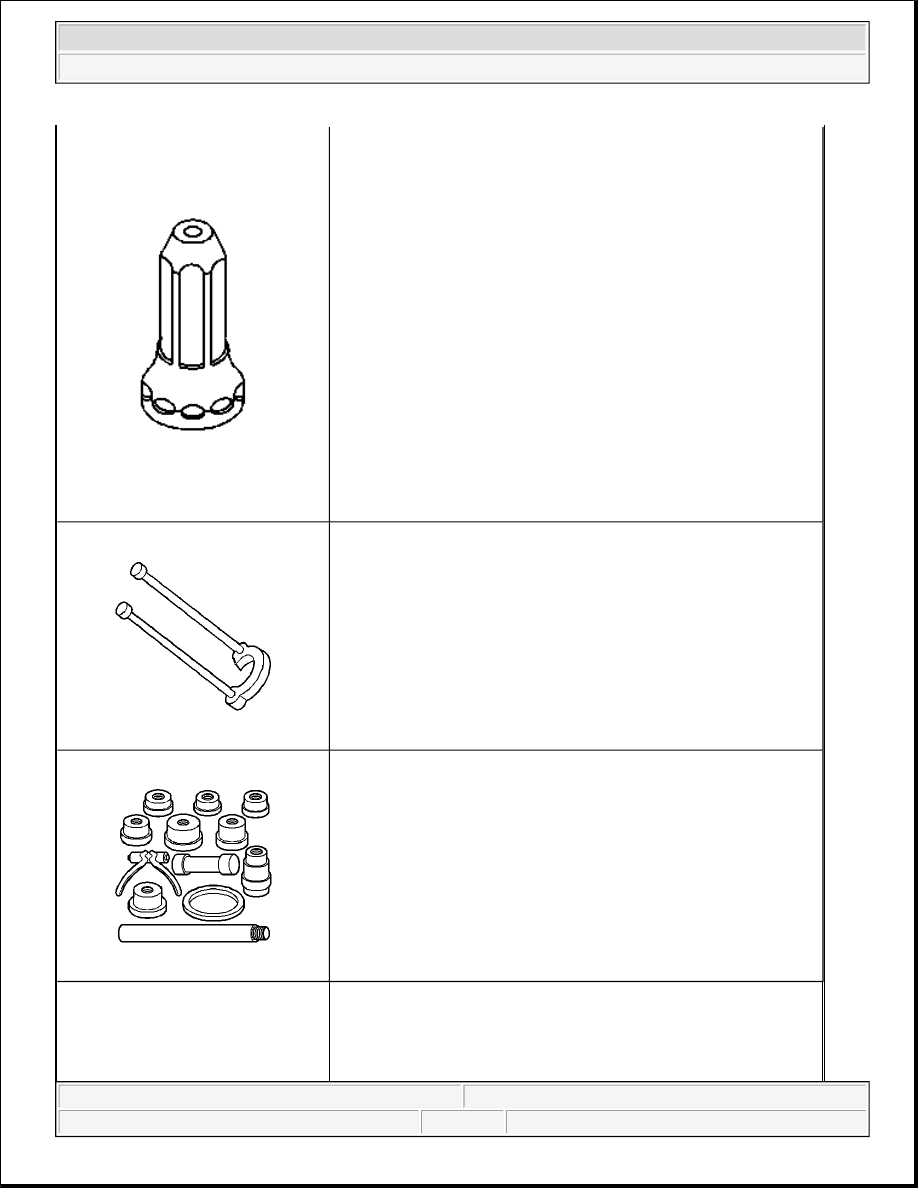

J 21427-01

Speedometer Gear Puller Adapter

J 21465-01

Bushing Service Set

J 21465-2



2004 Hummer H2
