Hummer H2. Manual - part 2602

34

D3

34

D3

35

Overrun

35

Overrun

36

Overrun Clutch Feed

36

Overrun Clutch Feed

37

Overrun Clutch

37

Overrun Clutch

37

Overrun Clutch

38

D2

38

D2

38

D2

38

D2

39

Orificed D2

41

Lo

41

Lo

41

Lo

42

Lo/1st

42

Lo/1st

43

Exhaust

43

Exhaust

44

Orificed Exhaust

44

Orificed Exhaust

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

48

Regulated Apply

48

Regulated Apply



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



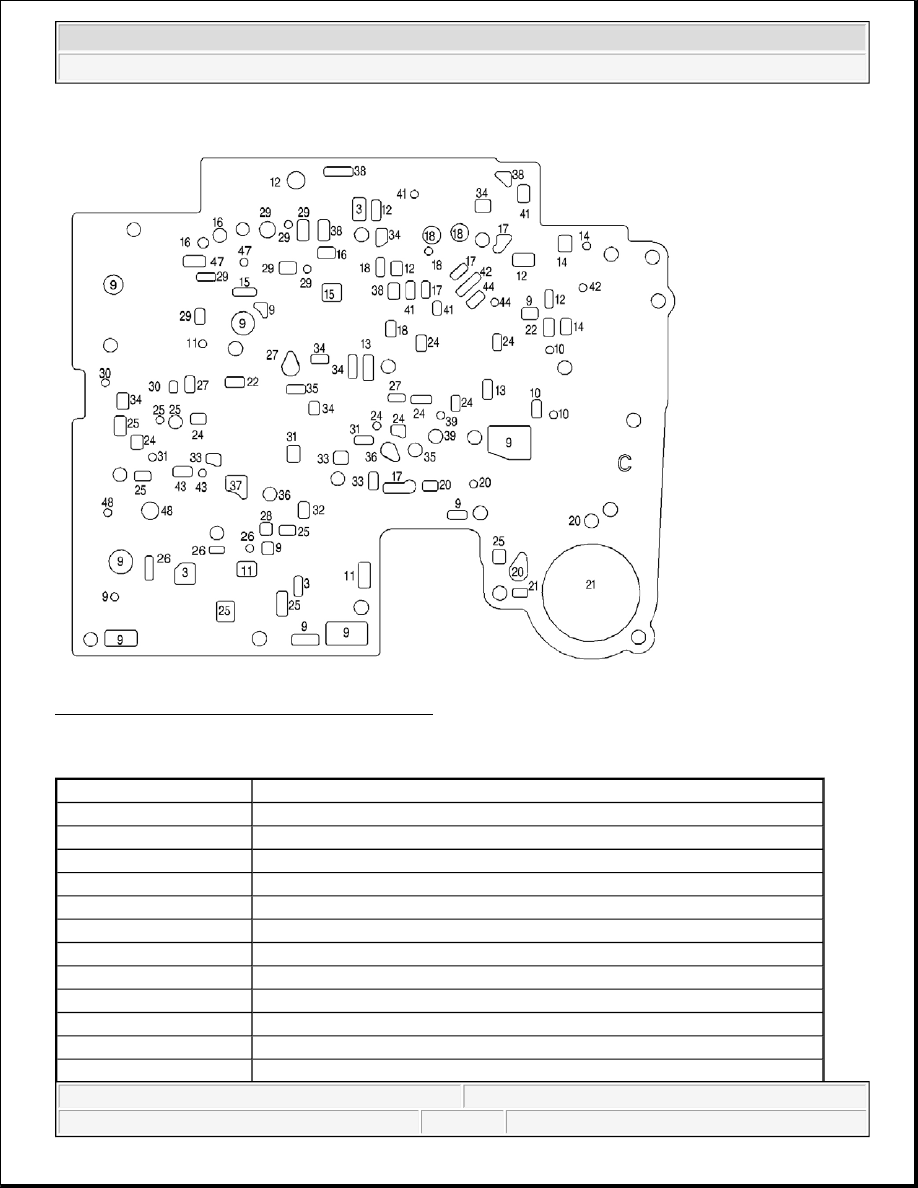

Fig. 340: Spacer Plate to Case Gasket - M30/M32
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 340

Callout

Component Name

3

Line

3

Line

3

Line

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



9

Actuator Feed Limit

10

Filtered Actuator Feed

10

Filtered Actuator Feed

10

Filtered Actuator Feed

10

Filtered Actuator Feed

10

Filtered Actuator Feed

11

Torque Signal

11

Torque Signal

11

Torque Signal

12

PR

12

PR

12

PR

12

PR

12

PR

13

D4-3-2

13

D4-3-2

14

Lo/Reverse

14

Lo/Reverse

14

Lo/Reverse

15

Reverse

15

Reverse

16

Reverse Input (Rev. Cl.)

16

Reverse Input (Rev. Cl.)

16

Reverse Input (Rev. Cl.)

17

D4

17

D4

17

D4

17

D4

18

Forward Clutch Feed

18

Forward Clutch Feed

18

Forward Clutch Feed

18

Forward Clutch Feed

18

Forward Clutch Feed

20

Accumulator

20

Accumulator

20

Accumulator

20

Accumulator

21

Orificed Accumulator

21

Orificed Accumulator

22

Signal A

22

Signal A



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



24

2nd

24

2nd

24

2nd

24

2nd

24

2nd

24

2nd

24

2nd

24

2nd

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

26

C.C. Signal

26

C.C. Signal

26

C.C. Signal

27

3-4 Signal

27

3-4 Signal

27

3-4 Signal

28

3rd Accumulator

29

3-4 Clutch

29

3-4 Clutch

29

3-4 Clutch

29

3-4 Clutch

29

3-4 Clutch

29

3-4 Clutch

29

3-4 Clutch

30

4th Signal

30

4th Signal

31

Servo Feed

31

Servo Feed

31

Servo Feed

32

4th

33

3-4 Accumulator

33

3-4 Accumulator



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E
