band. These spring forces help control the 2-4 band release.

1-2 Accumulator Assembly

The 2nd clutch fluid also exhausts from the 1-2 accumulator assembly. The spring force and the accumulator
fluid pressure move the accumulator piston to assist the 2nd clutch fluid exhaust.

Accumulator Valve

As the accumulator fluid is filling the 1-2 accumulator assembly, the accumulator valve regulates the D4 fluid
into the accumulator fluid circuit. This regulation, biased by torque signal fluid pressure and spring force, helps
control the movement of the 1-2 accumulator piston. The 2nd clutch fluid exhaust, and the 2-4 band release.

1-2 Upshift Checkball (#8)

Exhausting the 2nd clutch fluid pressure unseats the ball and is routed through the 2nd fluid circuit.

Lo and Reverse Clutch Applies

Lo Overrun Valve

The Lo/1st fluid is regulated through the lo overrun valve and into the Lo/reverse fluid circuit in order to control
the lo and reverse clutch apply.

Lo and Reverse Piston

The Lo/reverse fluid pressure acts on the inner area of the piston in order to move the piston and in order to
apply the lo and reverse clutch plates.

Overrun Clutch Applied

The overrun clutch remains applied in manual first in order to provide engine compression braking.

Pressure Control (PC) Solenoid Valve

Similar to manual second, the PCM output signal to the PC solenoid valve increases the operating range of the
torque signal fluid pressure. This provides the increased line pressure for the additional torque requirements
during the engine compression braking and the increased engine loads.

3-2 Downshift Control Solenoid Valve and the 3-2 Control Valve

In first gear the solenoid is OFF, the AFL fluid is blocked by the solenoid, and the 3-2 signal fluid exhausts
through the solenoid and the spring force opens the 3-2 control valve.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



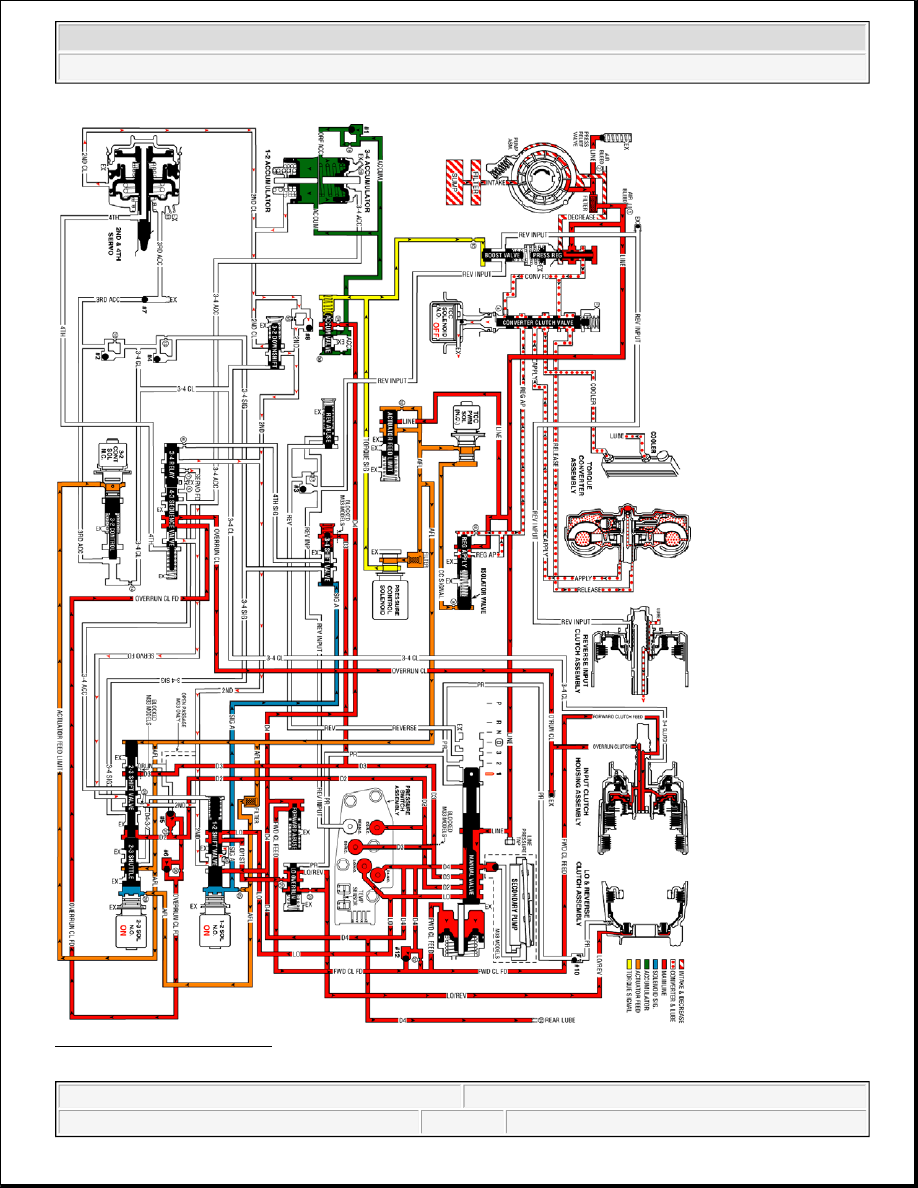

Fig. 334: Manual First Gear
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



FLUID PASSAGES

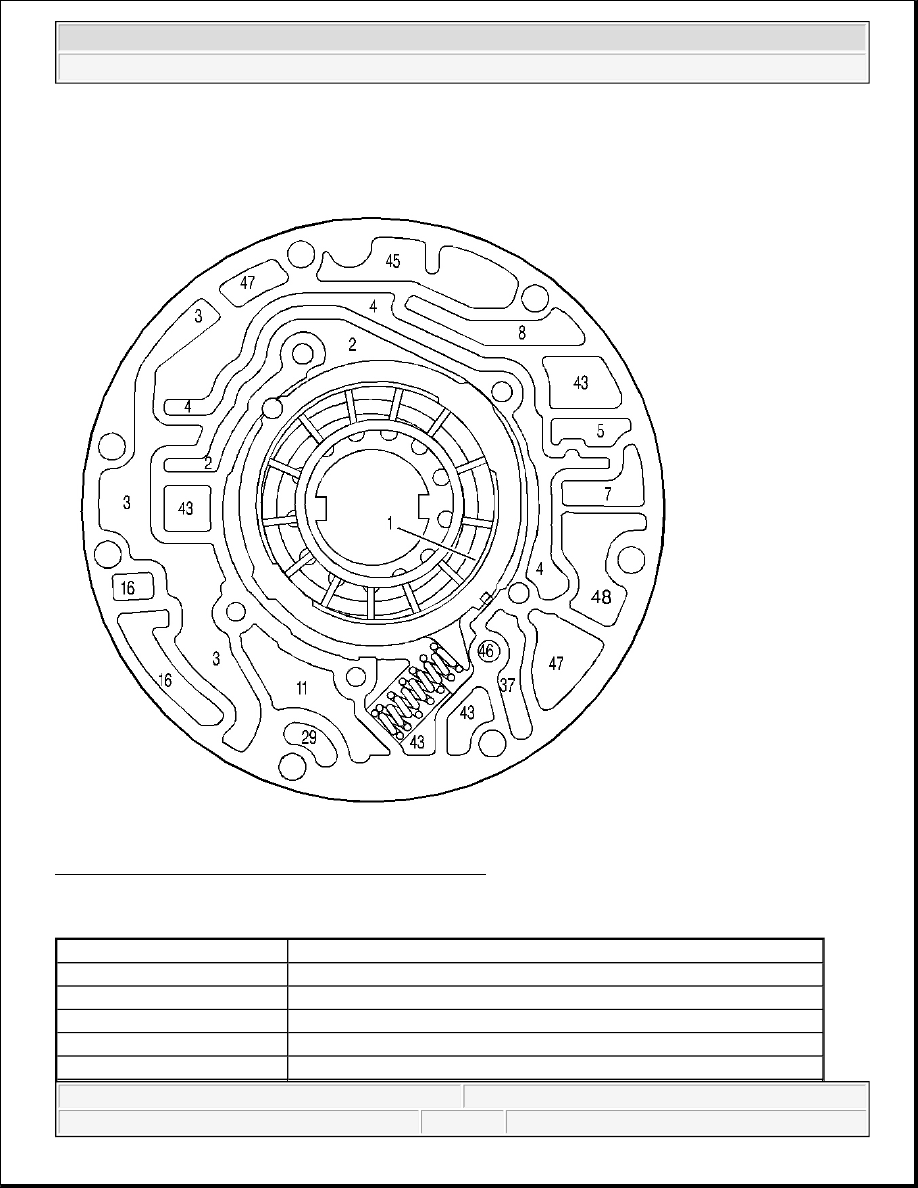

Fig. 335: Pump Body Fluid Passages (Pump Cover Side)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 335

Callout

Component Name

1

Suction (intake)

2

Decrease

2

Decrease

3

Line

3

Line



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



3

Line

4

Converter Feed

4

Converter Feed

4

Converter Feed

5

Release

7

To Cooler

8

Lube from Cooler

11

Torque Signal

16

Reverse Input

16

Reverse Input

29

3-4 Clutch

37

Overrun Clutch

43

Exhaust

43

Exhaust

43

Exhaust

43

Exhaust

45

Vent

46

Seal Drain

47

Void

47

Void

48

Regulated Apply
