NEUTRAL - ENGINE RUNNING

When the gear selector lever is moved to the Neutral position (N) from the Reverse position, the following
changes occur to the transmission hydraulic and electrical systems.

Manual Valve

In the Neutral position, the manual valve blocks the line pressure from entering any other fluid circuits. Reverse
and PR fluids exhaust past the manual valve.

Lo and Reverse Clutch Releases

Lo and Reverse Clutch Piston

PR and Lo/reverse fluids exhaust from the piston, thereby releasing the lo and reverse clutch plates. Exhausting
PR fluid unseats the lo and reverse clutch checkball (#10) for a quick exhaust.

Lo Overrun Valve

Spring force closes the valve when the PR fluid pressure exhausts. Lo/reverse fluid exhausts through the valve,
into the Lo/1st fluid circuit, past the 1-2 shift valve, into the Lo fluid circuit and through an exhaust port at the
manual valve.

Reverse Input Cutch Releases

Reverse Input Clutch Piston

Reverse input fluid pressure exhausts from the piston, through the boost valve, past the #3 checkball and to the
manual valve. With the reverse input fluid exhausted, the reverse input clutch plates are released and the
transmission is in Neutral.

Reverse Abuse Valve

Reverse fluid pressure exhausts and spring force closes the valve.

Boost Valve

Reverse input fluid pressure exhausts and line pressure returns to the normal operating range as in the Park and
Overdrive positions.

Reverse Input Checkball (#3)

Exhausting reverse input fluid unseats the ball for a quick exhaust through the reverse fluid circuit and past the
manual valve.

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



Reverse input fluid exhausts from the TFP manual valve position switch. With no other fluid routed to it, the
TFP manual valve position switch signals the PCM that the transmission is operating in either Park or Neutral.

IMPORTANT: In Park, Reverse and Neutral the shift solenoid valves are shown energized.

This is the normal operating state when the vehicle is stationary or at low
vehicle speeds. However, the PCM will change the shift solenoid valve states
depending on the vehicle speed. For example, if Neutral is selected when the
transmission is operating in Second Gear, the shift solenoid valves will remain
in a Second Gear state. However, with the manual valve blocking line pressure,
the shift solenoid valve states do not affect transmission operation in Park,
Reverse and Neutral.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

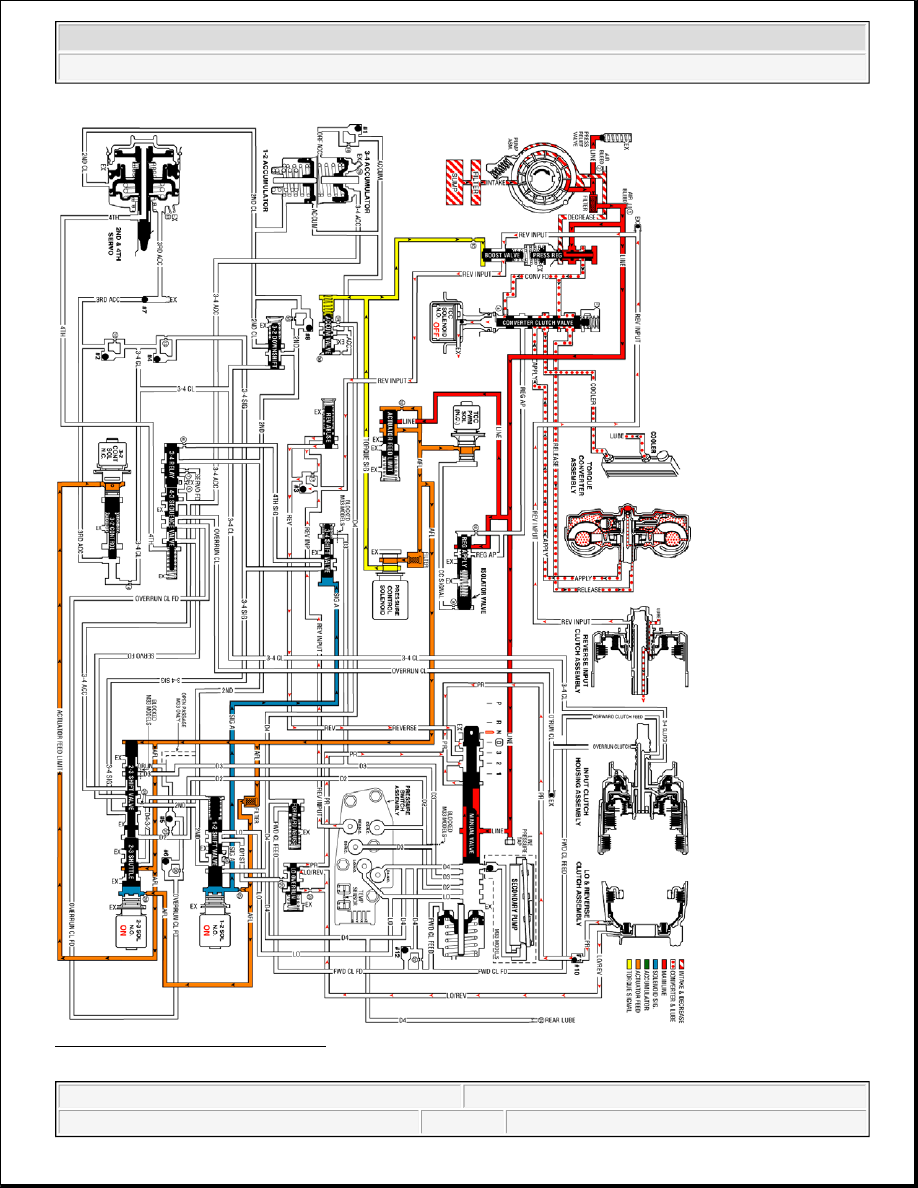

Fig. 325: Neutral - Engine Running
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



OVERDRIVE RANGE, FIRST GEAR

When the gear selector lever is moved to the Overdrive position, from the neutral position, the following
changes occur to the transmission's hydraulic and electrical systems:

Manual Valve

Line pressure flows through the manual valve and fills the D4 fluid circuit. All other fluid circuits remain empty
with the manual valve in the Overdrive position.

Forward Clutch Applies

Forward Clutch Accumulator Checkball (#12)

D4 fluid pressure seats the checkball and is orificed (#22) into the forward clutch feed fluid circuit. This orifice
helps control the forward clutch apply rate.

Forward Clutch Accumulator Piston

Forward clutch feed fluid pressure moves the piston against spring force. This action absorbs some of the initial
increase of forward clutch feed fluid pressure to cushion the forward clutch apply.

Forward Clutch Abuse Valve

D4 fluid pressure acts on the valve opposite of spring force. At engine speeds greater than idle, D4 fluid
pressure increases and moves the valve against spring force (as shown). D4 fluid can then quickly fill the
forward clutch feed fluid circuit, thereby bypassing the control of orifice #22 and providing a faster apply of the
forward clutch. Otherwise, with increased throttle opening and engine torque, the clutch may slip during apply.

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly

D4 fluid pressure is routed to the TFP manual valve position switch and closes the normally open D4 fluid
pressure switch. This signals the PCM that the transmission is operating in Overdrive range.

1-2 Shift Solenoid (SS) Valve

Energized (ON) as in Neutral, the normally open solenoid is closed and blocks signal A fluid from exhausting
through the solenoid. This maintains pressure in the signal A fluid circuit.

2-3 Shift Solenoid (SS) Valve

Energized (ON) as in Neutral, the normally open solenoid is closed and blocks signal B fluid from exhausting
through the solenoid. This maintains signal B fluid pressure at the solenoid end of the 2-3 shift valve.

2-3 Shift Valve Train

Signal B fluid pressure at the solenoid end of the 2-3 shift valve holds the valve train in the downshifted
position against AFL fluid pressure acting on the 2-3 shift valve. In this position, the 2-3 shuttle valve blocks
