2. Install the case extension to case seal (30) and the case extension (31).

3. Install the case extension to case bolts (32).

Tighten: Tighten the bolts to 45 N.m (33 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

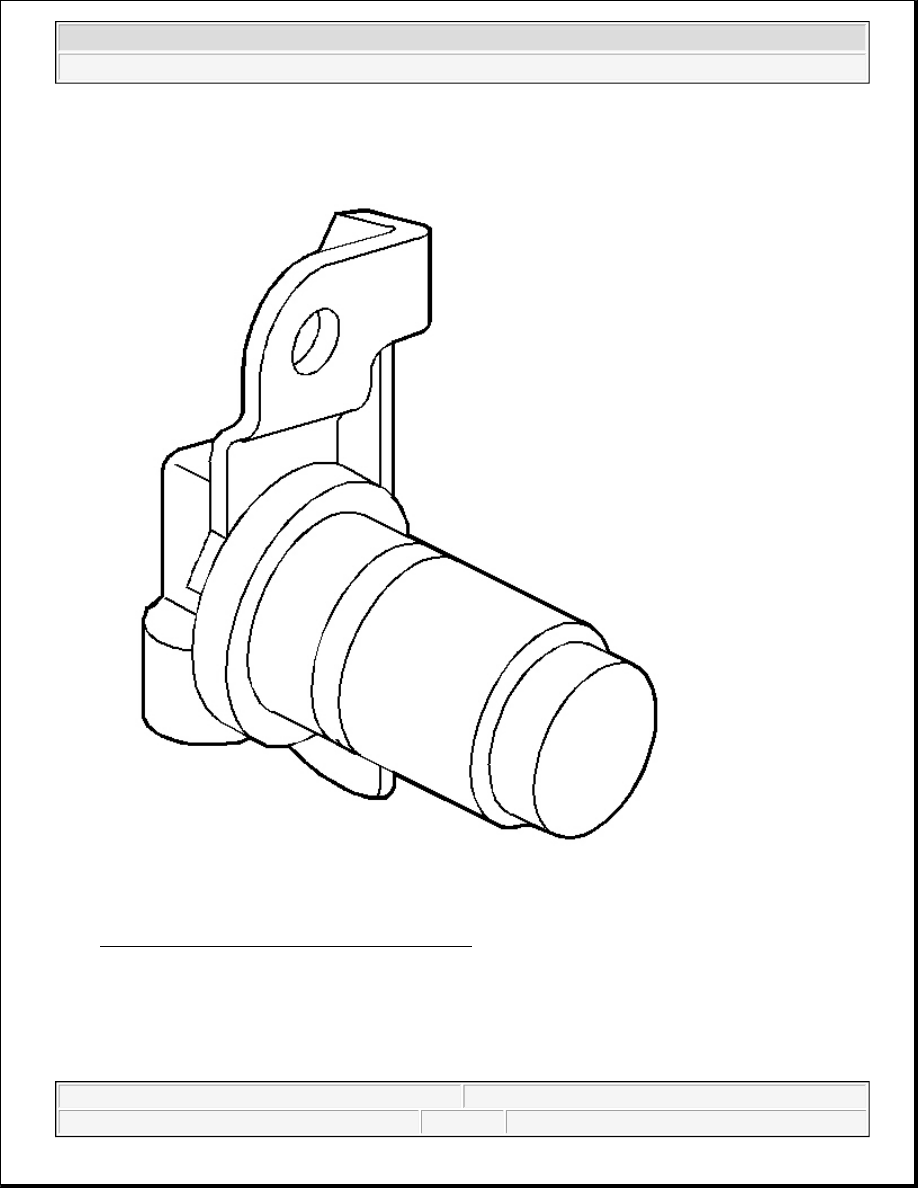

Fig. 316: Identifying Transmission Speed Sensor
Courtesy of GENERAL MOTORS CORP.

4. Inspect the transmission speed sensor for the following conditions:

z

Cracks

z

Nicks



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



z

Damage

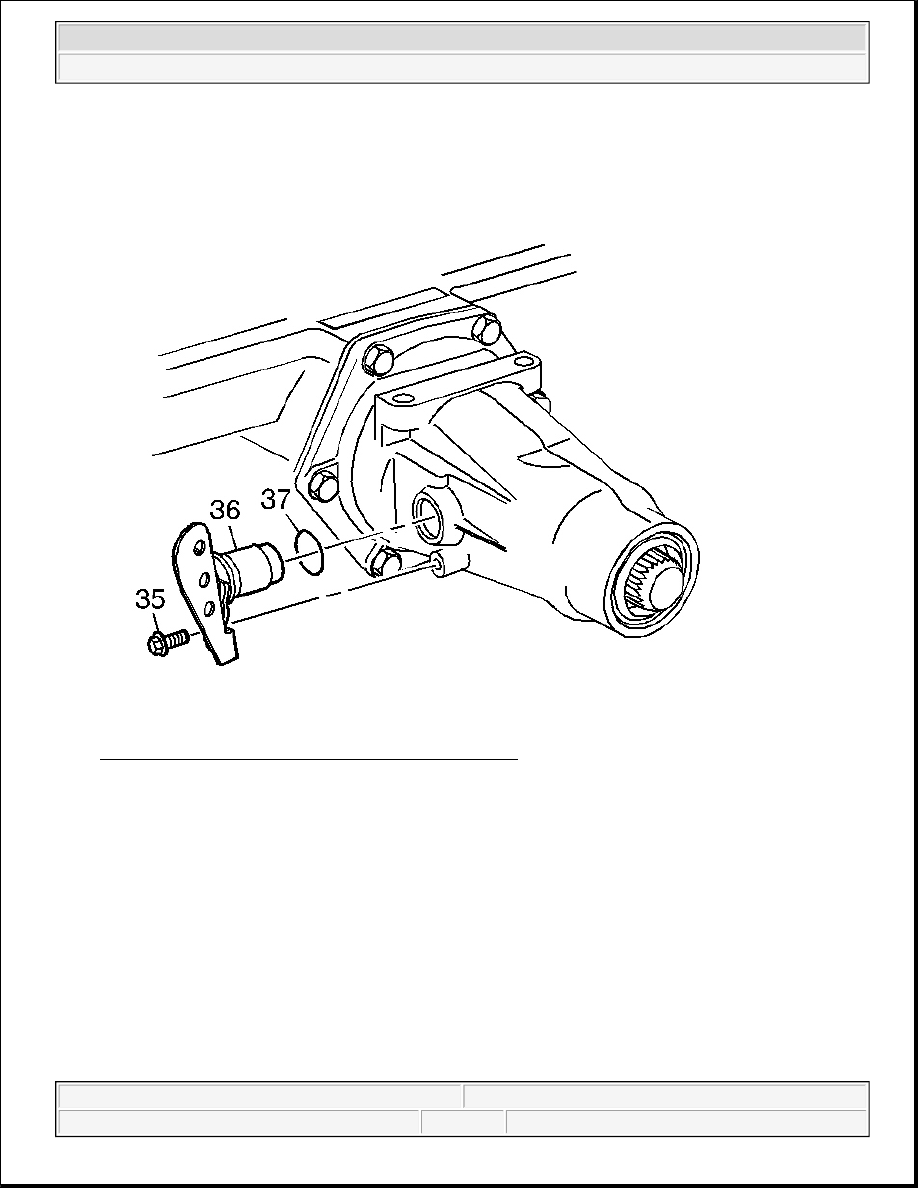

Fig. 317: View Of Internal Transmission Speed Sensor
Courtesy of GENERAL MOTORS CORP.

5. Install a new O-ring seal (37) on the internal transmission speed sensor (36).

6. Install the internal transmission speed sensor (36).

7. Install the speed sensor retaining bolt (35).

Tighten: Tighten the bolt to 12 N.m (9 lb ft).



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

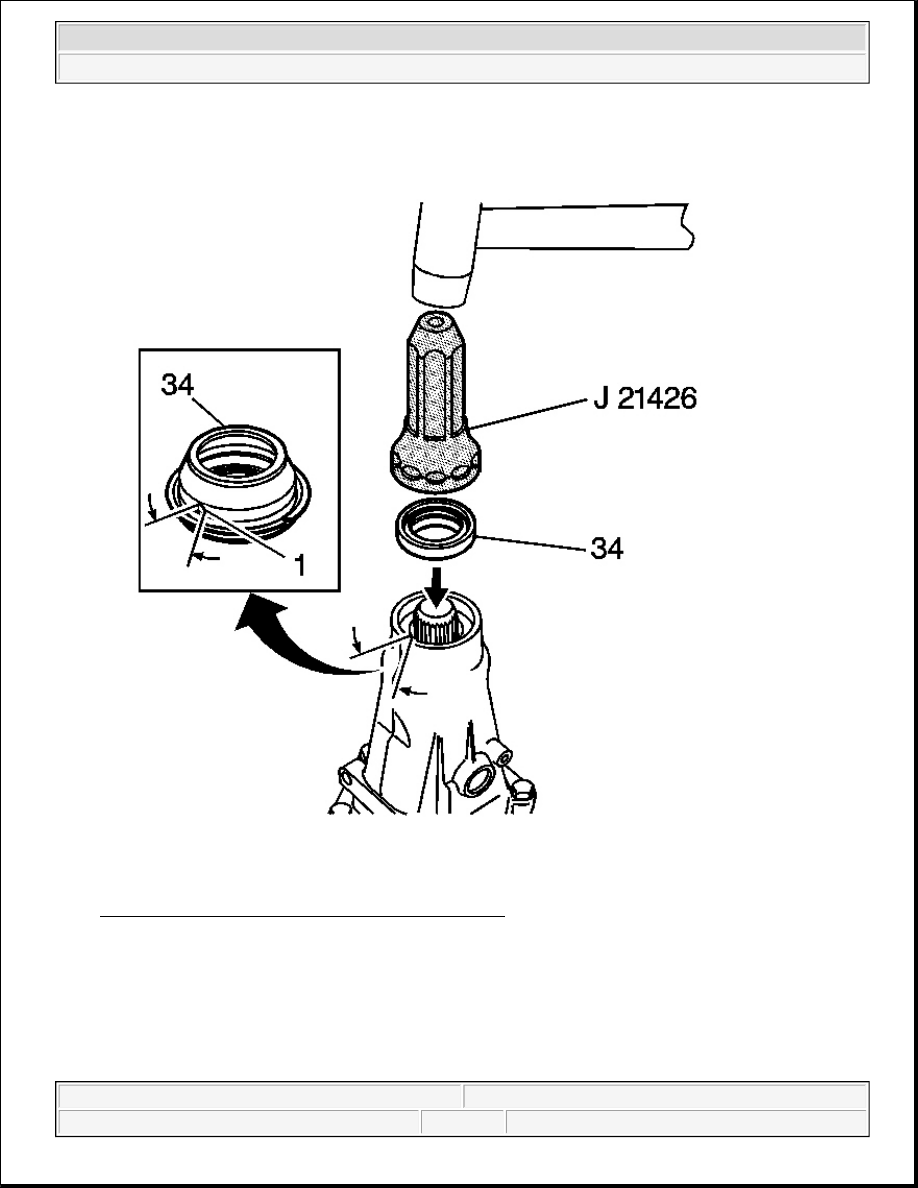

Fig. 318: Locating Case Extension Oil Seal Assembly
Courtesy of GENERAL MOTORS CORP.

8. Using the J 21426 , install the case extension oil seal assembly (34) (model dependent).

TORQUE CONVERTER END PLAY INSPECTION

Tools Required
