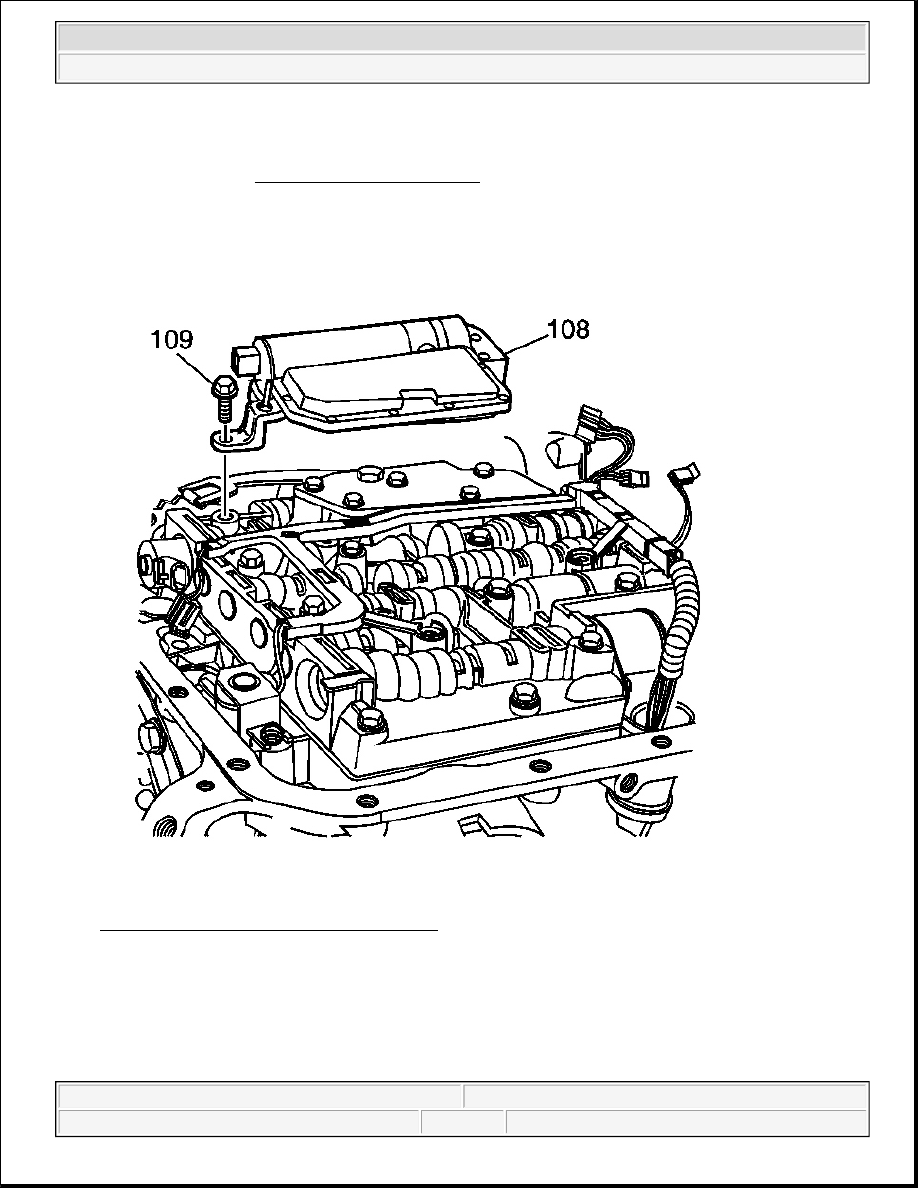

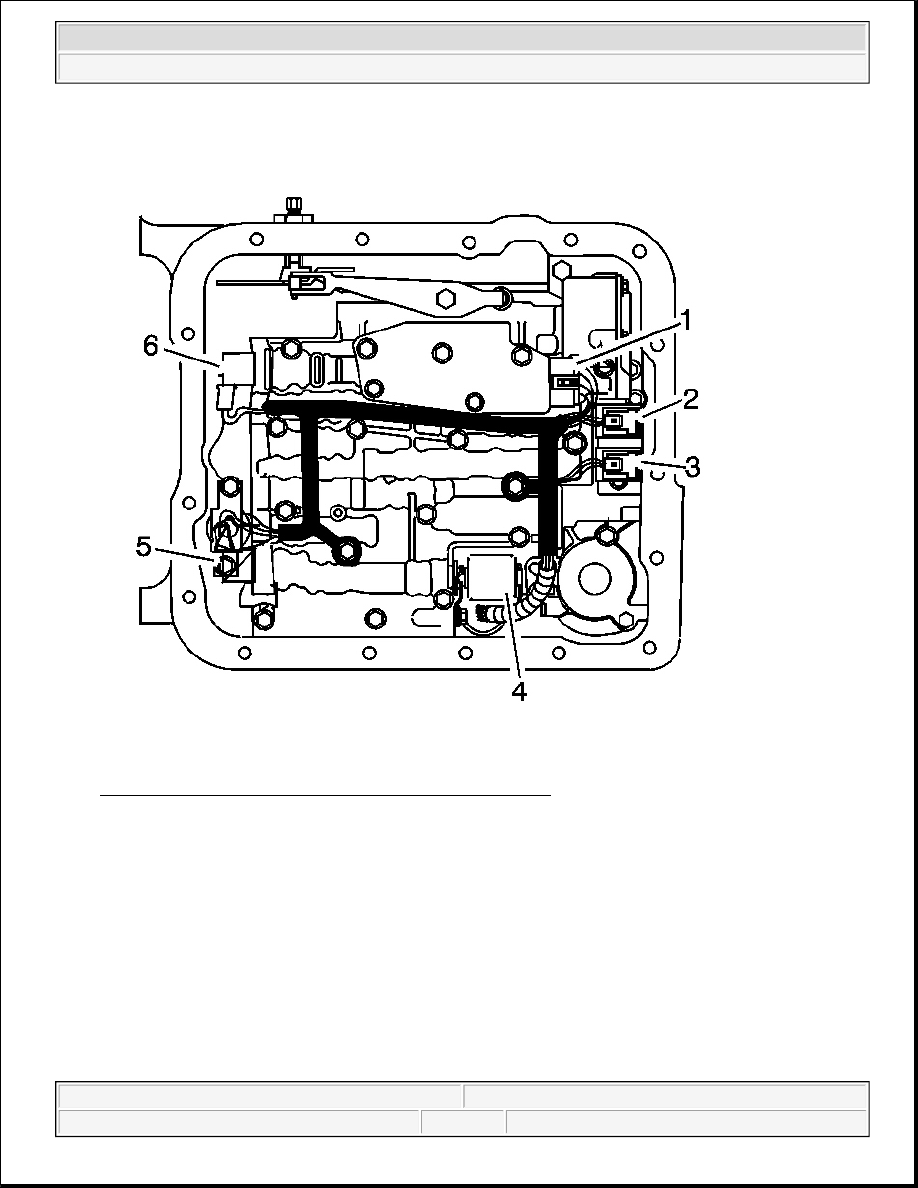

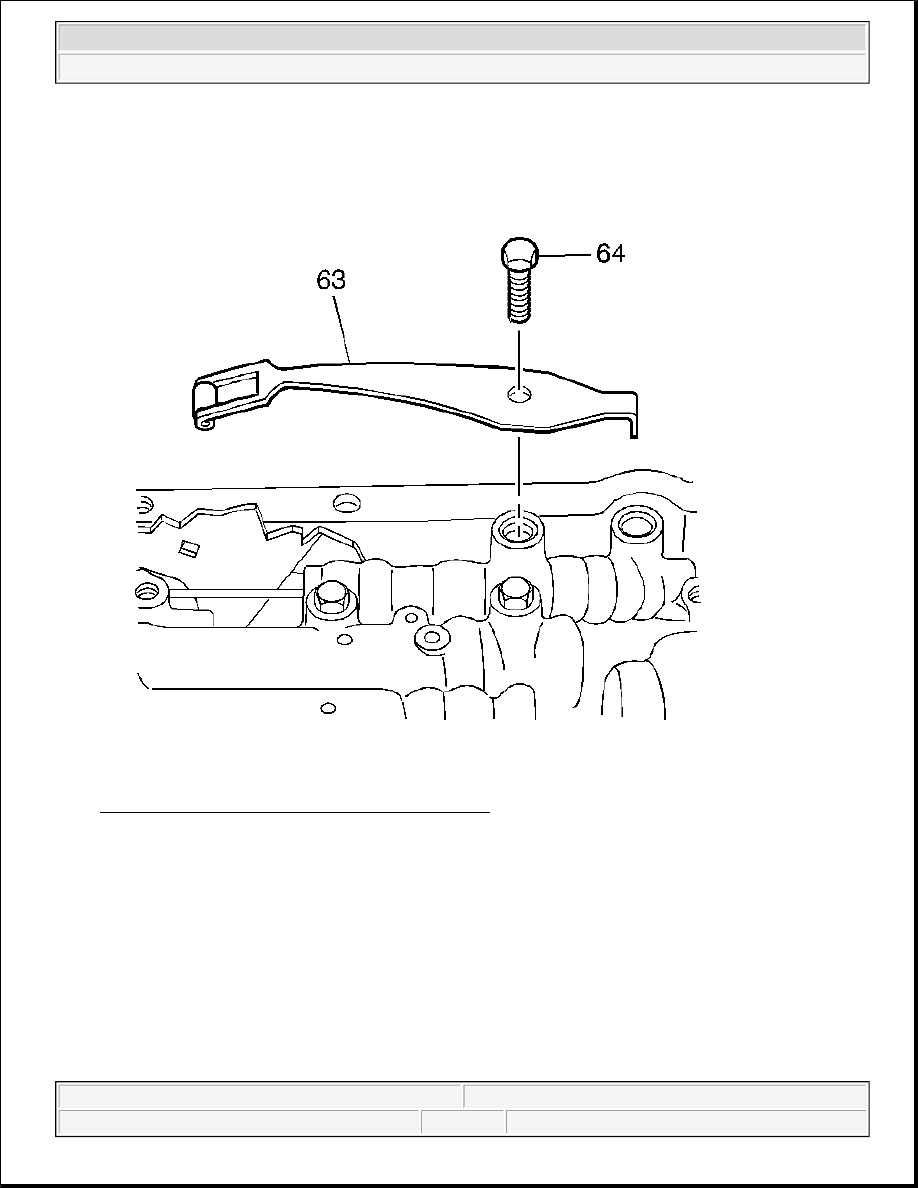

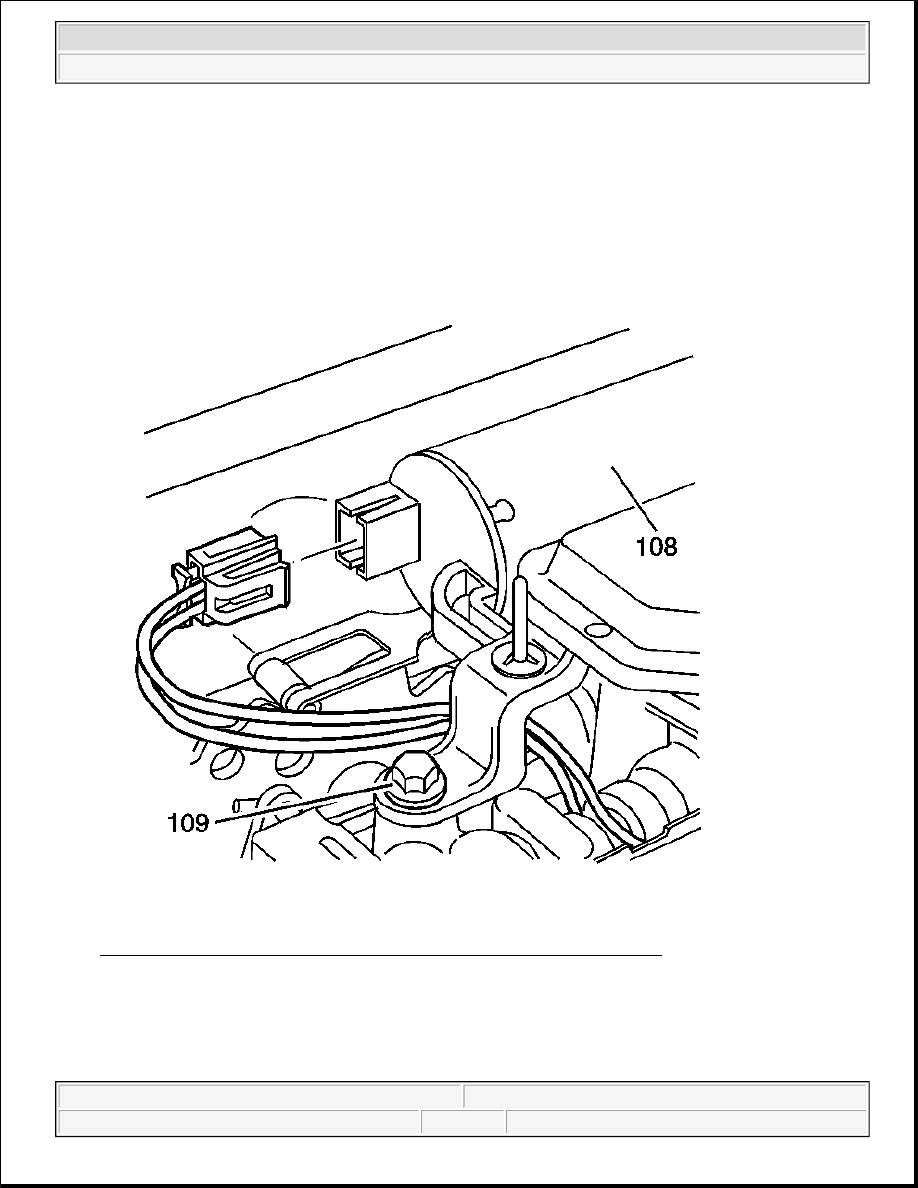

Fig. 292: Identifying Electrical Components In Valve Body 17. Snap the wiring harness in place on the valve body bolts. Ensure the harness loom tab is located under the TFP switch. 18. Install the wiring connectors to the electrical components as indicated by the following list: z 1 - Transmission Fluid Pressure (TFP) manual valve position switch z 2 - 1-2 Shift Solenoid z 3 - 2-3 Shift Solenoid z 4 - Pressure Control Solenoid (PCS) z 5 - Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid z 6 - 3-2 Shift Solenoid
2004 Hummer H2 2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E
|
