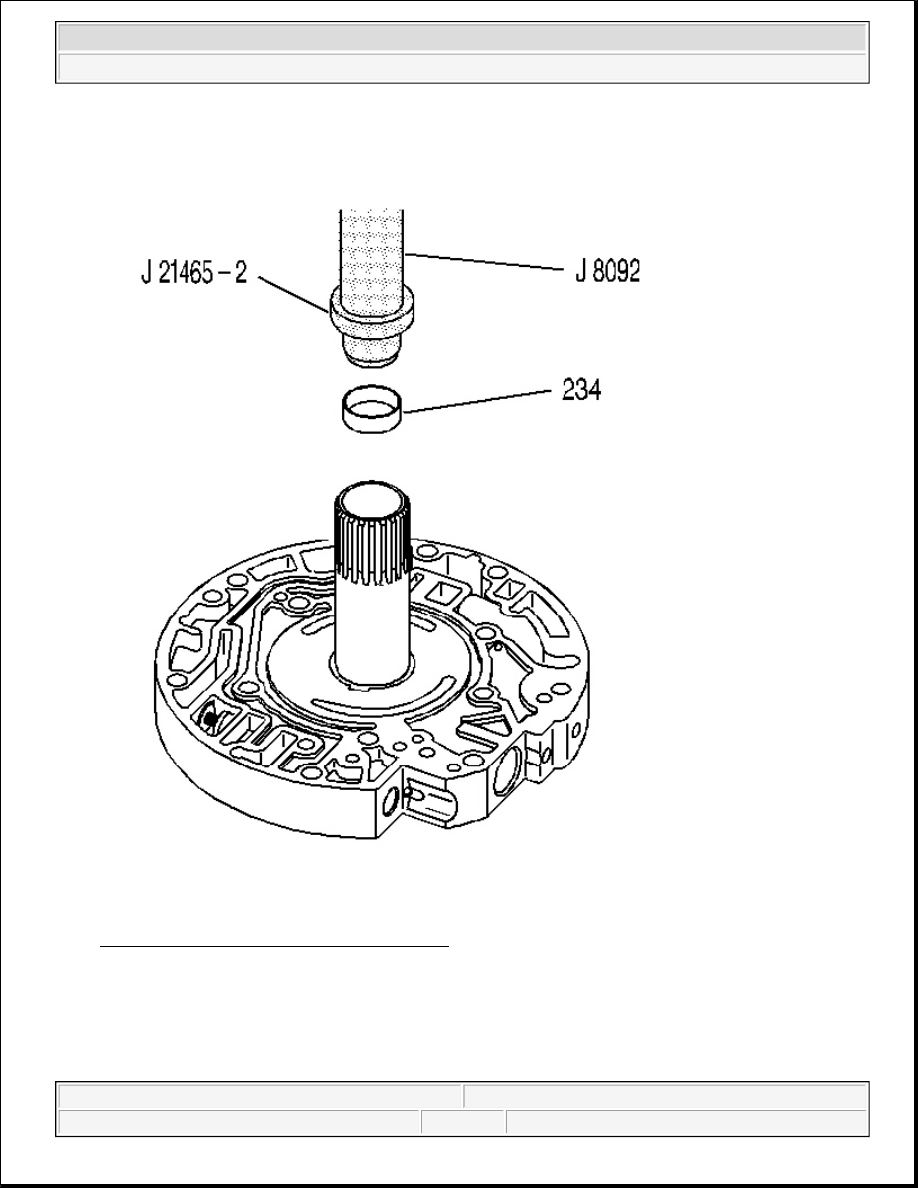

Fig. 230: View Of Stator Shaft Front Bushing
Courtesy of GENERAL MOTORS CORP.

1. Using the J 21465-2 and the J 8092 , install a new stator shaft front bushing (234).



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

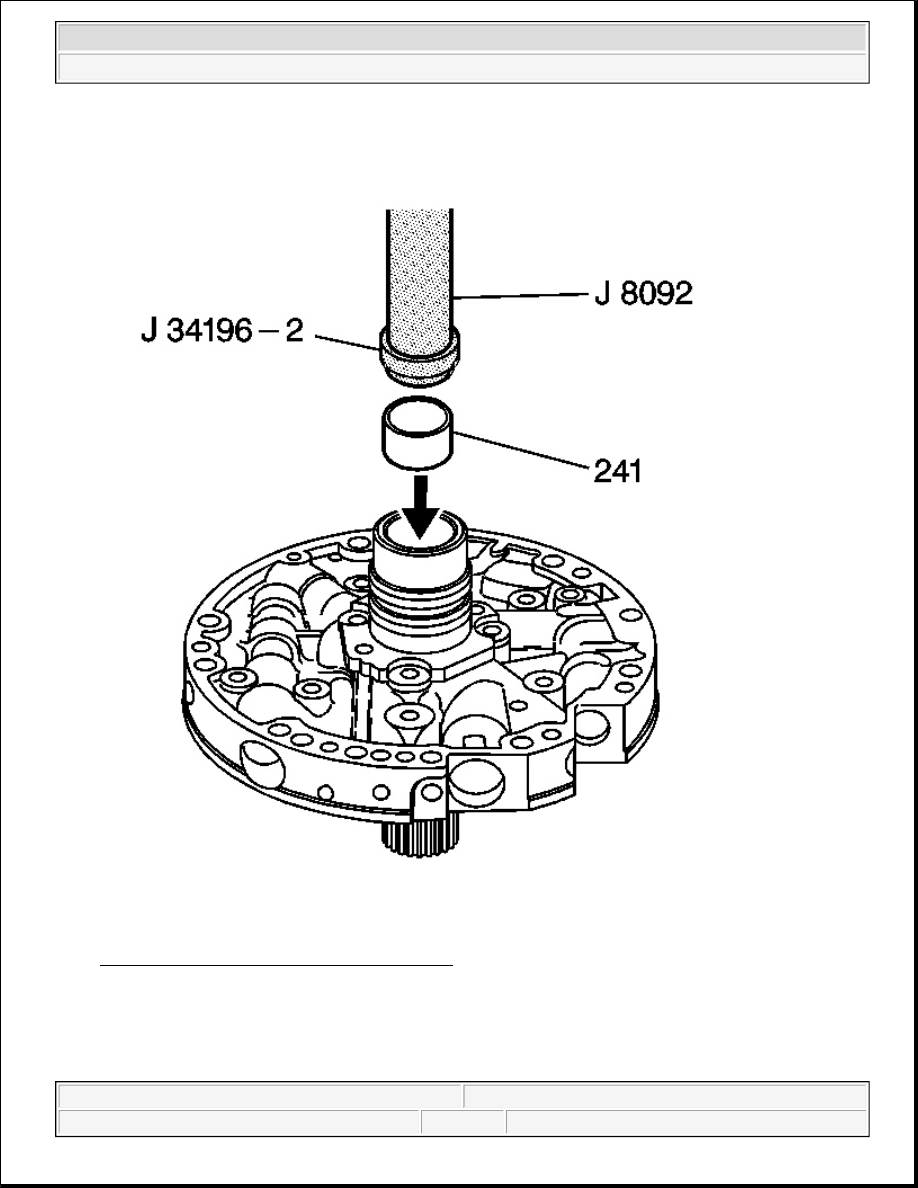

Fig. 231: Installing Stator Shaft Rear Bushing
Courtesy of GENERAL MOTORS CORP.

2. Using the J 34196-2 which is part of kit J 34196-B and the J 8092 , install the stator shaft rear bushing

(241).



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



OIL PUMP COVER ASSEMBLE

Tools Required

z

J 38735-3 Pusher. See Special Tools and Equipment .

z

J 39855 Stator Shaft Seal Installer. See Special Tools and Equipment .

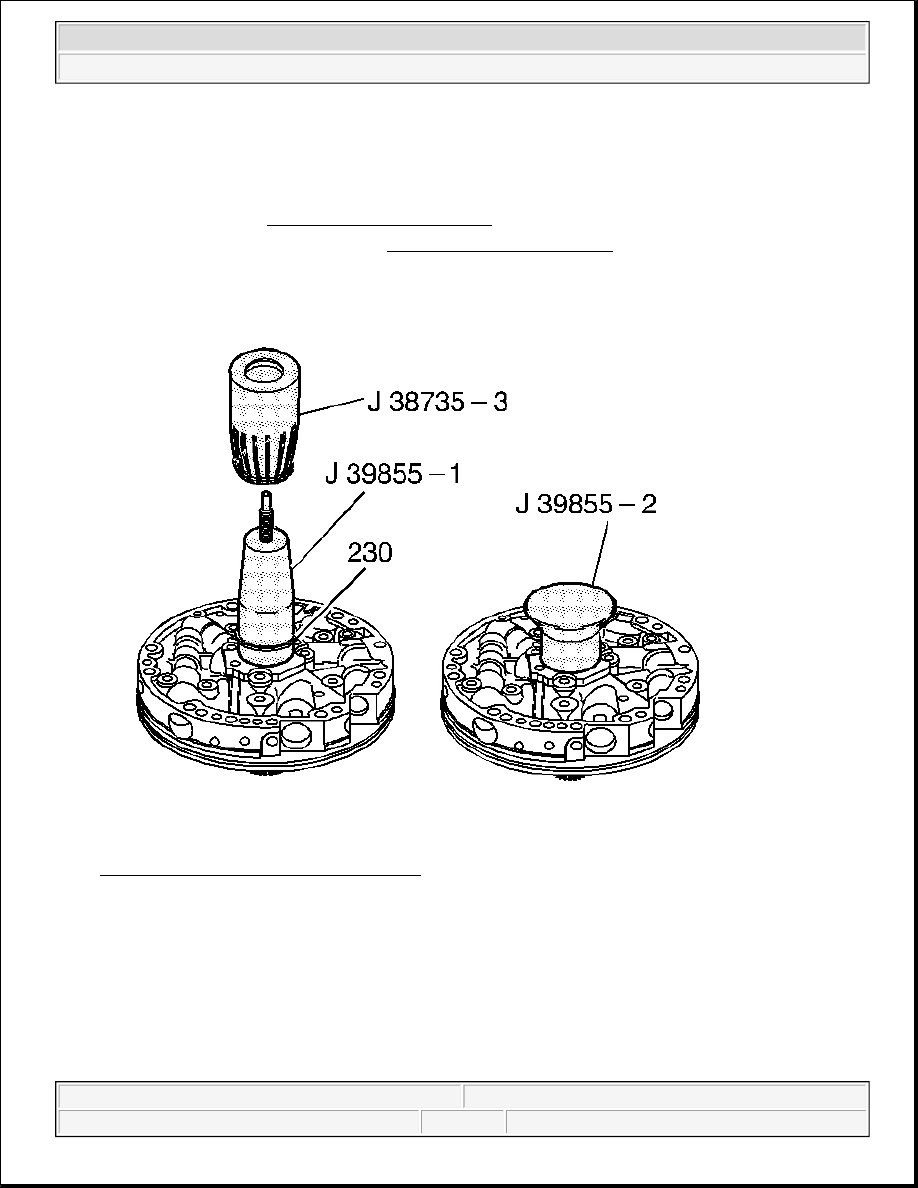

Fig. 232: Identifying J 39855 Components
Courtesy of GENERAL MOTORS CORP.

1. Using the J 39855-1 which is part of kit J 39855 and the J 38735-3 , install the stator shaft oil seal rings

(230).

2. Place J 39855-2 which is part of kit J 39855 over the seals.

3. Leave J 39855-2 which is part of kit J 39855 on the stator shaft until just before the pump is to be

installed into the transmission.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



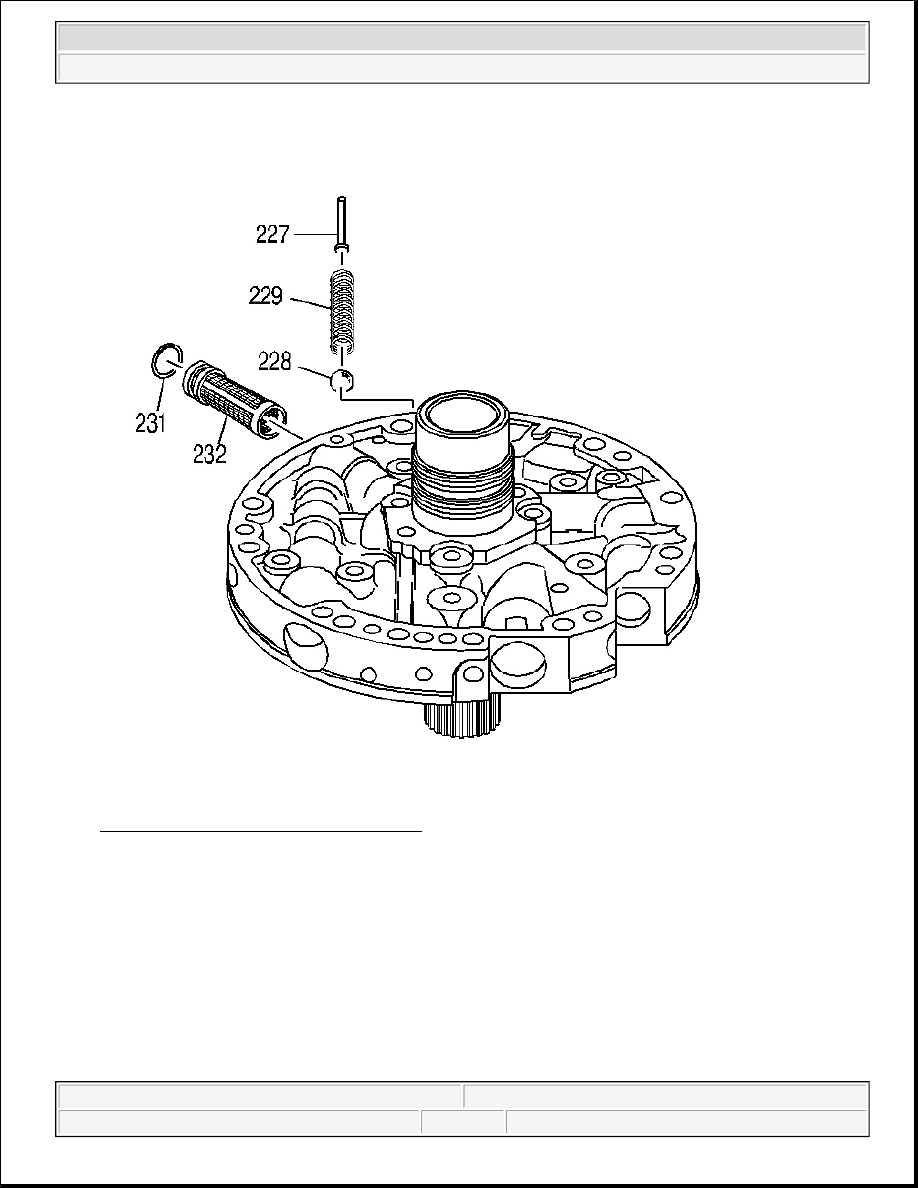

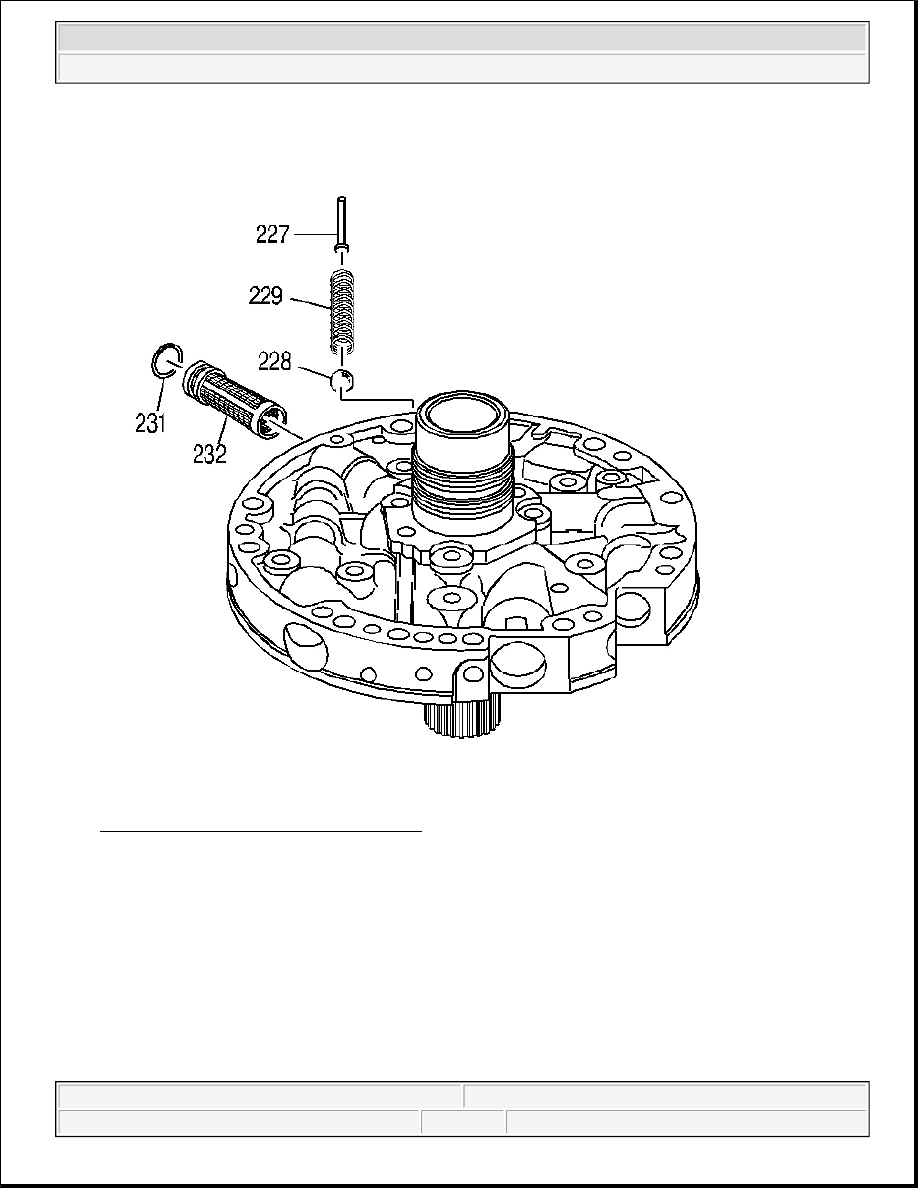

Fig. 233: View Of Oil Pump Cover Screen
Courtesy of GENERAL MOTORS CORP.

4. Install the pressure relief ball (228) and pressure relief spring (229).

5. Install the pressure relief bolt rivet (227).

6. Install the oil pump cover screen seal (231) on the (232).

7. Install the oil pump cover screen (232) into the pump cover.
