Surface finish damage

3. Install the forward sprag assembly (642) into the forward clutch outer race (644).

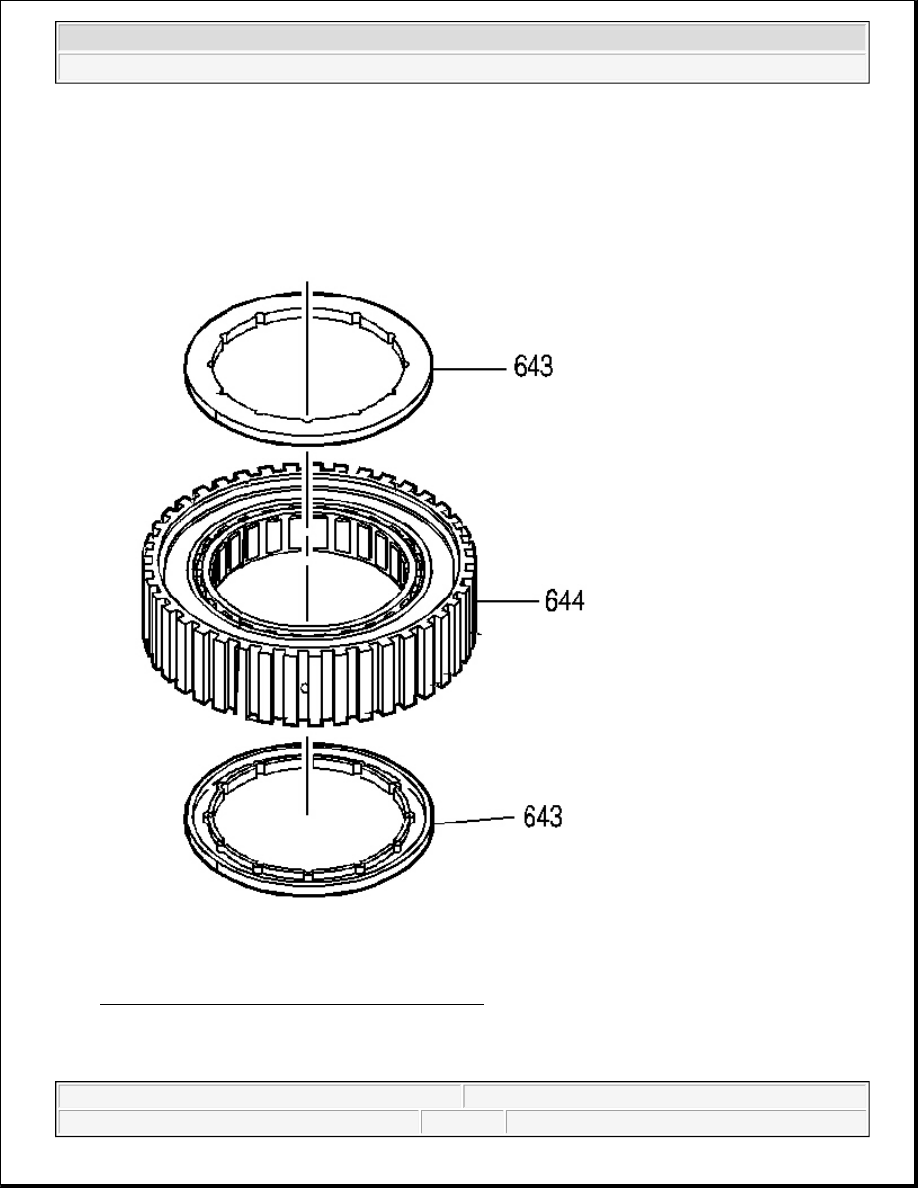

Fig. 172: View Of Sprag Assembly Retainer Rings
Courtesy of GENERAL MOTORS CORP.

4. Inspect the sprag assembly retainer rings (643) for wear or damage.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



5. Install the sprag assembly retainer rings (643) into the forward clutch sprag assembly (644).

Fig. 173: Inspection Areas On Forward Sprag Clutch Inner Race And Input Sun Gear Assembly
Courtesy of GENERAL MOTORS CORP.

6. Inspect the forward sprag clutch inner race and input sun gear assembly (640) for the following

conditions:



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



z

Damaged spline or gear teeth

z

Ring groove damage

z

Surface finish damage

z

Loose retainer

z

Wear

z

Cracks

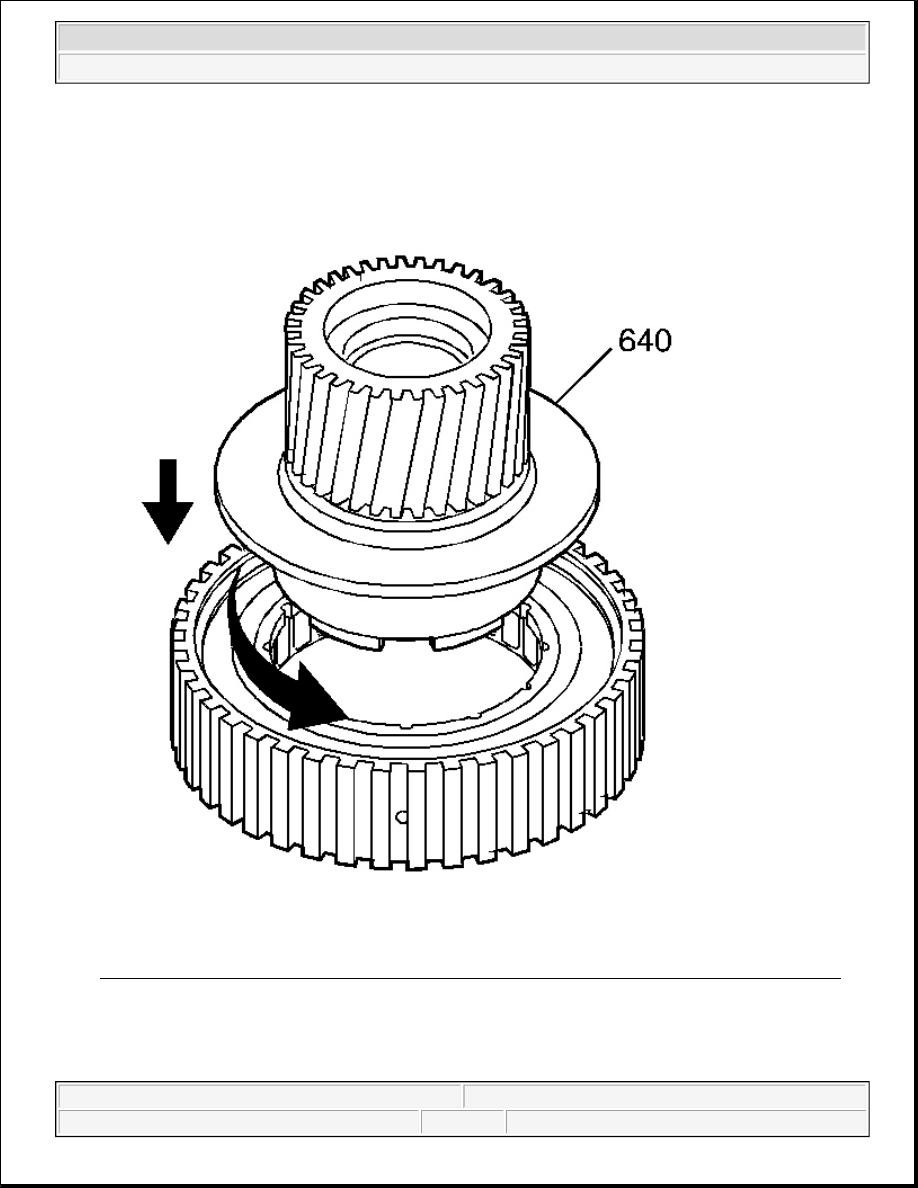

7. Install the forward sprag clutch inner race and input sun gear assembly (640) into the forward sprag and

outer race assembly.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

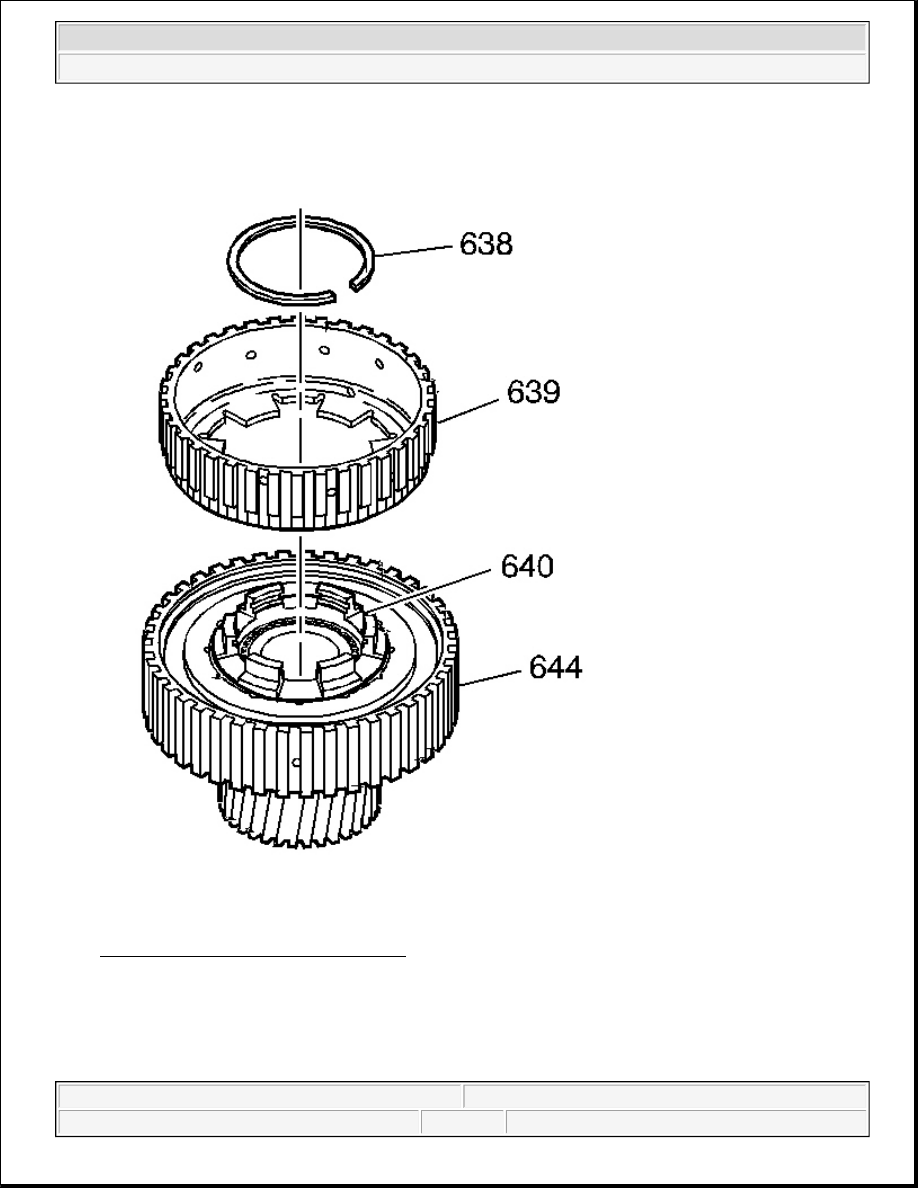

Fig. 174: Locating Overrun Clutch Hub
Courtesy of GENERAL MOTORS CORP.

8. Inspect the overrun clutch hub (639) for the following conditions:

z

Spline damage

z

Plugged lubrication holes
