Firmly seat the assembly.

11. Remove the J 29883 from the input housing.

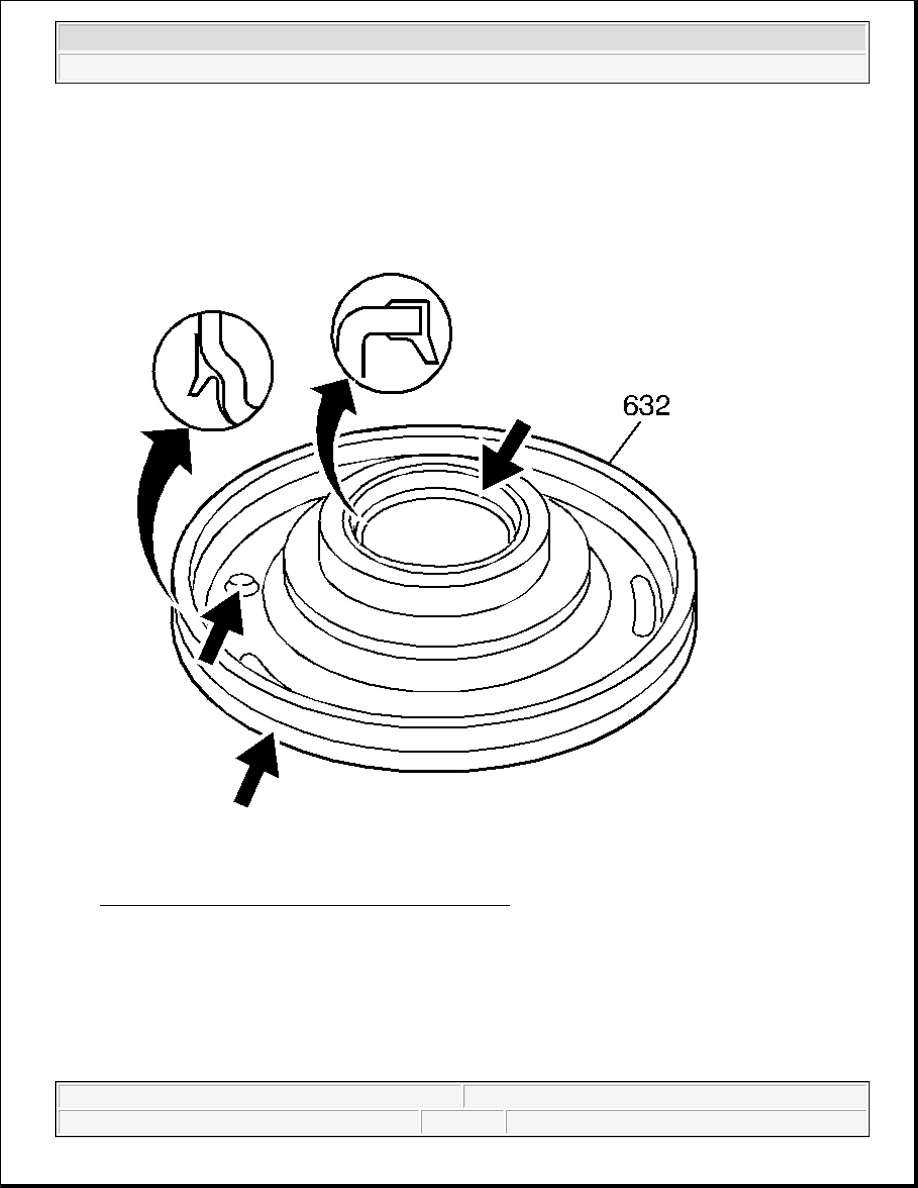

Fig. 160: Inspection Areas On Overrun Clutch Piston
Courtesy of GENERAL MOTORS CORP.

12. Inspect the overrun clutch piston (632) for the following conditions:

z

Porosity or damage

z

Seal damage

z

Overrun clutch ball proper operation



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

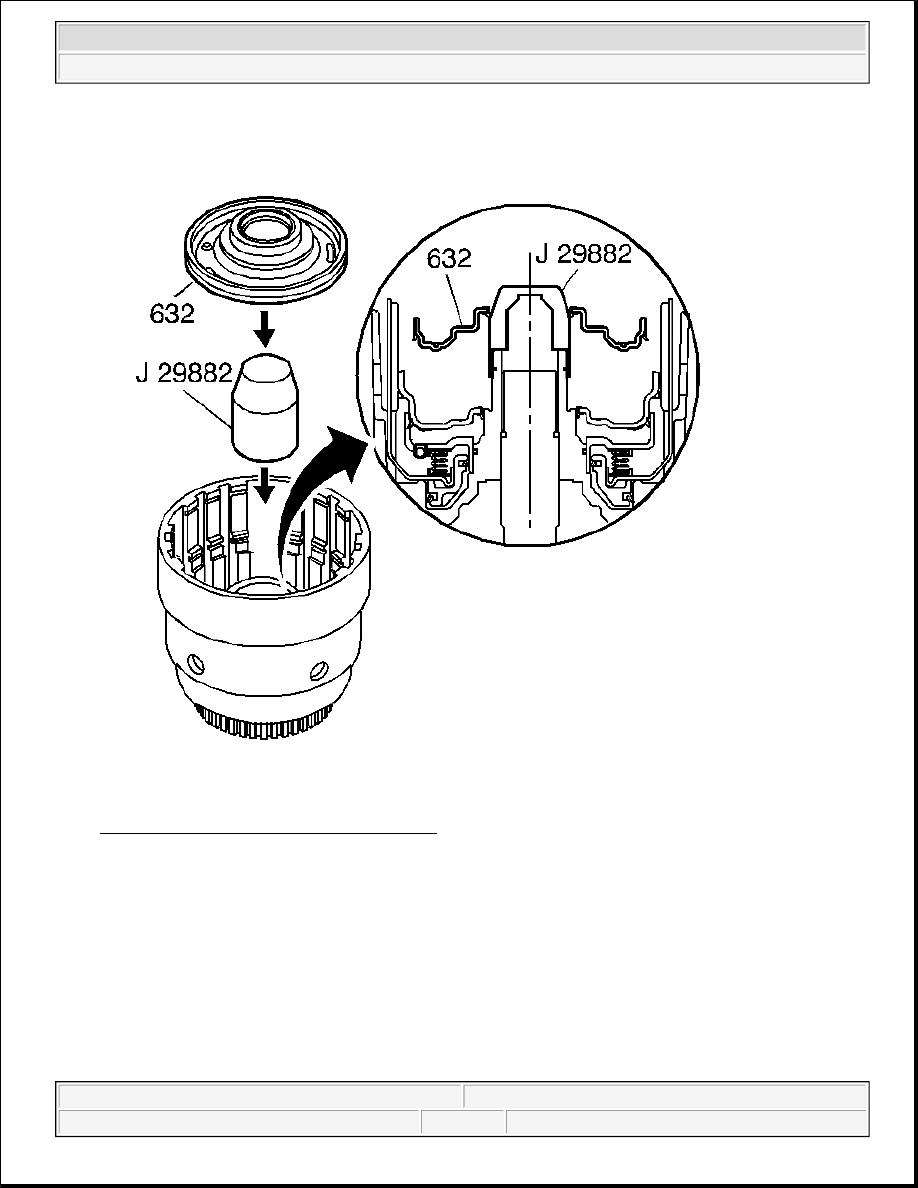

Fig. 161: Identifying Overrun Clutch Piston
Courtesy of GENERAL MOTORS CORP.

13. Install the J 29882 on the input housing.

14. Install the overrun clutch piston (632) into the input housing.

15. Remove the J 29882 from the input housing.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

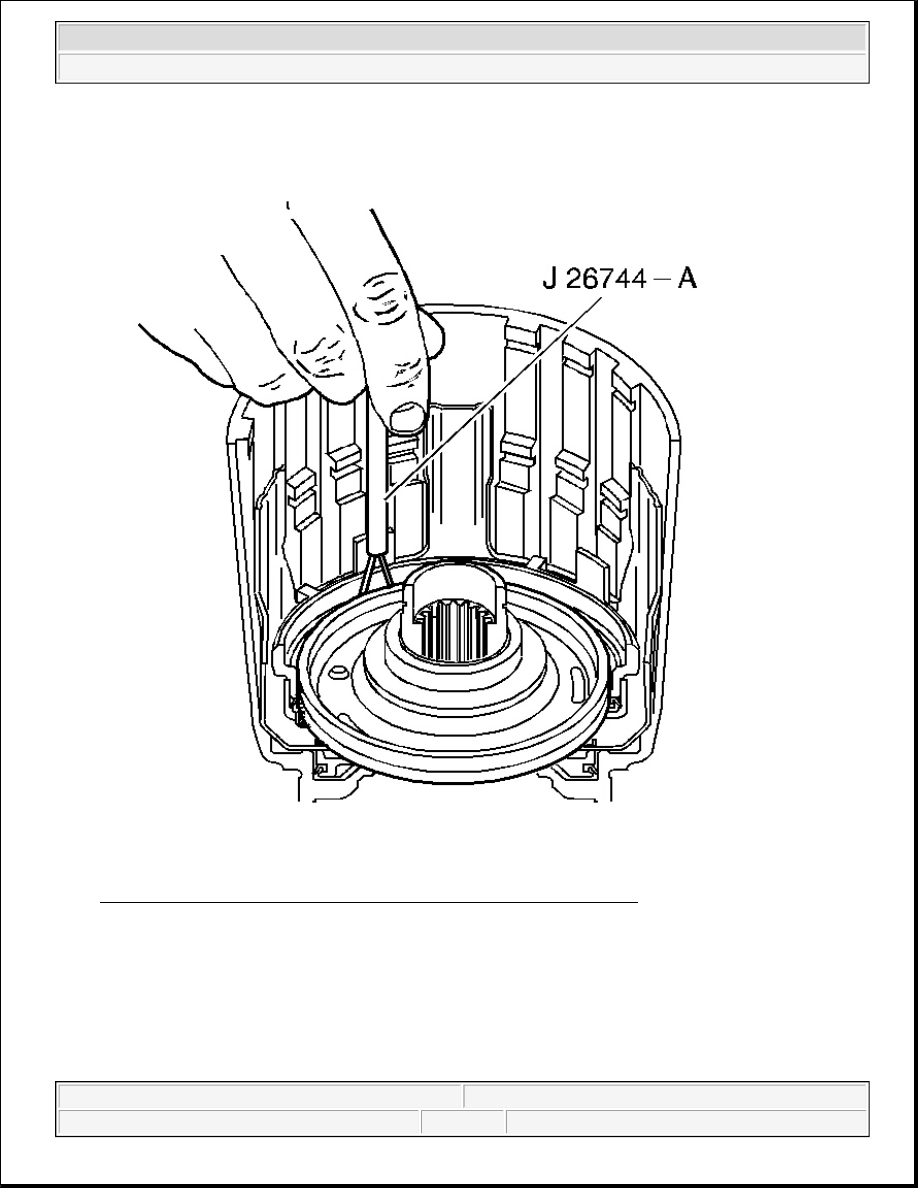

Fig. 162: Installing Overrun Clutch Piston Outer Seal With J 26744-A
Courtesy of GENERAL MOTORS CORP.

16. Using the J 26744-A , carefully install the overrun clutch piston outer seal.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

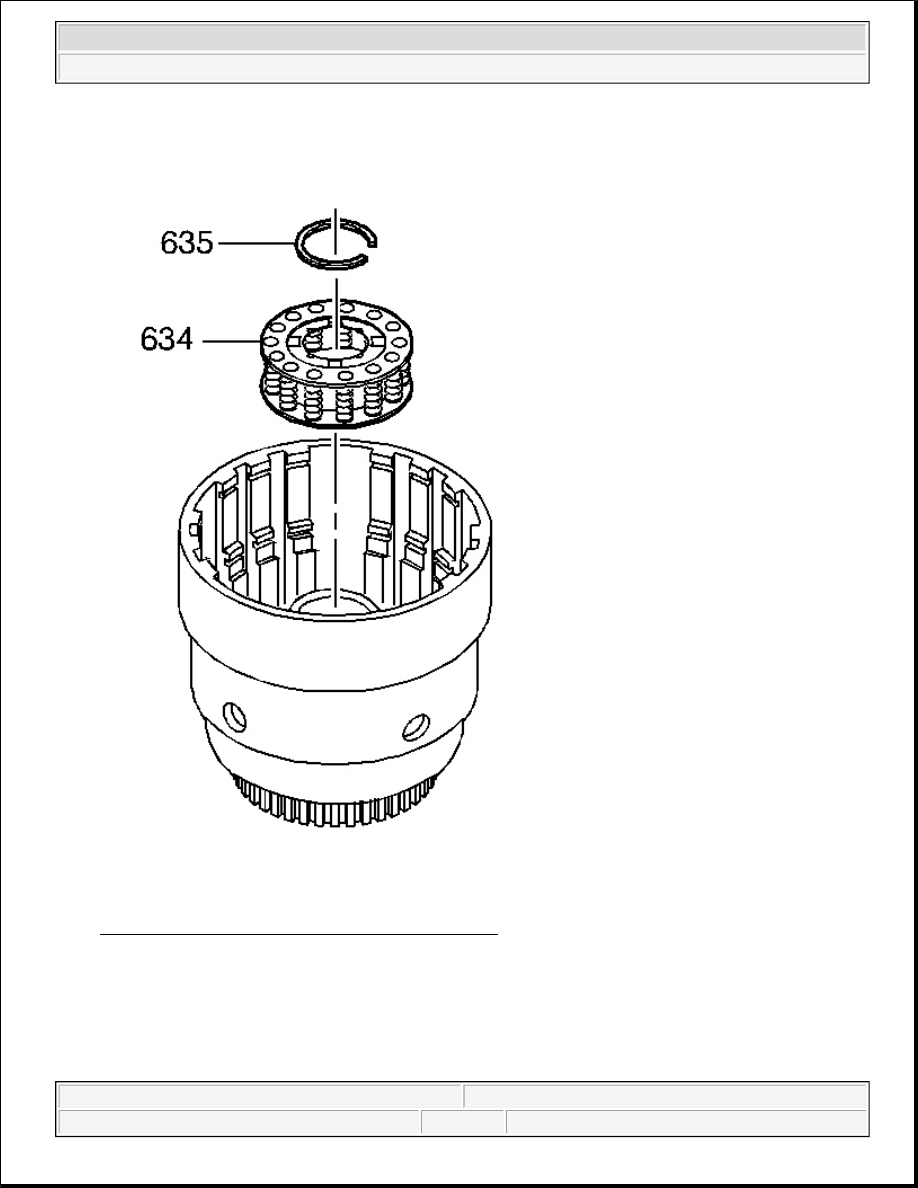

Fig. 163: View Of Overrun Clutch Spring Assembly
Courtesy of GENERAL MOTORS CORP.

17. Install the overrun clutch spring (634) assembly.
