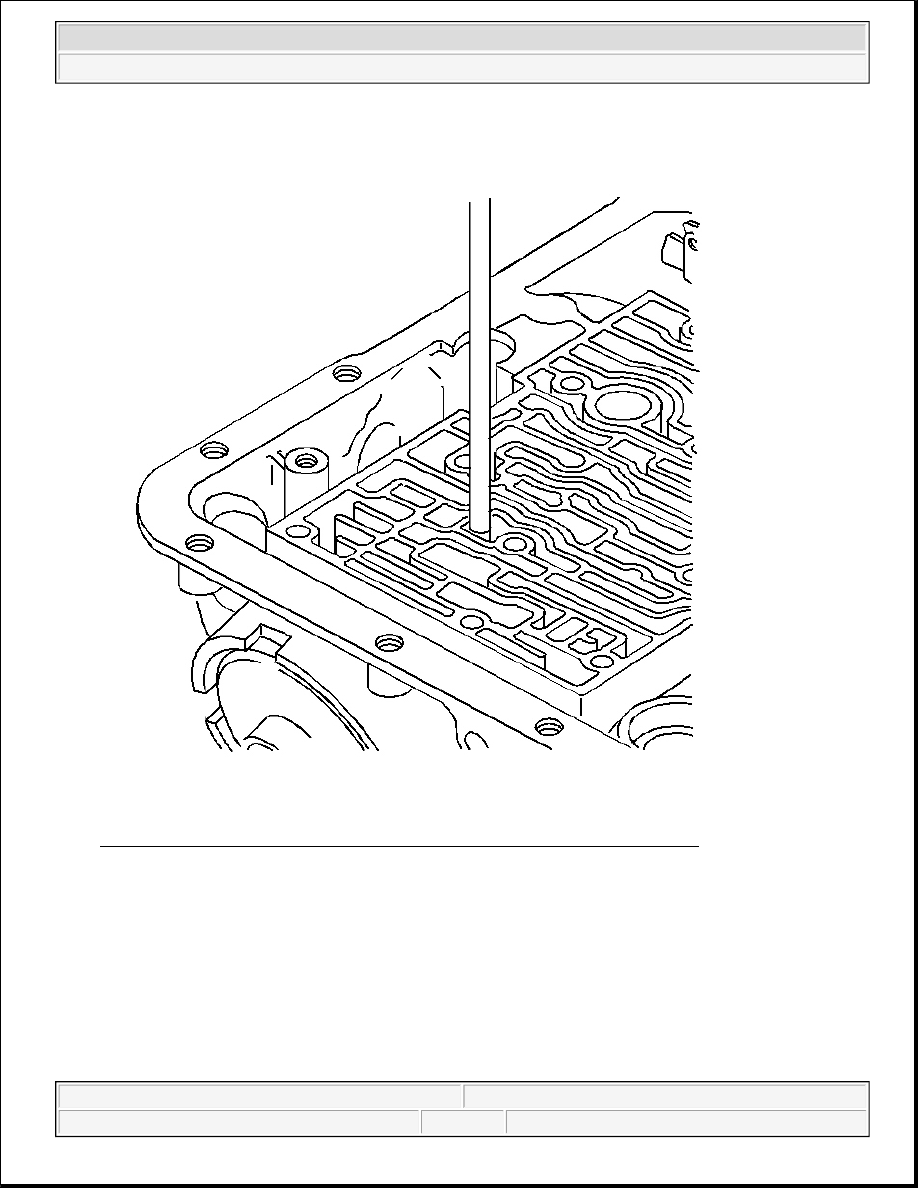

Fig. 94: Installing Third Accumulator Retainer And Ball Assembly
Courtesy of GENERAL MOTORS CORP.

3. Perform the following functions:

1. Line up the oil feed slots in the third accumulator retainer and ball assembly (40) with the servo

bore.

2. Using the 9.5 mm (0.375 in) diameter metal rod, install the third accumulator retainer and ball

assembly.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

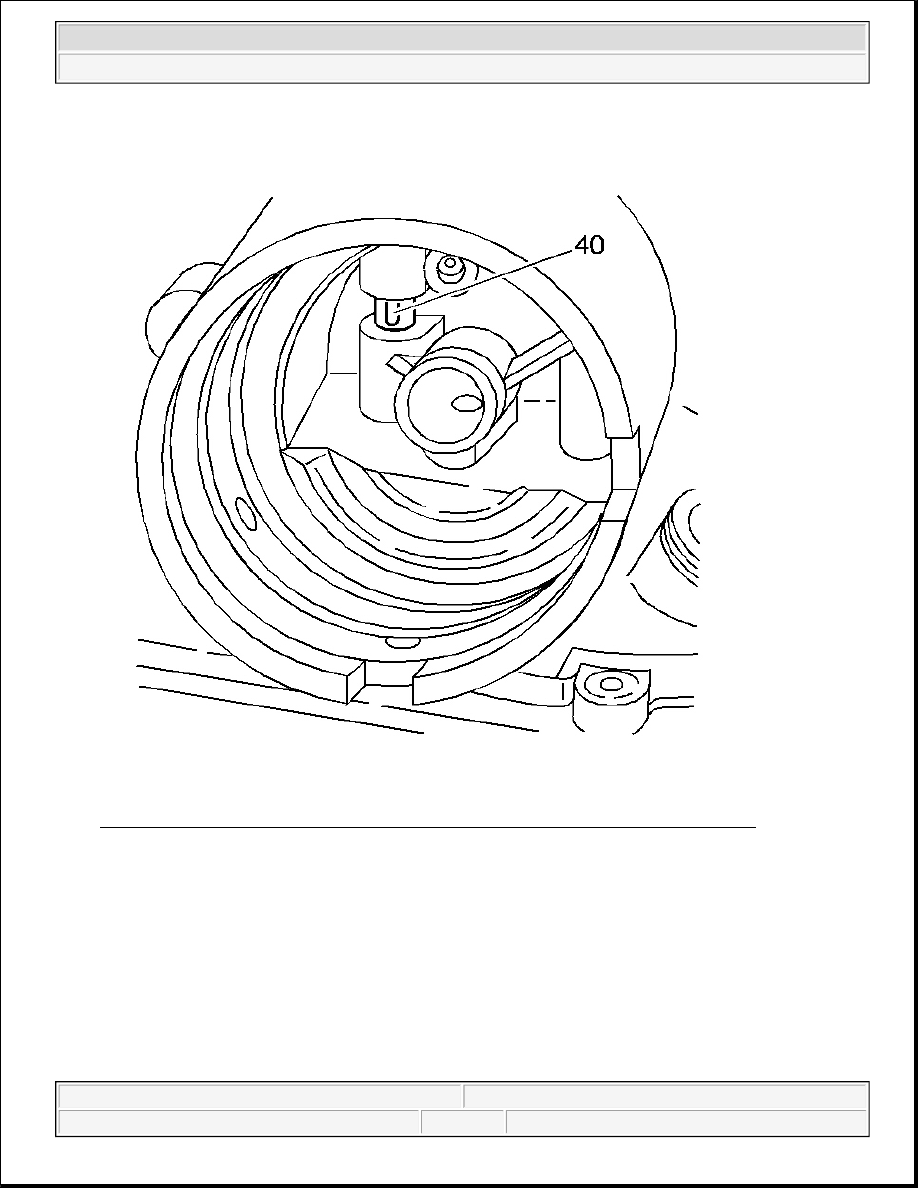

Fig. 95: Checking Third Accumulator Retainer And Ball Assembly Alignment
Courtesy of GENERAL MOTORS CORP.

4. Ensure that the third accumulator retainer and ball assembly and the scribe mark on the rod are flush with

the case surface.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

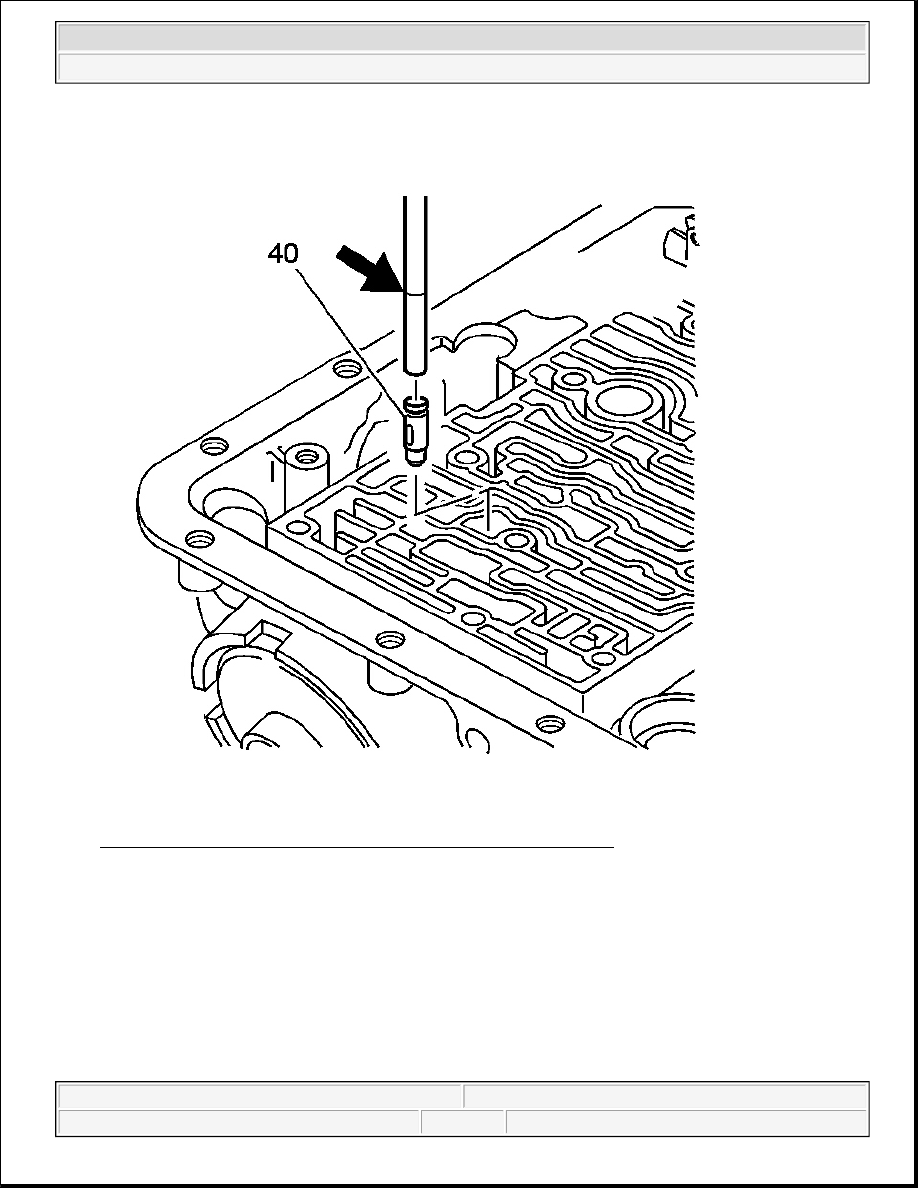

Fig. 96: Aligning Third Accumulator Retainer And Ball Assembly With Retainer Slot
Courtesy of GENERAL MOTORS CORP.

5. Check the third accumulator retainer and ball assembly (40) for alignment. The slot in the retainer must

be completely open in the servo bore.

CASE BUSHING

Removal Procedure

Tools Required

z

J 8092 Driver Handle



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



z

J 34196-B Transmission Bushing Service Set. See Special Tools and Equipment .

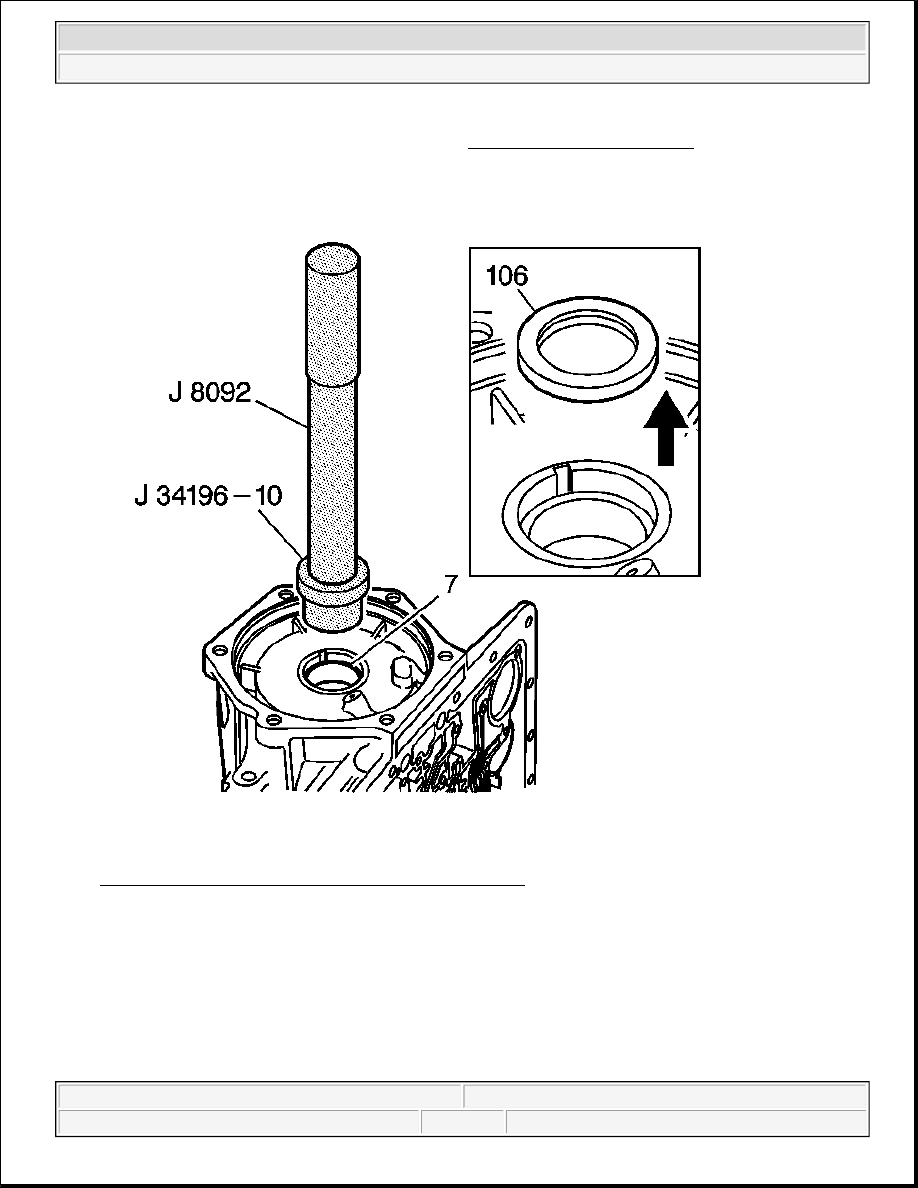

Fig. 97: Identifying Case Rear Oil Seal & Case Bushing
Courtesy of GENERAL MOTORS CORP.

1. Remove the case rear oil seal (106) (Y-car Only).

2. Remove the case bushing (7) using J 8092 and J 34196-10 which is part of kit J 34196-B .

Installation Procedure

Tools Required
