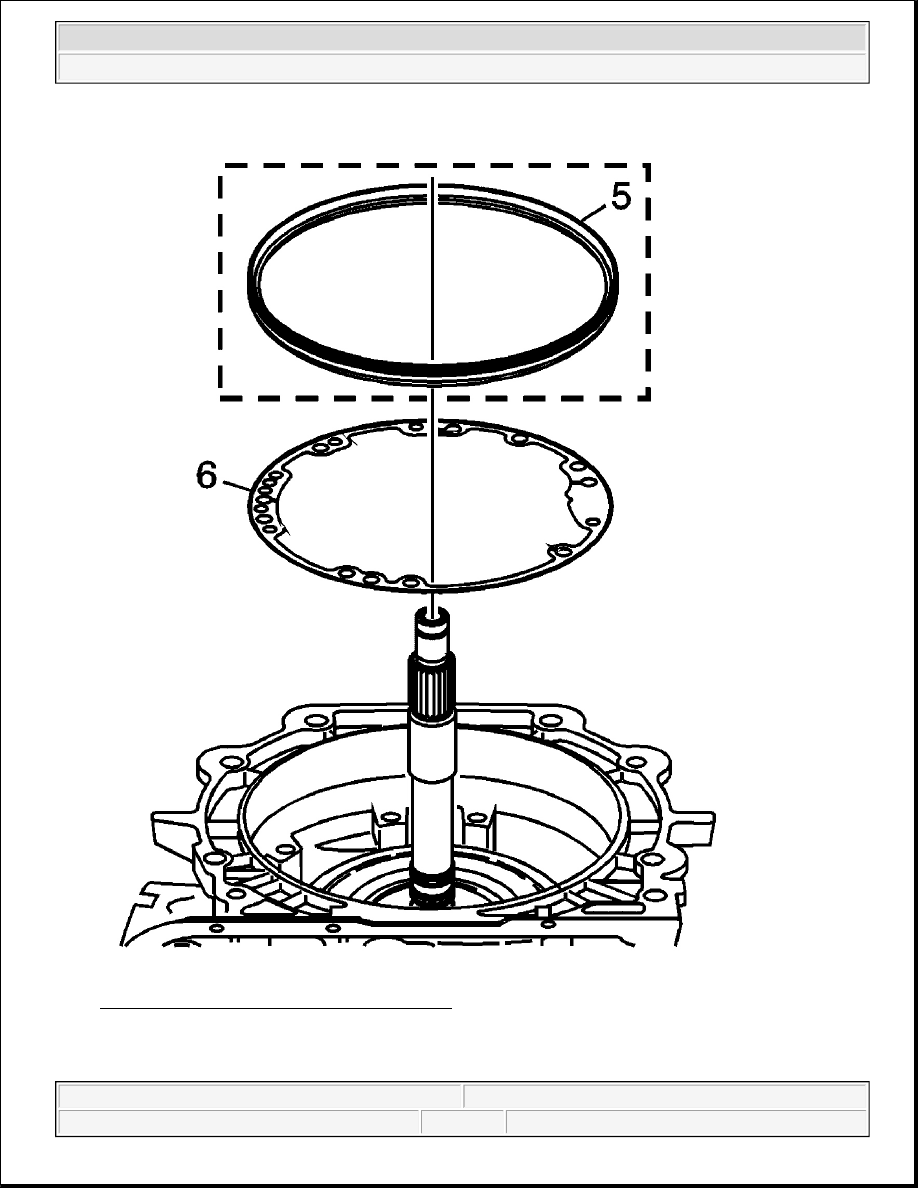

Fig. 62: Identifying External Fluid Pump Seal
Courtesy of GENERAL MOTORS CORP.

7. Some Models use an external fluid pump seal (5) that can be removed after the pump is removed.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



8. Remove the pump cover to case gasket (6).

2-4 BAND, INPUT CLUTCHES, INPUT GEAR SET REMOVAL

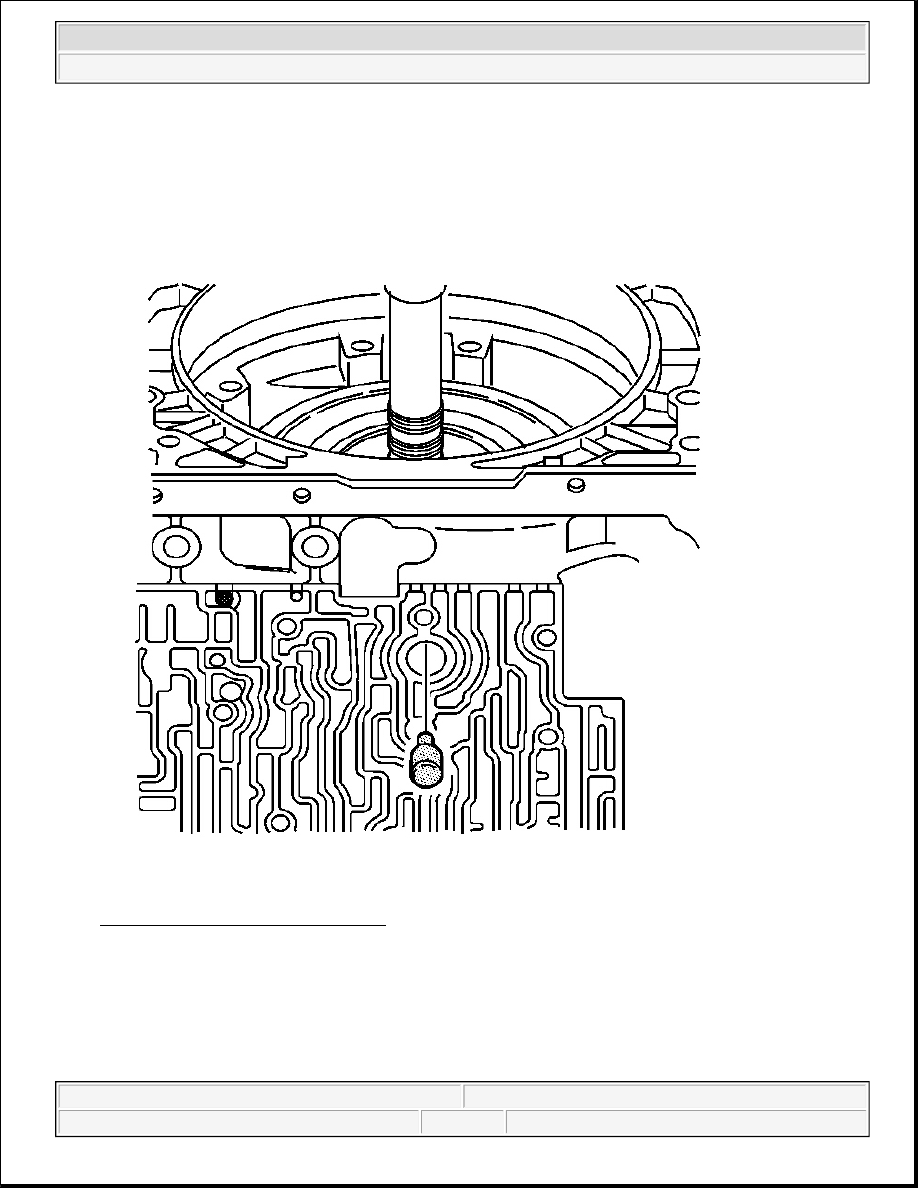

Fig. 63: Identifying Band Anchor Pin
Courtesy of GENERAL MOTORS CORP.

1. Remove the band anchor pin.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



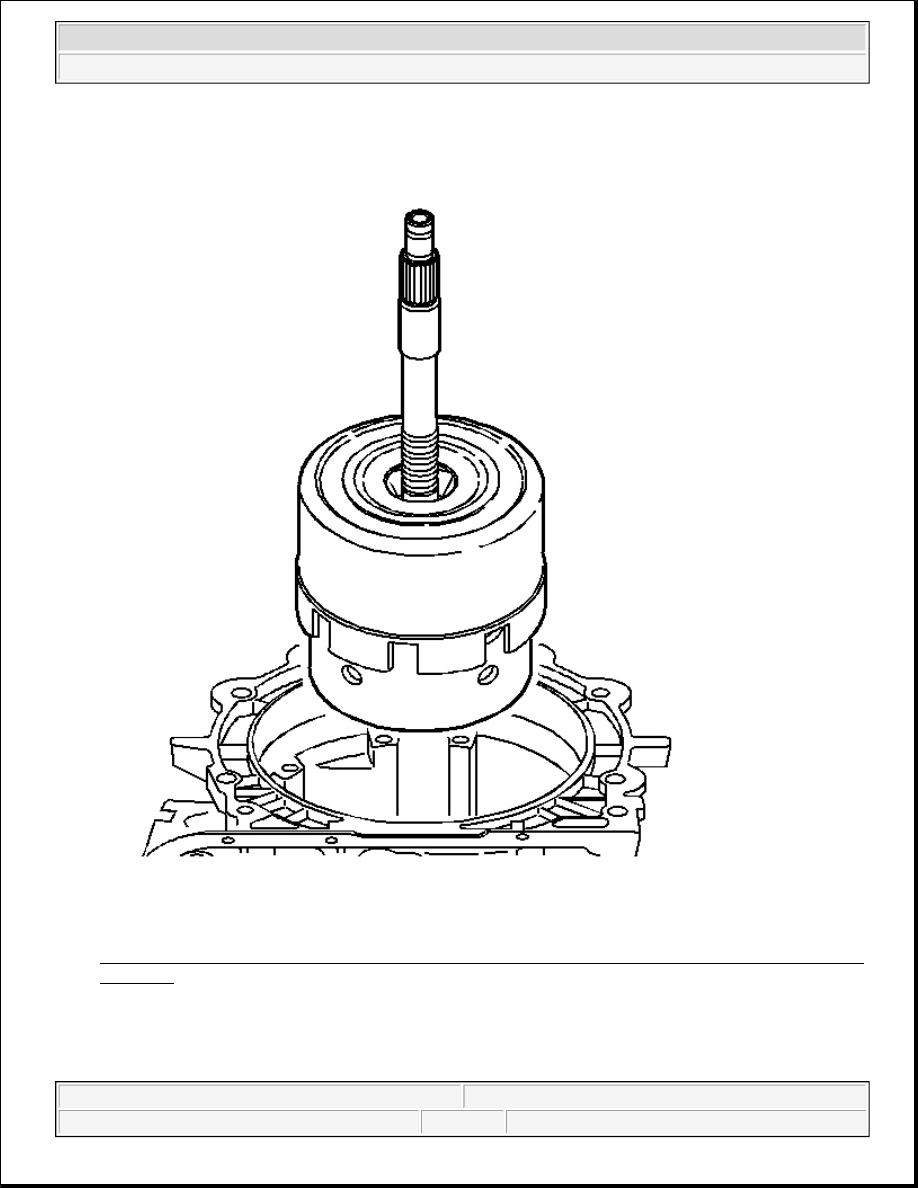

Fig. 64: Removing Input Housing And Shaft Assembly & Reverse Input Clutch Housing And Drum
Assembly
Courtesy of GENERAL MOTORS CORP.

2. Remove the input housing and shaft assembly and the reverse input clutch housing and drum assembly.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



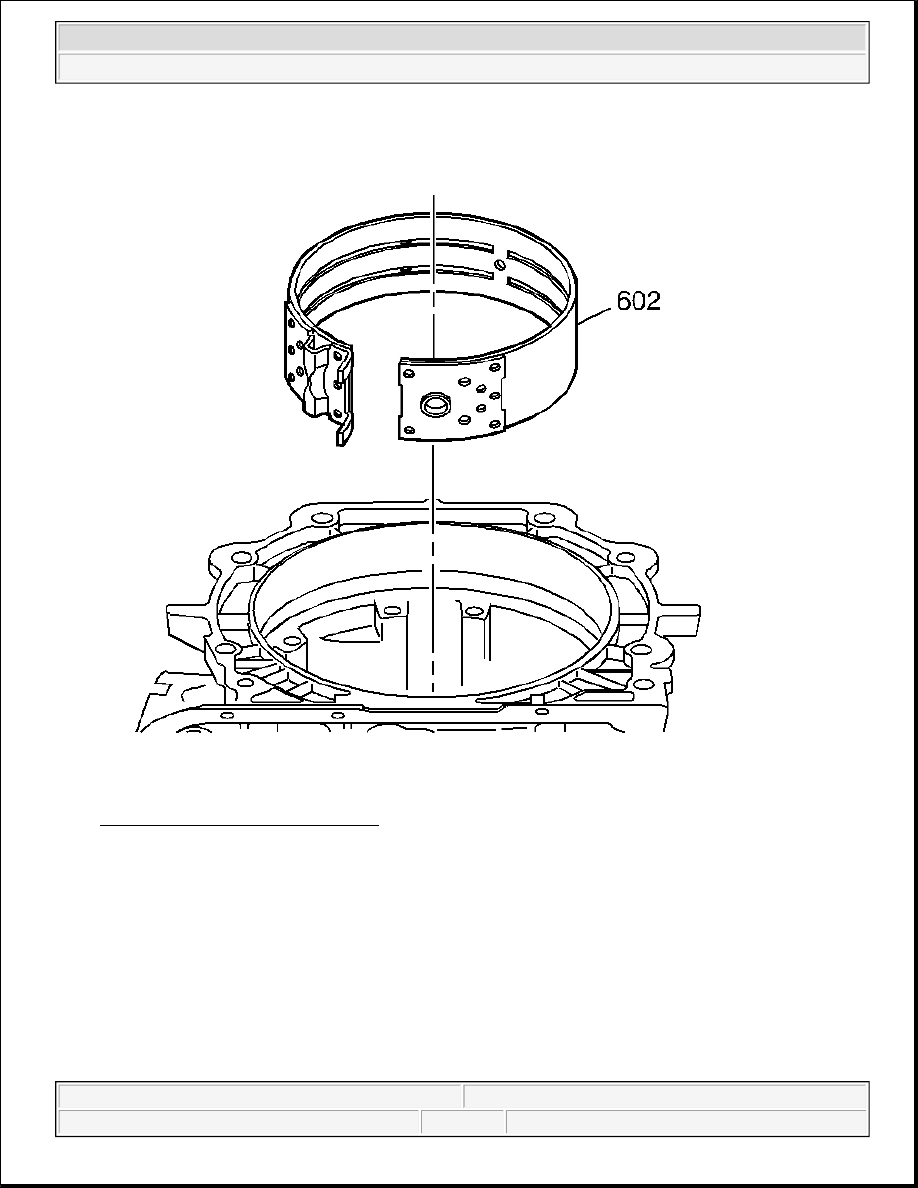

Fig. 65: View Of 2-4 Band Assembly
Courtesy of GENERAL MOTORS CORP.

3. Remove the 2-4 band assembly (602).
