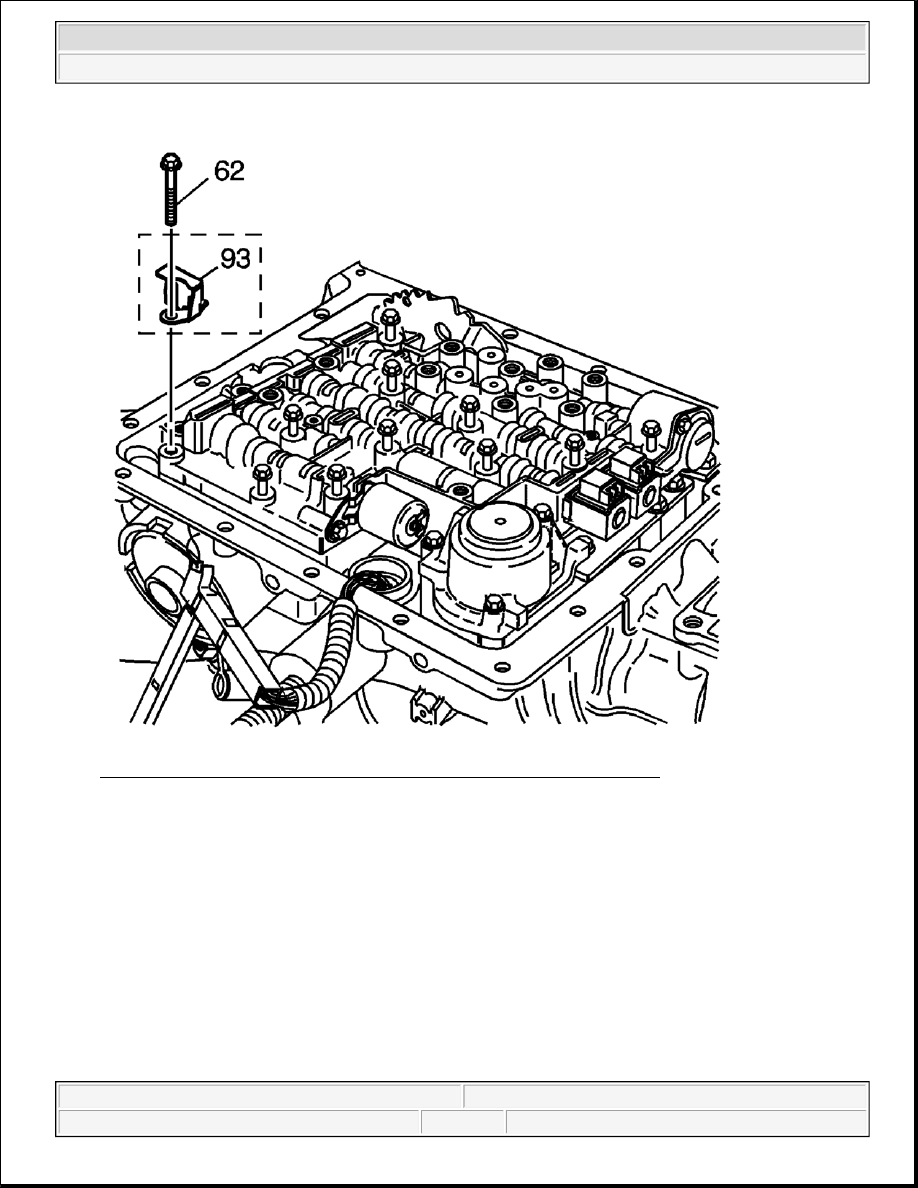

Fig. 47: Locating Valve Body Bolts & Fluid Level Indicator Stop Bracket
Courtesy of GENERAL MOTORS CORP.

10. Remove all valve body bolts (62).

11. Remove the fluid level indicator stop bracket (93) - model dependent.

IMPORTANT: Fluid level indicator stop bracket is model dependent. Some models do

not have a dipstick stop.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

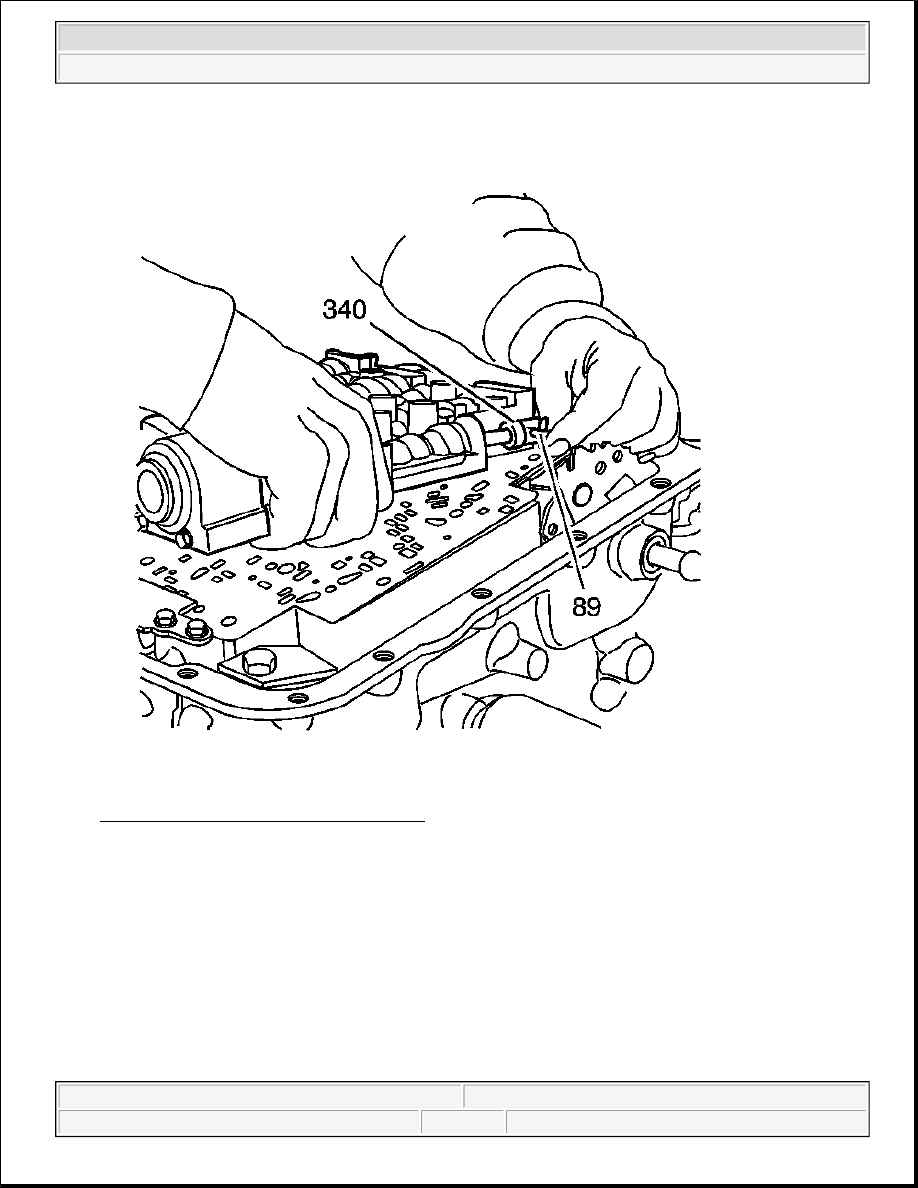

Fig. 48: Disconnecting Manual Valve Link
Courtesy of GENERAL MOTORS CORP.

12. Lift the valve body carefully so that the checkballs remain on the spacer plate in the correct location.

While lifting the valve body, disconnect the manual valve link from the manual valve.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

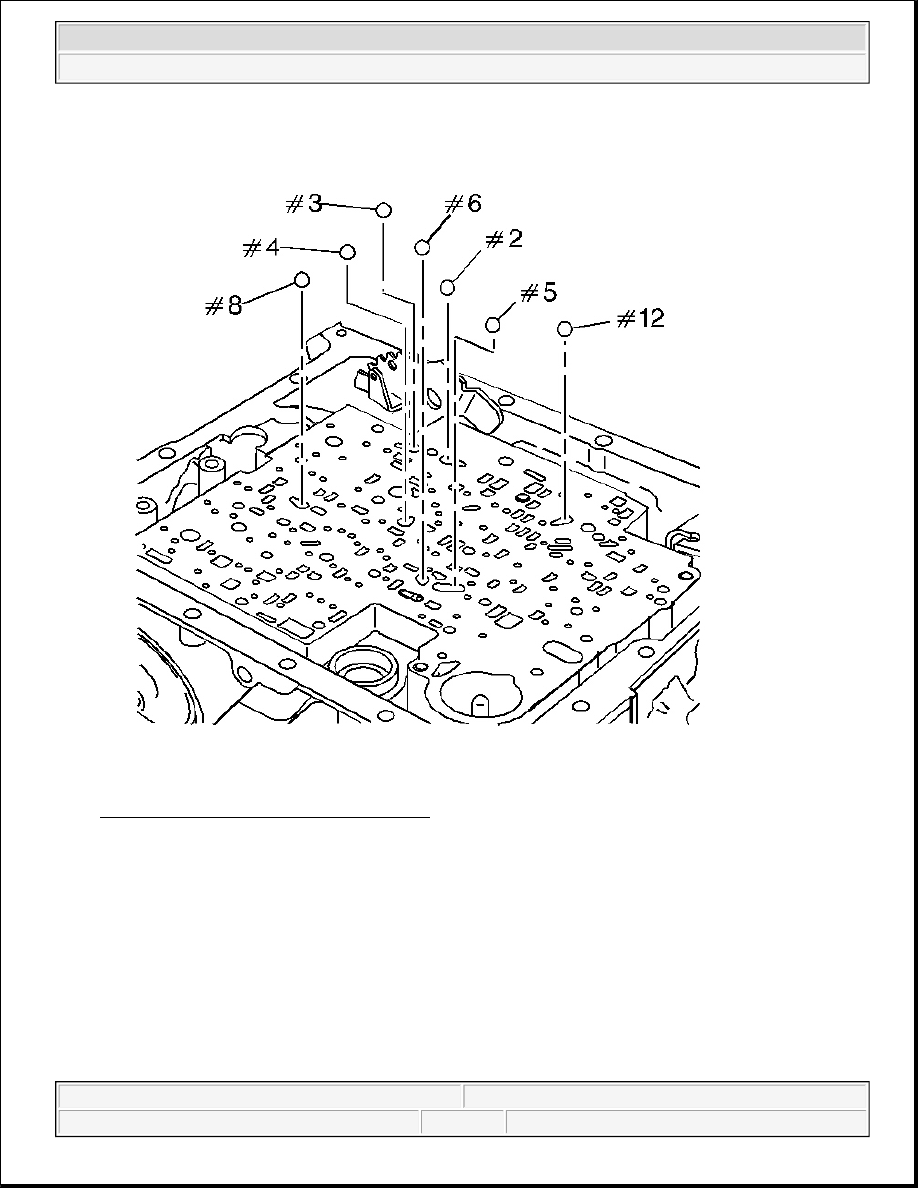

Fig. 49: Identifying Valve Body Checkballs
Courtesy of GENERAL MOTORS CORP.

13. Remove the 7 valve body checkballs (2-6, 8, 12).

NOTE:

Do not use a magnet in order to remove the control valve body ball check
valves. This may magnetize the control valve body ball check valves,
causing metal particles to stick to them.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

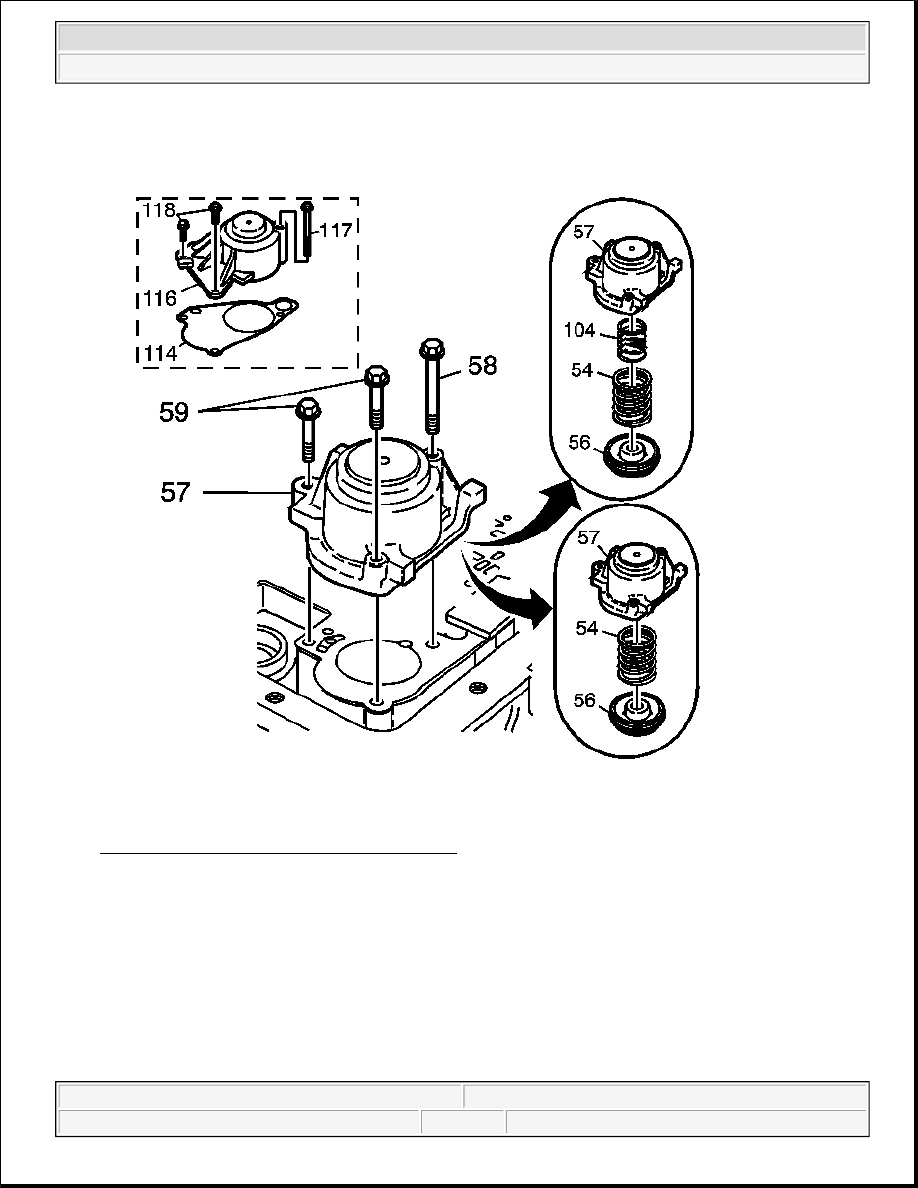

Fig. 50: Views Of 1-2 Accumulator Assemblies
Courtesy of GENERAL MOTORS CORP.

14. Remove the accumulator cover bolts (58, 59 or 117, 118).

15. Remove the 1-2 accumulator cover and pin assembly (57 or 116).

16. Disassemble the 1-2 accumulator assembly (54, 56, 57, 104).

IMPORTANT: M33 models do not use 1-2 accumulator spring - inner (104).
