Hummer H2. Manual - part 2380

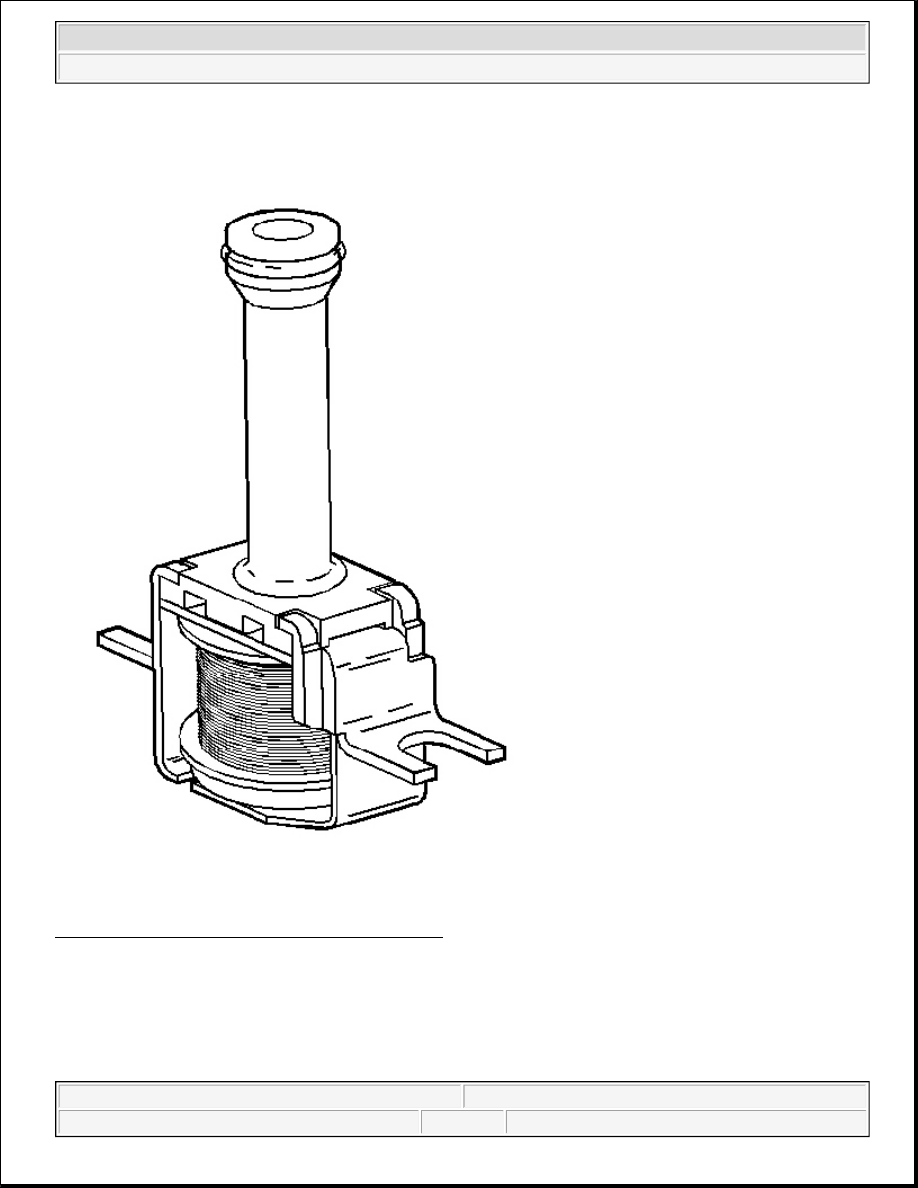

Fig. 491: Torque Converter Clutch Solenoid Valve
Courtesy of GENERAL MOTORS CORP.

The torque converter clutch (TCC) solenoid valve is a normally-open exhaust valve that is used to control
torque converter clutch apply and release. When grounded (energized) by the powertrain control module
(PCM), the TCC solenoid valve stops converter signal oil from exhausting. This causes converter signal oil
pressure to increase and move the TCC solenoid valve into the apply position.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Torque Converter Clutch Pulse Width Modulation Solenoid Valve

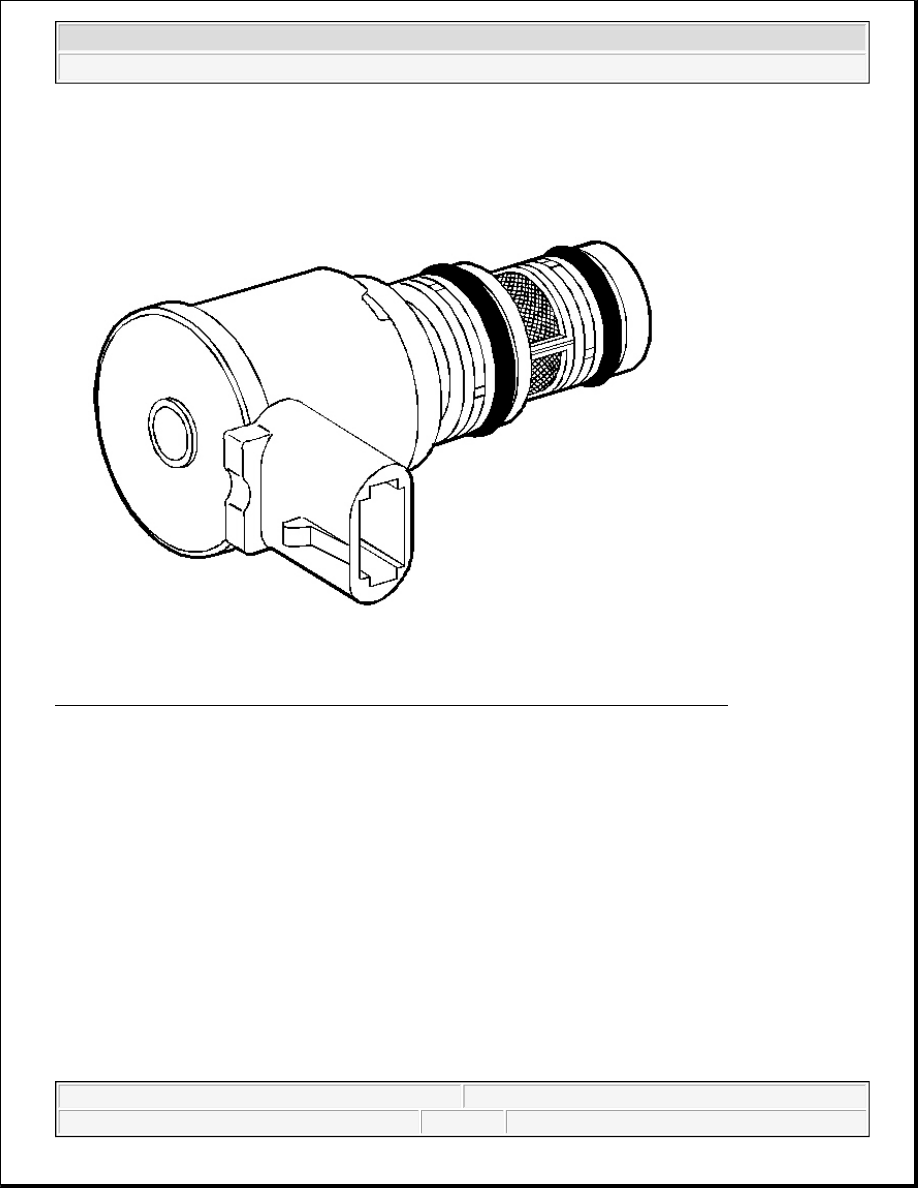

Fig. 492: Torque Converter Clutch Pulse Width Modulation Solenoid Valve (M30/M32)
Courtesy of GENERAL MOTORS CORP.

The torque converter clutch pulse width modulation solenoid valve controls the fluid acting on the converter
clutch valve. The converter clutch valve controls the torque converter clutch (TCC) apply and release. This
solenoid is attached to the control valve body assembly within the transmission. The TCC PWM solenoid valve
provides a smooth engagement of the torque converter clutch by operating during a duty cycle percent of ON
time.

Transmission Fluid Pressure (TFP) Manual Valve Position Switch



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

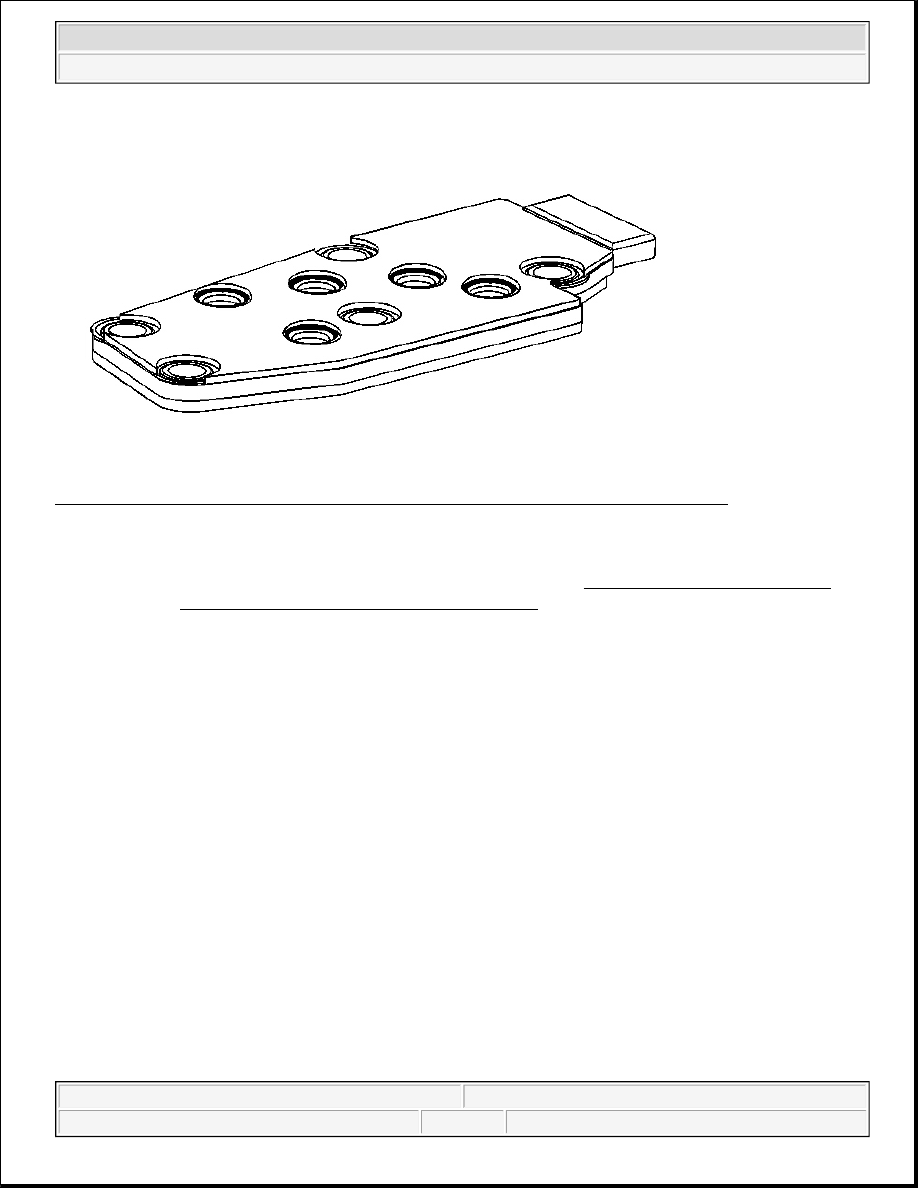

Fig. 493: Transmission Fluid Pressure (TFP) Manual Valve Position Switch (M33 Only)
Courtesy of GENERAL MOTORS CORP.

The transmission fluid pressure (TFP) manual valve position switch consists of five pressure switches (two
normally-closed and three normally-open) on the control valve body that sense whether fluid pressure is present
in five different valve body passages. The combination of switches that are open and closed is used by the PCM
in order to determine the actual manual valve position. The TFP manual valve position switch, however, cannot
distinguish between PARK and NEUTRAL because the monitored valve body pressures are identical in both
cases.

The switches are wired to provide three signal lines that are monitored by the PCM. These signals are used to
help control line pressure, torque converter clutch apply and shift solenoid valve operation. Voltage at each of
the signal lines is either zero or twelve volts.

In order to monitor the TFP manual valve position switch operation, the PCM compares the actual voltage
combination of the switches to a TFP combination table stored in its memory.

The TFP manual valve position switch signal voltage can be measured from each pin-to-ground and compared
to the combination table. On the automatic transmission (AT) wiring harness assembly, pin N is signal A, pin R
is signal B, and pin P is signal C. With the AT wiring harness assembly connected and the engine running, a
voltage measurement of these three lines will indicate a high reading (near 12 volts) when a circuit is open, and
a low reading (zero volts) when the circuit is switched to ground.

The transmission fluid temperature (TFT) sensor is part of the TFP manual valve position switch assembly.

IMPORTANT: Seven valid combinations and two invalid combinations are available from the

TFP manual valve position switch. Refer to the Transmission Fluid Pressure
(TFP) Manual Valve Position Switch Logic table for valid/invalid combinations
for range signal circuits A, B and C.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Vehicle Speed Sensor Assembly

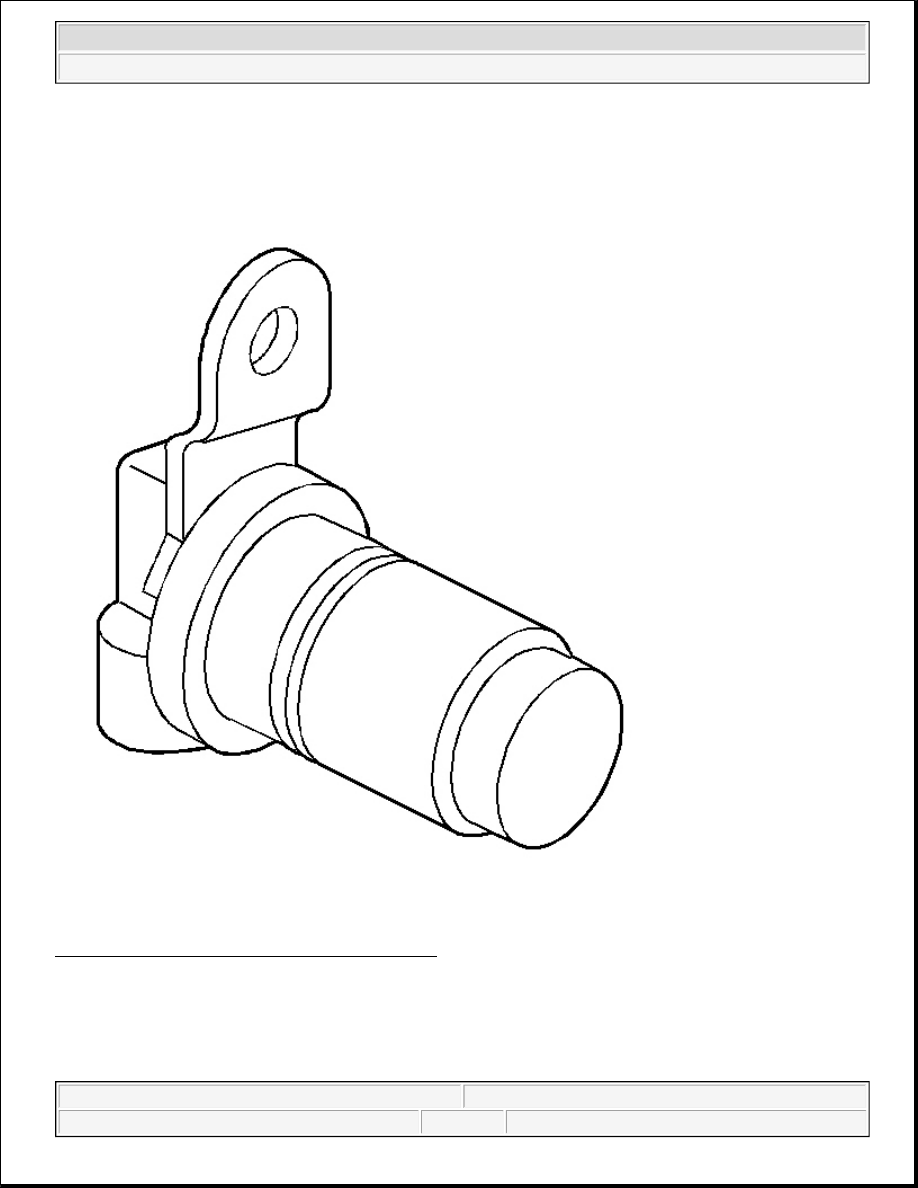

Fig. 494: View Of Vehicle Speed Sensor Assembly
Courtesy of GENERAL MOTORS CORP.

The vehicle speed sensor (VSS) assembly provides vehicle speed information to the PCM. The VSS assembly is
a permanent magnet (PM) generator. The PM generator produces a pulsing AC voltage as rotor teeth on the
transmission output shaft pass through the sensor's magnetic field. The AC voltage level and the number of
pulses increase as the speed of the vehicle increases. Output voltage varies with speed from a minimum of 0.5
