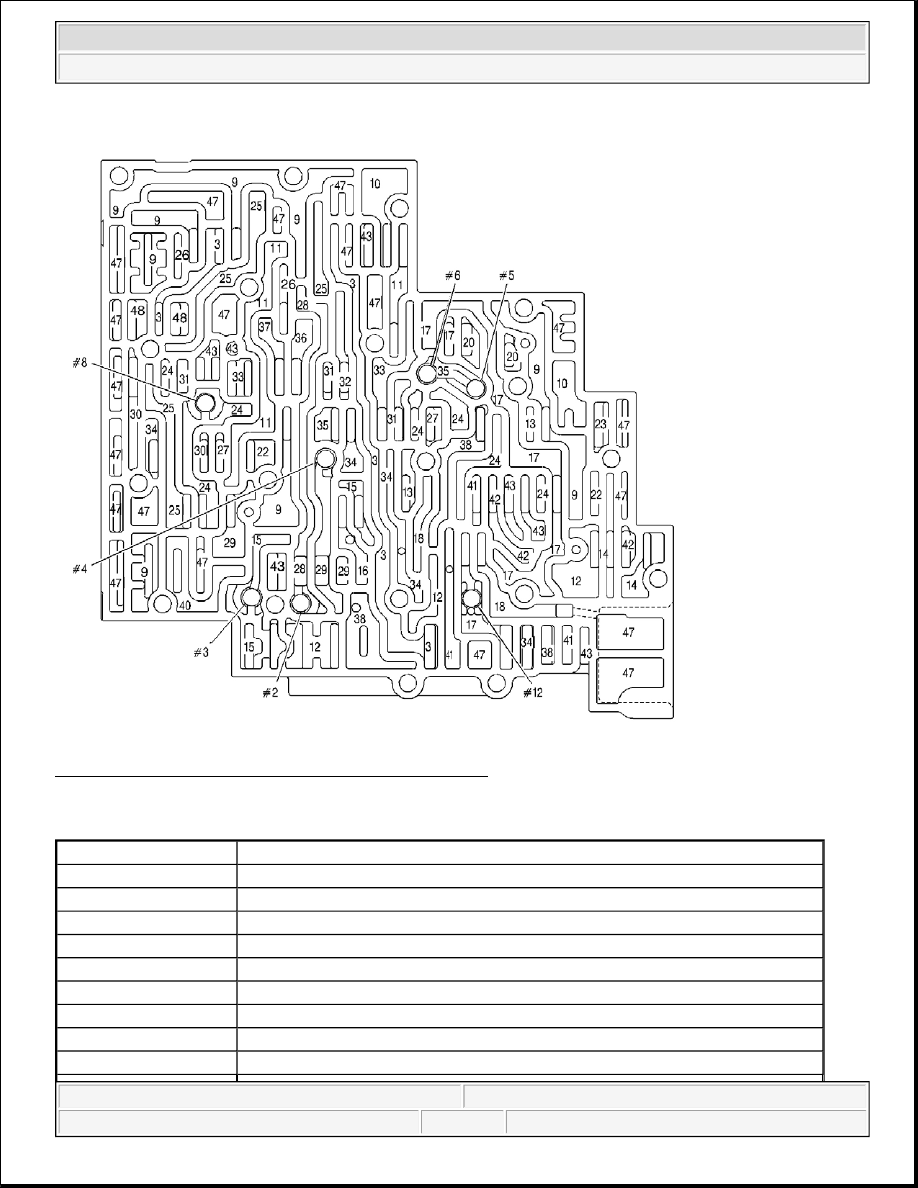

Fig. 484: Control Valve Body Fluid Passages (Case Side)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 537

Callout

Component Name

#2

Checkball (61)

#3

Checkball (61)

#4

Checkball (61)

#5

Checkball (61)

#6

Checkball (61)

#8

Checkball (61)

#12

Checkball (61)

3

Line

3

Line



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



3

Line

3

Line

3

Line

3

Line

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

9

Actuator Feed Limit

10

Filtered Actuator Feed

10

Filtered Actuator Feed

11

Torque Signal

11

Torque Signal

11

Torque Signal

11

Torque Signal

12

PR

12

PR

12

PR

13

D4-3-2

13

D4-3-2

14

Lo/Reverse

14

Lo/Reverse

15

Reverse

15

Reverse

15

Reverse

16

Reverse Input (Rev. Clutch

17

D4

17

D4

17

D4

17

D4

17

D4

17

D4

17

D4

18

Forward Clutch Feed

18

Forward Clutch Feed

20

Accumulator

20

Accumulator



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



22

Signal A

22

Signal A

23

Signal B

24

2nd

24

2nd

24

2nd

24

2nd

24

2nd

24

2nd

24

2nd

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

25

2nd Clutch

26

C.C. Signal

26

C.C. Signal

27

3-4 Signal

27

3-4 Signal

28

3rd Accumulator

28

3rd Accumulator

29

3-4 Clutch

29

3-4 Clutch

29

3-4 Clutch

30

4th Signal

30

4th Signal

31

Servo Feed

31

Servo Feed

31

Servo Feed

32

4th

33

3-4 Accumulator

33

3-4 Accumulator

34

D3

34

D3

34

D3

34

D3

34

D3

35

Overrun

35

Overrun

36

Overrun Clutch Feed



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



37

Overrun Clutch

38

D2

38

D2

38

D2

40

3-2 Signal

41

Lo

41

Lo

41

Lo

42

Lo/1st

42

Lo/1st

42

Lo/1st

43

Exhaust

43

Exhaust

43

Exhaust

43

Exhaust

43

Exhaust

43

Exhaust

43

Exhaust

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

47

Void

48

Regulated Apply
