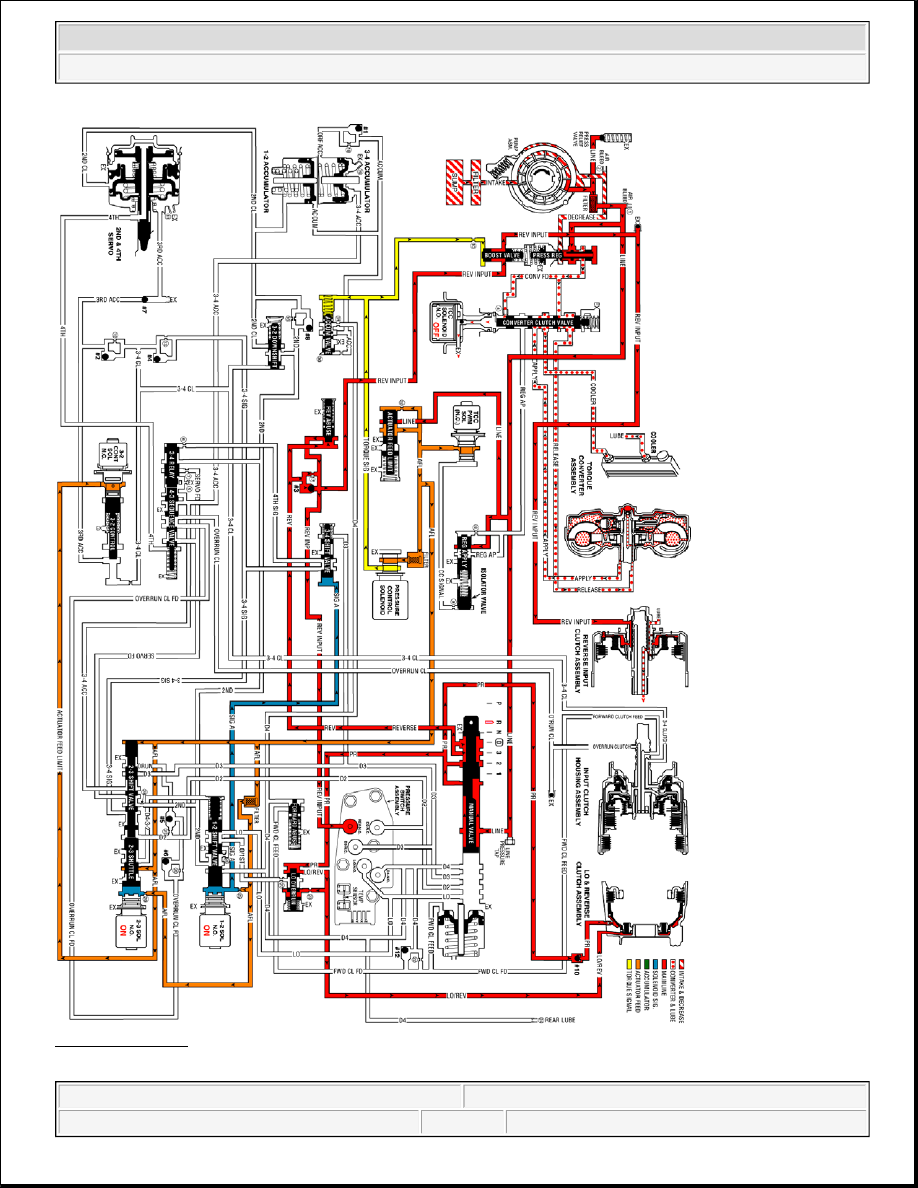

Fig. 475: Reverse
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



FLUID PASSAGES

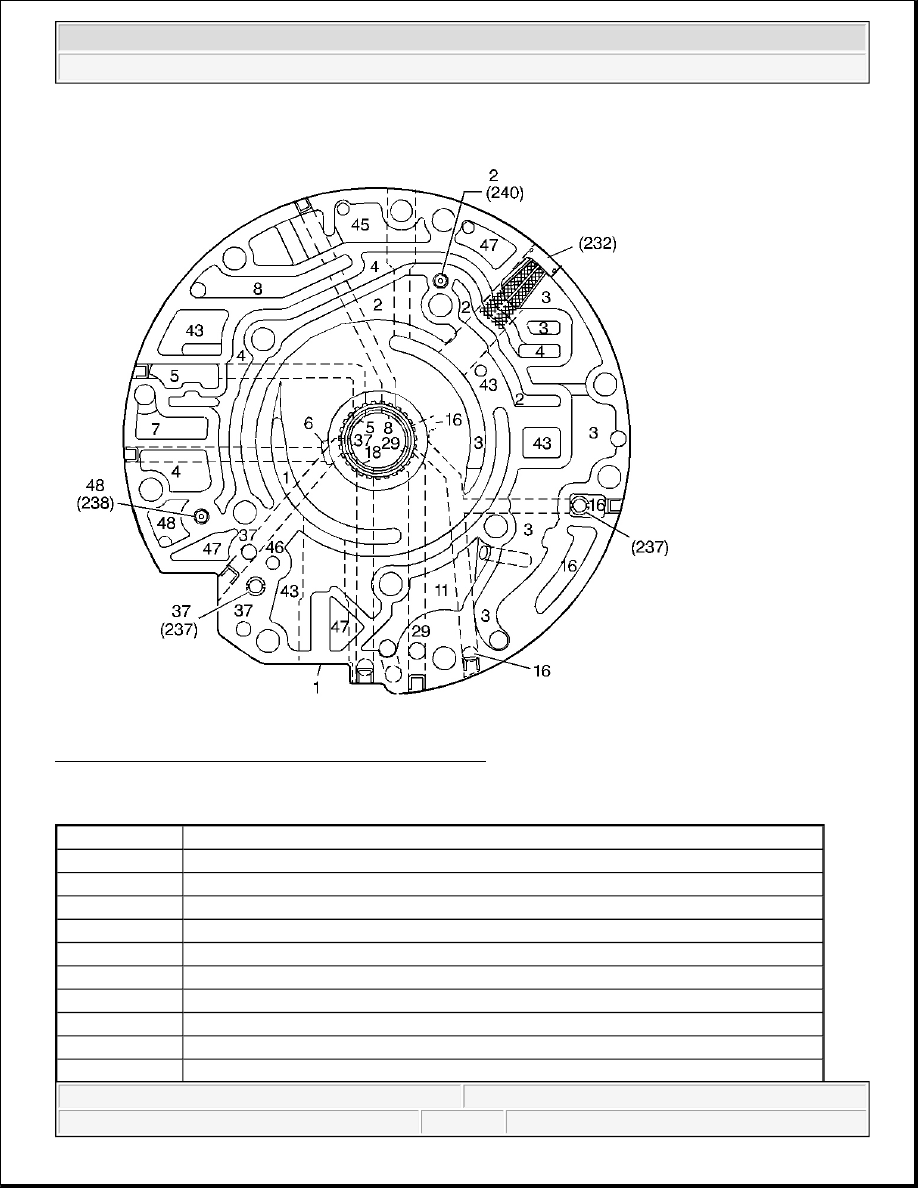

Fig. 476: Pump Body Fluid Passages (Pump Cover Side)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 529

Callout

Component Name

1

Suction (intake)

2

Decrease

2

Decrease

3

Line

3

Line



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



3

Line

4

Converter Feed

4

Converter Feed

4

Converter Feed

5

Release

7

To Cooler

8

Lube from Cooler

11

Torque Signal

16

Reverse Input

16

Reverse Input

29

3-4 Clutch

37

Overrun Clutch

43

Exhaust

43

Exhaust

43

Exhaust

43

Exhaust

45

Vent

46

Seal Drain

47

Void

47

Void

48

Regulated Apply



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



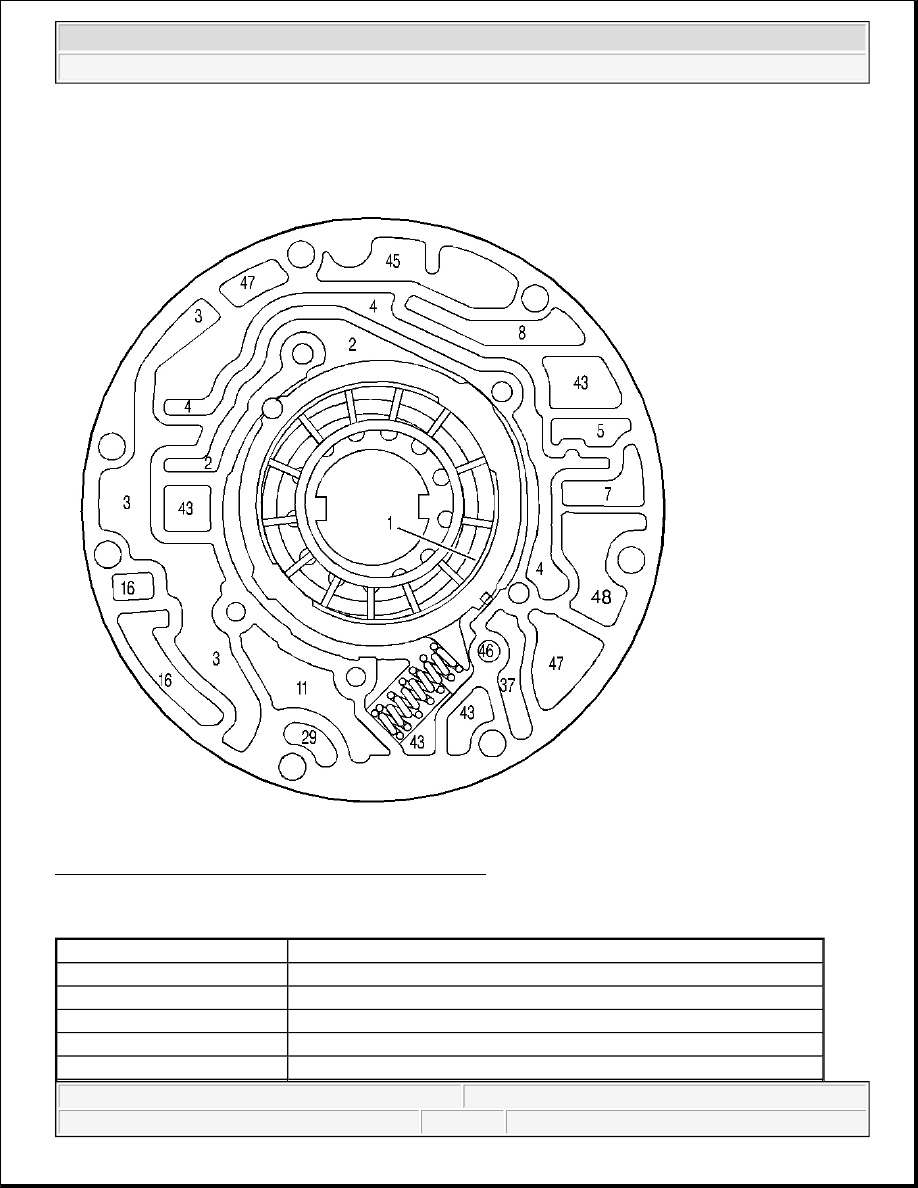

Fig. 477: Pump Cover Fluid Passages (Pump Body Side)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 530

Callout

Component Name

1

Suction (intake)

1

Suction (intake)

2

Decrease

2

Decrease

2

Decrease

2

Decrease

3

Line

3

Line

3

Line

3

Line
