Hummer H2. Manual - part 2339

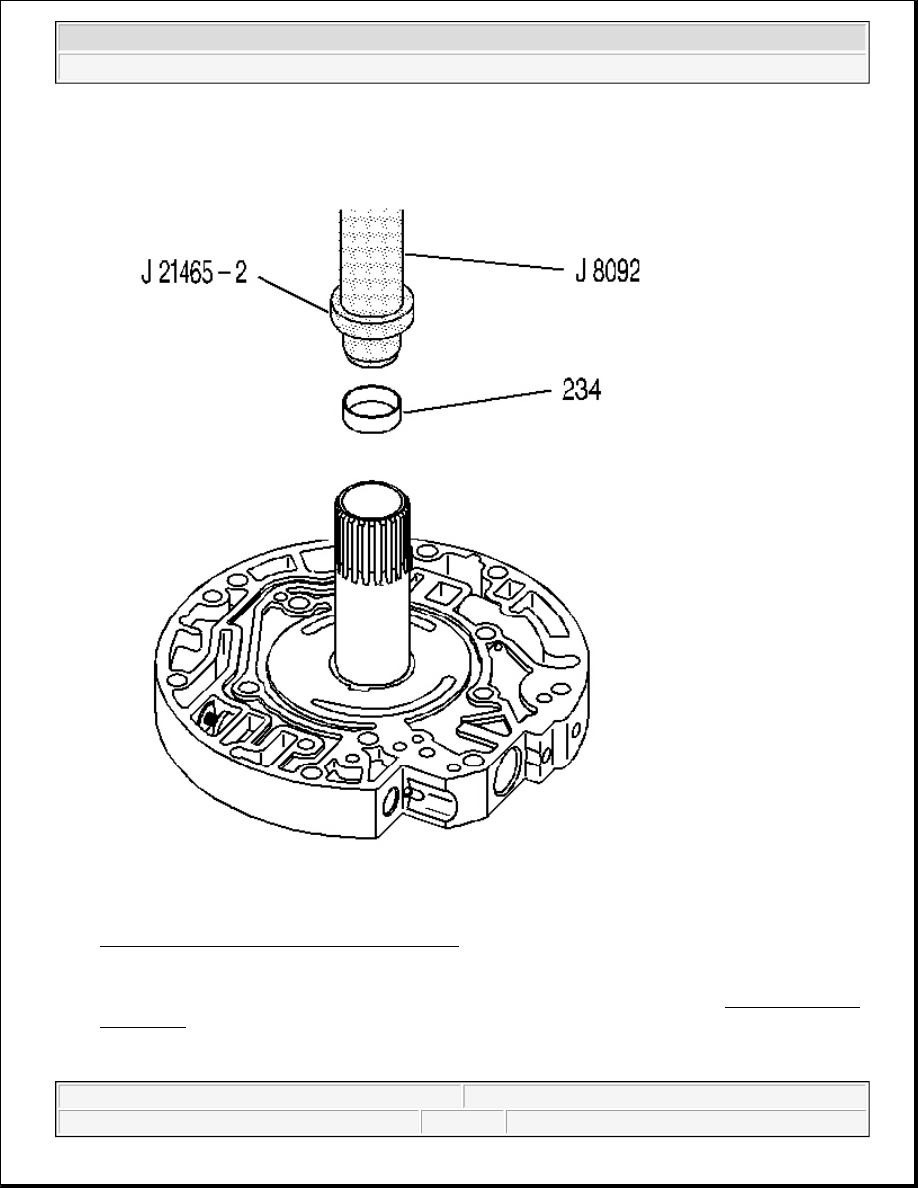

Fig. 384: Installing Stator Shaft Front Bushing
Courtesy of GENERAL MOTORS CORP.

1. Using the J 21465-2 and the J 8092 , install a new stator shaft front bushing (234).See Special Tools and

Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

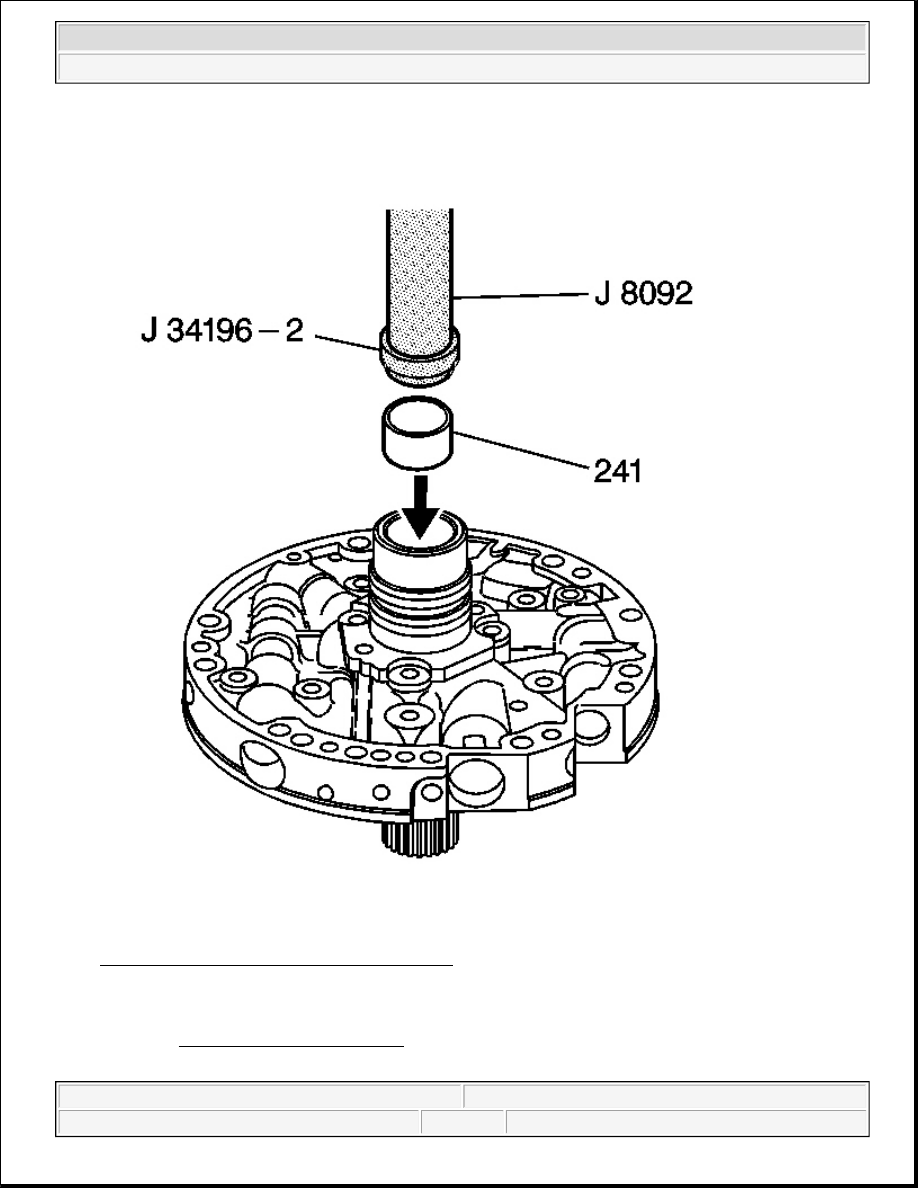

Fig. 385: Installing Stator Shaft Rear Bushing
Courtesy of GENERAL MOTORS CORP.

2. Using the J 34196-2 which is part of kit J 34196-B and the J 8092 , install the stator shaft rear bushing

(241). See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



OIL PUMP COVER ASSEMBLE

Tools Required

z

J 38735-3 Pusher. See Special Tools and Equipment .

z

J 39855 Stator Shaft Seal Installer. See Special Tools and Equipment .

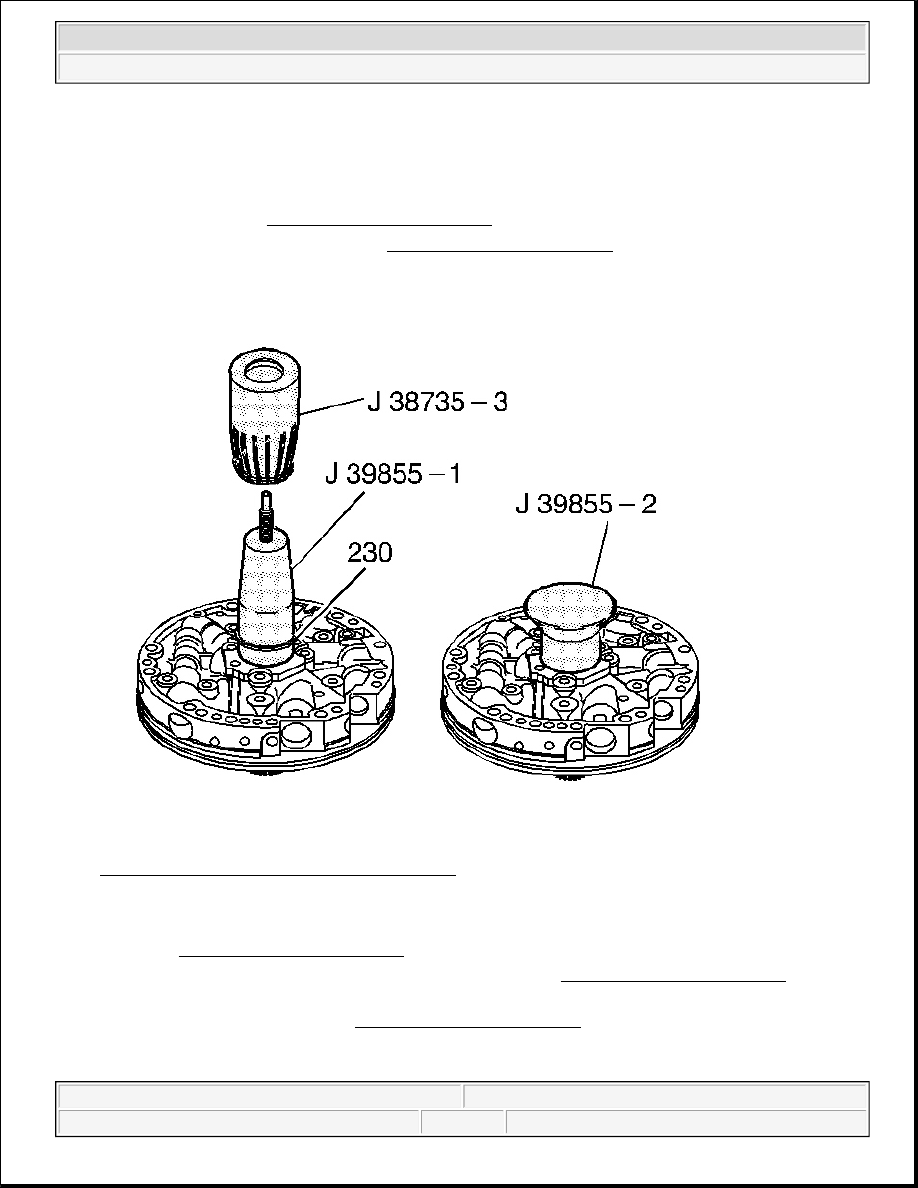

Fig. 386: Installing Stator Shaft Oil Seal Rings
Courtesy of GENERAL MOTORS CORP.

1. Using the J 39855-1 which is part of kit J 39855 and the J 38735-3 , install the stator shaft oil seal rings

(230). See Special Tools and Equipment .

2. Place J 39855-2 which is part of kit J 39855 over the seals. See Special Tools and Equipment .

3. Leave J 39855-2 which is part of kit J 39855 on the stator shaft until just before the pump is to be

installed into the transmission. See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

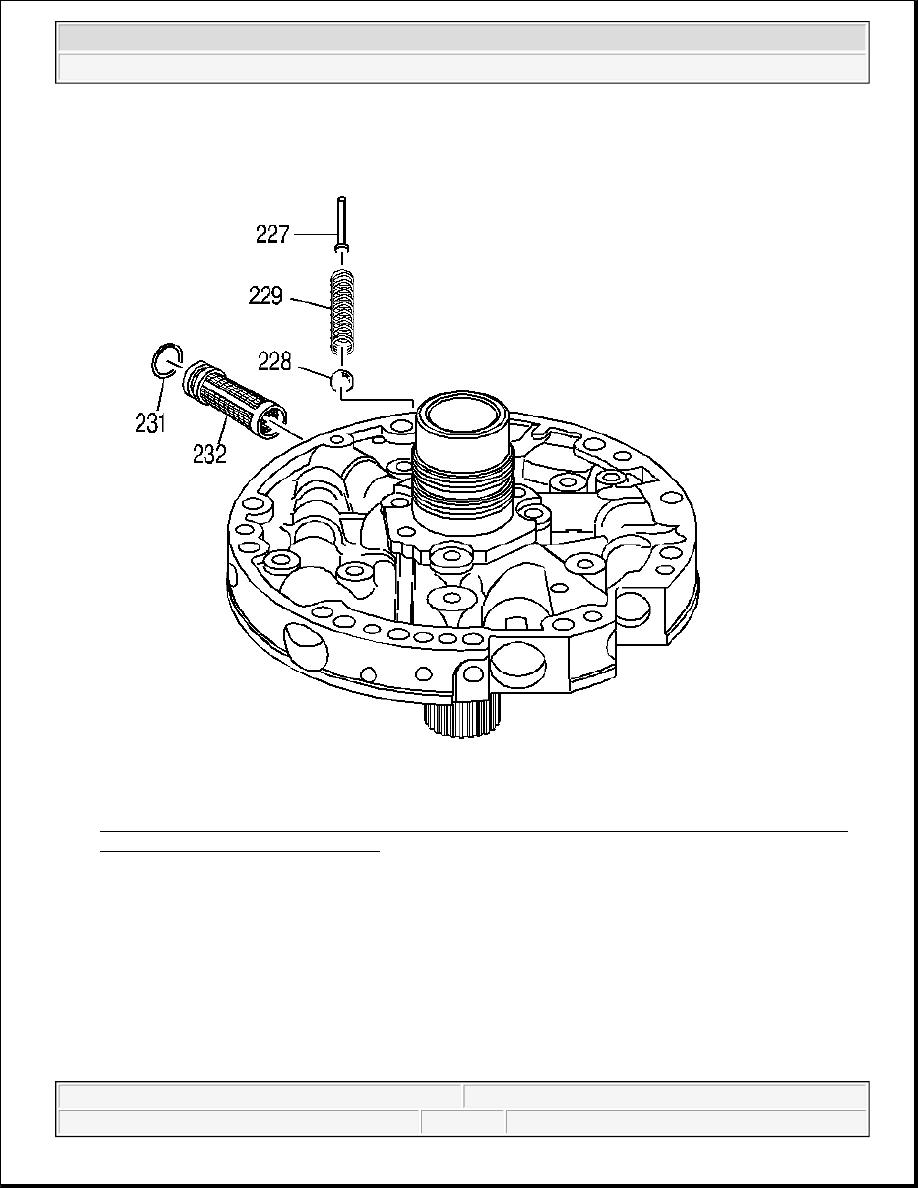

Fig. 387: Pressure Relief Ball, Pressure Relief Spring, Pressure Relief Bolt Rivet, Oil Pump Cover
Screen Seal, Oil Pump Cover Screen
Courtesy of GENERAL MOTORS CORP.

4. Install the pressure relief ball (228) and pressure relief spring (229).

5. Install the pressure relief bolt rivet (227).

6. Install the oil pump cover screen seal (231) on the oil pump cover screen (232).

7. Install the oil pump cover screen (232) into the pump cover.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
