3. Inspect the low and reverse clutch support (679) for loose cam and cam surface finish. Check the support

for cracks and damaged lugs.

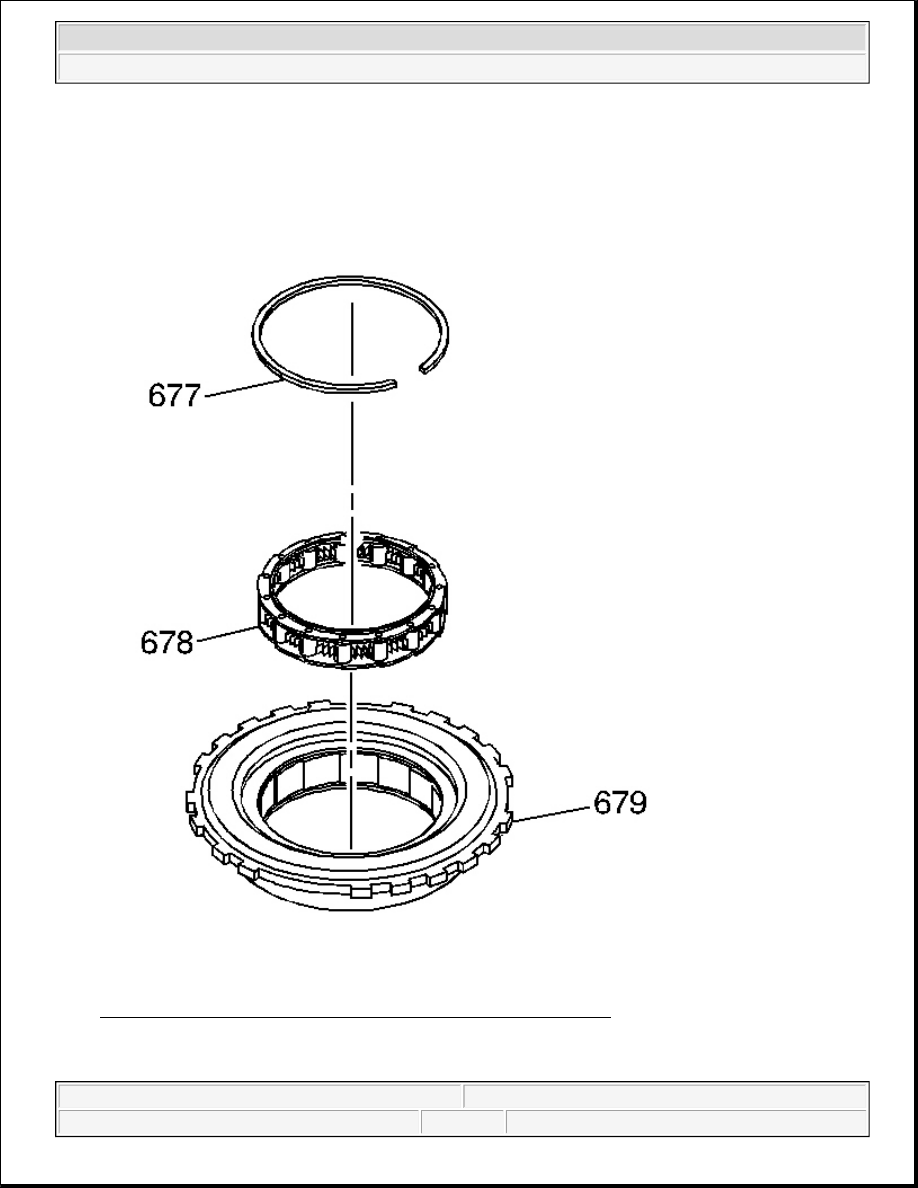

Fig. 272: Low & Reverse Roller Clutch Assembly & Retainer Ring
Courtesy of GENERAL MOTORS CORP.

4. Clean and install the low and reverse roller clutch assembly (678) into the low and reverse clutch support



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



(679). Install the low and reverse retainer ring (677).

LOW AND REVERSE CLUTCH SUPPORT INSTALLATION

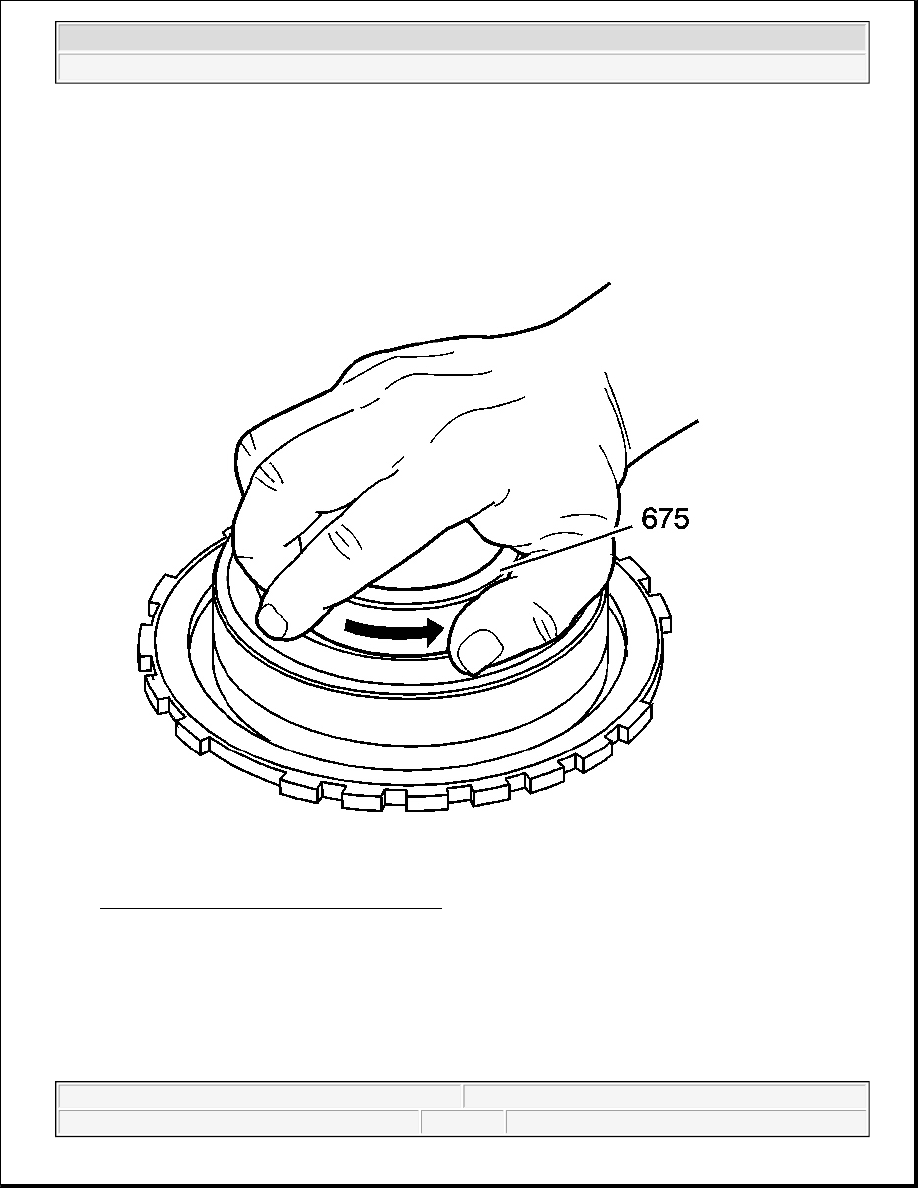

Fig. 273: Low & Reverse Roller Clutch Race
Courtesy of GENERAL MOTORS CORP.

1. Install the low and reverse roller clutch race (675). Simultaneously, turn and insert the race.

2. Rotate the race in order to verify proper operation. The race should only rotate in one direction.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

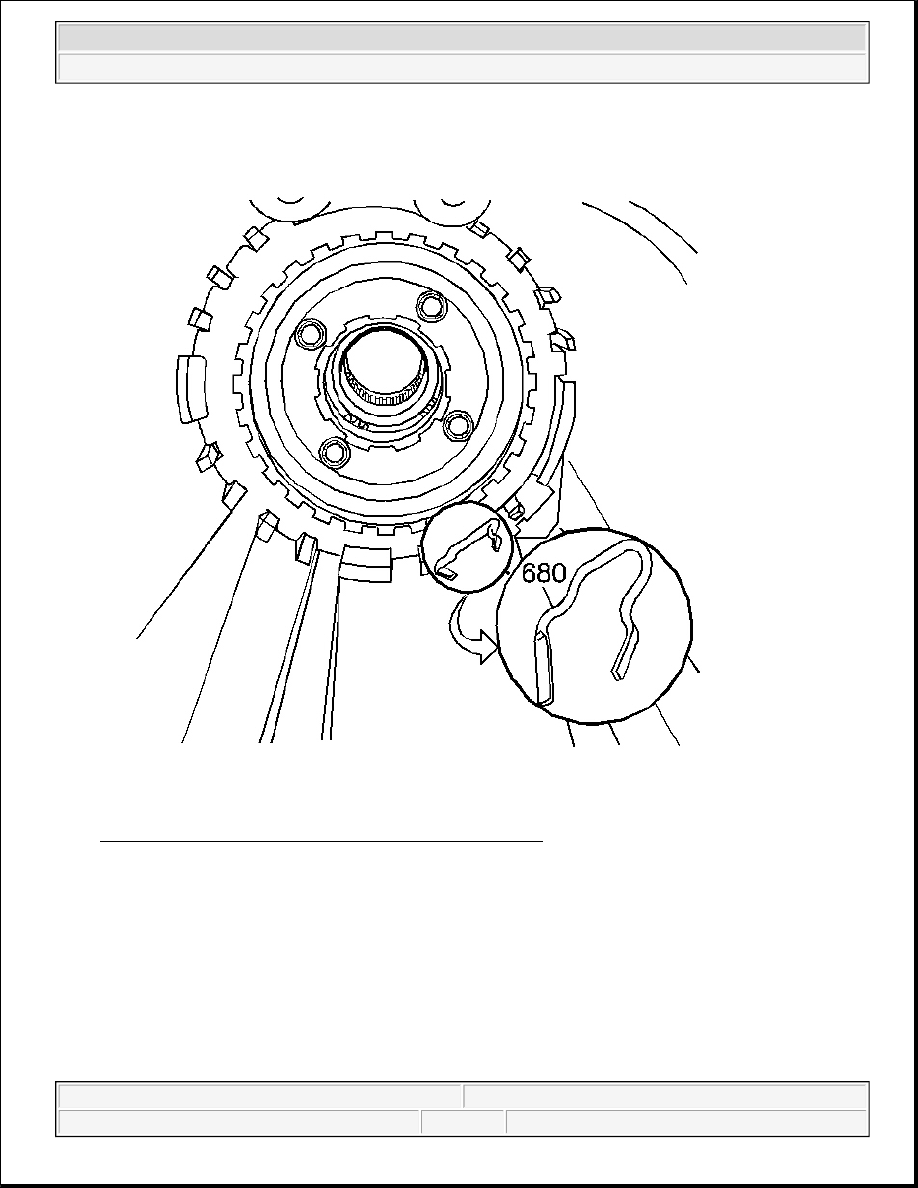

Fig. 274: Low & Reverse Clutch Support Retainer Spring
Courtesy of GENERAL MOTORS CORP.

3. Install the low and reverse clutch support retainer spring (680) into the case.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

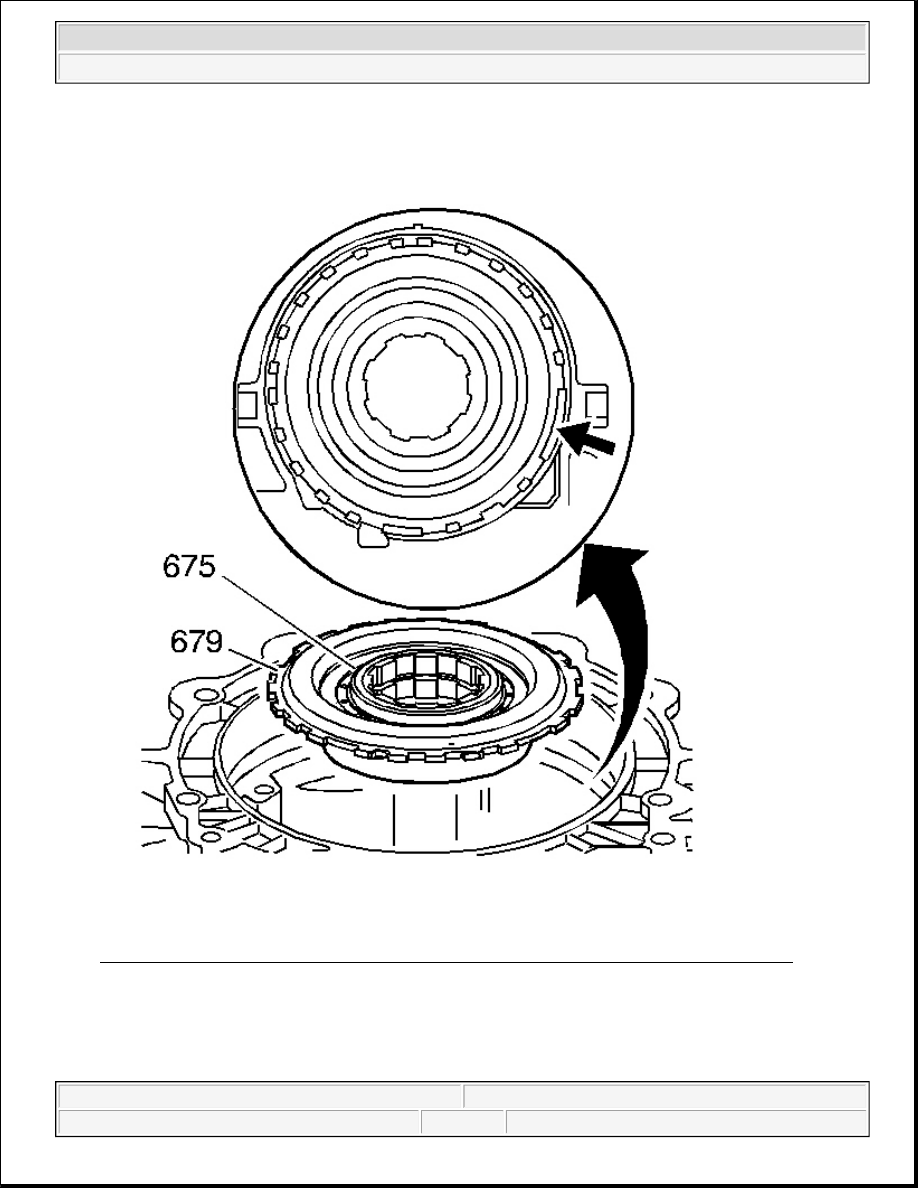

Fig. 275: Low & Reverse Clutch Support & Roller Clutch & Roller Clutch Race Assembly
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Align the wide low and reverse clutch support notch with the wide case

lug.
