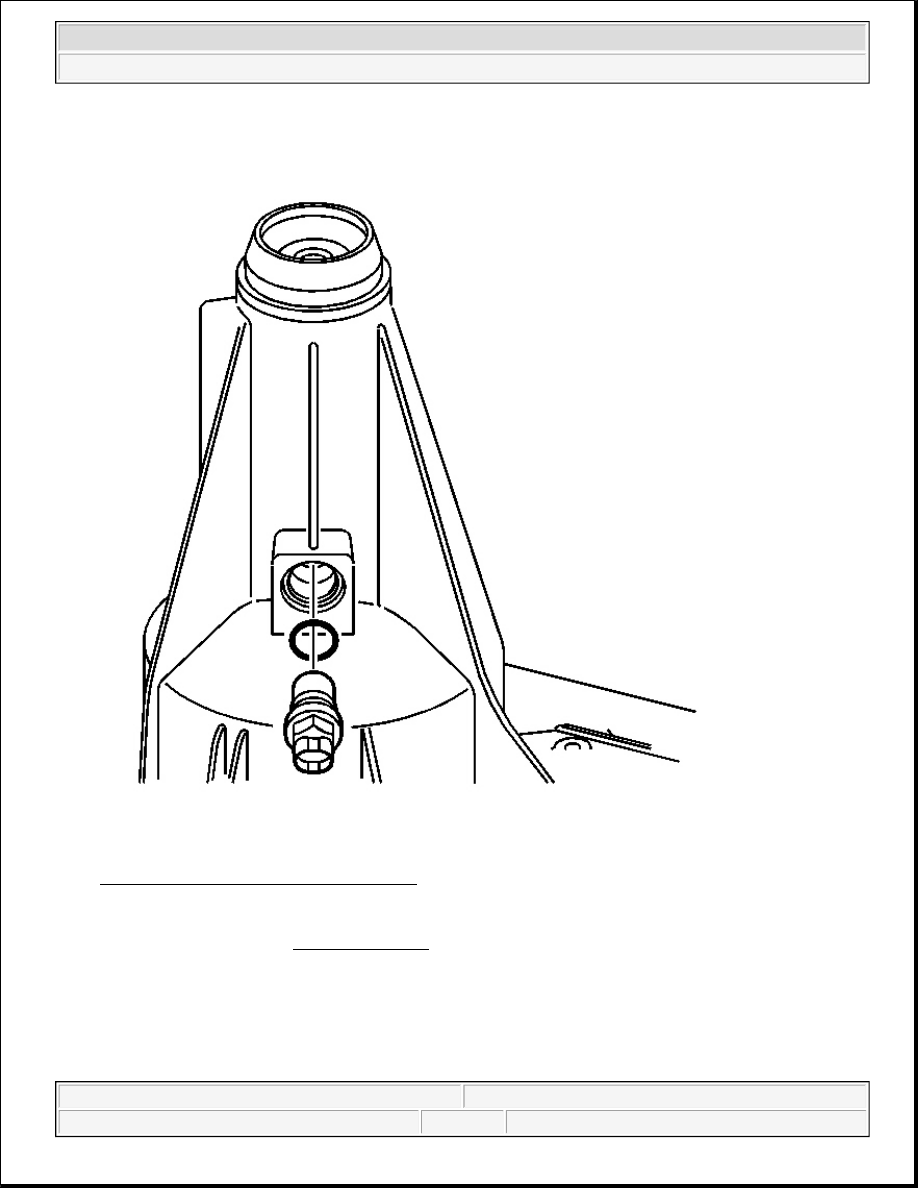

Fig. 167: Vehicle Speed Sensor & O-Ring
Courtesy of GENERAL MOTORS CORP.

3. Remove the speed sensor and the O-ring from the transfer case.

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 168: Vehicle Speed Sensor & O-Ring
Courtesy of GENERAL MOTORS CORP.

1. Install the new rear speed sensor into the transfer case with a new O-ring seal.

Tighten: Tighten the right rear speed sensor to 17 N.m (13 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



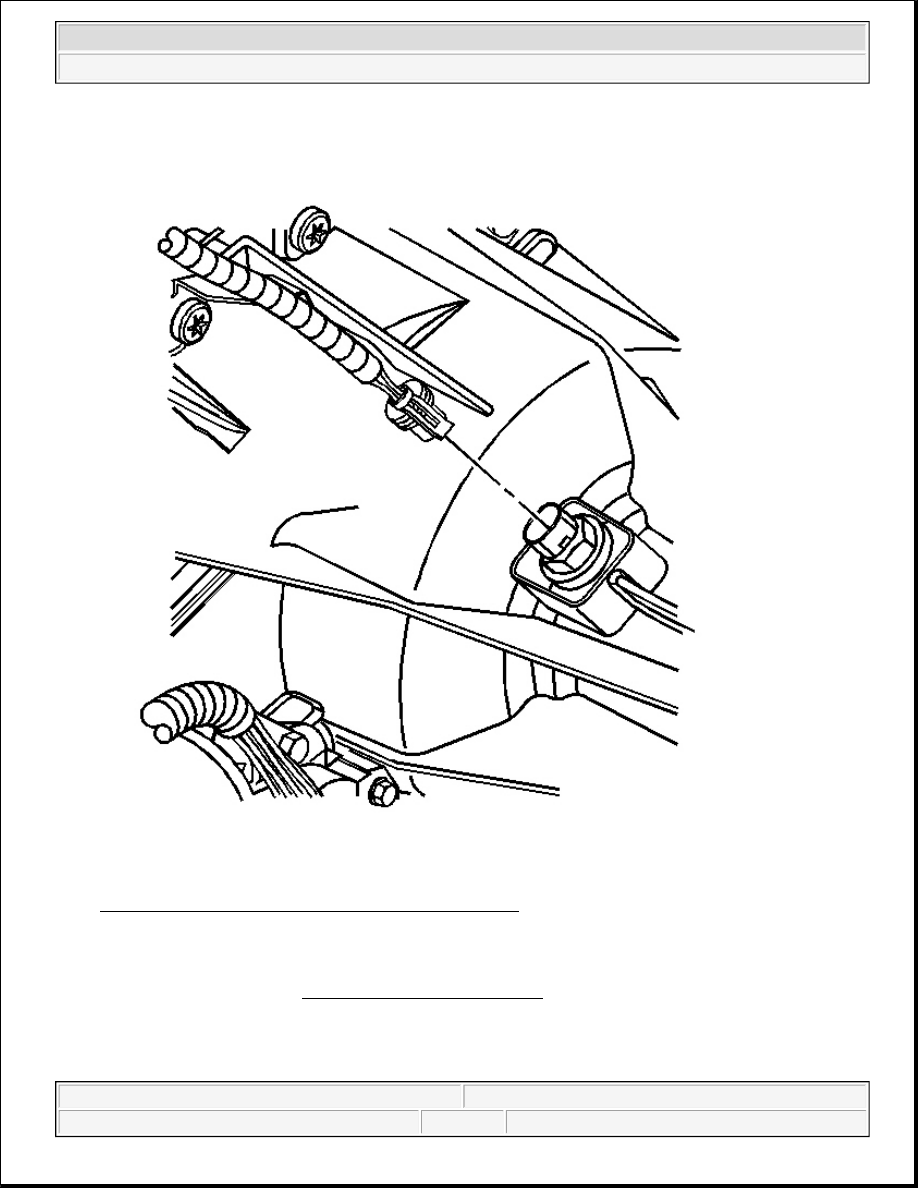

Fig. 169: Electrical Connector & Vehicle Speed Sensor
Courtesy of GENERAL MOTORS CORP.

2. Install the electrical connector to the speed sensor.

3. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

TRANSMISSION MOUNT REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



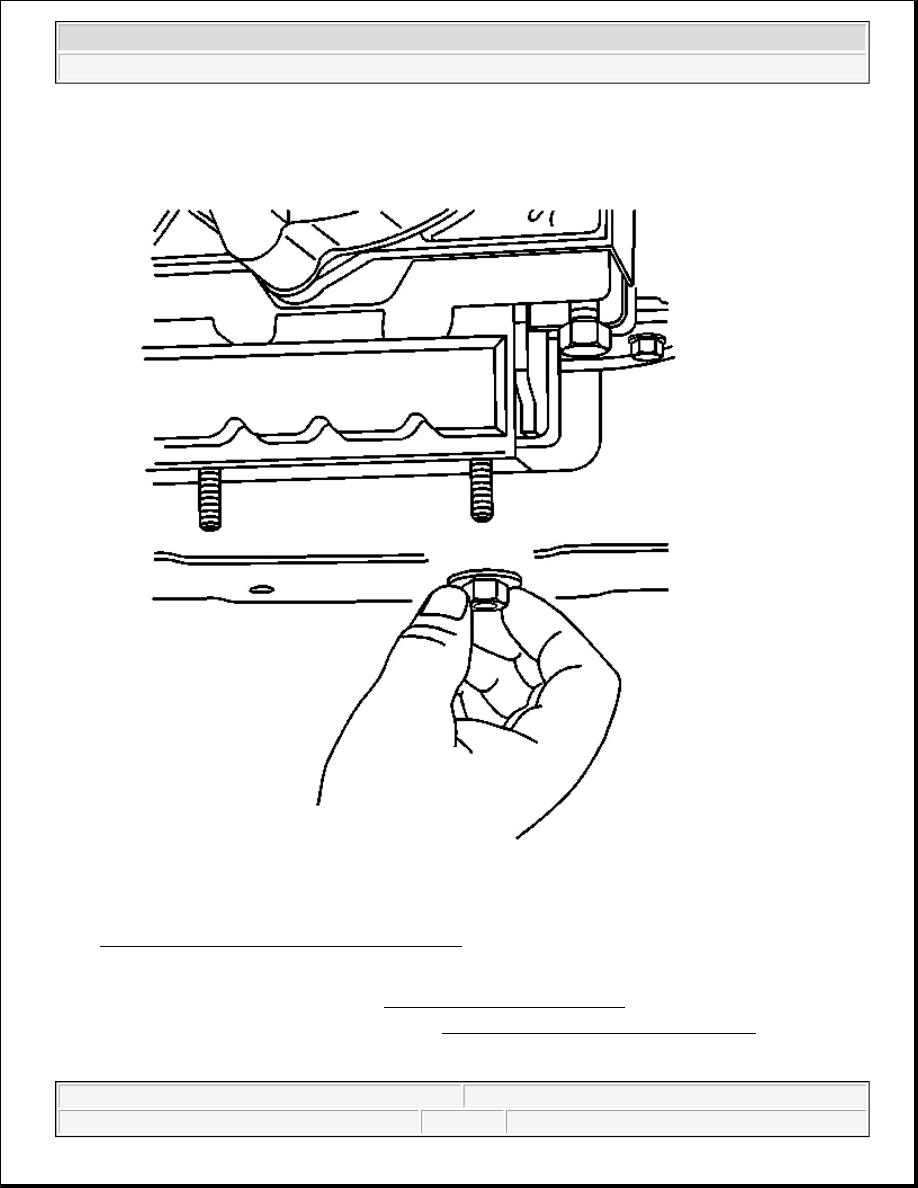

Fig. 170: Identifying Transmission Mount Nuts
Courtesy of GENERAL MOTORS CORP.

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the catalytic converter guard. Refer to Catalytic Converter Guard Replacement .

3. Support the transmission with a transmission jack.
