Fig. 140: Identifying TCC Solenoid (With O-Ring Seal) & Wiring Harness
Courtesy of GENERAL MOTORS CORP.

11. Using J 28458 , release the pass-through electrical connector from the transmission case. See Special

Tools and Equipment .

1. Use the small end of the J 28458 over the top of the connector. See Special Tools and

Equipment .

2. Twist in order to release the four tabs retaining the connector.

3. Pull the harness connector down through the transmission case.

12. Remove the TCC solenoid (with O-ring seal) and wiring harness assembly from the transmission case.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



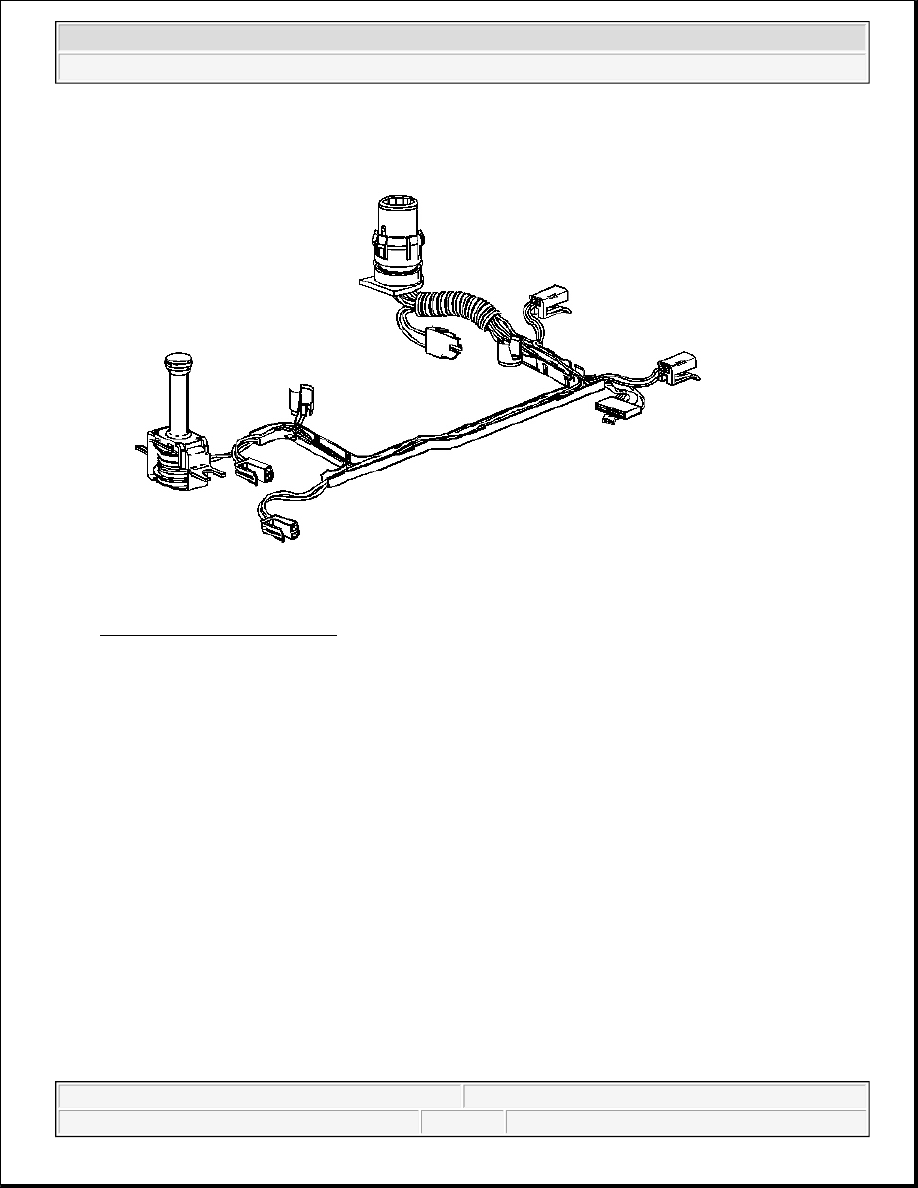

Fig. 141: TCC Wiring Harness
Courtesy of GENERAL MOTORS CORP.

13. Inspect the TCC solenoid and wiring harness assembly for the following defects:

z

Damage

z

Cracked connectors

z

Exposed wires

z

Loose pins

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



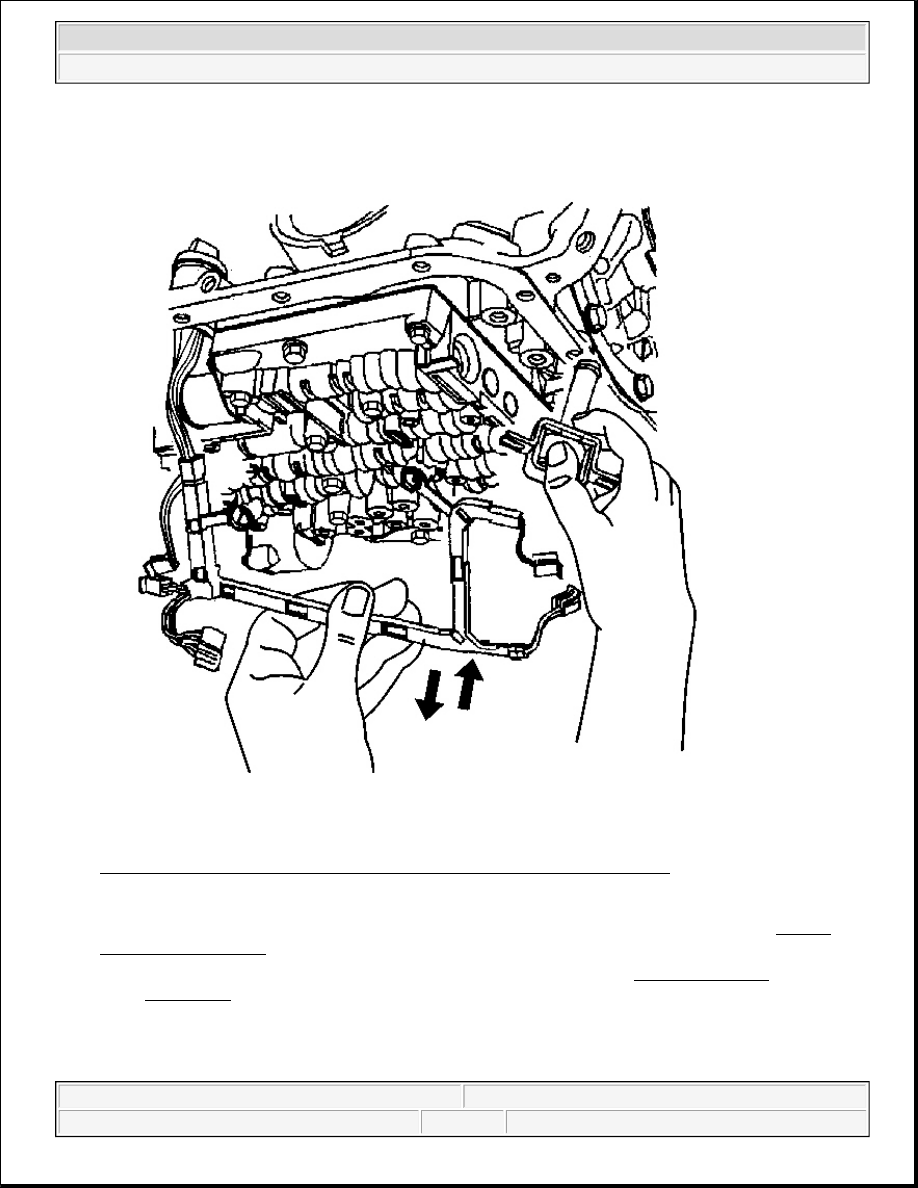

Fig. 142: Identifying TCC Solenoid (With O-Ring Seal) & Wiring Harness
Courtesy of GENERAL MOTORS CORP.

1. Install the wiring harness and TCC solenoid assembly with a new O-ring seal to the transmission.

2. Install the pass-through electrical connector to the transmission case.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



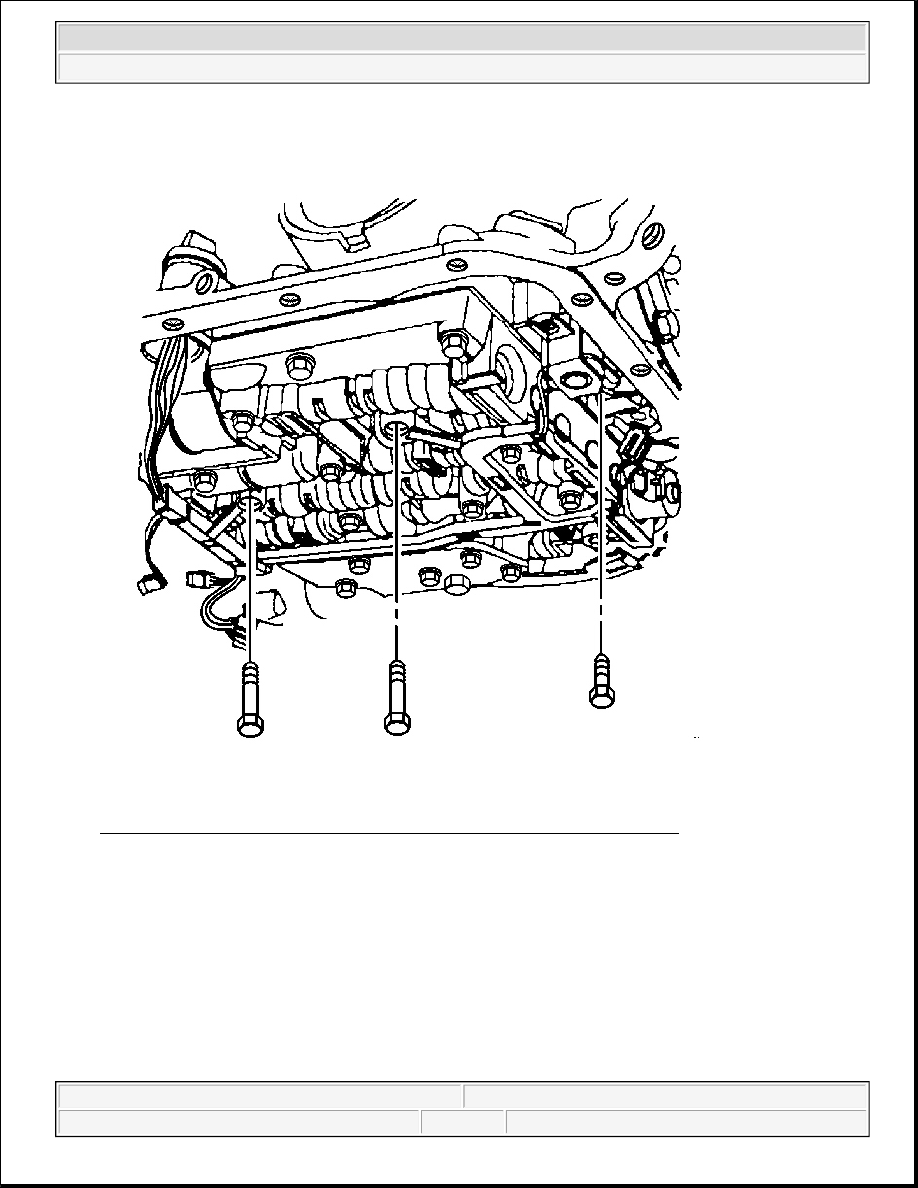

Fig. 143: TCC Solenoid Bolts, Valve Body Bolts & Internal Wiring Harness
Courtesy of GENERAL MOTORS CORP.

3. Install the valve body bolts which retain the internal wiring harness and install the TCC solenoid retaining

bolts.

Tighten:

z

Tighten the control valve body retaining bolts to 11 N.m (97 lb in).

z

Tighten the TCC solenoid retaining bolts to 11 N.m (97 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
