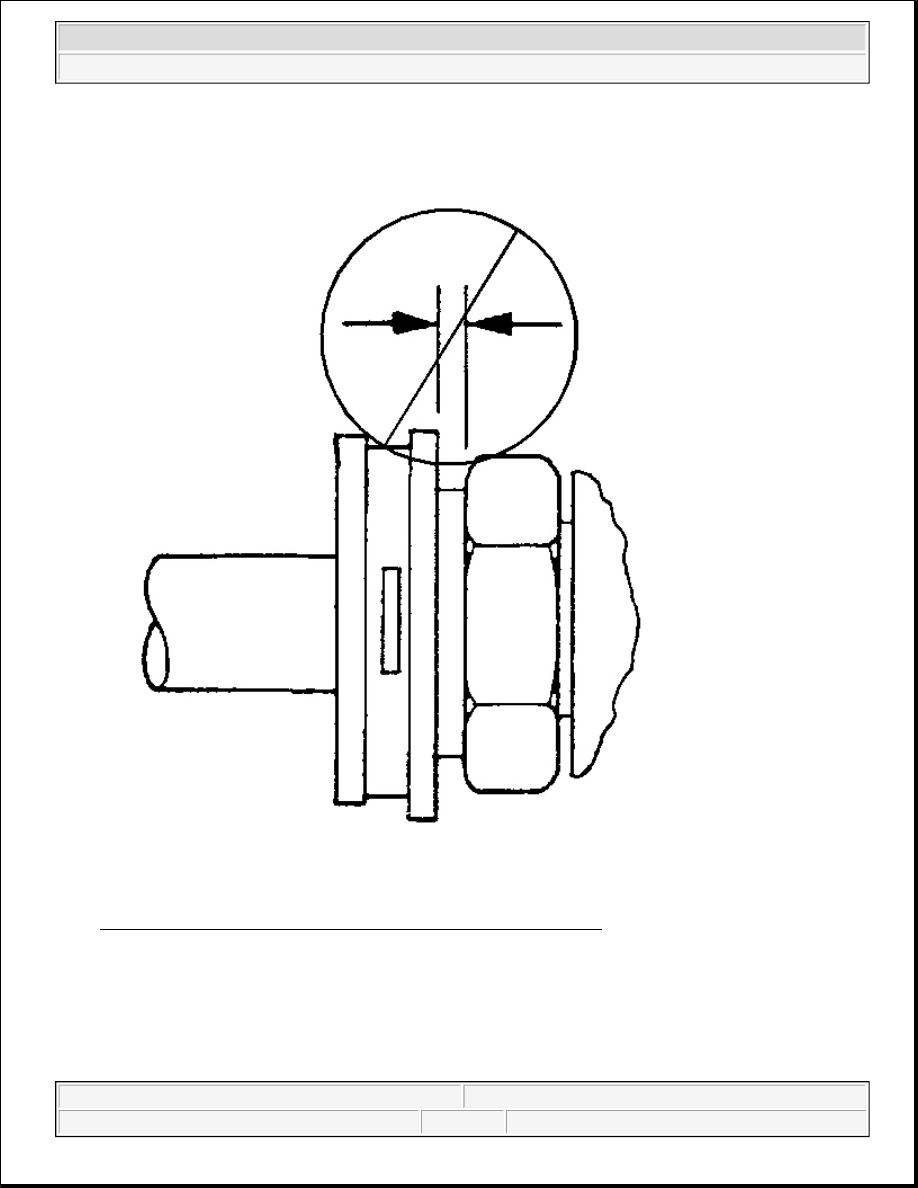

Fig. 78: Ensuring That No Gap Is Present Between Cap & Fitting
Courtesy of GENERAL MOTORS CORP.

12. Ensure that no gap is present between the cap and the fitting.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 79: Inserting Plastic Cap Onto Fitting
Courtesy of GENERAL MOTORS CORP.

13. Ensure that the yellow identification band on the tube is hidden within the quick connect fitting.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



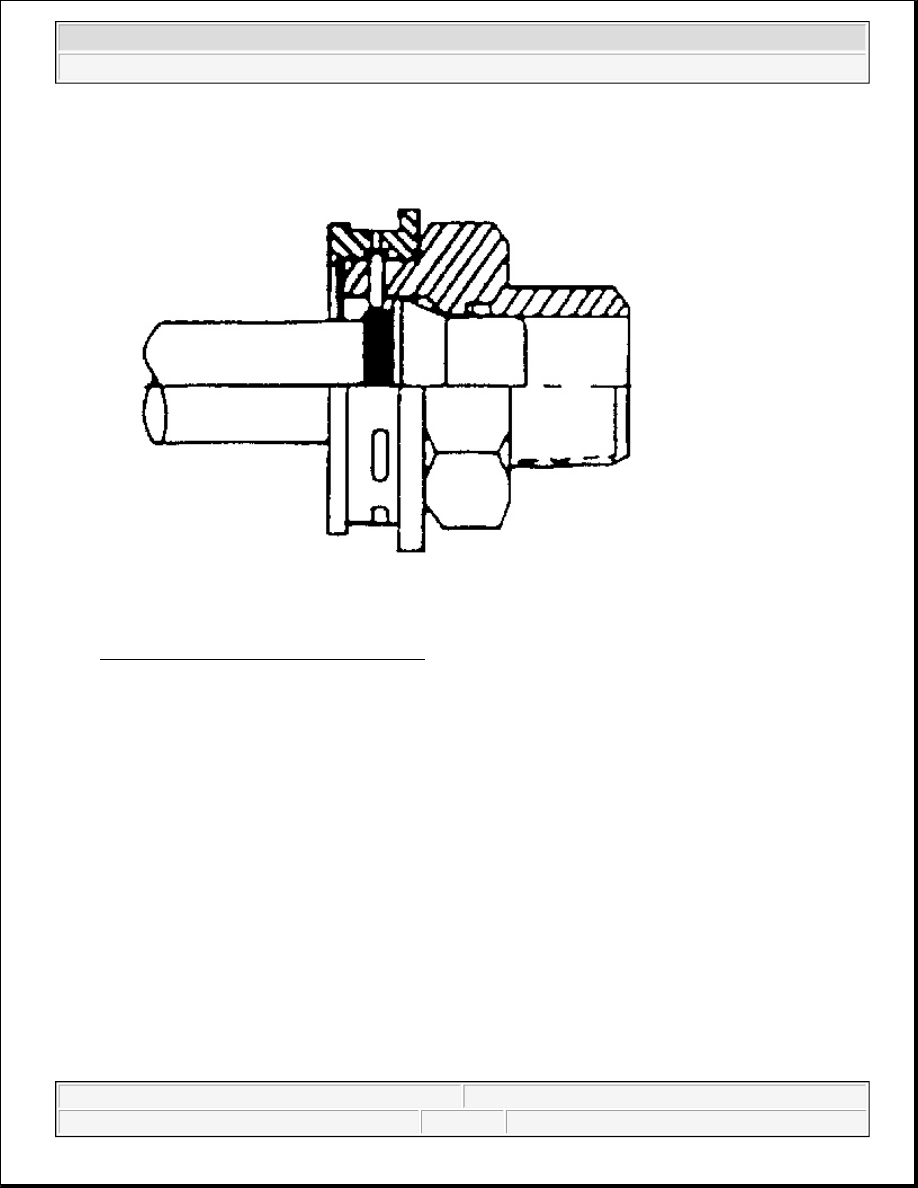

Fig. 80: Improper Joint Seating
Courtesy of GENERAL MOTORS CORP.

14. A hidden yellow identification band indicates proper joint seating.

15. Fill the transmission to the proper level with DEXRON(R) III transmission fluid. Refer to Transmission

Fluid Checking Procedure .

TRANSMISSION FLUID AUXILIARY COOLER REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



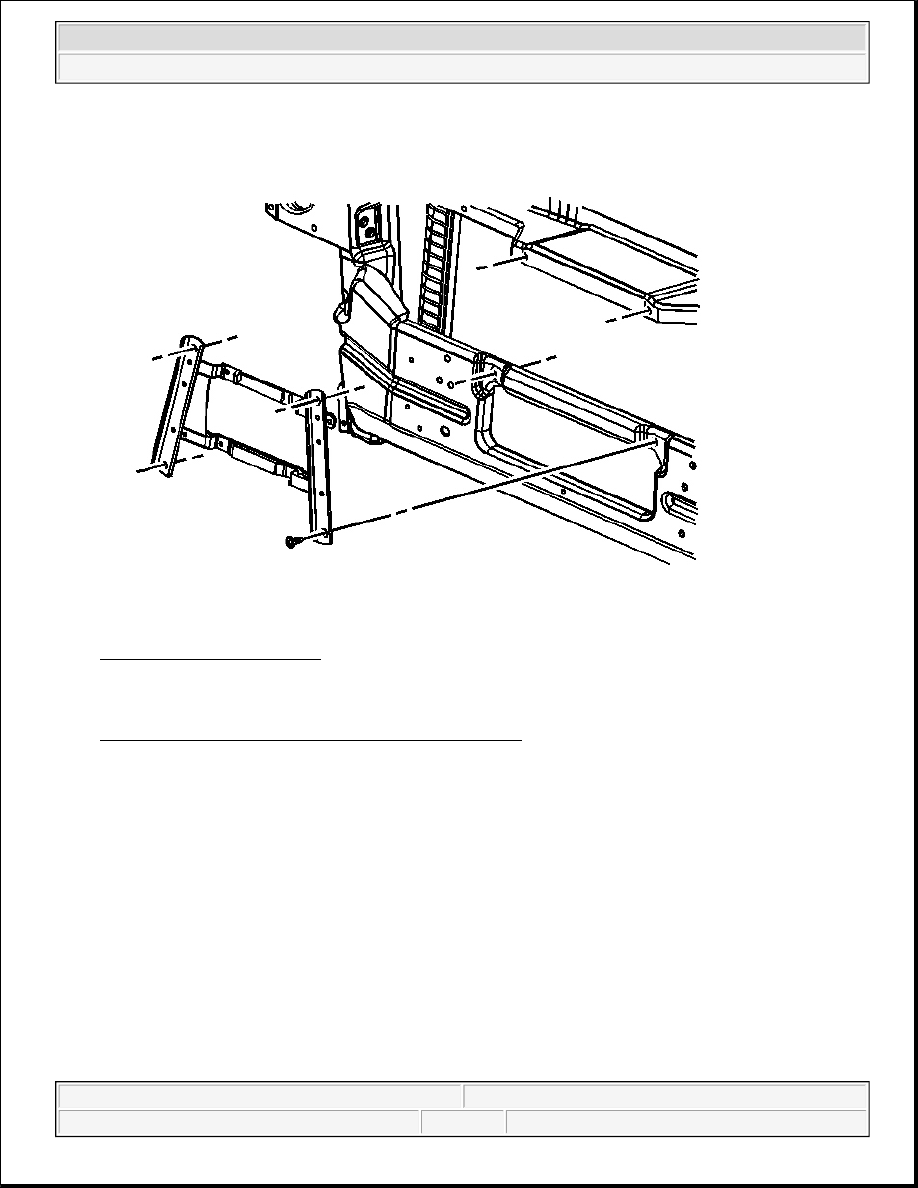

Fig. 81: Auxiliary Oil Cooler
Courtesy of GENERAL MOTORS CORP.

1. Remove the transmission fluid cooler hoses from the transmission fluid auxiliary cooler. Refer to

Transmission Fluid Cooler Line Quick Connect Fitting .

2. Remove the bolts from the auxiliary oil cooler.

3. Remove the auxiliary oil cooler from the vehicle.

Installation Procedure
