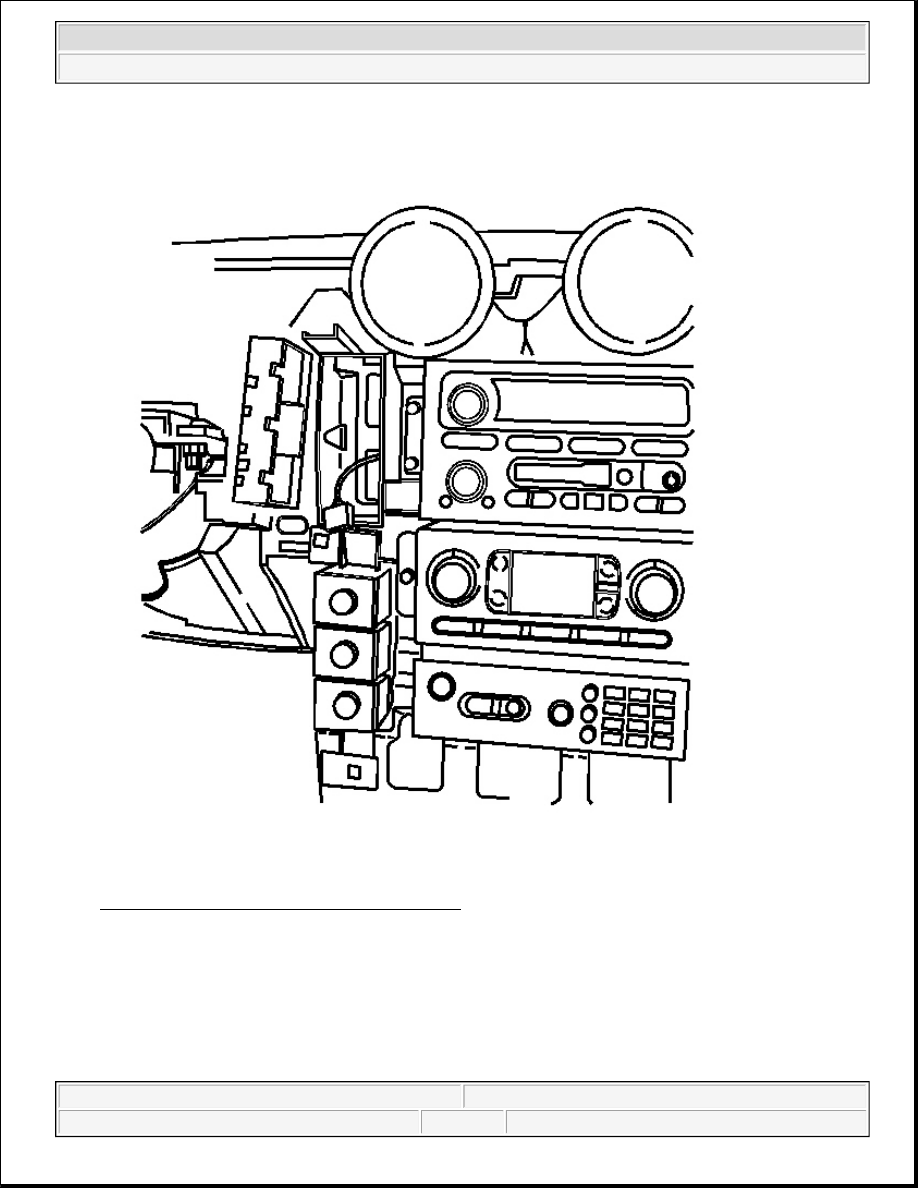

Fig. 11: Electronic Suspension Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the switch to the receptacle.



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



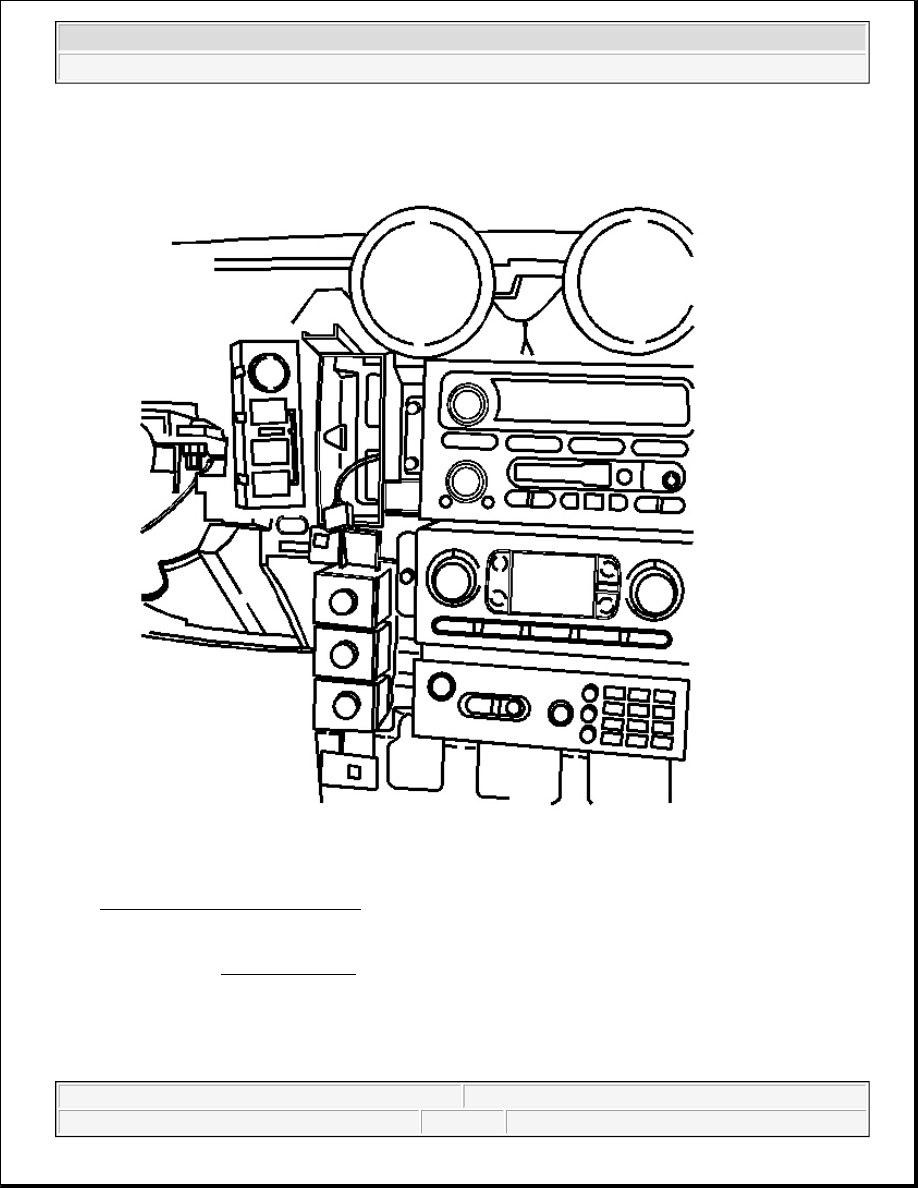

Fig. 12: Switch Receptacle & Instrument Panel
Courtesy of GENERAL MOTORS CORP.

2. Connect the electrical connector to the switch. Install the switch receptacle to the instrument panel.



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



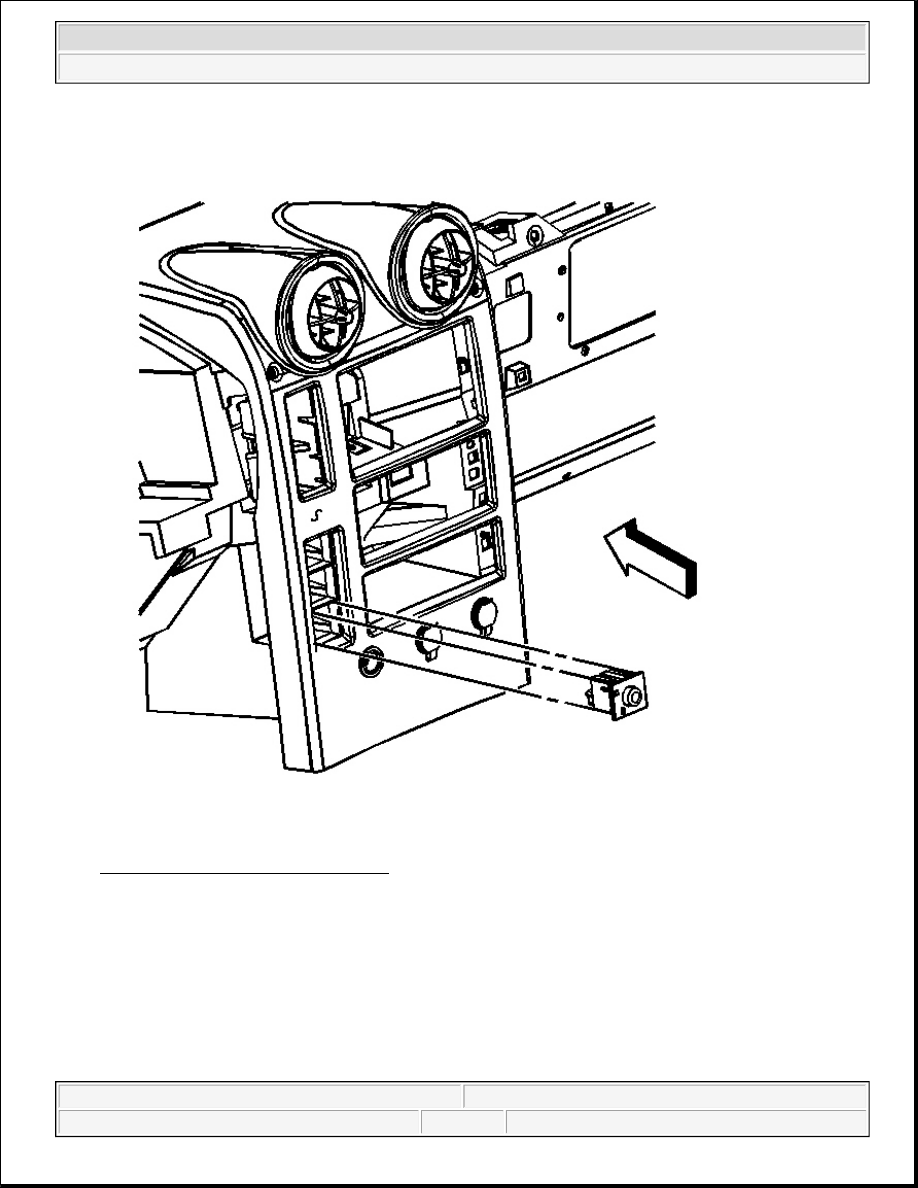

Fig. 13: Switch Receptacle Screws
Courtesy of GENERAL MOTORS CORP.

3. Install the switch receptacle screws.

Tighten: Tighten the screws to 12 N.m (106 lb in).

NOTE:

Fastener Notice in Cautions and Notices



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



4. Install the instrument panel trim plate bezel. Refer to Trim Panel Replacement - Instrument Panel

(I/P) Center in Instrument Panel, Gauges, and Console.

AIR SPRING LEVELING SENSOR REPLACEMENT

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the rear tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and

Wheels.

3. Support the rear axle at the proper D height. Refer to Trim Height Specifications in Suspension General

Diagnosis.

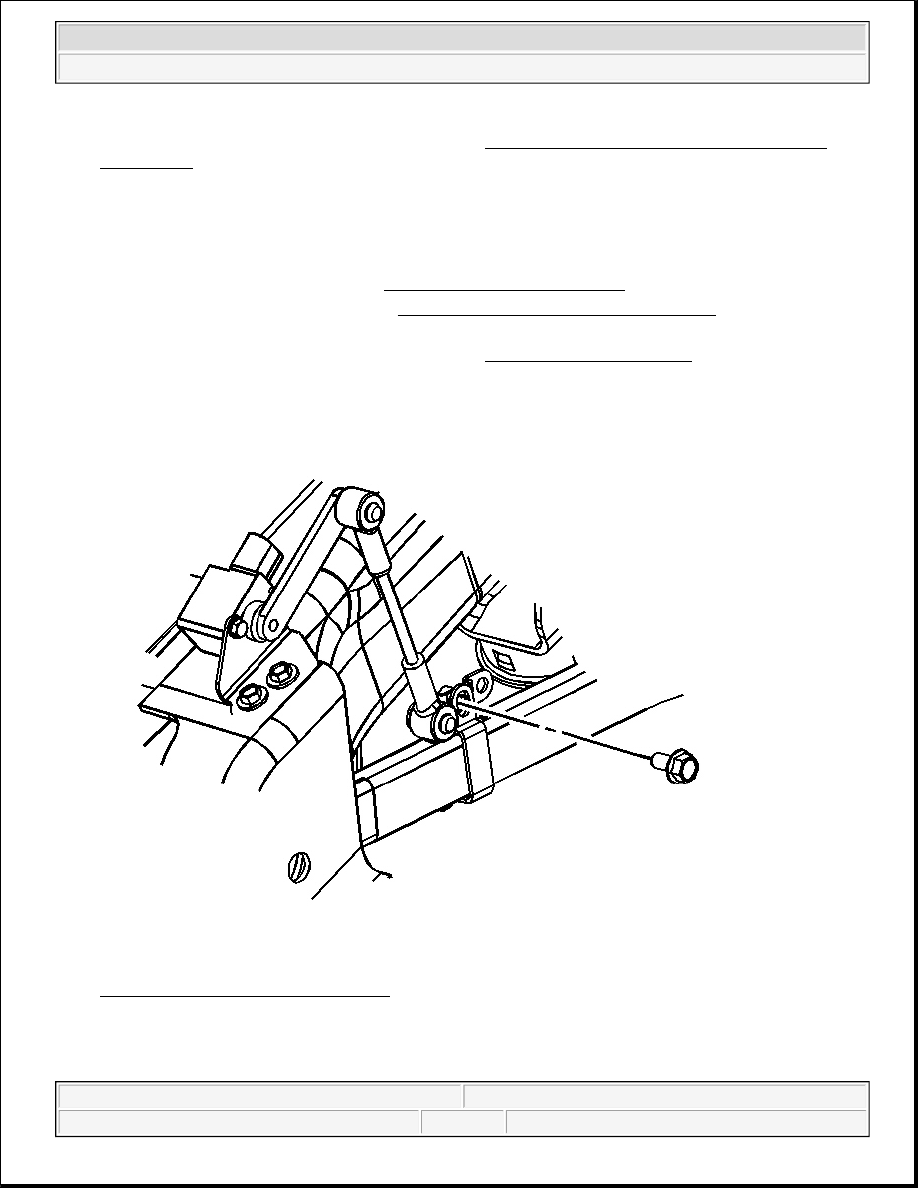

Fig. 14: Air Spring Level Sensor Link
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the air spring level sensor link from the upper control arm.

5. Disconnect the air spring level sensor electrical connector located on the frame. Do not attempt to
