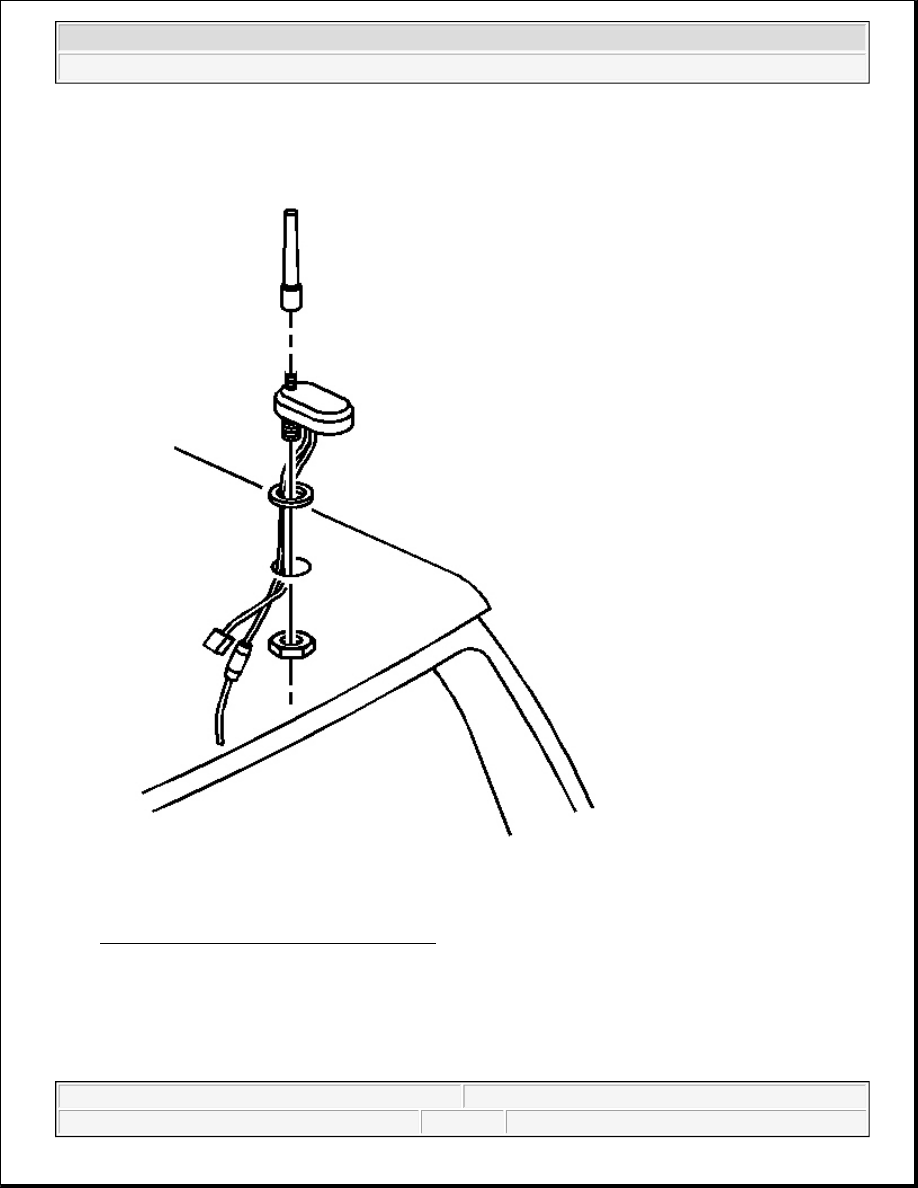

Fig. 6: Identifying Antenna Components
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the cables from the antenna.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Cellular Communication - Hummer H2

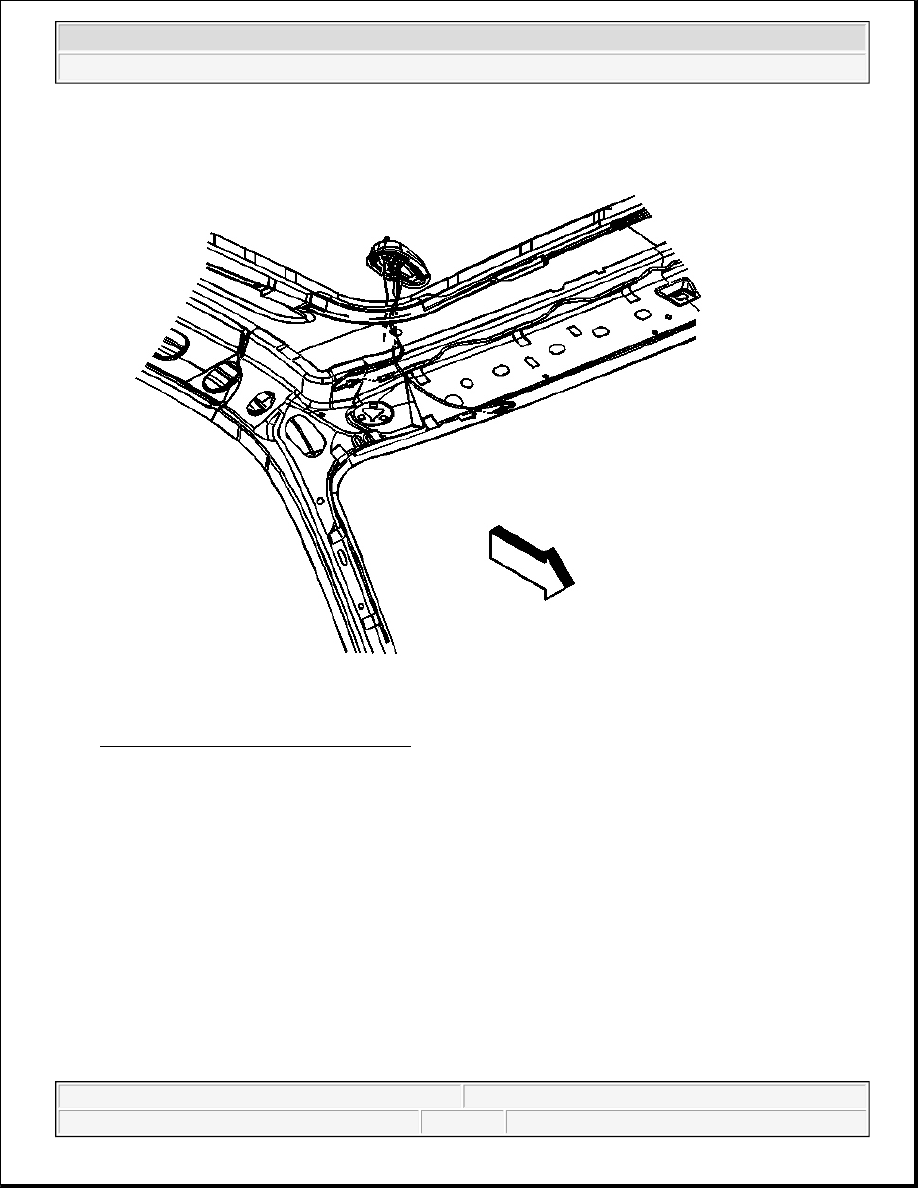

Fig. 7: Retaining Nut Of Antenna Assembly
Courtesy of GENERAL MOTORS CORP.

3. Loosen the retaining nut till the antenna assembly can be pulled from the top of the roof.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Cellular Communication - Hummer H2



Fig. 8: Identifying Antenna Components
Courtesy of GENERAL MOTORS CORP.

1. Place the antenna assembly on the roof opening.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Cellular Communication - Hummer H2



Fig. 9: Retaining Nut Of Antenna Assembly
Courtesy of GENERAL MOTORS CORP.

2. Tighten the retaining nut.

Tighten: Tighten the nut to 6 N.m (53 lb in).
