Hummer H2. Manual - part 209

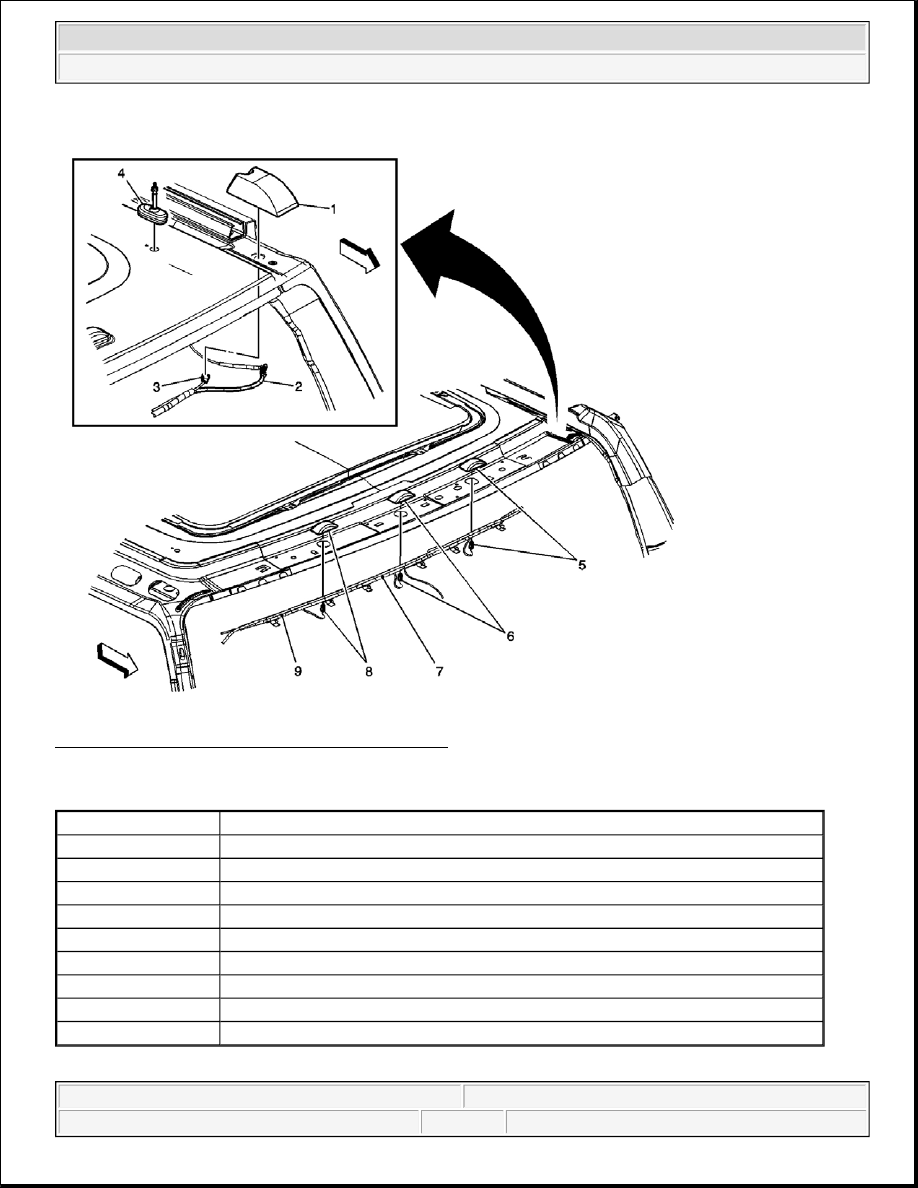

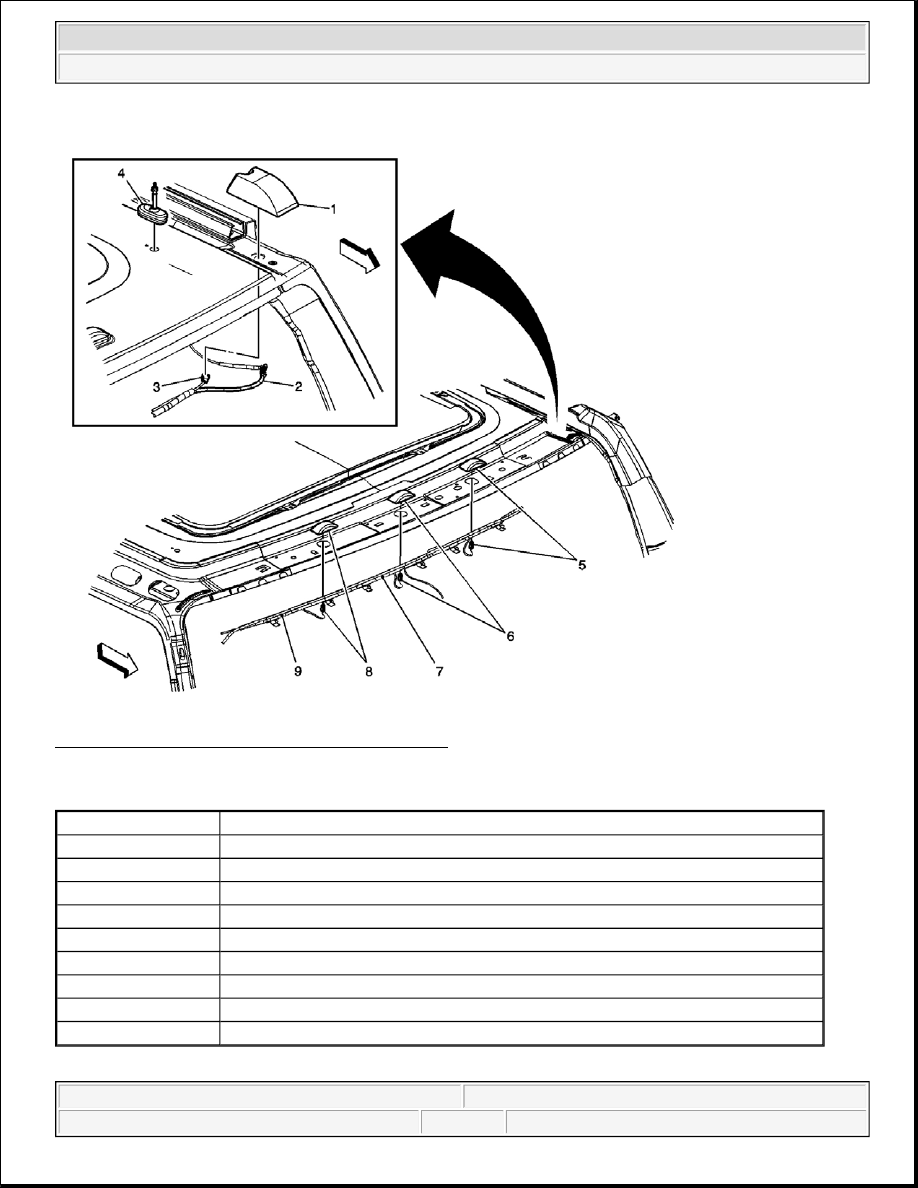

Fig. 2: Cell Phone/GPS Antenna Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

Callout

Component Name

1

Clearance Lamp-LF

2

Roof Marker Lamp Harness

3

Clearance Lamp Connector-LF

4

Cell Phone/GPS Antenna

5

Roof Lamp-Center Front

6

Roof Lamp-Center Front

7

Splice S345

8

Roof Lamp-Center Front

9

Splice S303



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Cellular Communication - Hummer H2



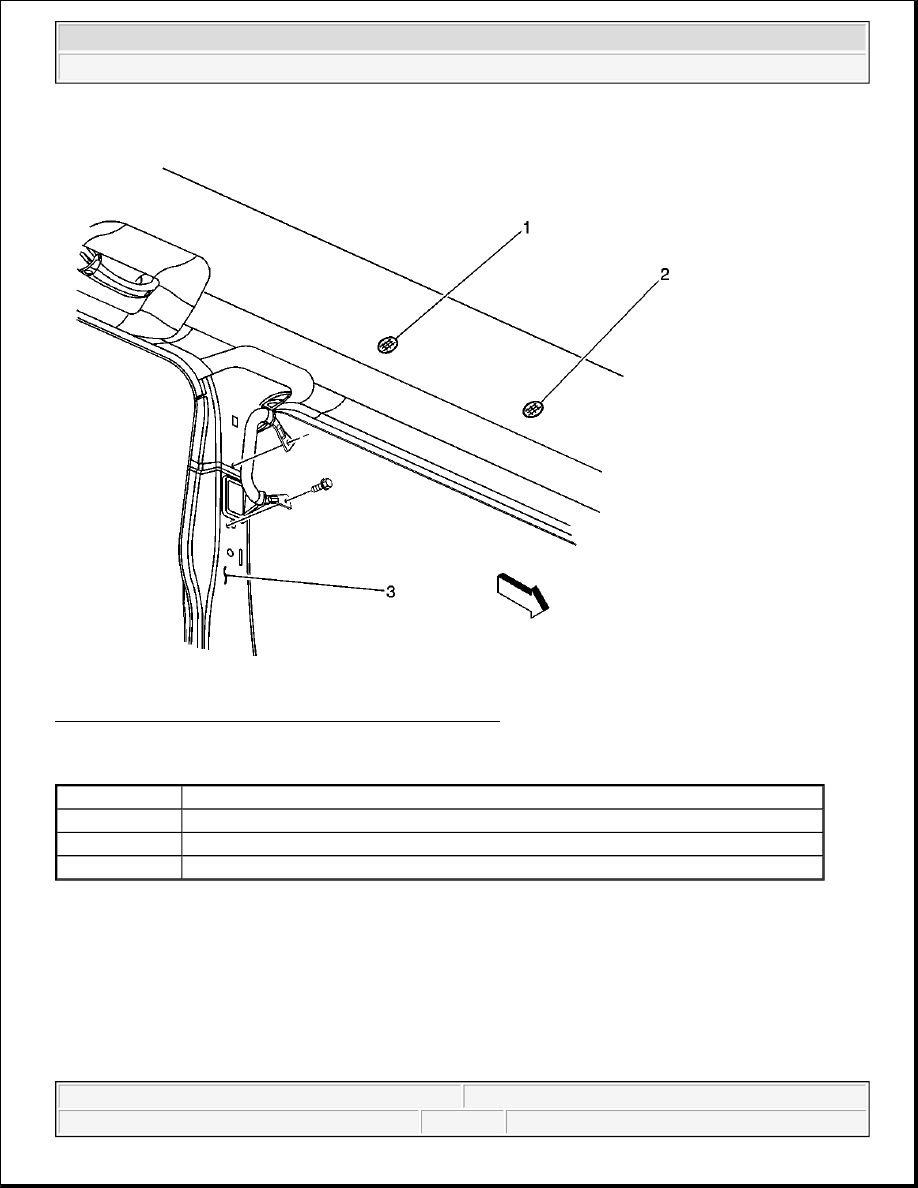

Fig. 3: Cellular Telephone Microphone Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

Ambient Air Temperature Assembly-Inside

2

Cellular Telephone Microphone

3

B Pillar-Left Side



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Cellular Communication - Hummer H2



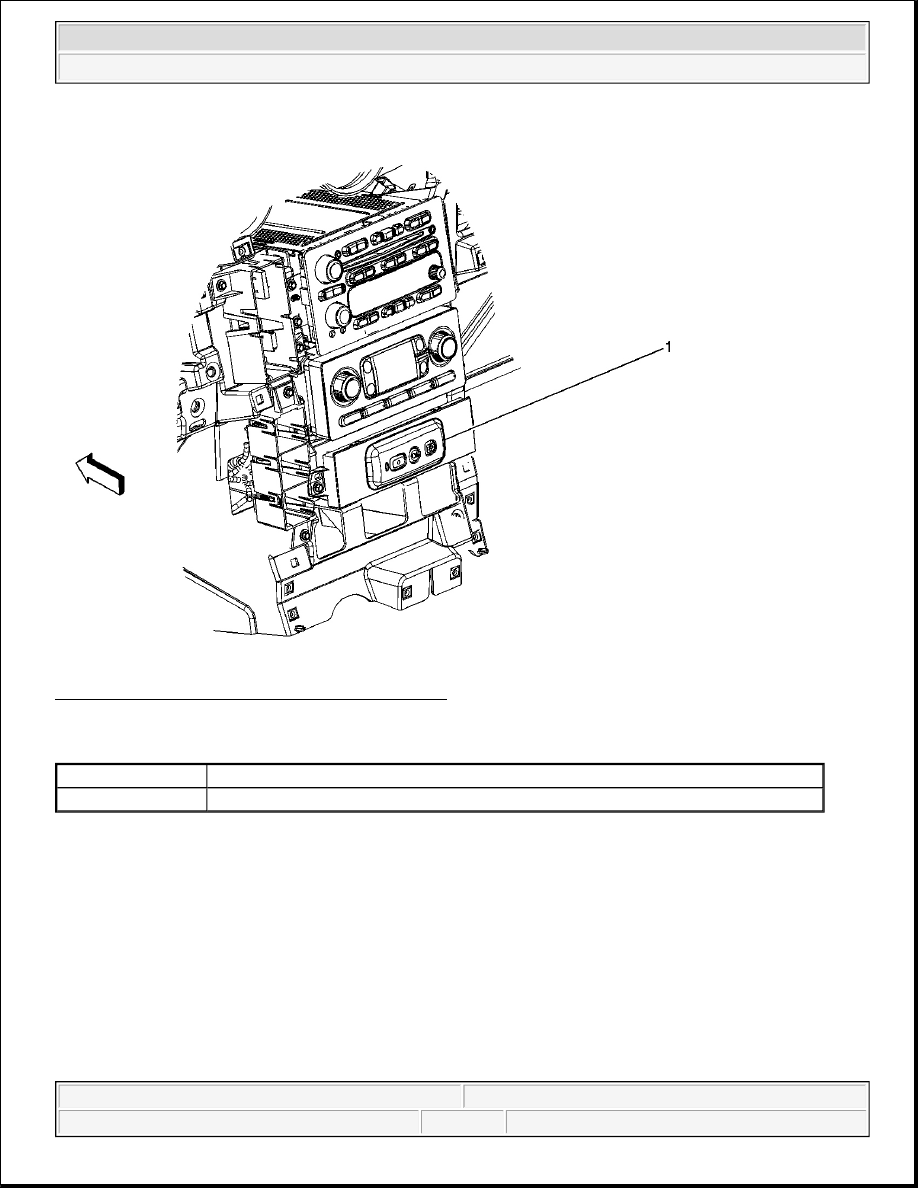

Fig. 4: OnStar Button Assembly Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 4

Callout

Component Name

1

OnStar Button Assembly w/VCIM



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Cellular Communication - Hummer H2



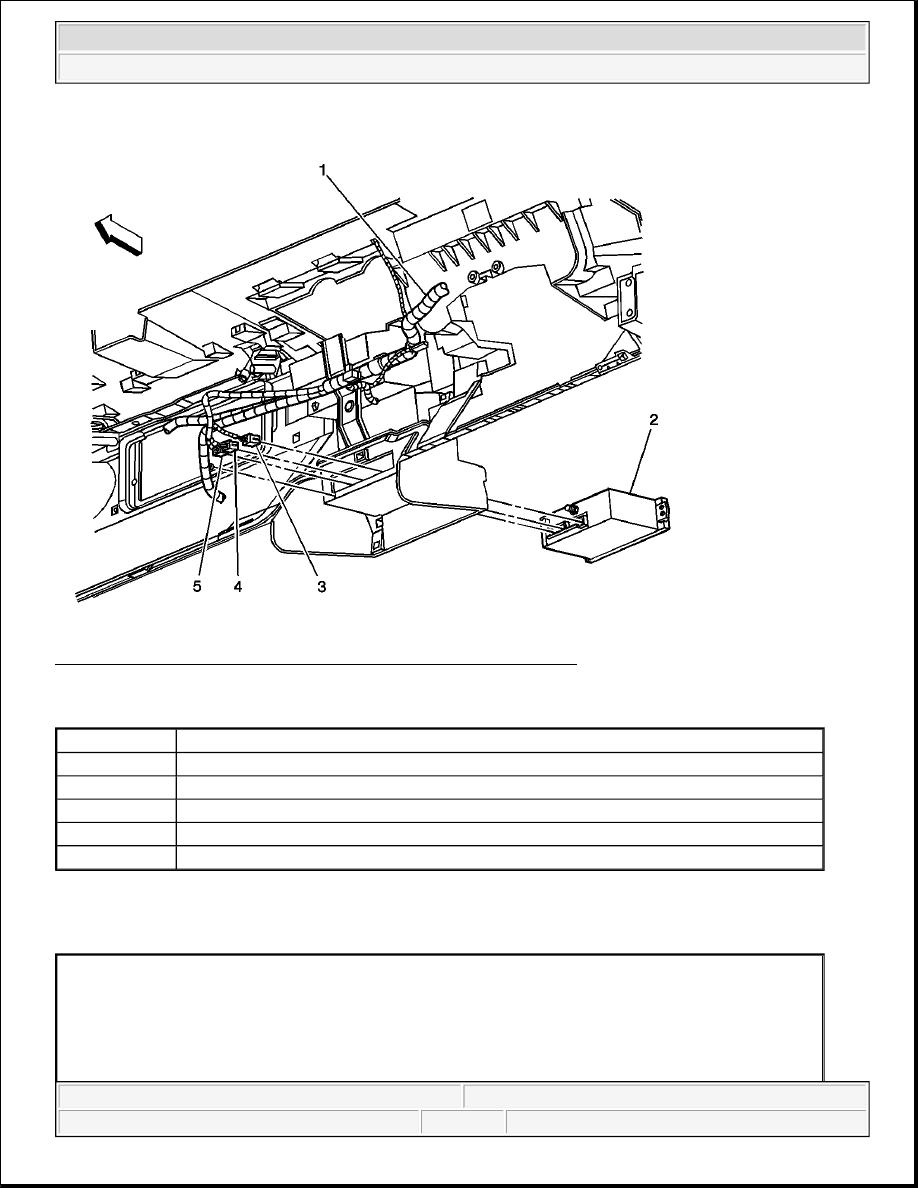

Fig. 5: Vehicle Communication Interface Module Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 5

CELLULAR COMMUNICATION CONNECTOR END VIEWS

Cellular Microphone - Terminal Identification

Callout

Component Name

1

I/P Harness

2

Vehicle Communication Interface Module

3

Vehicle Communication Interface Module-C3

4

Vehicle Communication Interface Module-C2

5

Vehicle Communication Interface Module-C1



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Cellular Communication - Hummer H2
