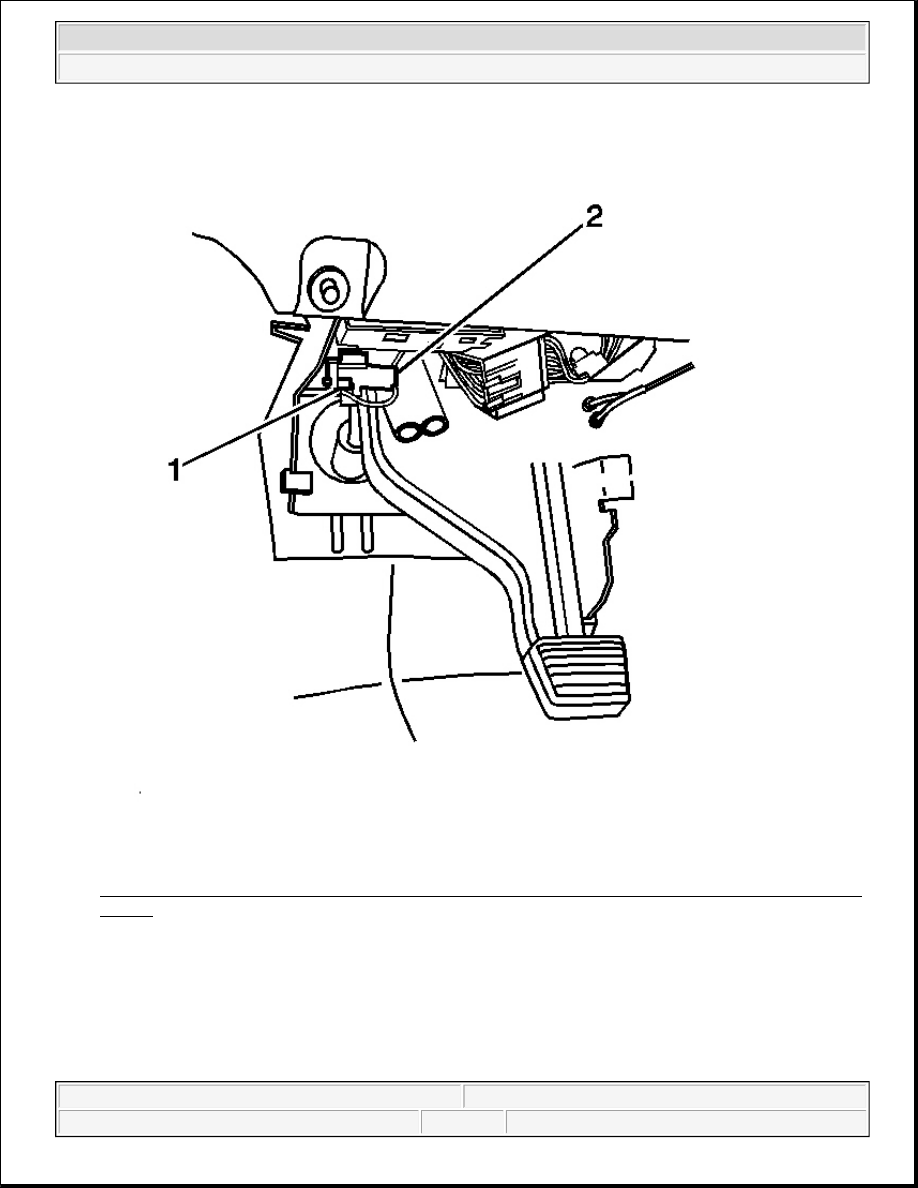

Fig. 19: Connector Position Assurance (CPA) & Steering Wheel Module Yellow 4-Way Connector -
Zone 7
Courtesy of GENERAL MOTORS CORP.

5. Remove the connector position assurance (CPA) from the (1) steering wheel module yellow 2-way

connector (2) located left of the steering column near the knee bolster.

6. Disconnect the (1) steering wheel module yellow 2-way connector (2) located left of the steering column

near the knee bolster.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



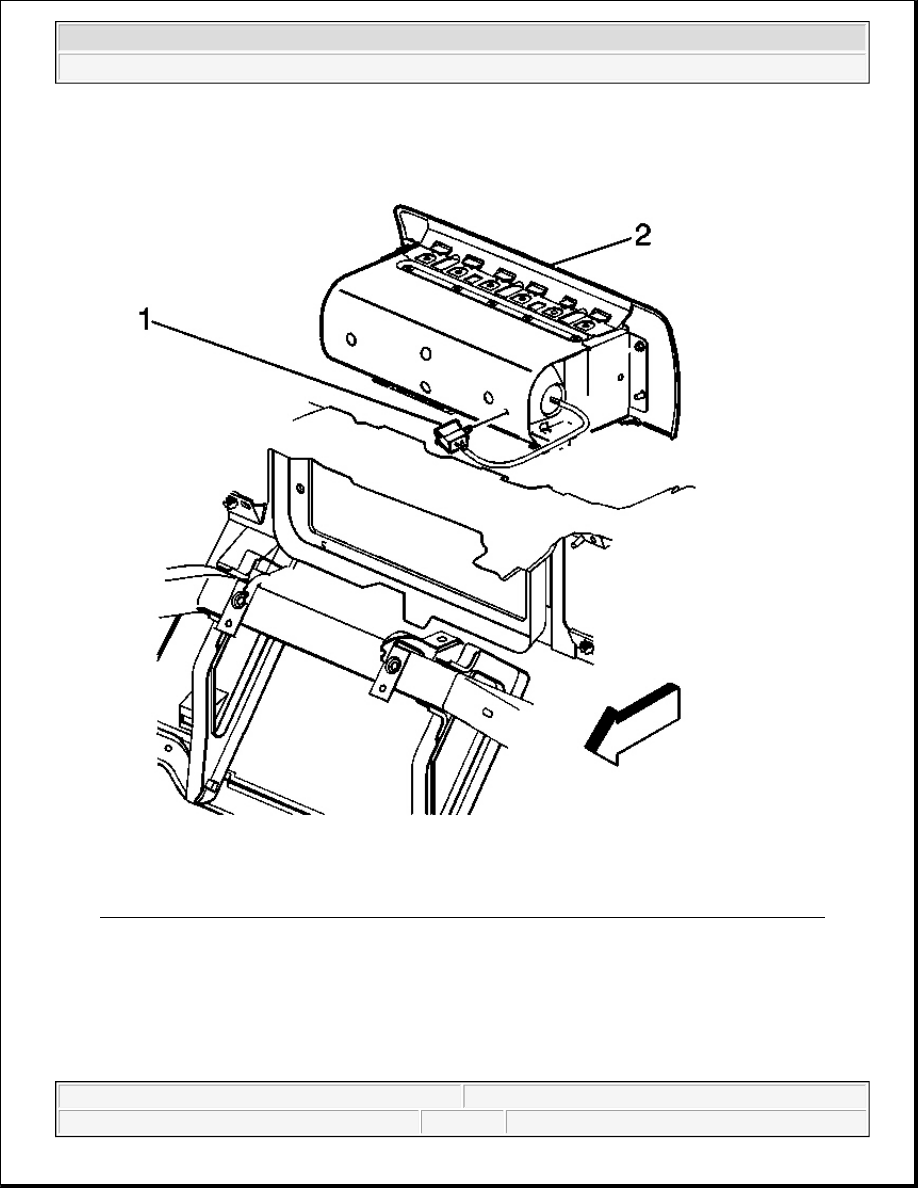

Fig. 20: Connector Position Assurance (CPA) & I/P Module Yellow 4-Way Connector - Zone 5
Courtesy of GENERAL MOTORS CORP.

7. Remove the CPA from the (1) I/P module yellow 2-way connector (2) located behind the I/P module.

8. Disconnect the (1) I/P module yellow 2-way connector (2) located behind the I/P module.

Enabling Procedure



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



1. Remove the key from the ignition.

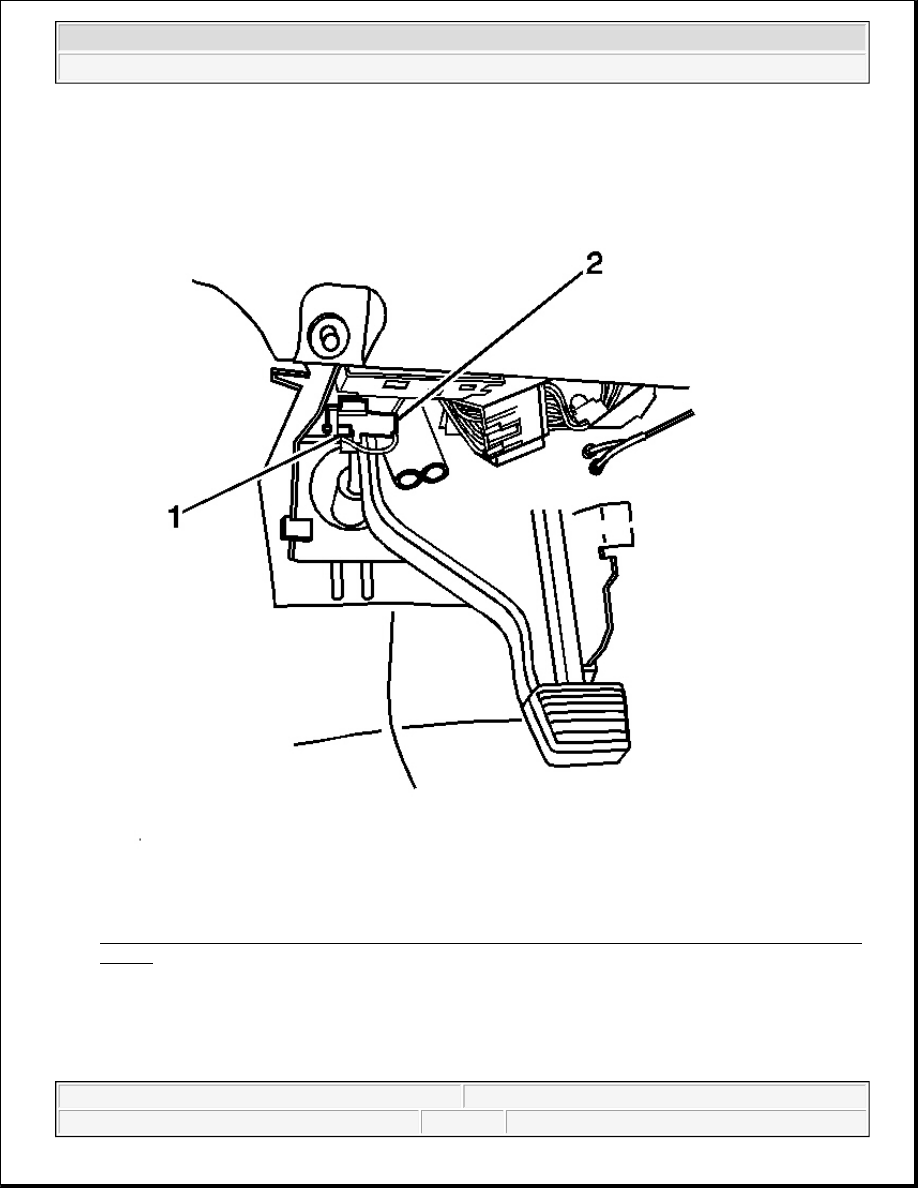

Fig. 21: Connector Position Assurance (CPA) & Steering Wheel Module Yellow 4-Way Connector -
Zone 7
Courtesy of GENERAL MOTORS CORP.

2. Connect the (1) steering wheel module yellow 2-way connector (2) located left of the steering column

near the knee bolster.

3. Install the CPA to the (1) steering wheel module yellow 2-way connector (2) located left of the steering



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



column near the knee bolster.

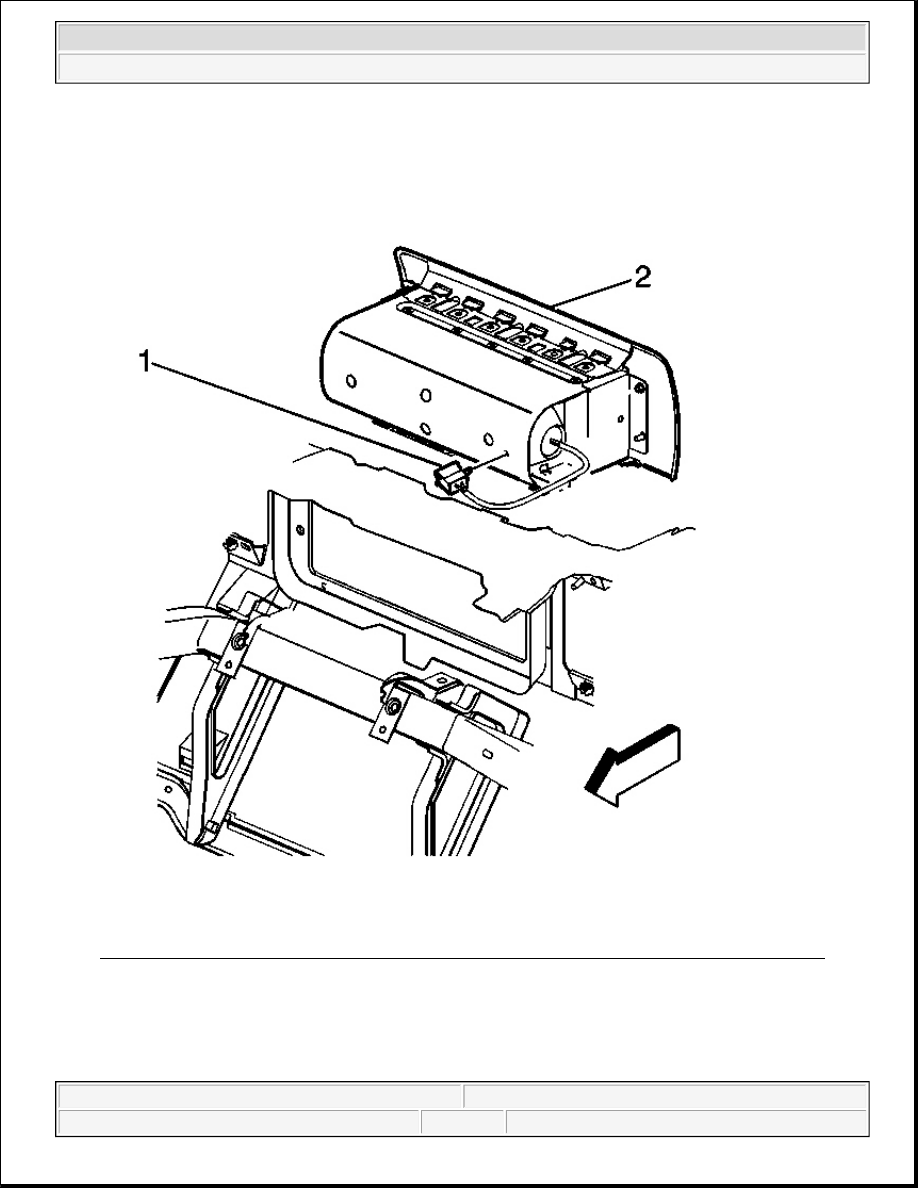

Fig. 22: Connector Position Assurance (CPA) & I/P Module Yellow 4-Way Connector - Zone 5
Courtesy of GENERAL MOTORS CORP.

4. Connect the (1) I/P module yellow 2-way connector (2) located behind the I/P module.

5. Install the CPA (1) to the I/P module yellow 2-way connector (2) located behind the I/P module.
