SIR ZONE IDENTIFICATION VIEWS

The SIR Zone Identification Views shown below illustrate the approximate location of all SIR components
available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling Zones for a
given service procedure, refer to SIR Disabling and Enabling Zones .

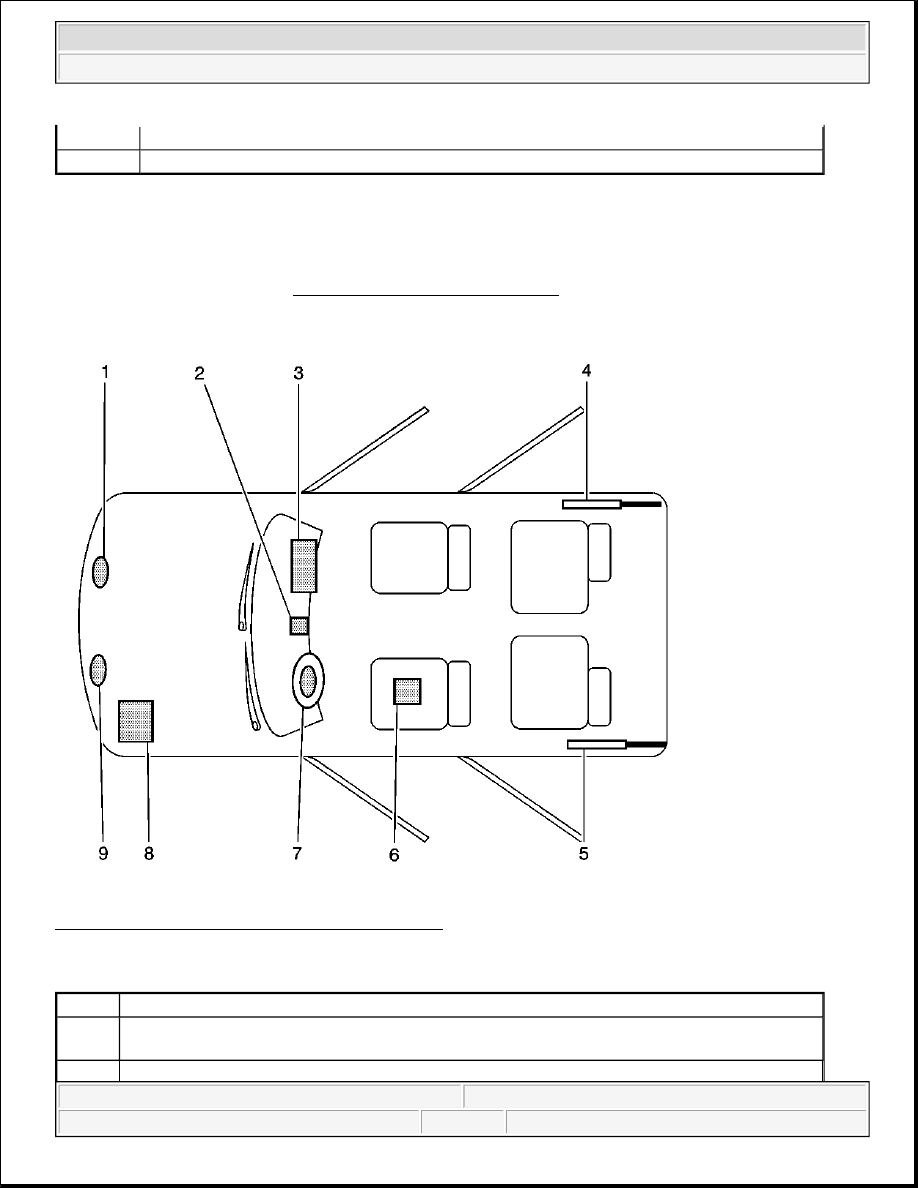

Fig. 4: Hummer H2 SIR Zone Identification Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 4

11

Inflatable Restraint I/P Module

12

Inflatable Restraint I/P Module Connector

Callout

Component Name

1

Inflatable Restraint Electronic Frontal Sensor (EFS) - Located on the front of the vehicle in the
engine compartment
Inflatable Restraint I/P Module Disable Switch - Located at the top right under the instrument



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



SIR CONNECTOR END VIEWS

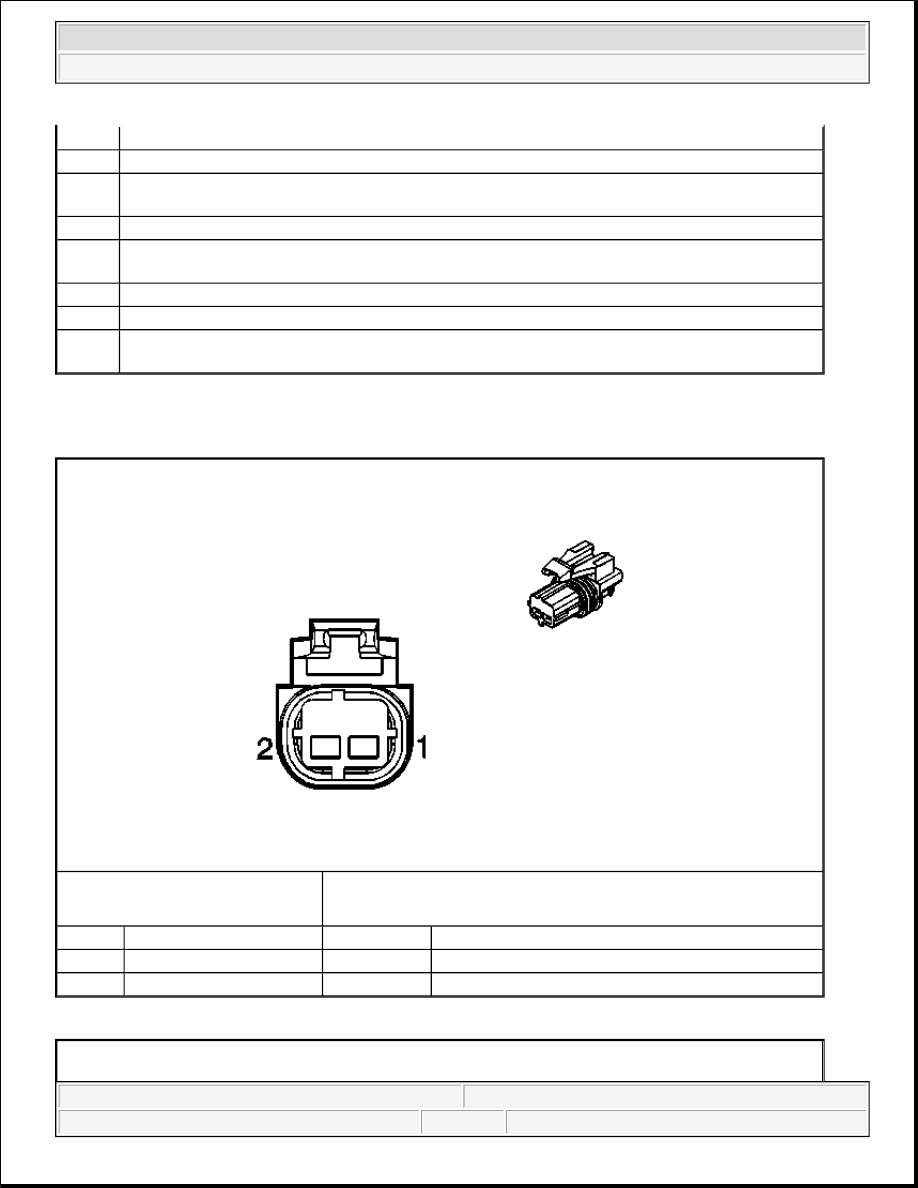

Inflatable Restraint Front End DiscriminatingSensor Terminal Identification - Left

Inflatable Restraint Front End Discriminating Sensor Terminal Identification - Right

2

panel

3

Inflatable Restraint I/P Module - Located at the top right under the instrument panel

4

Rear Lift Gate Strut - A gas shock is located between rear lift gate and body on the passenger
side

5

Rear Lift Gate Strut - A gas shock is located between rear lift gate and body on the driver side

6

Inflatable Restraint Sensing and Diagnostic Module (SDM) - Located underneath the LF/driver
seat

7

Inflatable Restraint Steering Wheel Module - Located on the steering wheel

8

Battery - Located under Hood on the left side

9

Inflatable Restraint Electronic Frontal Sensor (EFS) - Located on the front of the vehicle in the
engine compartment

Connector Part Information

z

15356718

z

2-Way F GT 150 Sealed 4.0 (YE)

Pin

Wire Color

Circuit No.

Function

1

GY

349

Discriminating Sensor - Left - Signal

2

YE

354

Discriminating Sensor - Left-Low Reference



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



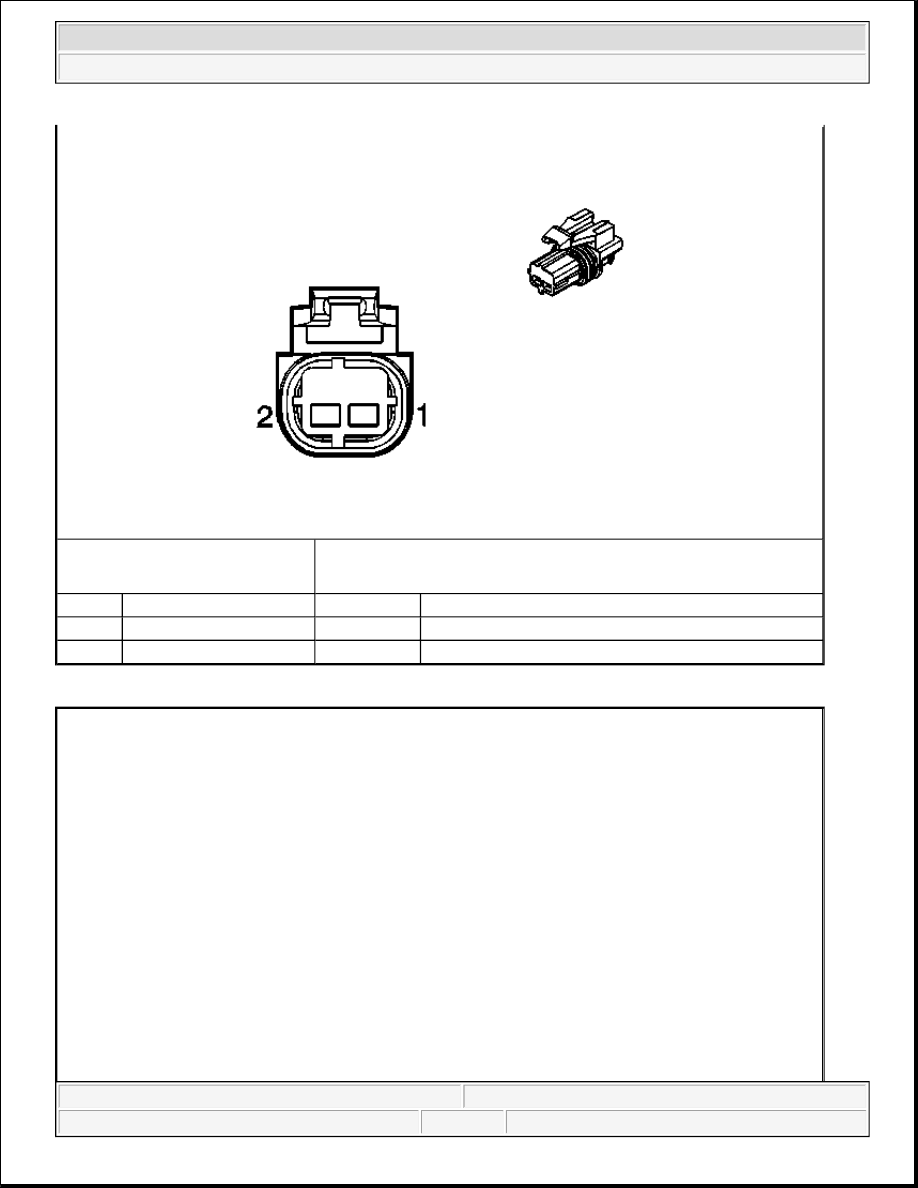

Inflatable Restraint I/P Module Disable Switch Terminal Identification

Connector Part Information

z

15356718

z

2-Way F GT 150 Sealed 4.0 (YE)

Pin

Wire Color

Circuit No.

Function

1

WH/BK

2611

Discriminating Sensor - Right - Signal

2

PU

2612

Discriminating Sensor - Right - Low Reference



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



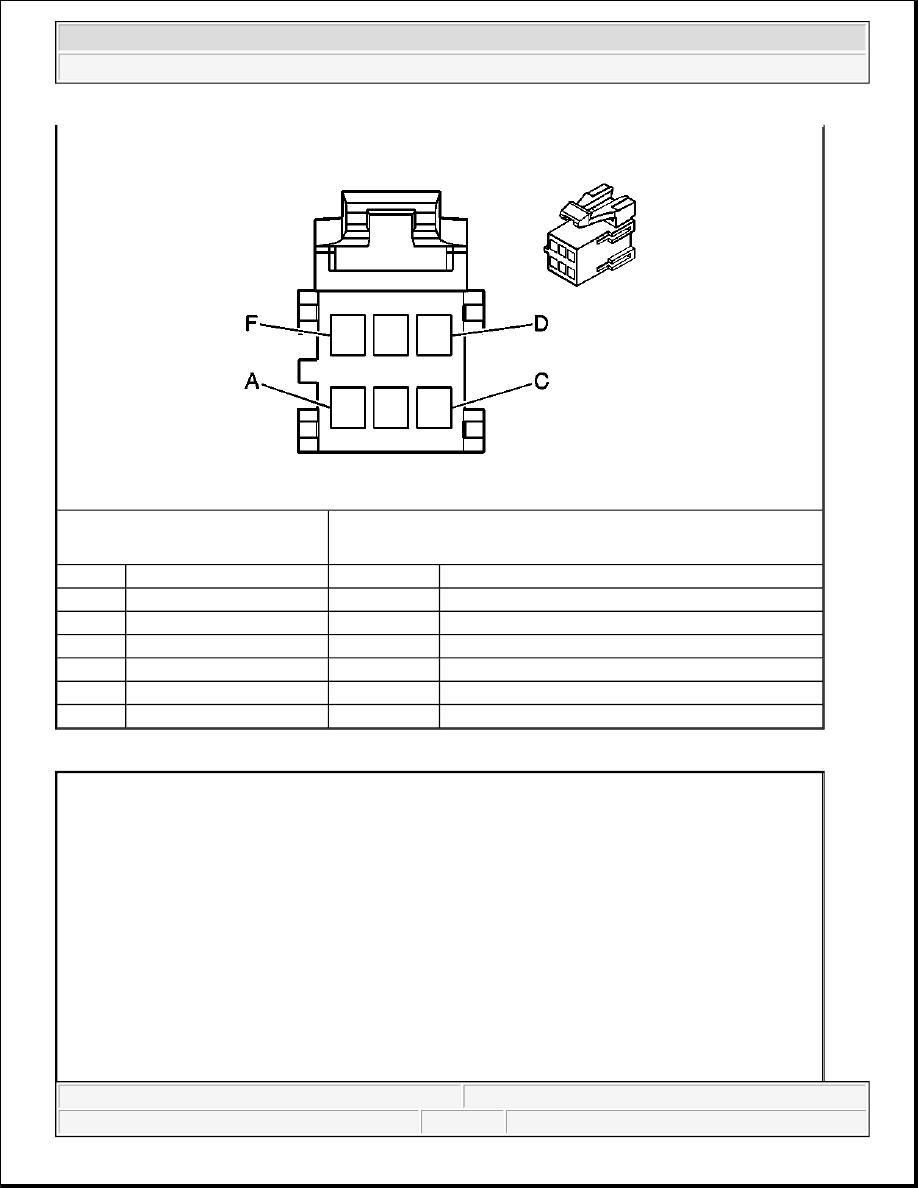

Inflatable Restraint I/P Module Terminal Identification

Connector Part Information

z

15305286

z

6-Way F Metri-Pack 150 Series (YE)

Pin

Wire Color

Circuit No.

Function

A

TN/BK

371

I/P Module Disable Switch - Signal

B

YE

1139

Ignition 1 Voltage

C

BN

2409

Interior Park Lamps Supply Voltage

D

BN/WH

230

Instrument Panel Lamps Dimming Control

E

PK

353

I/P Module Suppression Indicator Control

F

BK

1050

Ground
