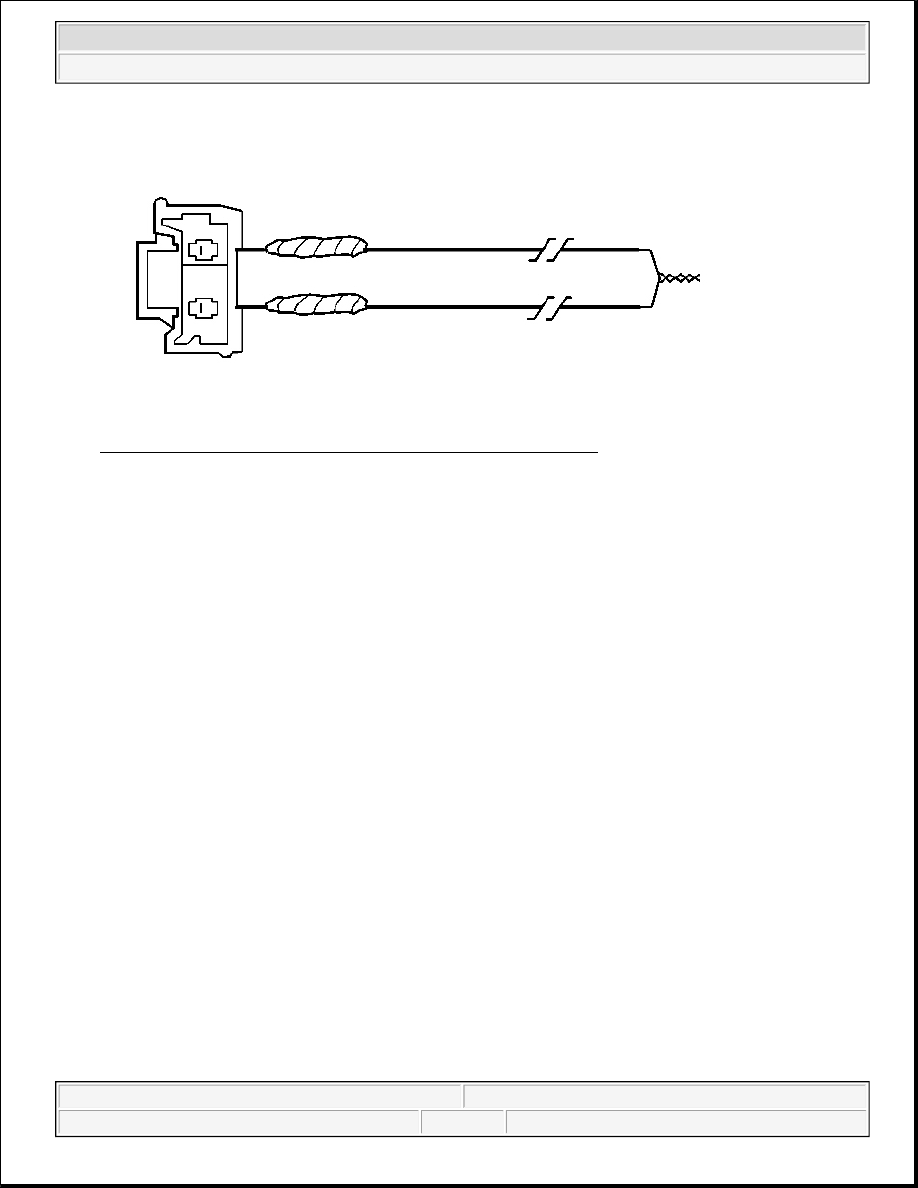

Fig. 82: View Of Insulated Connector Wire To Deployment Wire
Courtesy of GENERAL MOTORS CORP.

29. Twist together, bend, and tape the remaining connector wire lead to the remaining deployment wire.

30. Inspect that the connection is secure.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



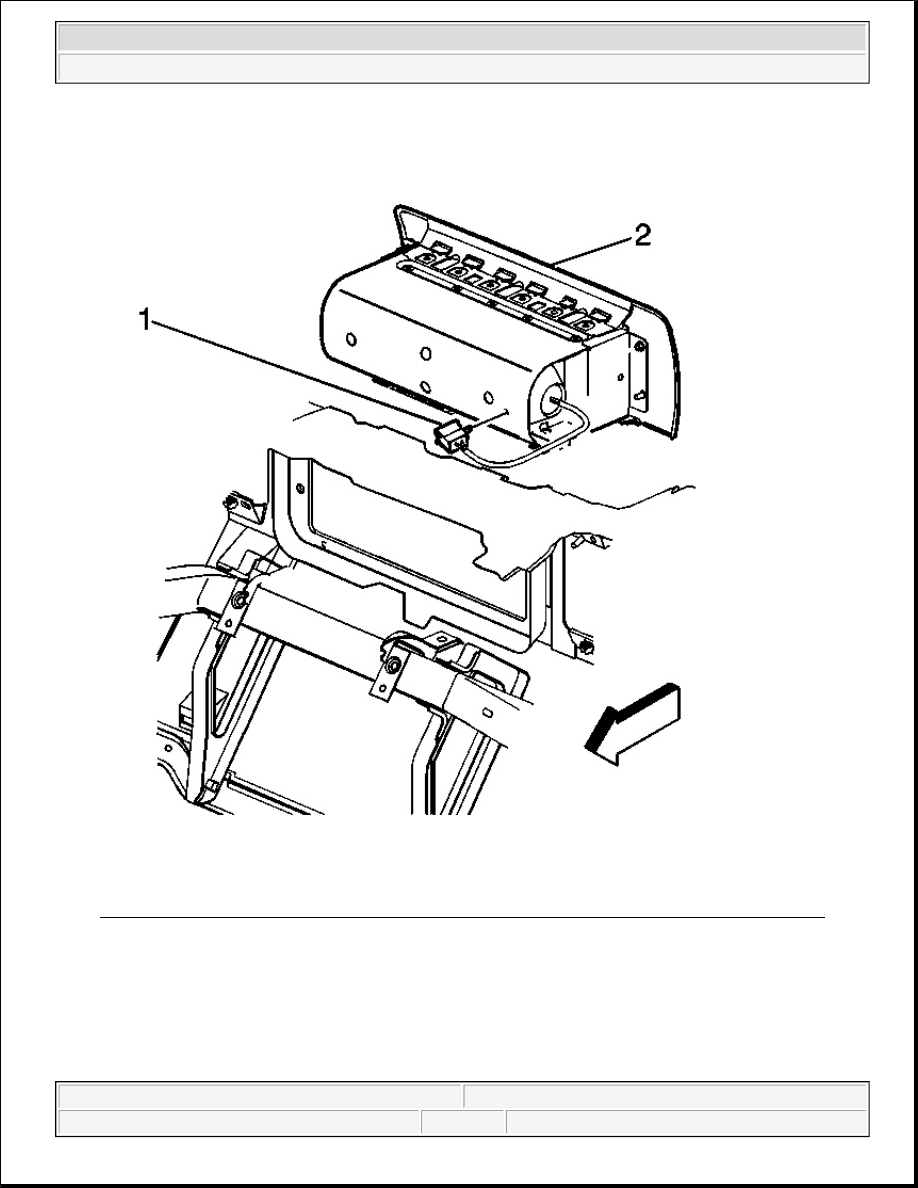

Fig. 83: Connector Position Assurance (CPA) & I/P Module Yellow 4-Way Connector - Zone 5
Courtesy of GENERAL MOTORS CORP.

31. Connect the deployment harness to the I/P module connector (1).

32. Route the deployment harness out of the vehicle's passenger side.

33. Stretch out all of the deployment harness wires on the left and right side of the vehicle to their full length.

34. Completely cover the windshield and front door window openings with a drop cloth.

35. Place a power source, 12 V minimum/2 A minimum, i.e., a vehicle battery, near the shorted ends of the



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



deployment harnesses.

36. Separate one set of wires and touch the wire ends to the power source in order to deploy the inflator

modules.

37. Disconnect the deployment harness from the power source and twist the wire ends together.

38. Continue the same process with the remaining deployment harnesses that are available.

39. Remove the drop cloth from the vehicle.

40. Disconnect all harnesses from the vehicle.

41. Discard the harnesses.

42. Scrap the vehicle in the same manner as a non-SIR equipped vehicle.

43. If one or more of the inflator modules did not deploy, perform the following steps to remove the

undeployed modules from the vehicle:

z

If the steering wheel module did not deploy, refer to Inflatable Restraint Steering Wheel Module
Replacement .

z

If the IP module did not deploy, refer to Inflatable Restraint Instrument Panel Module
Replacement .

44. Call the Technical Assistance Group for further assistance.

DESCRIPTION AND OPERATION

SIR SYSTEM DESCRIPTION AND OPERATION

SIR System Overview

The supplemental inflatable restraint (SIR) system supplements the protection offered by the occupant's seat
belt system (2). The SIR system may contain several inflator modules located throughout the vehicle, i.e.
steering wheel module (1) and instrument panel (I/P) module (1).Each inflator module has a deployment loop
that is controlled by the sensing and diagnostic module (SDM) mounted inside the vehicle. The SDM
determines the severity of a collision with the assistance of various sensor inputs. When the SDM detects a
collision of sufficient force it will process the information provided by the sensors to further support air bag
deployment. The SDM performs continuous diagnostic monitoring of the SIR system electrical components.
Upon detection of a circuit malfunction, the SDM will set a DTC and inform the driver by turning the AIR
BAG indicator ON. The steering column (1) and knee bolsters (3) are designed to absorb energy and compress
during frontal collisions in order to limit leg movement and decrease the chance of injury to the driver and
passenger.

IMPORTANT: The inflator module will deploy when the wire ends contact the power

source.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



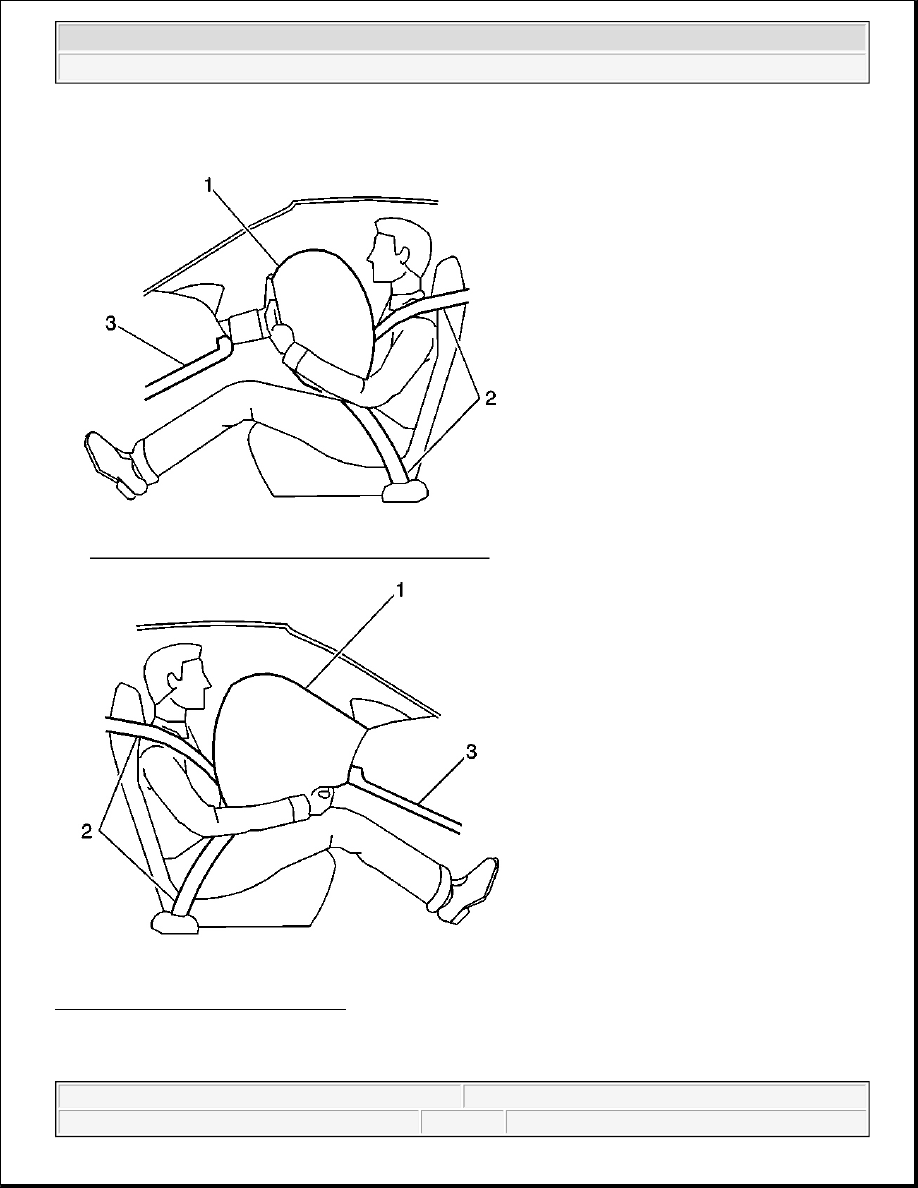

Fig. 84: Deployed Inflatable Restraint
Courtesy of GENERAL MOTORS CORP.

Frontal SIR System Description



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2
