Fig. 69: Disposing Of Deployed Inflator Module
Courtesy of GENERAL MOTORS CORP.

22. Put on a pair of shop gloves.

23. Disconnect the pigtail adapter from the inflator module as soon as possible.

24. Dispose of the deployed inflator module through normal refuse channels.

25. Wash hands with a mild soap.

Deployment Inside Vehicle-Vehicle Scrapping Procedures

Deploy inflator modules inside of the vehicle when destroying the vehicle or when salvaging the vehicle for
parts. This includes but is not limited to the following situations:



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



z

The vehicle has completed its useful life.

z

Irreparable damage occurs to the vehicle in a non-deployment type accident.

z

Irreparable damage occurs to the vehicle during a theft.

z

The vehicle is being salvaged for parts to be used on a vehicle with a different VIN as opposed to
rebuilding as the same VIN.

CAUTION: Refer to SIR Inflatable Module Deployment Outside Vehicle Caution in

Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

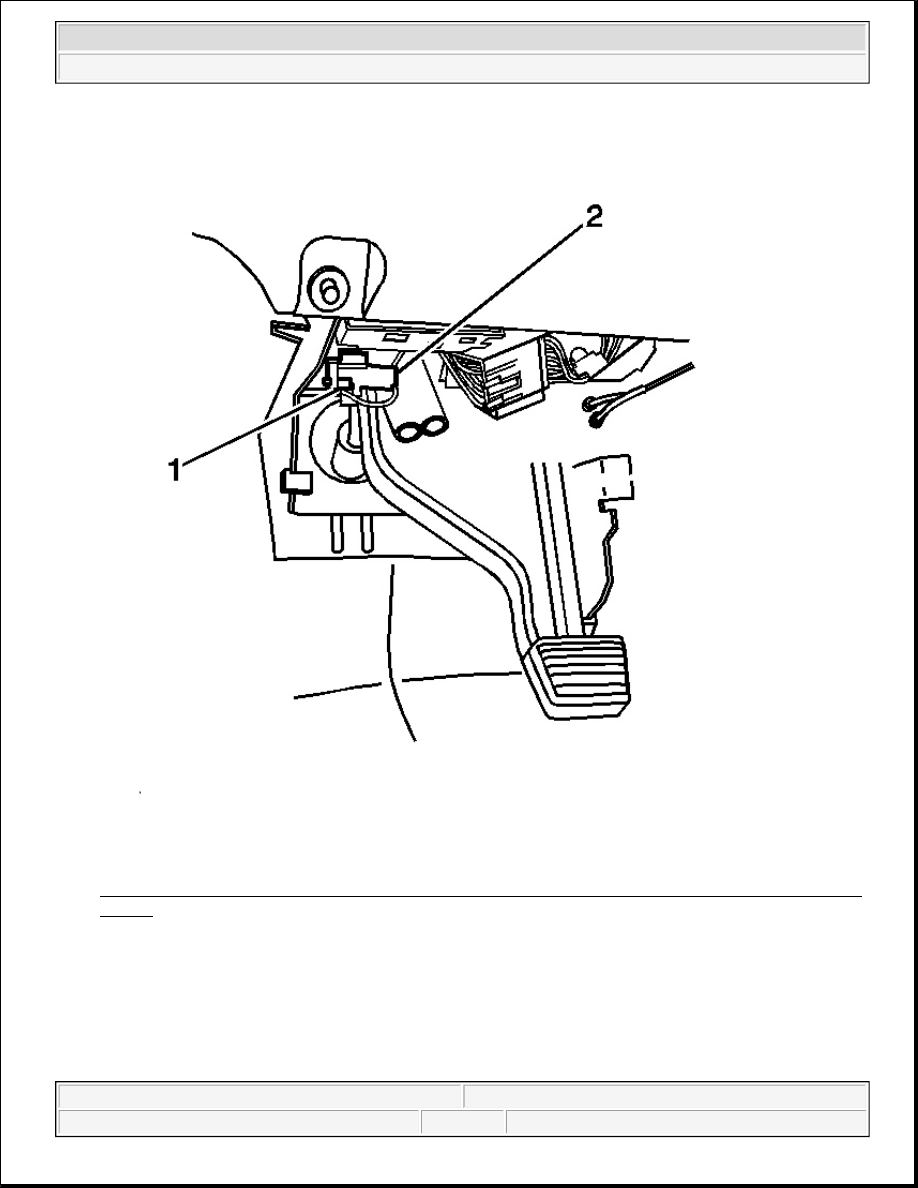

Fig. 70: Connector Position Assurance (CPA) & Steering Wheel Module Yellow 4-Way Connector -
Zone 7
Courtesy of GENERAL MOTORS CORP.

1. Turn OFF the ignition.

2. Remove the ignition key.

3. Put on safety glasses.

4. Remove all loose objects from the front seats.

5. Disconnect the inflatable restraint steering wheel module connector (2) located next to the steering



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



column.

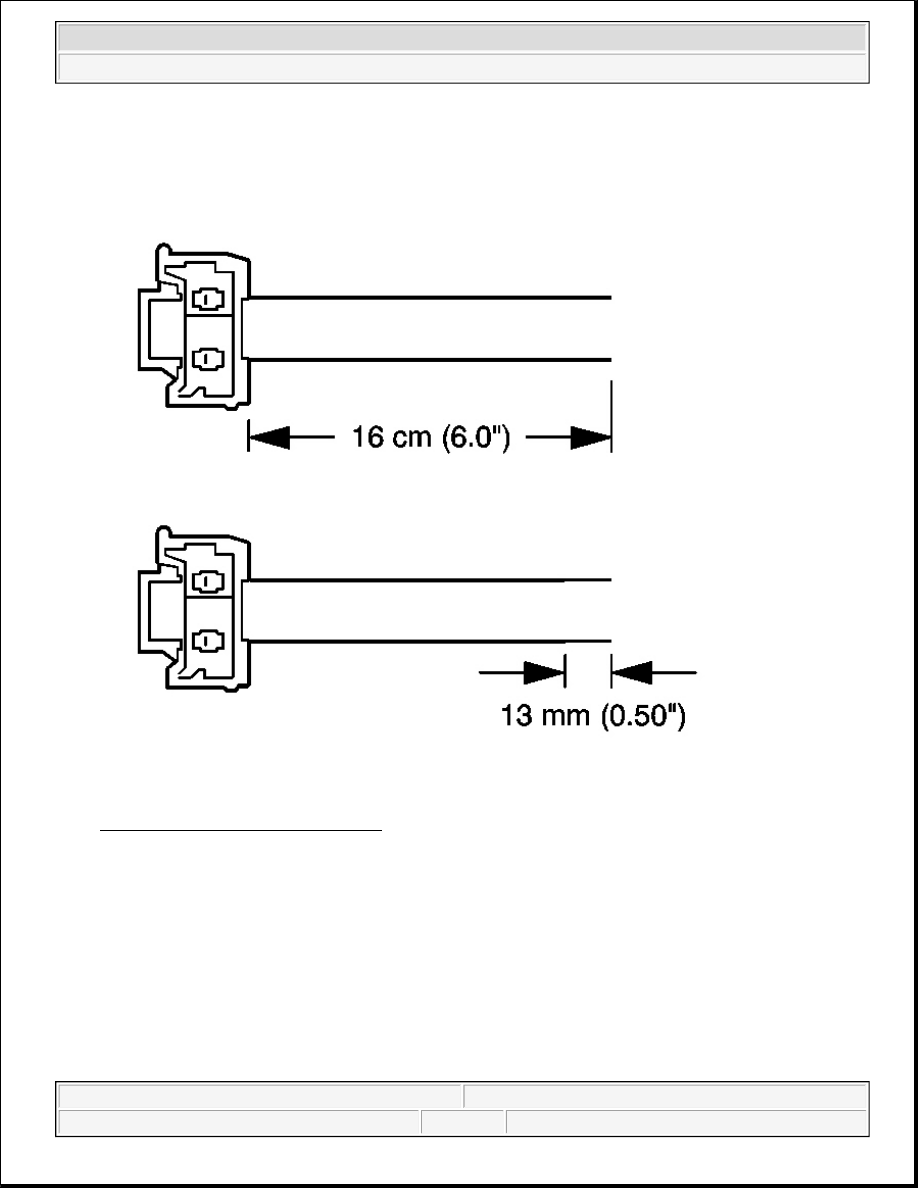

Fig. 71: Measuring Connector Wires
Courtesy of GENERAL MOTORS CORP.

6. Cut the steering wheel module harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire

at the connector.

7. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
